PHG.0B Series

Manufacturer: LEMO

Catalog

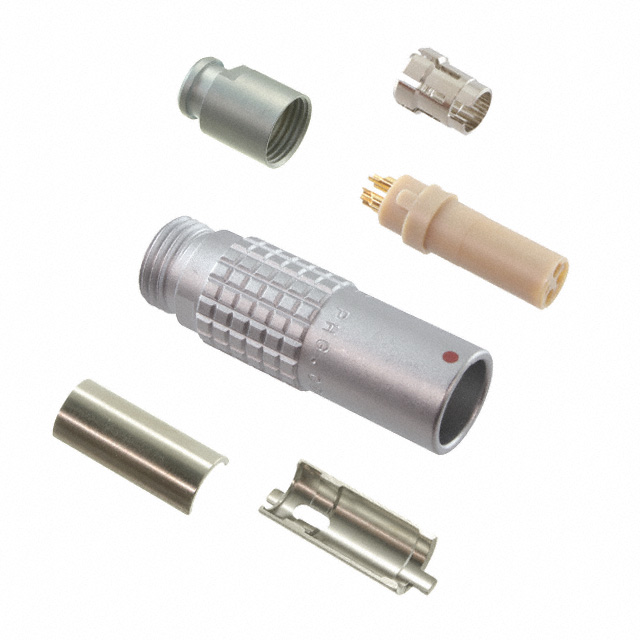

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Shell Material	Ingress Protection	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Current Rating (Amps)	Color	Shell Size - Insert	Fastening Type	Backshell Material, Plating	Primary Material	Orientation	Shielding	Mounting Type	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Connector Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PHG.0B.304.CLLD42	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	7 A	Silver	304	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze	0.126 in	4.2 mm	0.165 in	3.2 mm	UL94 V-0	Receptacle Female Sockets	4
LEMO PHG.0B.304.CLLZ	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	7 A	Silver	304	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets	4
LEMO PHG.0B.307.CLLD42Z	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	2.5 A	Silver	307	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze	0.126 in	4.2 mm	0.165 in	3.2 mm	UL94 V-0	Receptacle Female Sockets	7
LEMO PHG.0B.307.CLLD21	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	2.5 A	Silver	307	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets	7	1.4 mm 2.2 mm	0.055 in 0.087 in
LEMO PHG.0B.302.CYMD21	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	10 A	Silver	302	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets	2	1.4 mm 2.2 mm	0.055 in 0.087 in	Crimp
LEMO PHG.0B.304.CLLD42Z	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	7 A	Silver	304	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze	0.126 in	4.2 mm	0.165 in	3.2 mm	UL94 V-0	Receptacle Female Sockets	4
LEMO PHG.0B.305.CLLD31Z	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	6.5 A	Silver	305	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets		2.3 mm 3.2 mm	0.091 in 0.126 in
LEMO PHG.0B.305.CLLD42Z	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	6.5 A	Silver	305	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze	0.126 in	4.2 mm	0.165 in	3.2 mm	UL94 V-0	Receptacle Female Sockets
LEMO PHG.0B.303.CLLD35	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	8 A	Silver	303	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets					3.3 mm 4.2 mm	0.13 in 0.165 in
LEMO PHG.0B.305.CLLD56Z	Brass	IP50	Polyetheretherketone (PEEK)	-55 °C	250 °C	Chrome	Gold	59 Áin	1.5 Ám	Backshell	6.5 A	Silver	305	Push-Pull	Brass Chrome	Metal	G	Shielded	Free Hanging (In-Line)	Bronze					UL94 V-0	Receptacle Female Sockets							0.22 in	5.3 mm	5.6 mm	0.209 in
