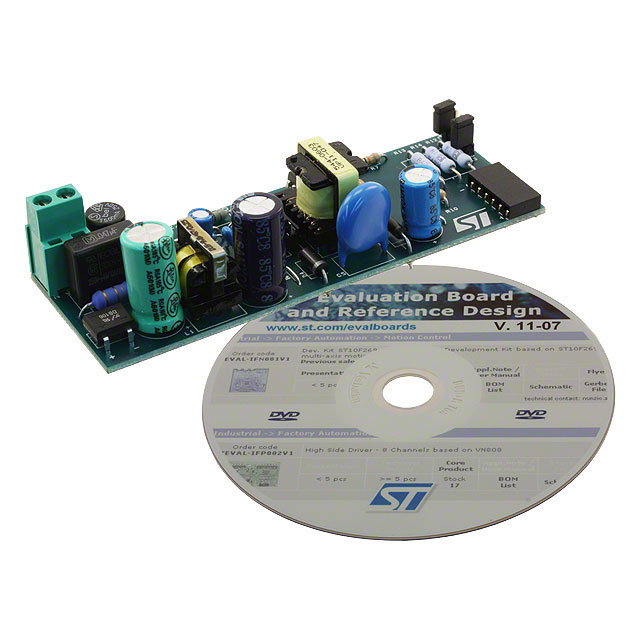

STEVAL-ILL005V1

Obsolete

EVAL BOARD FOR VIPER12A

Search across all available documentation for this part.

Development Boards, Kits, Programmers

Obsolete

EVAL BOARD FOR VIPER12A

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Supplier Device Package	Voltage - Breakdown	Mounting Type	Package / Case	Package / Case	Package / Case	Output Isolation	Power (Watts)	Voltage - Start Up	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Fault Protection	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Contents	Outputs and Type	Current - Output / Channel	Utilized IC / Part	Supplied Contents	Outputs and Type
STMicroelectronics VIPER12AS	150 °C	-40 °C	60 kHz	8-SOIC	730 V	Surface Mount	0.154 in	8-SOIC	3.9 mm	Non-Isolated	8 W	14.5 V	9 V	38 V	Current Limiting Over Temperature Over Voltage

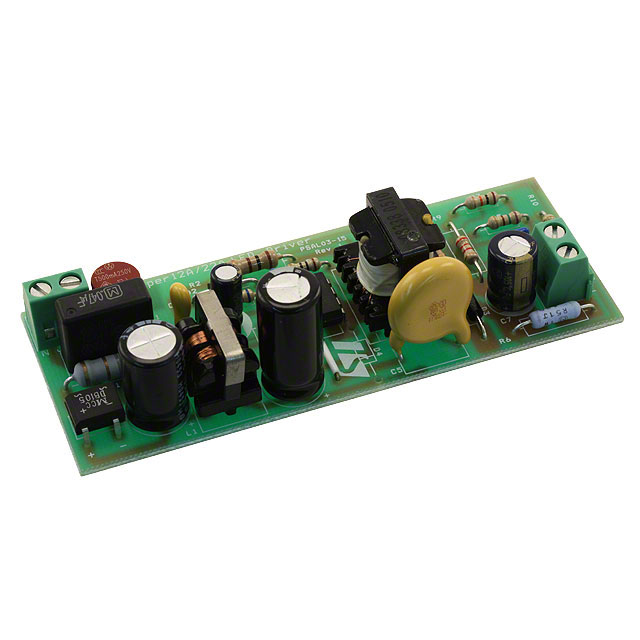

STMicroelectronics VIPER12-LED-EV																264 VAC	90 VAC	14 V	Board(s)	1 Isolated Output	1.05 A 350 mA 700 mA	VIPer12A
STMicroelectronics STEVAL-ILL005V1																264 VAC	90 VAC	16 V	Board(s)	1 Isolated Output Isolated	1.05 A 350 mA 700 mA		Board(s)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

VIPer12A-E 1, Isolated Outputs LED Driver Evaluation Board
