Fans, Blowers, Thermal Management

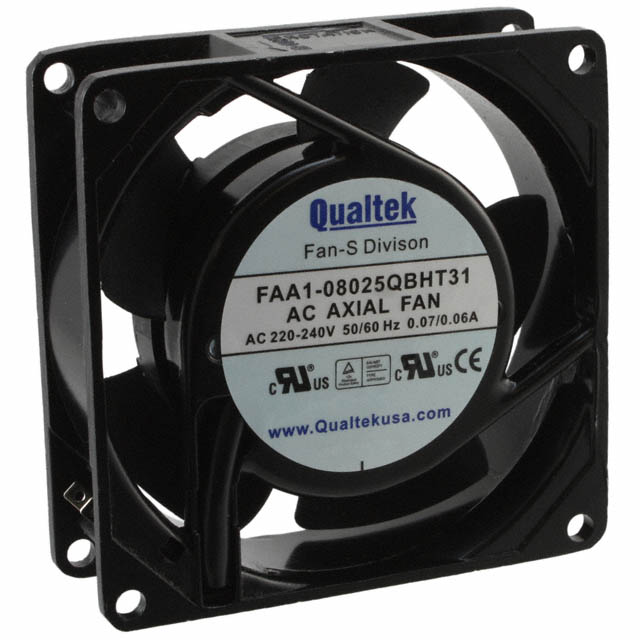

FAA1-08025QBHT31

Active

FAN AXIAL 80X25MM 230VAC TERM

Search across all available documentation for this part.

Fans, Blowers, Thermal Management

Active

FAN AXIAL 80X25MM 230VAC TERM

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Approval Agency	Weight	Weight	Noise	Fan Type	Air Flow	Air Flow	Power (Watts)	Width [y]	Bearing Type	Static Pressure	Static Pressure	Termination	Termination
Qualtek FAA1-08025QBHT31	Plastic	Aluminum	60 mA	230 VAC	80 mm	80 mm	70 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	10 W	25 mm	Ball	31.1 Pa	0.125 in H2O	2
Qualtek FAA1-08025NBMT31	Plastic	Aluminum	0.055 A	115 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	5 W	25 mm	Ball	29.4 Pa	0.118 in H2O	2
Qualtek FAA1-08025QBMT31	Plastic	Aluminum	0.055 A	230 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	11 W	25 mm	Ball	29.4 Pa	0.118 in H2O	2
Qualtek FAA1-08025NBMW31	Plastic	Aluminum	0.055 A	115 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	5 W	25 mm	Ball	29.4 Pa	0.118 in H2O		2 Wire Leads
Qualtek FAA1-08025NSHW31	Plastic	Aluminum	60 mA	115 VAC	80 mm	80 mm	60 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	7 W	25 mm	Sleeve	31.1 Pa	0.125 in H2O		2 Wire Leads
Qualtek FAA1-08025NBHW31	Plastic	Aluminum	60 mA	115 VAC	80 mm	80 mm	70 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	7 W	25 mm	Ball	31.1 Pa	0.125 in H2O		2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 21.0 CFM (0.588m³/min) 2 Terminals
