FAA1-08025 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 80X25MM 230VAC TERM

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Approval Agency	Weight	Weight	Noise	Fan Type	Air Flow	Air Flow	Power (Watts)	Width [y]	Bearing Type	Static Pressure	Static Pressure	Termination	Termination
Qualtek FAA1-08025QBHT31	Plastic	Aluminum	60 mA	230 VAC	80 mm	80 mm	70 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	10 W	25 mm	Ball	31.1 Pa	0.125 in H2O	2
Qualtek FAA1-08025NBMT31	Plastic	Aluminum	0.055 A	115 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	5 W	25 mm	Ball	29.4 Pa	0.118 in H2O	2
Qualtek FAA1-08025QBMT31	Plastic	Aluminum	0.055 A	230 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	11 W	25 mm	Ball	29.4 Pa	0.118 in H2O	2

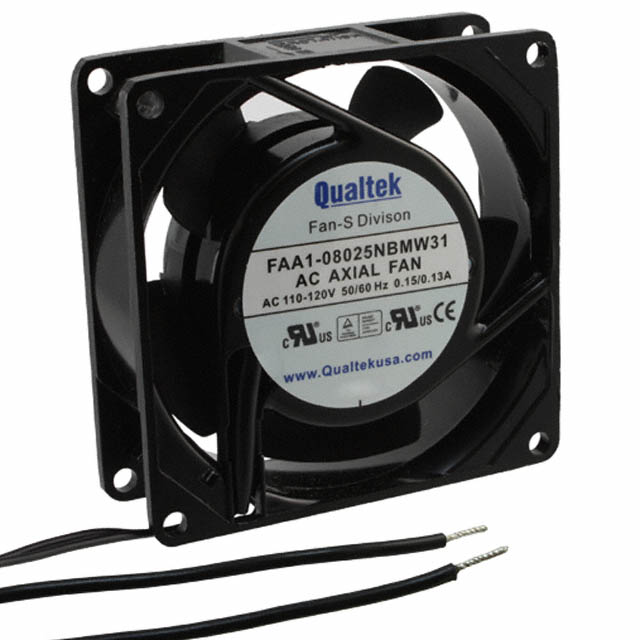

Qualtek FAA1-08025NBMW31	Plastic	Aluminum	0.055 A	115 VAC	80 mm	80 mm	70 °C	-10 °C	2500 RPM	CE cURus TUV	210.01 g	0.463 lb	24 dB	Tubeaxial	19 CFM	0.532 m³/min	5 W	25 mm	Ball	29.4 Pa	0.118 in H2O		2 Wire Leads
Qualtek FAA1-08025NSHW31	Plastic	Aluminum	60 mA	115 VAC	80 mm	80 mm	60 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	7 W	25 mm	Sleeve	31.1 Pa	0.125 in H2O		2 Wire Leads

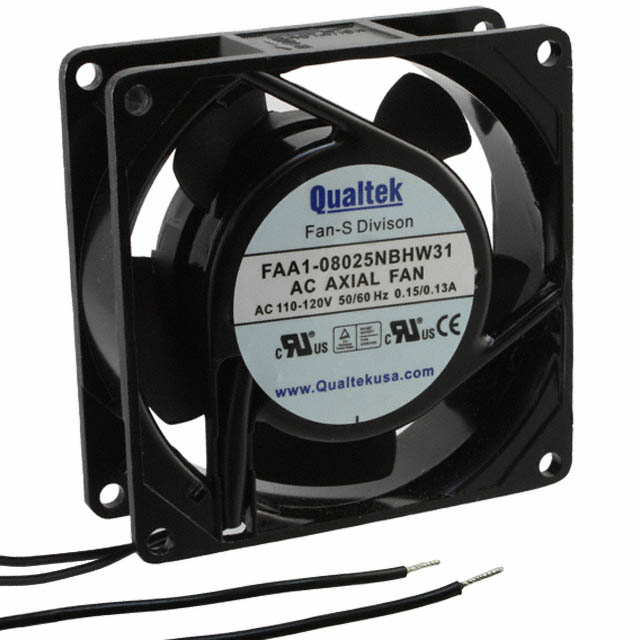

Qualtek FAA1-08025NBHW31	Plastic	Aluminum	60 mA	115 VAC	80 mm	80 mm	70 °C	-10 °C	2800 RPM	CE cURus TUV	210.01 g	0.463 lb	27.8 dB(A)	Tubeaxial	21 CFM	0.588 m³/min	7 W	25 mm	Ball	31.1 Pa	0.125 in H2O		2 Wire Leads
