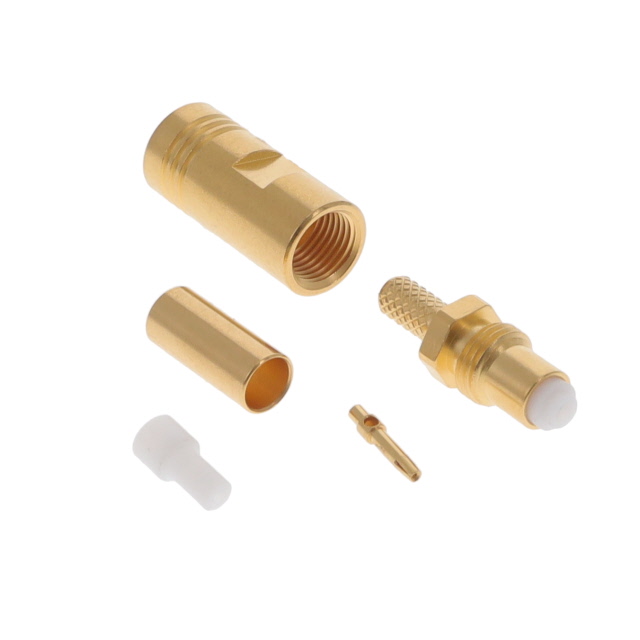

SMB F STR CR 2/50

Search across all available documentation for this part.

Connectors, Interconnects

Active

SMB F STR CR 2/50

Technical Specifications

Parameters and characteristics for this part

Specification	R114075000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179, RG-316, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Insulator, 1 Ferrule, 1 Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Dielectric Material	Mating Cycles	Voltage Rating	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Material	Impedance	Contact Termination	Frequency - Max [Max]	Mounting Type	Fastening Type	Number of Ports	Cable Group	Cable Group	Connector Style	Shield Termination	Connector Type	Housing Color	Includes
Radiall USA, Inc. R114073000	Polytetrafluoroethylene (PTFE)	500	1000 VDC	Gold	Gold	-65 ░C	165 °C	Brass	Beryllium Copper	50 Ohms	Crimp	4 GHz	Free Hanging (In-Line)	Snap-On	1	196	RG-178	SMB	Crimp	Female Socket Plug	Gold
Radiall USA, Inc. R114075000W	Polytetrafluoroethylene (PTFE)	500	335 V	Gold	Gold	-65 ░C	165 °C	Brass	Beryllium Copper	50 Ohms	Crimp	4 GHz	Free Hanging (In-Line)	Snap-On	1		187 188 316 RG-179	SMB	Crimp	Female Socket Plug	Gold
Radiall USA, Inc. R114075000	Polytetrafluoroethylene (PTFE)	500	335 V	Gold	Gold	-65 ░C	165 °C	Brass	Beryllium Copper	50 Ohms	Crimp	4 GHz	Free Hanging (In-Line)	Snap-On	1		RG-174 RG-179 RG-316	SMB	Crimp	Female Socket Plug	Gold	1 Connector 1 Contact 1 Ferrule 1 Insulator
