R11407 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

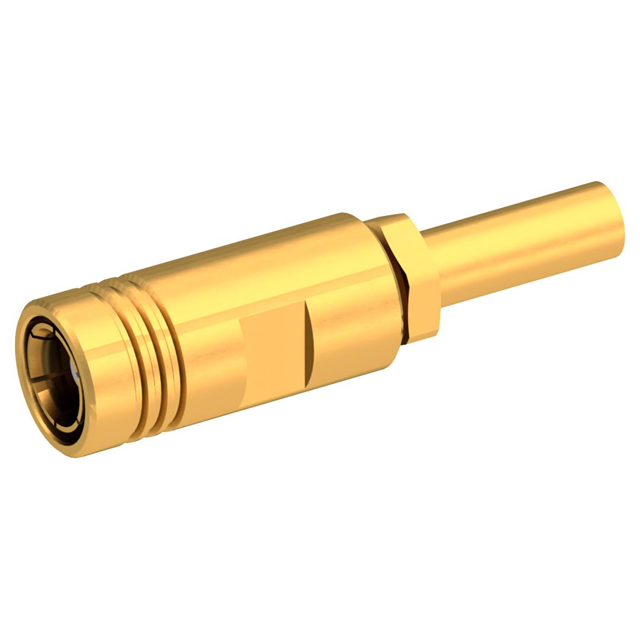

SMB / STRAIGHT PLUG CRIMP TYPE C
| Part | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Material | Impedance | Contact Termination | Frequency - Max [Max] | Mounting Type | Fastening Type | Number of Ports | Cable Group | Cable Group | Connector Style | Shield Termination | Connector Type | Housing Color | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 1000 VDC | Gold | Gold | -65 ░C | 165 °C | Brass | Beryllium Copper | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) | Snap-On | 1 | 196 | RG-178 | SMB | Crimp | Female Socket Plug | Gold | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Gold | Gold | -65 ░C | 165 °C | Brass | Beryllium Copper | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) | Snap-On | 1 | 187 188 316 RG-179 | SMB | Crimp | Female Socket Plug | Gold | ||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | 335 V | Gold | Gold | -65 ░C | 165 °C | Brass | Beryllium Copper | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) | Snap-On | 1 | RG-174 RG-179 RG-316 | SMB | Crimp | Female Socket Plug | Gold | 1 Connector 1 Contact 1 Ferrule 1 Insulator |
