ELSH-F41R1-0LPNM-AR5R6

Active

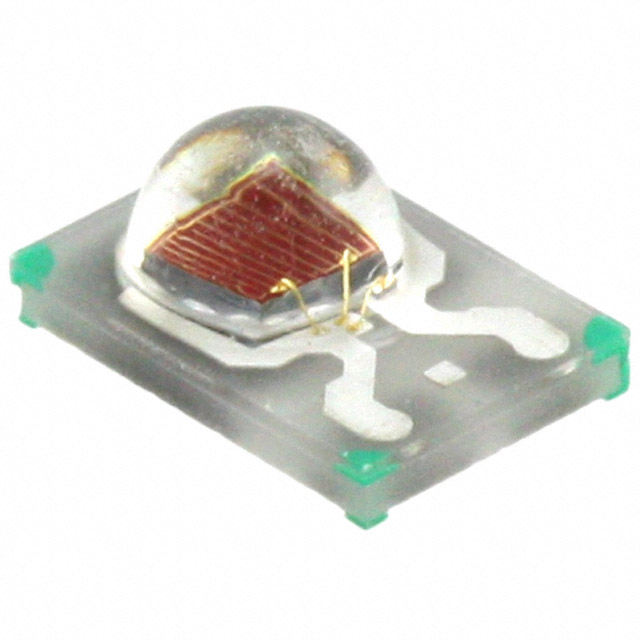

LED SHUEN RED 625NM SMD

Search across all available documentation for this part.

Optoelectronics

Active

LED SHUEN RED 625NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-F41R1-0LPNM-AR5R6

Color	Red
Current - Max [Max]	600 mA
Current - Test	350 mA
Height - Seated (Max)	2.15 mm
Height - Seated (Max) [Max]	0.085 in
Lumens/Watt @ Current - Test	60 lm/W
Luminous Flux @ Current/Temperature	49 lm
Luminous Flux @ Current/Temperature [Max]	52 lm
Luminous Flux @ Current/Temperature [Min]	45 lm
Mounting Type	Surface Mount
Package / Case	1218 (3246 Metric)
Size / Dimension [x]	0.12 inches
Size / Dimension [x]	3.05 mm
Size / Dimension [y]	4.5 mm
Size / Dimension [y]	0.177 "
Supplier Device Package	SMD
Temperature - Test	25 °C
Thermal Resistance of Package	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.35 V
Wavelength	625 nm
Wavelength [Max]	630 nm
Wavelength [Min]	620 nm

Part	Thermal Resistance of Package	Temperature - Test	Viewing Angle	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)	Wavelength [Max]	Wavelength	Wavelength [Min]	Current - Max [Max]	Mounting Type	Current - Test	Package / Case	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Lumens/Watt @ Current - Test	Color
Everlight Electronics Co Ltd ELSH-F41O1-0LPNM-AR3R4	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	620 nm	615 nm	610 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W
Everlight Electronics Co Ltd ELSH-F41Y1-0LPNM-AA4A6	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	595 nm	591 nm	588 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Amber
Everlight Electronics Co Ltd ELSH-F41Y1-0LPNM-AA3A5	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	593 nm	589 nm	585 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Amber
Everlight Electronics Co Ltd ELSH-F41R1-0LPNM-AR5R6	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	630 nm	625 nm	620 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color SHUEN Red 625nm (620nm ~ 630nm) 1218 (3246 Metric)
