ELSH-F41 Series

Catalog

LED SHUEN ORANGE 615NM SMD

Part	Thermal Resistance of Package	Temperature - Test	Viewing Angle	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)	Wavelength [Max]	Wavelength	Wavelength [Min]	Current - Max [Max]	Mounting Type	Current - Test	Package / Case	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Lumens/Watt @ Current - Test	Color

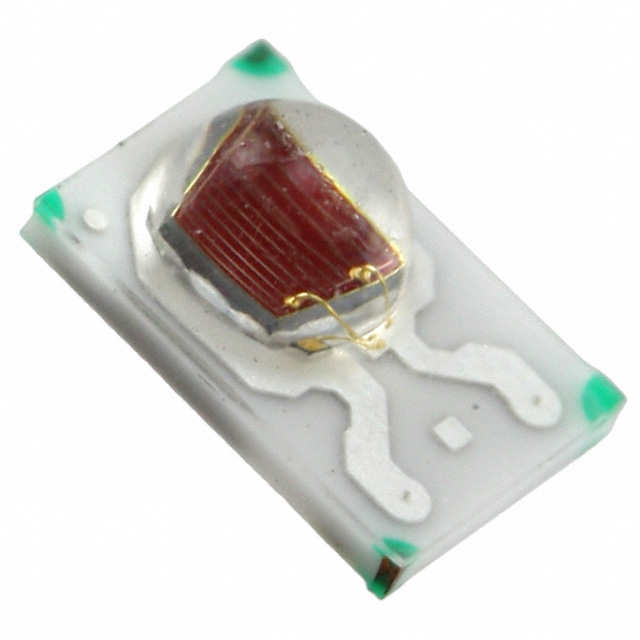

Everlight Electronics Co Ltd ELSH-F41O1-0LPNM-AR3R4	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	620 nm	615 nm	610 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W
Everlight Electronics Co Ltd ELSH-F41Y1-0LPNM-AA4A6	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	595 nm	591 nm	588 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Amber
Everlight Electronics Co Ltd ELSH-F41Y1-0LPNM-AA3A5	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	593 nm	589 nm	585 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Amber
Everlight Electronics Co Ltd ELSH-F41R1-0LPNM-AR5R6	12 °C/W	25 °C	120 °	SMD	2.35 V	0.12 inches	4.5 mm	3.05 mm	0.177 "	0.085 in	2.15 mm	630 nm	625 nm	620 nm	600 mA	Surface Mount	350 mA	1218 (3246 Metric)	52 lm	49 lm	45 lm	60 lm/W	Red
