Connectors, Interconnects

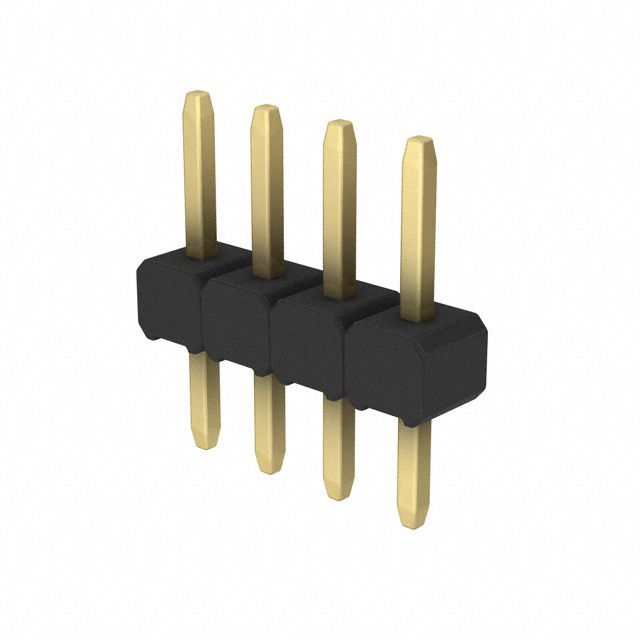

A4B-4PA-2DSA(71)

Obsolete

Hirose Electric Co Ltd

CONN HEADER VERT 4POS 2MM

Deep-Dive with AI

DocumentsA4B-xPA-2DSA(71) Spec Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A4B-4PA-2DSA(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post [custom]	78.7 µin
Contact Finish Thickness - Post [custom]	2 µm
Contact Length - Mating	3.5 mm
Contact Length - Mating	0.138 in
Contact Length - Post	2.6 mm
Contact Length - Post	0.102 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.8 mm
Insulation Height	0.071 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 C
Overall Contact Length	7.9 mm
Overall Contact Length	0.311 in
Pitch - Mating	0.079 "
Pitch - Mating	2 mm
Shrouding	Unshrouded
Style	Cable, Board to Board
Termination	Solder
Voltage Rating	200 V

A4B-4PA Series

Part	Style	Insulation Material	Insulation Color	Shrouding	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Mating	Fastening Type	Number of Positions	Contact Shape	Material Flammability Rating	Number of Rows	Contact Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd A4B-4PA-2DS(51)	Board to Board Cable	Nylon Polyamide (PA)	Black	Unshrouded	200 VAC	3.5 mm	0.138 in	All	0.079 "	2 mm	2.6 mm	0.102 in	Brass	Gold	Push-Pull	4	Square	UL94 V-0	1	Male Pin	2 mm	0.079 in	Right Angle Through Hole	Kinked Pin Solder	Header	-55 C	85 °C
Hirose Electric Co Ltd A4B-4PA-2DS(71)	Board to Board Cable	Nylon Polyamide (PA)	Black	Unshrouded	200 V	3.5 mm	0.138 in	All	0.079 "	2 mm	2.6 mm	0.102 in	Brass	Gold	Push-Pull	4	Square	UL94 V-0	1	Male Pin	2 mm	0.079 in	Right Angle Through Hole	Kinked Pin Solder	Header	-55 C	85 °C	78.7 µin	2 µm	2 A	Tin	Flash
Hirose Electric Co Ltd A4B-4PA-2DSA(71)	Board to Board Cable	Nylon Polyamide (PA)	Black	Unshrouded	200 V	3.5 mm	0.138 in	All	0.079 "	2 mm	2.6 mm	0.102 in	Brass	Gold	Push-Pull	4	Square	UL94 V-0	1	Male Pin			Through Hole	Solder	Header	-55 C	85 °C	78.7 µin	2 µm	2 A	Tin	Flash	1.8 mm	0.071 in	7.9 mm	0.311 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.27

Description

General part information

A4B-4PA Series

Connector Header Through Hole 4 position 0.079" (2.00mm)

Documents

Technical documentation and resources

A4B-xPA-2DSA(71) Spec

Datasheet
