Connectors, Interconnects

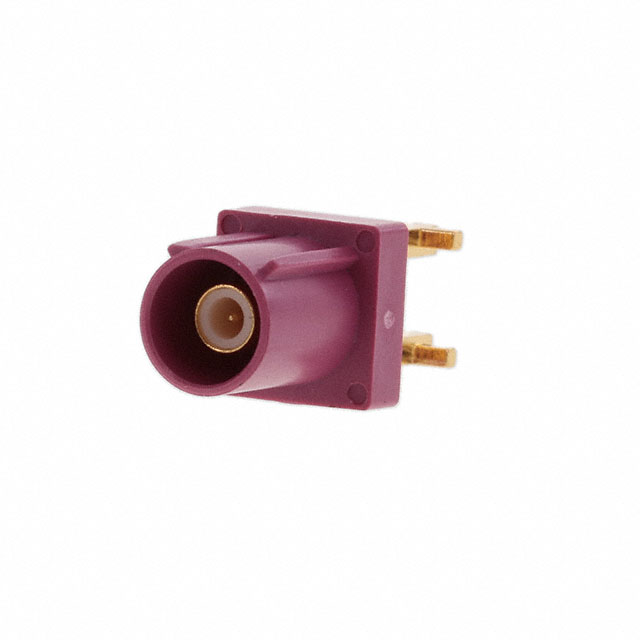

RF55-23H-T-00-50-G-A-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
RF55-23H-T-00-50-G-A-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-23H-T-00-50-G-A-SH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code H |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Violet |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
RF55-23 Series
| Part | Body Material | Number of Ports | Housing Color | Contact Termination | Features | Connector Style | Dielectric Material | Shield Termination | Impedance | Center Contact Material | Connector Type | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mounting Type | Body Finish | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Brass | 1 | Violet | Solder | Code H | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Green Pastel | Solder | Code N | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Beige | Solder | Code I | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Green | Solder | Code E | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Orange Pastel | Solder | Code M | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Bordeaux Violet | Solder | Code D | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Curry | Solder | Code K | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
 Adam Tech | Brass | 1 | Blue | Solder | Code C | Fakra SMB | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | Brass | Male Pin Plug | 4 GHz | 85 °C | -40 °C | Gold | Through Hole Right Angle | Gold | Locking Ramp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.27 | |
| 10 | $ 2.50 | |||
| 25 | $ 2.25 | |||
| 40 | $ 2.14 | |||
Description
General part information
RF55-23 Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
