RF55-23 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: RIGHT ANGLE
| Part | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Impedance | Connector Style | Features | Shield Termination | Fastening Type | Frequency - Max [Max] | Contact Termination | Number of Ports | Connector Type | Center Contact Material | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code H | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Violet | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code N | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Green Pastel | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code I | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Beige | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code E | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Green | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code M | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Orange Pastel | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code D | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Bordeaux Violet | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code K | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Curry | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code C | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Blue | Right Angle Through Hole |

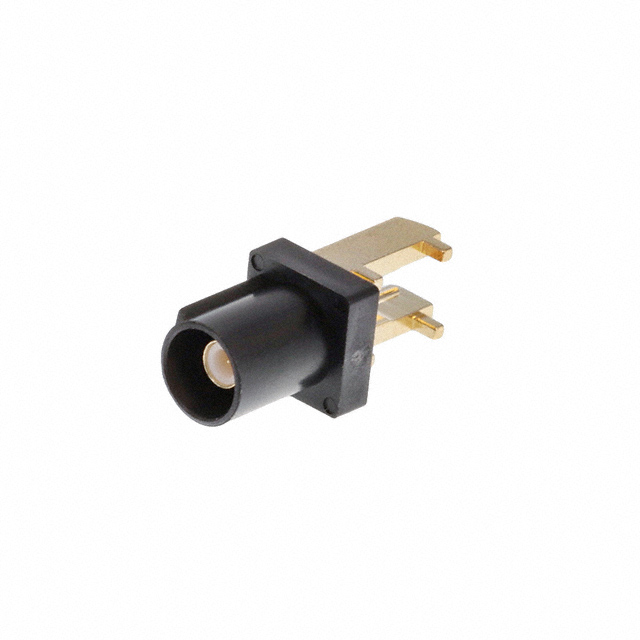

 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code A | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Black | Right Angle Through Hole |
 Adam Tech | Brass | Gold | 85 °C | -40 C | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Fakra SMB | Code L | Solder | Locking Ramp | 4 GHz | Solder | 1 | Plug Male Pin | Brass | Carmine Red | Right Angle Through Hole |
