Optoelectronics

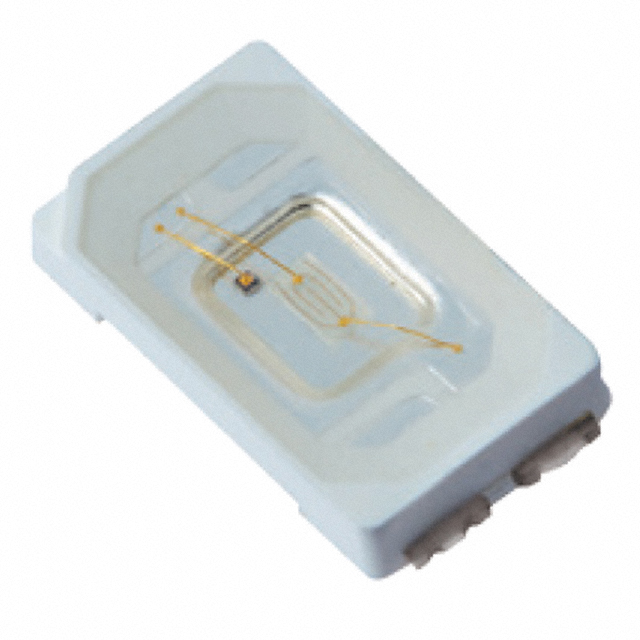

XZCB25X143S

Active

SunLED

LED BLUE 460NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZCB25X143S

Color	Blue
Configuration	Independent
Current - Max [Max]	300 mA
Current - Test	150 mA
Height - Seated (Max) [Max]	1.02 mm
Height - Seated (Max) [Max]	0.04 in
Height (Max) [Max] [z]	1.02 mm
Lens Color	Colorless
Lens Size [x]	4.8 mm
Lens Size [y]	3 mm
Lens Style	Oval with Flat Top
Lens Transparency	Clear
Lumens/Watt @ Current - Test	15 lm/W
Luminous Flux @ Current/Temperature	8 lm
Millicandela Rating	2290 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads, Exposed Pad, Nonstandard SMD
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 ", 5.3 mm
Size / Dimension [y]	0.118 in, 3 mm
Size / Dimension [y]	3 mm
Supplier Device Package	SMD
Temperature - Test	25 °C
Thermal Resistance of Package	60 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength	460 nm
Wavelength - Dominant	460 nm
Wavelength - Peak	452 nm

XZCB25 Series

Part	Lens Style	Millicandela Rating	Supplier Device Package	Mounting Type	Wavelength - Peak	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [z]	Current - Test	Package / Case	Package / Case	Lens Transparency	Configuration	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Height [z]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Luminous Flux @ Current/Temperature	Type	Temperature - Test	Lens Type	Wavelength	Lens Size	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Thermal Resistance of Package	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
SunLED XZCB25X109FS	Round with Flat Top	1295 mcd	2-SMD	Surface Mount	445 nm	2.5 mm	3.5 V	450 nm	1.05 mm	150 mA	3528 Metric	1411	Clear	Standard	Colorless	3.5 mm	2.8 mm	120 °	Blue
SunLED XZCB25X112S7W-A							10.3 V							Linear Light Strip		48 mm	5 mm	120 °	Blue	700 mA	6 lm/W	1.6 mm	3 mm	32.4 mm	41.7 lm	LED Module	25 °C	Flat	460 nm
SunLED XZCB25MO24DG25X111S	Square with Flat Top		SMD	Surface Mount			2.5 V 3.5 V 3.5 V					6-SMD Gull Wing	Clear	Common Anode	Colorless	5 mm	5 mm	120 °	Blue Green Red											4.25 mm	452 nm	515 nm	635 nm	1.3 mm	460 nm	624 nm	525 nm	1590 mcd	4290 mcd	5990 mcd	150 mA	150 mA	150 mA
SunLED XZCB25X143S	Oval with Flat Top	2290 mcd	SMD	Surface Mount	452 nm		3.5 V	460 nm		150 mA		4-SMD Flat Leads Exposed Pad Nonstandard SMD	Clear	Independent	Colorless	0.209 " 5.3 mm	0.118 in 3 mm	120 °	Blue	300 mA	15 lm/W				8 lm		25 °C		460 nm					1.02 mm										60 °C/W	3 mm	4.8 mm	5.3 mm	3 mm	1.02 mm	0.04 in
