XZCB25 Series

Manufacturer: SunLED

Catalog

LED BLUE CLEAR 2SMD

Part	Lens Style	Millicandela Rating	Supplier Device Package	Mounting Type	Wavelength - Peak	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [z]	Current - Test	Package / Case	Package / Case	Lens Transparency	Configuration	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Height [z]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Luminous Flux @ Current/Temperature	Type	Temperature - Test	Lens Type	Wavelength	Lens Size	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Thermal Resistance of Package	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
SunLED XZCB25X109FS	Round with Flat Top	1295 mcd	2-SMD	Surface Mount	445 nm	2.5 mm	3.5 V	450 nm	1.05 mm	150 mA	3528 Metric	1411	Clear	Standard	Colorless	3.5 mm	2.8 mm	120 °	Blue
SunLED XZCB25X112S7W-A							10.3 V							Linear Light Strip		48 mm	5 mm	120 °	Blue	700 mA	6 lm/W	1.6 mm	3 mm	32.4 mm	41.7 lm	LED Module	25 °C	Flat	460 nm

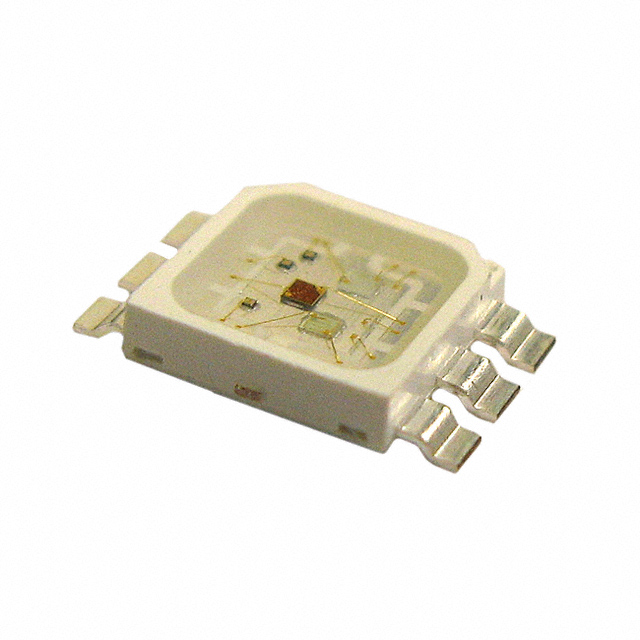

SunLED XZCB25MO24DG25X111S	Square with Flat Top		SMD	Surface Mount			2.5 V 3.5 V 3.5 V					6-SMD Gull Wing	Clear	Common Anode	Colorless	5 mm	5 mm	120 °	Blue Green Red											4.25 mm	452 nm	515 nm	635 nm	1.3 mm	460 nm	624 nm	525 nm	1590 mcd	4290 mcd	5990 mcd	150 mA	150 mA	150 mA
SunLED XZCB25X143S	Oval with Flat Top	2290 mcd	SMD	Surface Mount	452 nm		3.5 V	460 nm		150 mA		4-SMD Flat Leads Exposed Pad Nonstandard SMD	Clear	Independent	Colorless	0.209 " 5.3 mm	0.118 in 3 mm	120 °	Blue	300 mA	15 lm/W				8 lm		25 °C		460 nm					1.02 mm										60 °C/W	3 mm	4.8 mm	5.3 mm	3 mm	1.02 mm	0.04 in
