Technical Specifications
Parameters and characteristics for this part
| Specification | C2422A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.358 in |
| Jacket (Insulation) Diameter [diameter] | 9.09 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.813 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Gray |
| Length | 304.8 m, 152.4 m, 15.24 m |
| Length | 1000 ft, 500 ft, 50 ft |
| Length [x] | 100 ft |
| Length [x] | 30.5 m |
| Number of Conductors | 9 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 ░C |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 982.21 | |
| 0 | $ 982.21 | |||
| 3 | $ 225.56 | |||
| 3 | $ 225.56 | |||
| 6 | $ 118.07 | |||
| 6 | $ 118.07 | |||
| 3000 | $ 1.66 | |||
| 3000 | $ 1.66 | |||
| 39000 | $ 225.56 | |||
| 39000 | $ 1.66 | |||
| 39000 | $ 118.07 | |||
| 39000 | $ 982.21 | |||
| Spool | 1 | $ 359.74 | ||
| 1 | $ 359.74 | |||
| 5 | $ 294.33 | |||
| 5 | $ 294.33 | |||
| 10 | $ 228.92 | |||
| 10 | $ 228.92 | |||
| 1000 | $ 1.79 | |||
| 1000 | $ 1.79 | |||
| 2000 | $ 1.70 | |||
| 2000 | $ 1.70 | |||
| 3000 | $ 1.65 | |||
| 3000 | $ 1.65 | |||
| 5000 | $ 1.58 | |||
| 5000 | $ 1.58 | |||
Description
General part information
C2422 Series

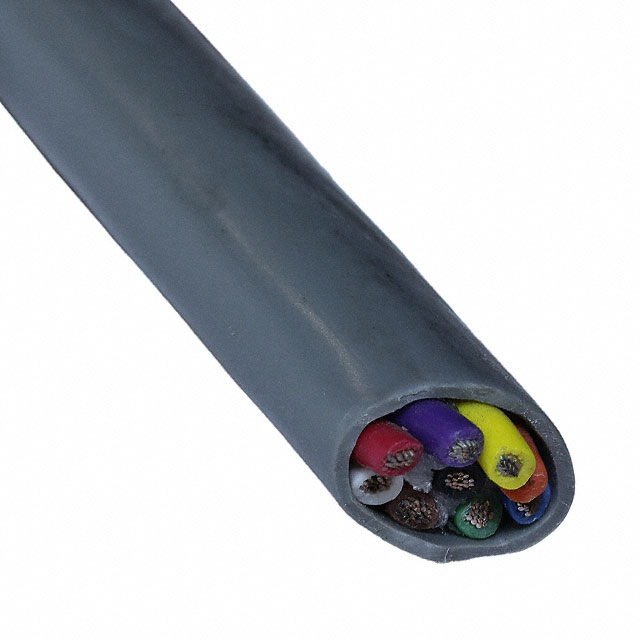

9 Conductor Multi-Conductor Cable Gray 18 AWG 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
