Technical Specifications
Parameters and characteristics for this part
| Specification | C2427A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [diameter] | 0.0117 in |
| Jacket (Insulation) Diameter [diameter] | 0.479 " |
| Jacket (Insulation) Diameter [diameter] | 12.17 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.813 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Gray |
| Length | 304.8 m |
| Length | 1000 ft |
| Length [x] | 100 ft |
| Length [x] | 30.5 m |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -20 ░C |
| Ratings | ASTM B-33 |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 5.78 | |
| 0 | $ 5.78 | |||
| Spool | 15000 | $ 5.91 | ||
| 15000 | $ 5.91 | |||
Description
General part information
C2427 Series

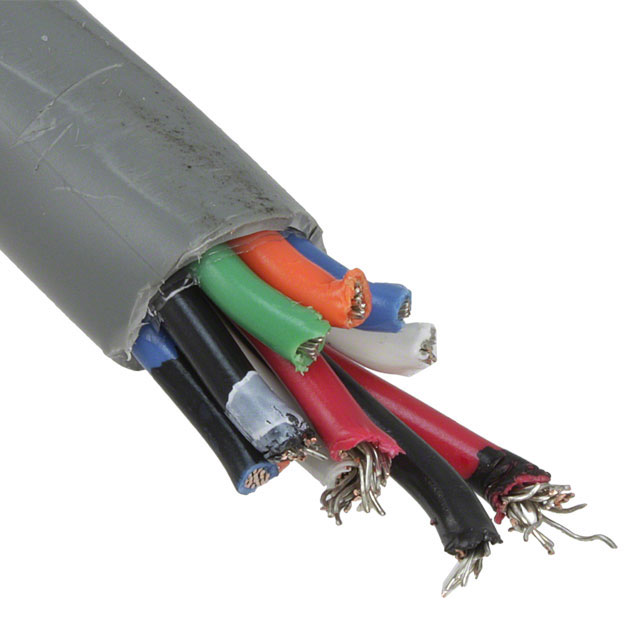

12 Conductor Multi-Conductor Cable Gray 16 AWG 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
