WeEn Semiconductors manufactures thyristors, triacs, power diodes, TVS protection devices, and silicon carbide power semiconductors with over 50 years of bipolar power expertise.
Parts that are not part of a series
Company background and product focus
WeEn Semiconductors is a leading manufacturer of bipolar power semiconductors, originating from NXP Semiconductors' Standard Products division. With over 50 years of semiconductor development and manufacturing heritage, WeEn focuses on industry-leading power products for global markets.
WeEn's comprehensive product portfolio includes:
WeEn serves automotive, telecommunications, computing, consumer electronics, intelligent home appliances, lighting, and power management markets. With R&D and production facilities in China and the UK, WeEn delivers reliable power semiconductors backed by decades of proven technology.
© 2026 Zenode. All rights reserved.
Product families from WeEn Semiconductors
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts from WeEn Semiconductors that are not part of a series
| Part Information | Pricing (lowest) | Current - Hold (Ih) (Max) | Operating Temperature | Configuration | Mounting Type | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Triac Type | Current - Gate Trigger (Igt) (Max) | Package / Case | Package Name | Current - On State (It (RMS)) (Max) | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Voltage - On State (Vtm) (Max) | Current - Off State (Max) | Current - On State (Max) | SCR Type | Current - Reverse Leakage | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) | Technology | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

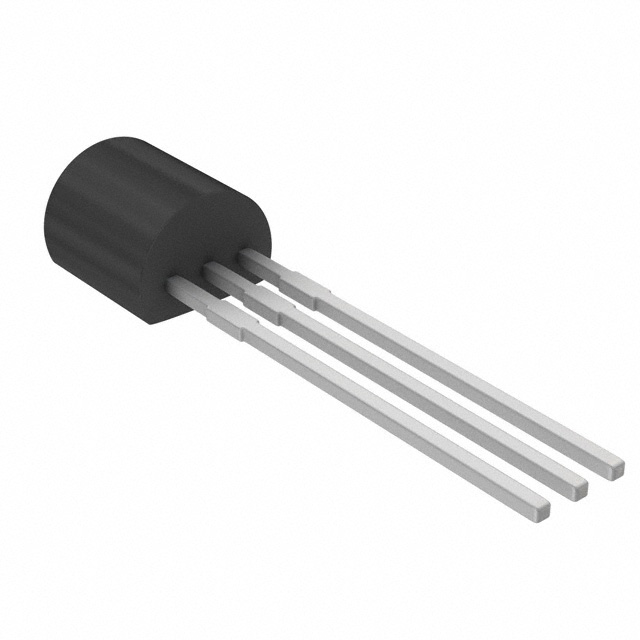

 WeEn Semiconductors TRIAC SENS GATE 600V 1A TO92-3 | Sign in to see pricing | 10 mA | 125 °C | Single | Through Hole | Itsm | 50Hz, 60Hz | 12.5 A, 13.7 A | Logic - Sensitive Gate | 10 mA | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 1 A | 600 V | 1 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

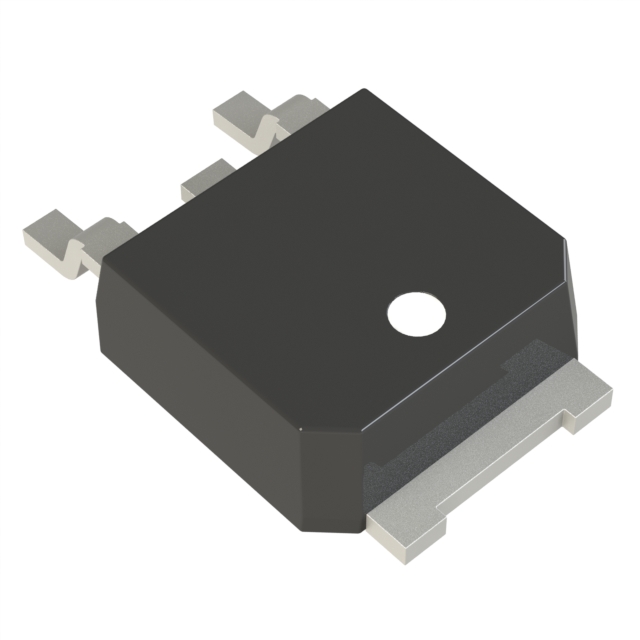

 WeEn Semiconductors TRIAC 800V 4A 3-PIN TO-252 T/R | Sign in to see pricing | 10 mA | 125 °C | Single | Surface Mount | Itsm | 50Hz, 60Hz | 25 A, 27 A | Logic - Sensitive Gate | 10 mA | DPAK (2 Leads + Tab), SC-63, TO-252-3 | DPak | 4 A | 800 V | 1 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

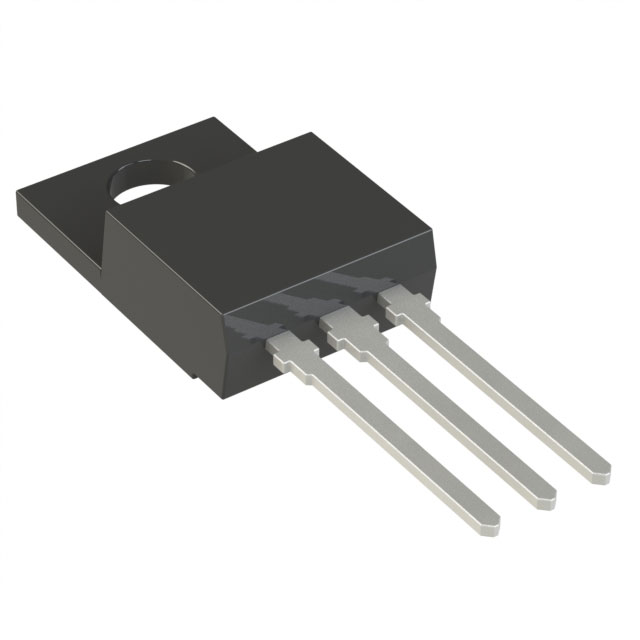

 WeEn Semiconductors BT151X-650LT/TO-220F/STANDARD MA | Sign in to see pricing | 20 mA | 150 °C | — | Through Hole | Itsm | 50Hz, 60Hz | 120 A, 132 A | — | 5 mA | Isolated Tab, TO-220-3 Full Pack | TO-220F | 12 A | 650 V | 1 V | 1.54 V | 1 mA | 7.5 A | Standard Recovery | — | — | — | — | — | — | — | — | — | — |
 WeEn Semiconductors SCR 650V 12A TO-220AB | Sign in to see pricing | 20 mA | 150 °C | — | Through Hole | Itsm | 50Hz, 60Hz | 120 A, 132 A | — | 5 mA | TO-220-3 Isolated Tab | TO-220AB | 12 A | 650 V | 1 V | 1.5 V | 10 µA | 7.5 A | Standard Recovery | — | — | — | — | — | — | — | — | — | — |
 WeEn Semiconductors BT168G/TO92/STANDARD MARKING * R | Sign in to see pricing | 5 mA | 125 °C | — | Through Hole | Itsm | 50Hz, 60Hz | 8 A, 9 A | — | 200 µA | TO-226-3, TO-92-3 (TO-226AA) | TO-92-3 | 800 mA | 600 V | 800 mV | 1.7 V | 100 µA | 500 mA | Sensitive Gate | — | — | — | — | — | — | — | — | — | — |

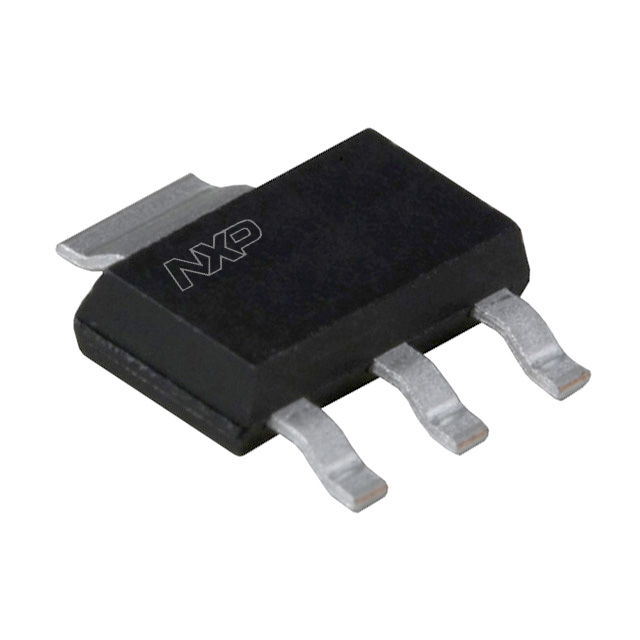

 WeEn Semiconductors TRIAC ALTERNISTOR 1KV 2A SC73 | Sign in to see pricing | 25 mA | 150 °C | Single | Surface Mount | Itsm | 50Hz, 60Hz | 25 A, 27.5 A | Alternistor - Snubberless | 10 mA | TO-261-4, TO-261AA | SC-73 | 2 A | 1 kV | 1 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
WeEn Semiconductors TRIACS RAIL TRIAC | Sign in to see pricing | 30 mA | 125 °C | Single | Through Hole | Itsm | 50Hz, 60Hz | 25 A, 27 A | Standard | 50 mA | Isolated Tab, TO-220-3 Full Pack | TO-220F | 4 A | 600 V | 1.5 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 WeEn Semiconductors TRIAC 800V 6A TO220F | Sign in to see pricing | 35 mA | 150 °C | Single | Through Hole | Itsm | 50Hz, 60Hz | 60 A, 66 A | Standard | 35 mA | Formed Leads, Isolated Tab, TO-220-3 Full Pack | TO-220F | 6 A | 800 V | 1.5 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 WeEn Semiconductors TRIAC 800V 16A IITO220E | Sign in to see pricing | 40 mA | 150 °C | Single | Through Hole | Itsm | 50Hz, 60Hz | 160 A, 176 A | Standard | 35 mA | TO-220-3 Isolated Tab | IITO-220E | 16 A | 800 V | 1 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 WeEn Semiconductors BYC30M-650P/TO220-2L/STANDARD MA | Sign in to see pricing | — | — | — | Through Hole | — | — | — | — | — | TO-220-2 | TO-220-2L | — | — | — | — | — | — | — | 30 µA | 175 °C | -65 °C | 30 A | 650 V | 38 ns | 2.75 V | Standard | 500 ns | 200 mA |
