ACTT6 Series

Catalog

TRIAC SENS GATE 800V 6A TO220F

Part	Voltage - Off State	Operating Temperature	Configuration	Mounting Type	Current - Gate Trigger (Igt) (Max)	Triac Type	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge Type	Current - Non Rep. Surge (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Current - Hold (Ih) (Max)	Package / Case	Current - On State (It (RMS)) (Max)	Package Name
WeEn Semiconductors ACTT6X-800CNQ	800 V	125 °C	Single	Through Hole	35 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	66 A	1 V	40 mA	Isolated Tab TO-220-3 Full Pack	6 A	TO-220F
WeEn Semiconductors ACTT6-800CNQ	800 V	125 °C	Single	Through Hole	35 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	66 A	1 V	40 mA	TO-220-3	6 A	TO-220AB
WeEn Semiconductors ACTT6B-800CNJ	800 V	125 °C	Single	Surface Mount	35 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	66 A	1 V	40 mA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	6 A	D2PAK
WeEn Semiconductors ACTT6X-800E,127	800 V	125 °C	Single	Through Hole	10 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	51 A 56 A	1 V	25 mA	Isolated Tab TO-220-3 Full Pack	6 A	TO-220F
WeEn Semiconductors ACTT6-800E,127	800 V	125 °C	Single	Through Hole	10 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	51 A 56 A		25 mA	TO-220-3	6 A	TO-220AB
WeEn Semiconductors ACTT6B-800E,118	800 V	125 °C	Single	Surface Mount	10 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	51 A 56 A	1.5 V	25 mA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	6 A	D2PAK

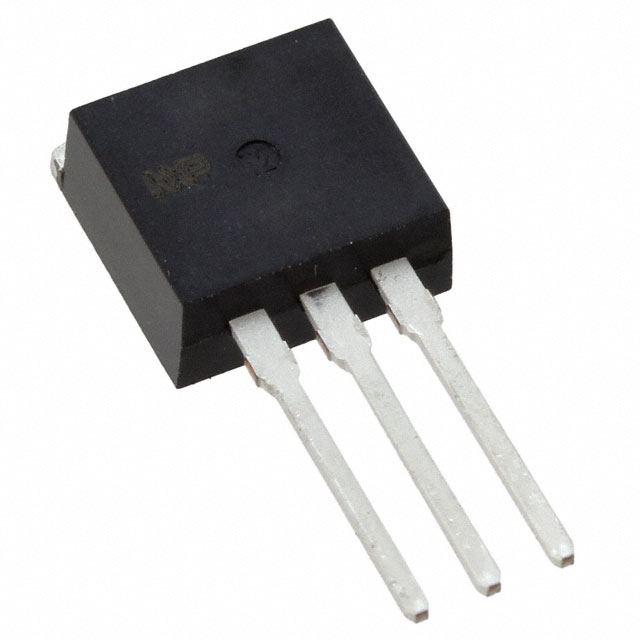

WeEn Semiconductors ACTT6G-800E,127	800 V	125 °C	Single	Through Hole	10 mA	Logic - Sensitive Gate	50Hz 60Hz	Itsm	51 A 56 A	1 V	25 mA	I2PAK TO-262-3 Long Leads TO-262AA	6 A	TO-262 (I2PAK)
