Product families from Runic Technology
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Comparators | 1 | Active | ||
| Translators, Level Shifters | 1 | Active | ||
| Integrated Circuits (ICs) | 1 | Active | ||
| Integrated Circuits (ICs) | 1 | Active | ||
| Logic | 1 | Active | ||
| Power Management (PMIC) | 4 | Active | ||
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 2 | Active | ||
| Integrated Circuits (ICs) | 4 | Active | ||
| Integrated Circuits (ICs) | 6 | Active | ||
| Power Management (PMIC) | 1 | Active |
Parts from Runic Technology that are not part of a series
| Part Information | Pricing (lowest) | Voltage - Supply Span (Min) | Amplifier Type | Operating Temperature (Max) | Operating Temperature (Min) | Current - Supply | Package Name | Slew Rate | Voltage - Supply Span (Max) | Gain Bandwidth Product | Voltage - Input Offset | Current - Output / Channel | Number of Circuits | Mounting Type | Output Type | Current - Input Bias | Package Width | Package Length | Logic Type | Input Logic Level - Low (Min) | Input Logic Level - Low (Max) | Number of Inputs | Max CL | Max Propagation Delay | Features | Input Logic Level - High (Max) | Input Logic Level - High (Min) | Current - Quiescent (Max) | Current - Output High | Current - Output Low | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Package / Case | Channel Capacitance (CS(off)) | Channel Capacitance (CD(off)) | Switch Time Toff (Typ) | Switch Time Ton (Typ) | Current - Leakage (Max) | Voltage - Supply, Single (V+) (Minimum) | Voltage - Supply, Single (V+) (Maximum) | Channel-to-Channel Matching (ΔRon) (Typ) | On-State Resistance (Max) | Switch Circuit Type | -3db Bandwidth | Multiplexer Inputs | Demultiplexer Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

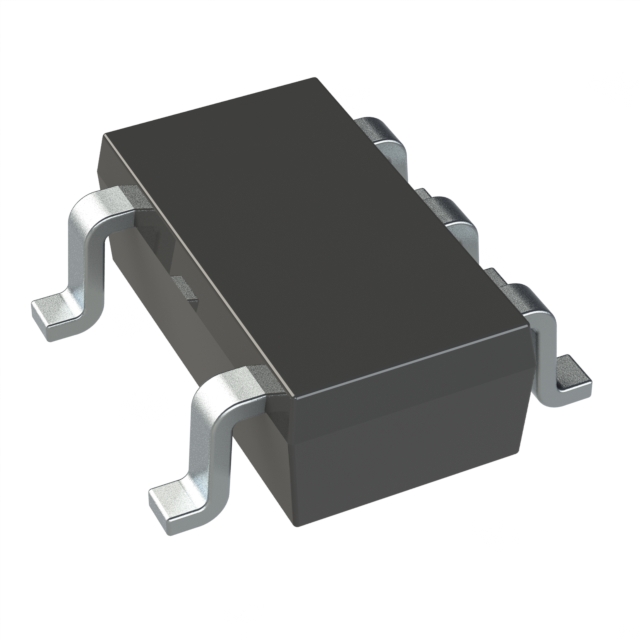

 Runic Technology IC CMOS 1 CIRCUIT SOT23-5 | Sign in to see pricing | 2.5 V | CMOS | 125 °C | -40 °C | 12 µA | SOT-23-5 | 0.05 V/Ąs | 5.5 V | 150 kHz | 1.5 mV | 25 mA | 1 | Surface Mount | Rail-to-Rail | 1 pA | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

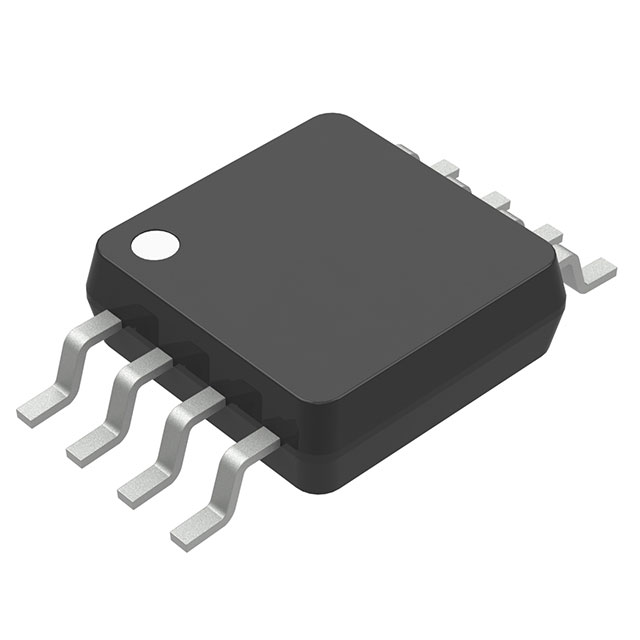

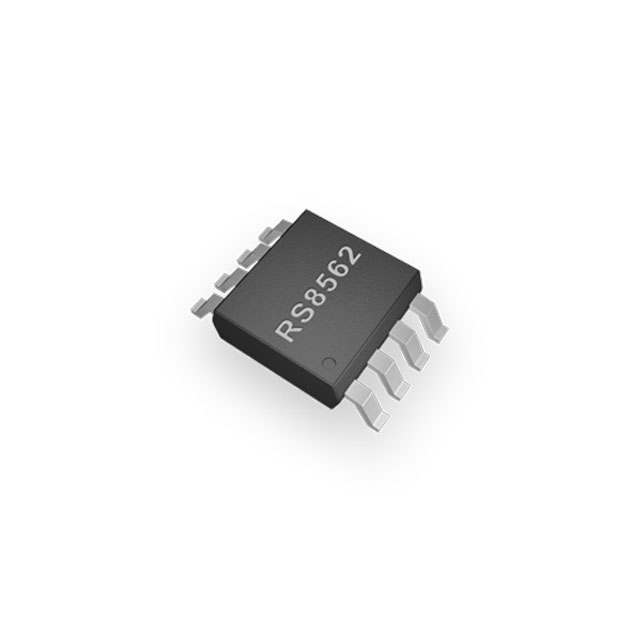

 Runic Technology IC CMOS 2 CIRCUIT 8MSOP | Sign in to see pricing | 2.5 V | CMOS | 125 °C | -40 °C | 12 µA | 8-MSOP, 8-TSSOP, 8-MSOP | 0.05 V/Ąs | 5.5 V | 150 kHz | 1.5 mV | 25 mA | 2 | Surface Mount | Rail-to-Rail | 1 pA | 3 mm | 0.118 in | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

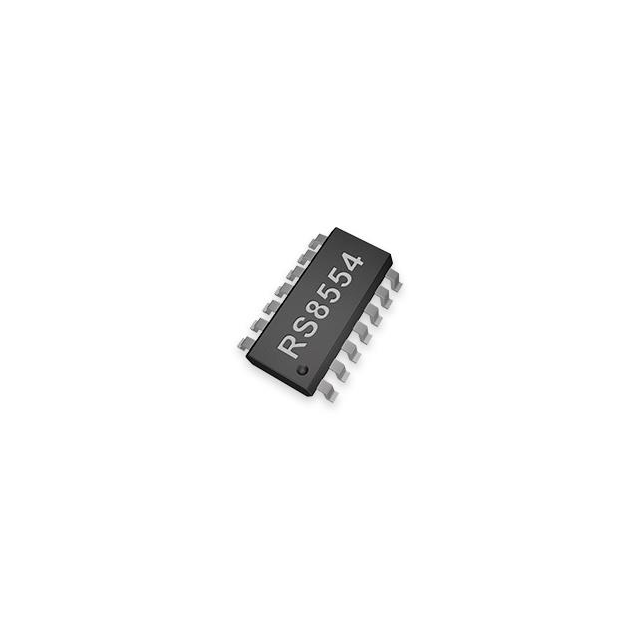

 Runic Technology IC CMOS 4 CIRCUIT 14TSSOP | Sign in to see pricing | 2.5 V | CMOS | 125 °C | -40 °C | 12 µA | 14-TSSOP | 0.05 V/Ąs | 5.5 V | 150 kHz | 1.5 mV | 25 mA | 4 | Surface Mount | Rail-to-Rail | 1 pA | 4.4 mm | 0.173 in | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Runic Technology IC INVERT SCHMITT 1CH 1INP SOT23 | Sign in to see pricing | — | — | 125 °C | -40 °C | — | SOT-23-5 | — | — | — | — | — | 1 | Surface Mount | — | — | — | — | Inverter | 0.6 V | 1.15 V | 1 | 50 pF | 2.7 ns | Open Drain, Schmitt Trigger Input | 3.4 V | 1.05 V | 1 µA | 32 mA | 32 mA | 1.65 V | 5.5 V | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Runic Technology IC SWITCH SPDT X 1 8OHM SC70-6 | Sign in to see pricing | — | — | 125 °C | -40 °C | — | SC-70-6 (SOT-363) | — | — | — | — | — | 1 | Surface Mount | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 6-TSSOP, SC-88, SOT-363 | 5 pF | 5 pF | 25 ns | 30 ns | 1 µA | 1.8 V | 5.5 V | 150 mOhm | 8 Ohms | SPDT | 300 MHz | 2 | 1 |

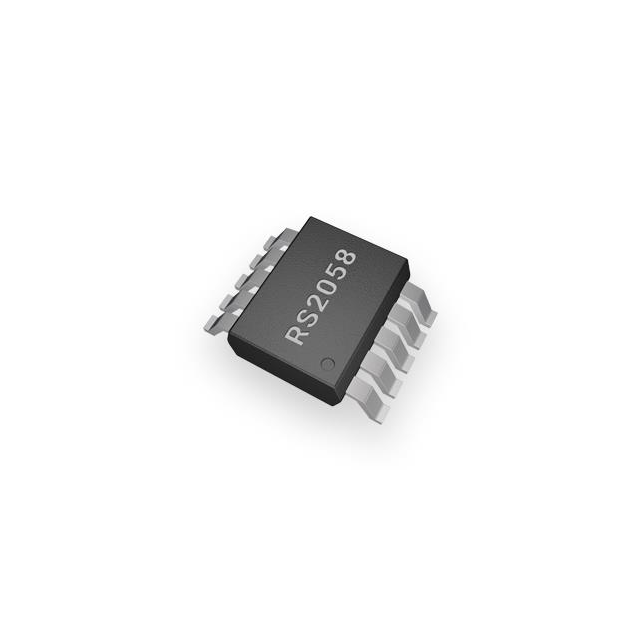

 Runic Technology IC SWITCH SPDT X 2 8OHM 10MSOP | Sign in to see pricing | — | — | 125 °C | -40 °C | — | 10-MSOP, 10-TFSOP | — | — | — | — | — | 2 | Surface Mount | — | — | 3 mm | 0.118 in | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 5 pF | 5 pF | 25 ns | 30 ns | 1 µA | 1.8 V | 5.5 V | 150 mOhm | 8 Ohms | SPDT | 300 MHz | 2 | 1 |
 Runic Technology IC SWITCH SPDT X 1 4OHM SC70-6 | Sign in to see pricing | — | — | 125 °C | -40 °C | — | SC-70-6 (SOT-363) | — | — | — | — | — | 1 | Surface Mount | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 6-TSSOP, SC-88, SOT-363 | 15 pF | 15 pF | 17 ns | 29 ns | 1 µA | 1.8 V | 5.5 V | 100 mOhm | 4 Ohm | SPDT | 120 MHz | 2 | 1 |

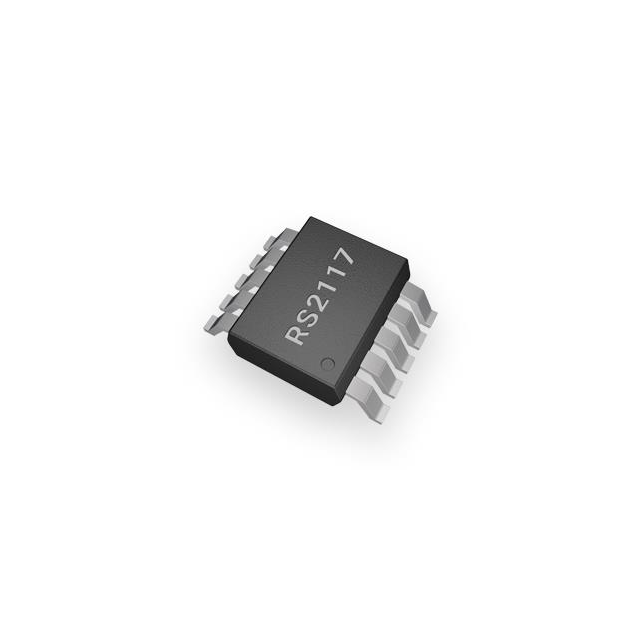

 Runic Technology IC SWITCH SPDT X 2 4OHM 10MSOP | Sign in to see pricing | — | — | 125 °C | -40 °C | — | 10-MSOP, 10-TFSOP | — | — | — | — | — | 2 | Surface Mount | — | — | 3 mm | 0.118 in | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 15 pF | 15 pF | 17 ns | 29 ns | 1 µA | 1.8 V | 5.5 V | 100 mOhm | 4 Ohm | SPDT | 120 MHz | 2 | 1 |

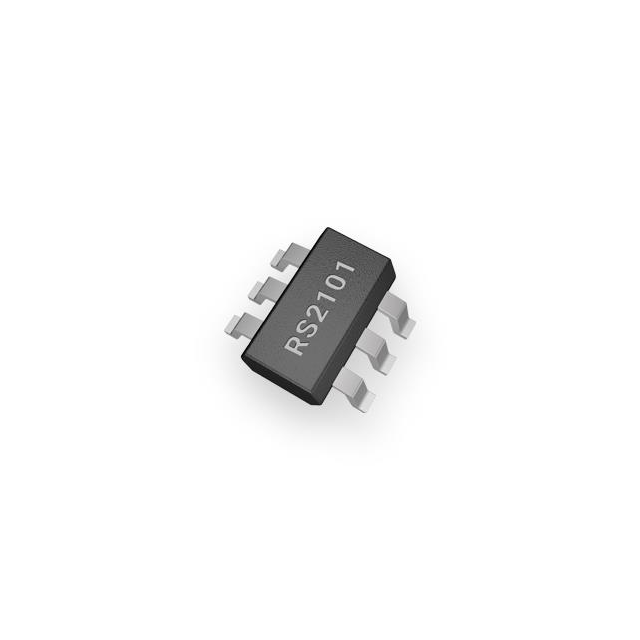

 Runic Technology IC SWITCH SPDT X 1 1OHM SOT23-6 | Sign in to see pricing | — | — | 125 °C | -40 °C | — | SOT-23-6 | — | — | — | — | — | 1 | Surface Mount | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | SOT-23-6 | 80 pF | 80 pF | 15 ns | 50 ns | 1 µA | 1.8 V | 5.5 V | 40 mOhm | 1 Ohms | SPDT | 30 MHz | 2 | 1 |
 Runic Technology IC SWITCH SPDT X 2 1OHM 10MSOP | Sign in to see pricing | — | — | 125 °C | -40 °C | — | 10-MSOP, 10-TFSOP | — | — | — | — | — | 2 | Surface Mount | — | — | 3 mm | 0.118 in | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 80 pF | 80 pF | 15 ns | 50 ns | 1 µA | 1.8 V | 5.5 V | 40 mOhm | 1 Ohms | SPDT | 30 MHz | 2 | 1 |
