RS3007 Series
Manufacturer: Runic Technology
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC REG LINEAR 5.0V 300MA SOT23-3
| Part | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) | Output Configuration | Current - Output | Voltage - Input (Max) | Protection Features | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | PSRR (Minimum) | PSRR (Maximum) | Current - Quiescent (Iq) | Output Type | Number of Regulators | Control Features | Package Name | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

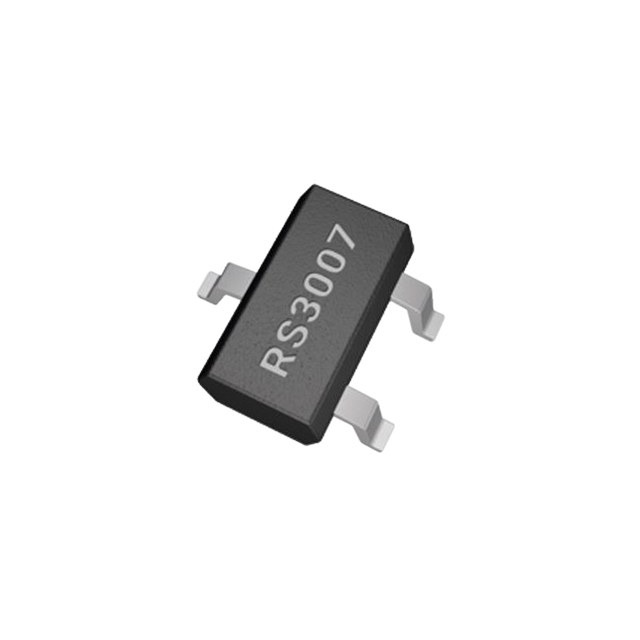

 Runic Technology | 0.4 V | 5 V | Positive | 300 mA | 45 V | Over Current Over Temperature | 85 °C | -40 °C | SC-59 SOT-23-3 TO-236-3 | 60 dB | 72 dB | 4 µA | Fixed | 1 | Enable | SOT-23-3 | Surface Mount |

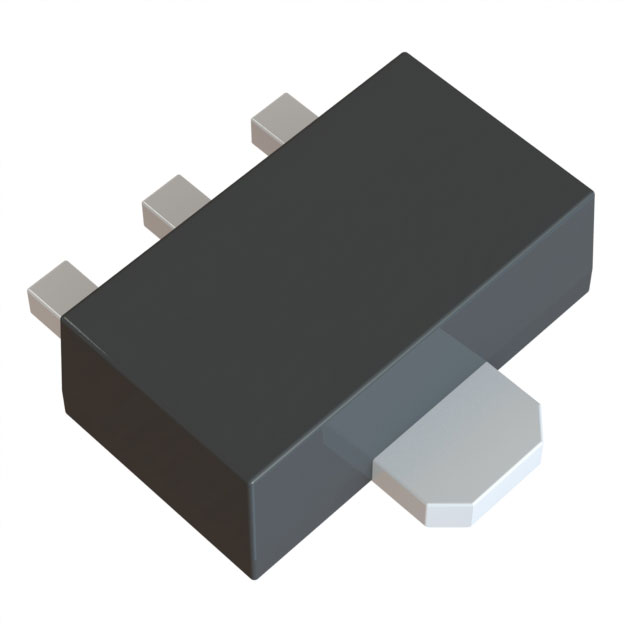

 Runic Technology | 0.4 V | 5 V | Positive | 300 mA | 45 V | Over Current Over Temperature | 85 °C | -40 °C | TO-243AA | 60 dB | 72 dB | 4 µA | Fixed | 1 | Enable | SOT-89-3 | Surface Mount |
