78K0R/Kx3-L-USB16-bit Low-power Microcontrollers for General Purpose Applications (Non Promotion) | Microcontrollers | 3 | Active | The 78K0R/Kx3-L (USB) Group is supported only for customers who have already adopted these products. The RL78/G1C, L1C Groups are recommended for new designs. |
78K0S/Kx1+Compact, Low-power, Low Pin-count 8-bit Microcontrollers for General Purpose Applications (Non Promotion) | Microcontrollers | 14 | Obsolete | The 78K0S/Kx1+ Group is supported only for customers who have already adopted these products. The RL78/G12, RL78/G10 Groups are recommended for new designs. |
| Embedded | 6 | Obsolete | |
| Microprocessors | 3 | Obsolete | |

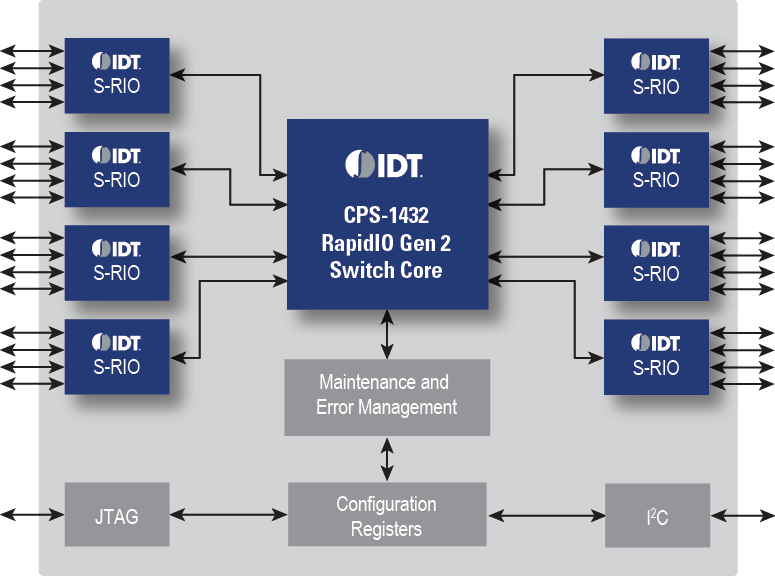

| Specialized ICs | 2 | Active | The IDT CPS-1432 is an 8x4/14x2/14x1 RapidIO Gen2 switch ideal for boards that require up to eight high bandwidth connections of up to 20 Gbps per port (8x4). The CPS-1432 can also be used in space constrained applications such as AMC or 6U/3U VPX where a large number of x4 links are used and small footprint is required. The CPS-1432 features a full, non-blocking bandwidth of 160 Gbps for up to 14 ports. It can also be used to drive backplanes or can be used as a backplane switch for small systems. The CPS-1432 device utilizes a 5th generation switch fabric, building upon RapidIO Gen1 CPS and Tsi switching architectures. This new switch uses patent pending features to minimize latency, ensure scheduling fairness, and provide superior multicast throughput.
Learn more:IDT RapidIO Development Systems |

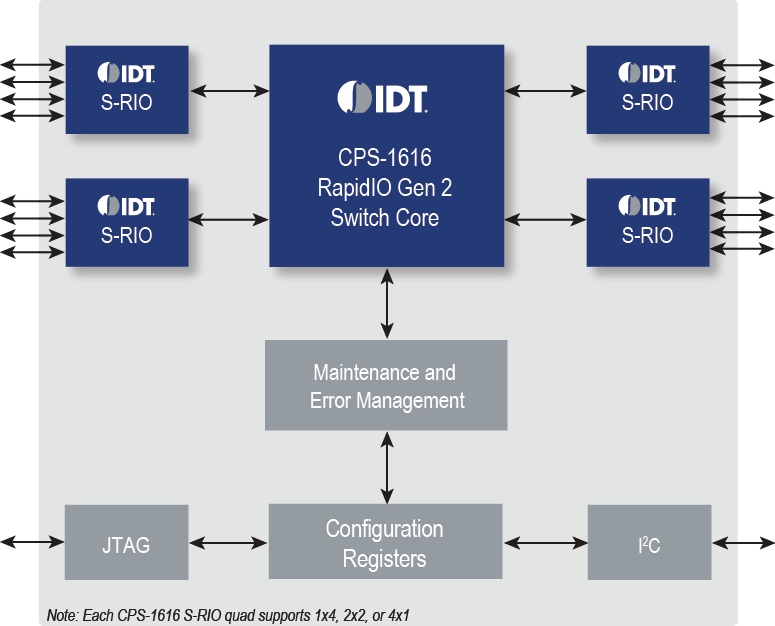

| Specialized ICs | 1 | Obsolete | The IDT CPS-1616 provides a full, non-blocking bandwidth of 80 Gbps for up to 16 ports. The device uses a 5th generation switch fabric, building upon Gen1 CPS and Tsi switching architectures. This new switch uses patent pending features to minimize latency, ensure scheduling fairness, and provide superior multicast throughput. The CPS-1616's 6.25 Gbaud SerDes is ideal for doing both local interconnect with low power, while also driving backplane links. This performance is realized over twice the transmission channel distance and three orders of magnitude improvement in bit error rate (BER) compared to the very capable Gen1 standard.
Learn more:IDT RapidIO Development Systems |
| Integrated Circuits (ICs) | 5 | Active | |

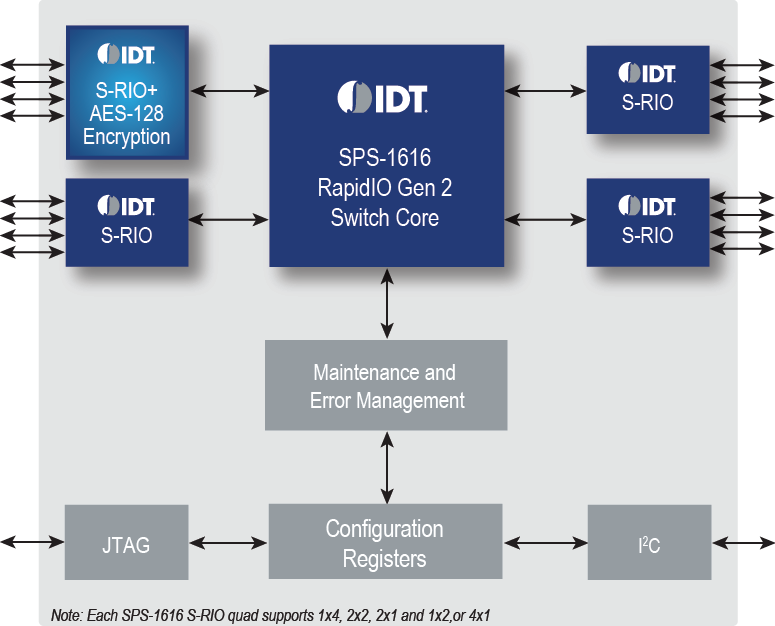

| Specialized ICs | 2 | Active | The IDT SPS-1616 Security Enabled Serial RapidIO Gen2 switch is designed for systems that need RapidIO links to go from chassis to chassis with out-of the-box cabling requiring secure/encrypted packets. Using AES-128 encryption the SPS-1616 allows Wireless Infrastructure design engineers to create scalable, stackable systems with up to 20 Gbps between chassis, without having to use expensive encryption cable processors that induce high latency due to software involvement. With the SPS-1616 the security requirements for LTE can be met, while keeping up with line rate between chassis. The SPS-1616 features one quad with Security Capability with the other three quads supporting standard RapidIO only for inside-the-box links.
In addition to the above, the SPS-1616 supports all RapidIO features available in the pin-compatible CPS-1616 including a full, non-blocking bandwidth of 80 Gbps for up to 16x1 ports. The device uses a 5th generation switch fabric, building upon IDT's Gen 1 switching architecture. This new switch uses patent-pending features to minimize latency, ensure scheduling fairness, and provide superior multicast throughput. The additional security feature has zero impact to latency and throughput.
Learn more:IDT RapidIO Development Systems |
| Integrated Circuits (ICs) | 3 | Obsolete | |
| Integrated Circuits (ICs) | 1 | Obsolete | |
