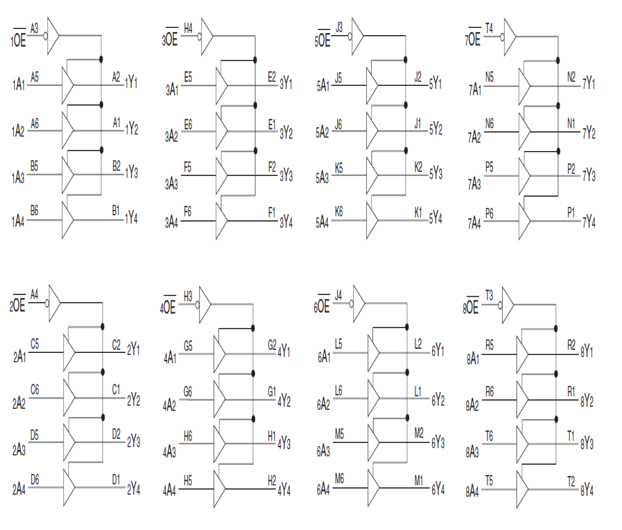

74ALVCH322443.3V CMOS 32-Bit Buffer/Driver with 3-State Outputs and Bus-Hold | Logic | 3 | Active | The 74ALVCH32244 high-speed, low power 32-bit buffer/driver offers bus/backplane interface capability with improved packing density. The three-state controls operate this device in a Quad-Nibble, Dual-Byte or single 16-bit word mode. The 74ALVCH32244 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistors. The 74ALVCH32244 operates at -40C to +85C |

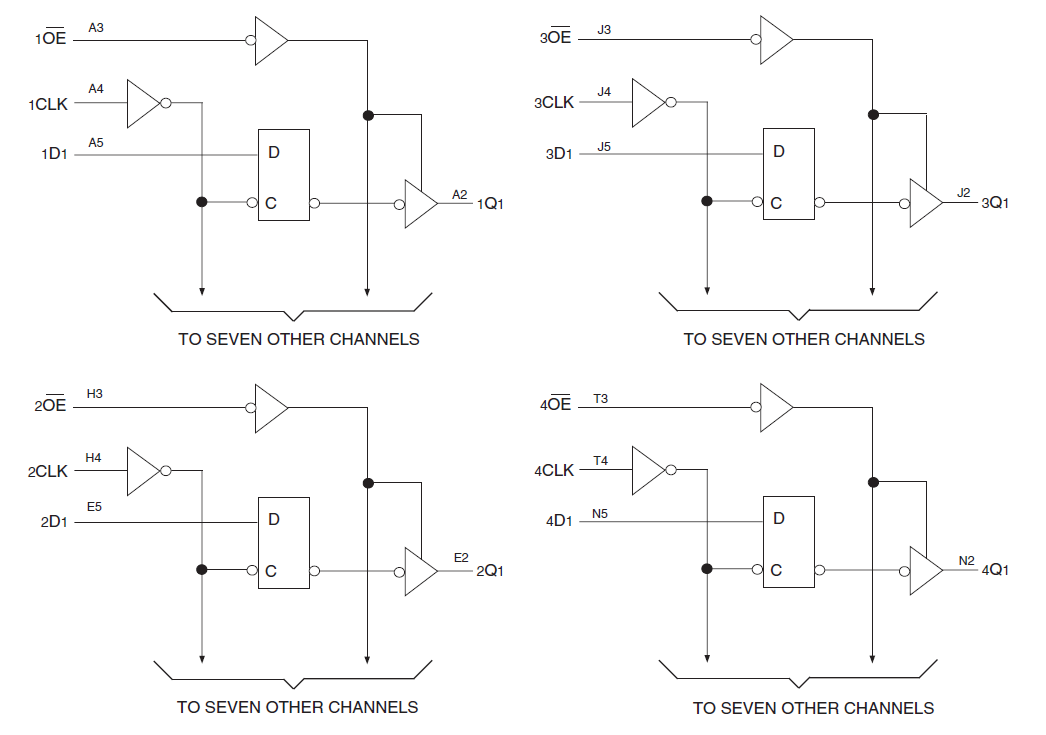

74ALVCH323743.3V CMOS 32-Bit Edge-Triggered D-Type Flip-Flop with 3-State Outputs, Bus-Hold | Flip Flops | 1 | Obsolete | The 74ALVCH32374 high-speed, low-power 32-bit edge-triggered D-type flip-flop is ideal for use as a buffer register for data synchronization and storage. The Output Enable (OE) and clock (CLK) controls are organized to operate the device as four 8-bit registers, two 16-bit registers, or one 32-bit register with common clock. The 74ALVCH32374 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistors. The 74ALVCH32374 operates at -40C to +85C |

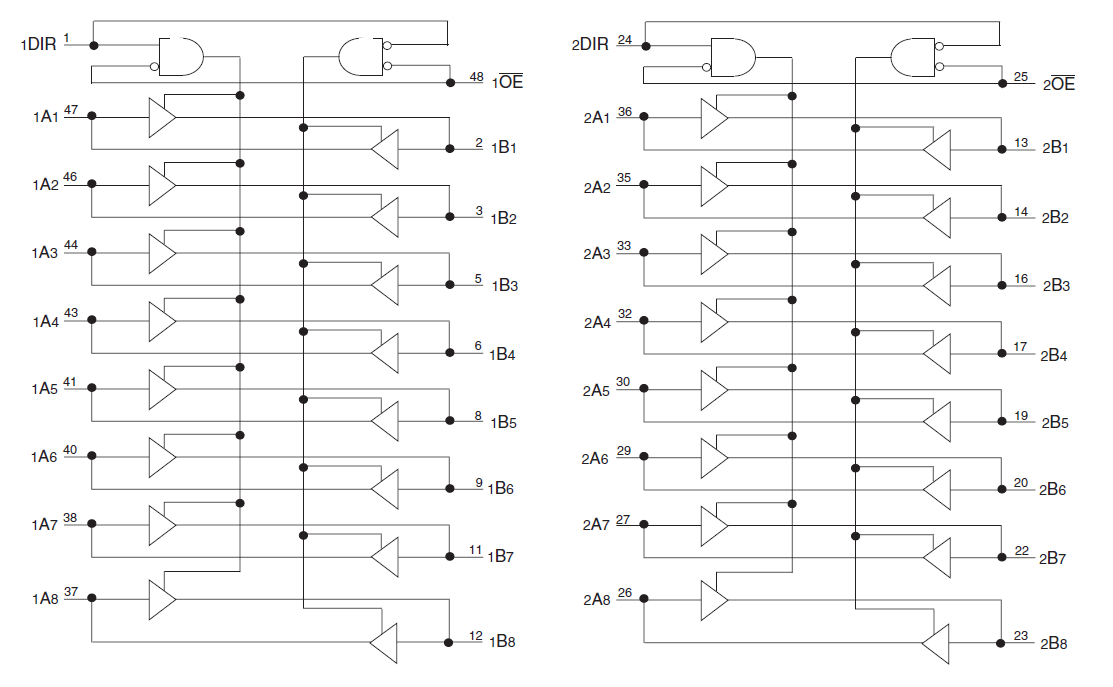

74ALVCHR1622453.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs and Bus-Hold | Buffers, Drivers, Receivers, Transceivers | 1 | Obsolete | The 74ALVCHR162245 16-bit bus transceiver is designed for asynchronous communication between data buses. This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction control (DIR) input. The 74ALVCHR162245 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistors. The 74ALVCHR162245 operates at -40C to +85C |
| Integrated Circuits (ICs) | 3 | Obsolete | |

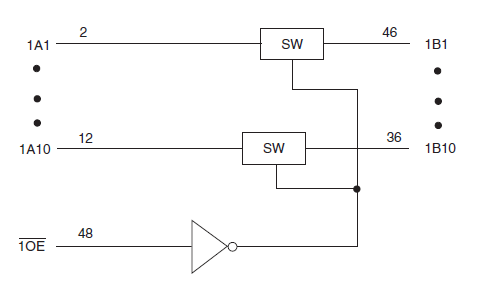

| Logic | 1 | Obsolete | The 74CBTLV16210 operates as a single 20-bit bus switch or as a dual 10-bit bus switch, which provides high-speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay through the switch. The 74CBTLV16210 operates at -40C to +85C |

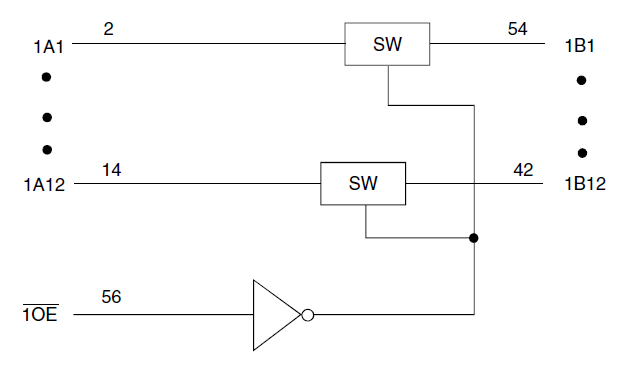

| Integrated Circuits (ICs) | 1 | Obsolete | The 74CBTLV16211 operates as a single 24-bit bus switch or as a dual 12-bit bus switch, which provides high speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay throughout the switch. The 74CBTLV16211 operates at -40C to +85C |

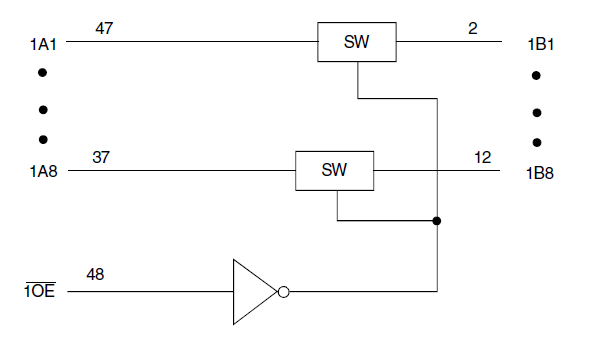

| Logic | 2 | Active | The 74CBTLV16245 16-bit bus switch has standard 16245 pinouts. The device is organized as dual 8-bit low resistance switches with independent Output Enable (xOE) control inputs. The 74CBTLV16245 operates at -40 °C to +85 °C. |

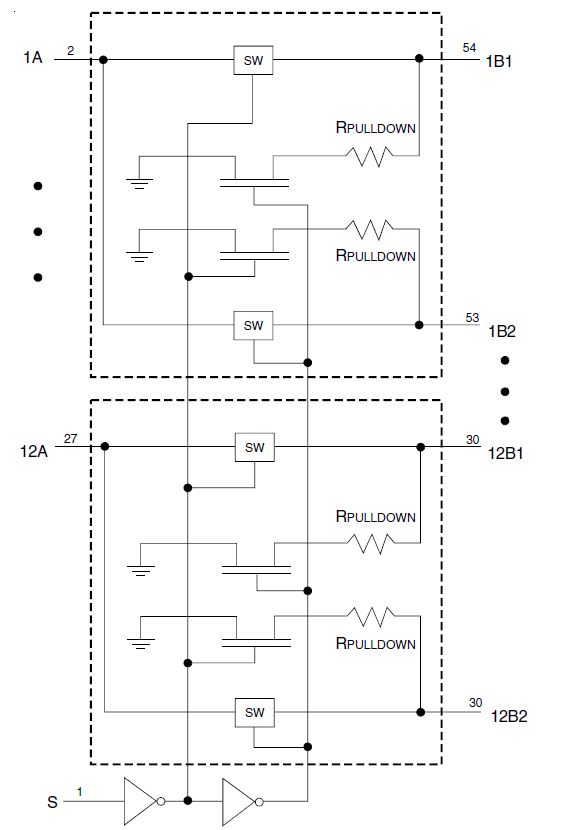

74CBTLV16292Low-Voltage 12-Bit 1:2 Mux / Demux Bus Switch with Internal Pull Down Resistors | Logic | 1 | Obsolete | The 74CBTLV16292 is a single 12-bit multiplexing / demultiplexing bus switch, which provides high speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay through the switch. The 74CBTLV16292 operates at -40C to +85C |

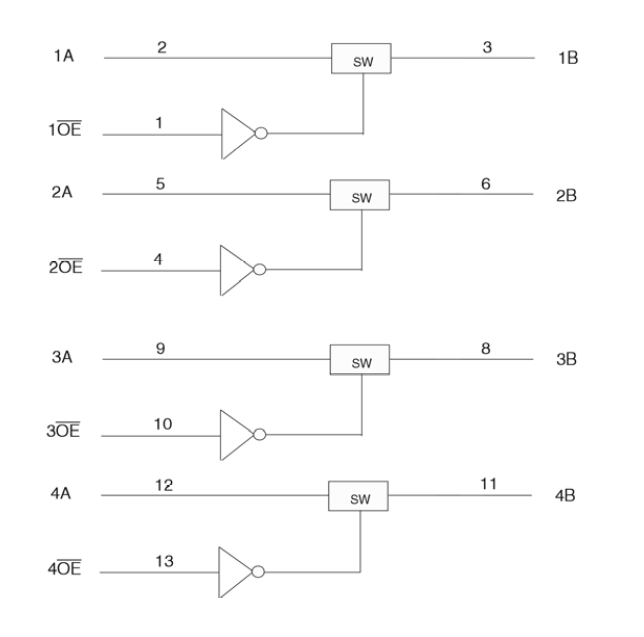

| Signal Switches, Multiplexers, Decoders | 2 | Active | The 74CBTLV3125 quad bus switch features four independent switches. Each switch is enabled when the associated Output Enable (OE) input is low. The 74CBTLV3125 operates at -40 °C to +85 °C. |
| Integrated Circuits (ICs) | 2 | Obsolete | The CBTLV3126 features four independent switches. Each switch is enabled when the associated output-enable (OE) input is high.To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. |
