Product families from Opto Diode Corp
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Sensor, Transducer Accessories | 4 | Active | ||
| Sensor, Transducer Accessories | 2 | Active | ||
| Sensor, Transducer Accessories | 4 | Active | ||
| Photodiodes | 2 | Active | ||
| Optical Sensors | 1 | Active | ||
| Sensors, Transducers | 1 | Active | ||
| Optoelectronics | 2 | Active | ||
| LED Emitters - Infrared, UV, Visible | 1 | Active | ||
| LED Indication - Discrete | 2 | Active | ||
| LED COBs, Engines, Modules, Strips | 7 | Active |
Parts from Opto Diode Corp that are not part of a series
| Part Information | Pricing (lowest) | Response Time | Active Area | Mounting Type | Spectral Range (Minimum) | Spectral Range (Maximum) | Responsivity | Operating Temperature (Min) | Operating Temperature (Max) | Wavelength | Diode Type | Color - Enhanced | Package Leads | Package Name | Package / Case | Wavelength (Min) | Wavelength (Max) | Type | Orientation | Viewing Angle | Current - DC Forward (If) (Max) | Voltage - Forward (Vf) (Typ) | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

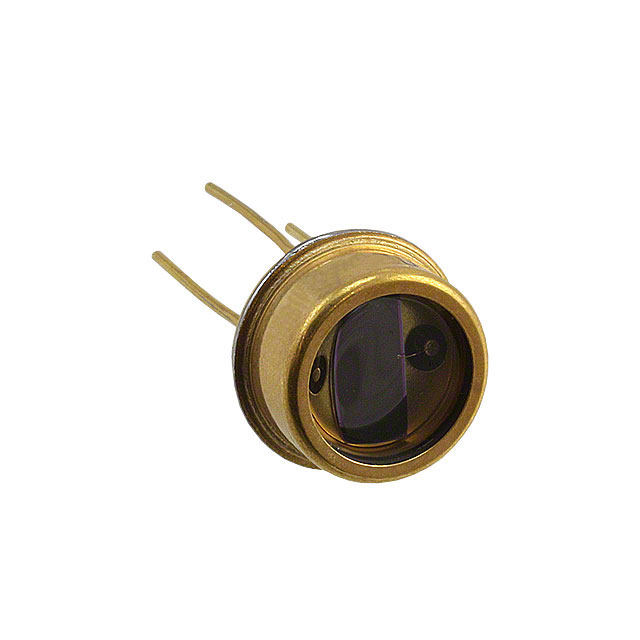

 Opto Diode Corp SENSOR PHOTODIODE 820NM | Sign in to see pricing | 200 ns | 15 mm² | Through Hole | 250 nm | 1100 nm | 0.08 A/W | -10 °C | 40 °C | 820 nm | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Opto Diode Corp SENSOR PHOTODIODE | Sign in to see pricing | 5 µs | 4 mm² | Through Hole | — | — | 15 KV/W | -40 °C | 85 °C | 3.8 µm | Pin | Infrared (NIR) | 2 Leads | TO-5 Variant | — | — | — | — | — | — | — | — | — | — |
 Opto Diode Corp SENSOR PHOTODIO 4100-4300NM TO37 | Sign in to see pricing | — | 1 mm² | Through Hole | — | — | 120 KV/W, 120 KV/W | -40 °C | 85 °C | — | — | Infrared (NIR) | — | — | TO-37-6 Metal Can | 4300 nm | 4700 nm | — | — | — | — | — | — | — |

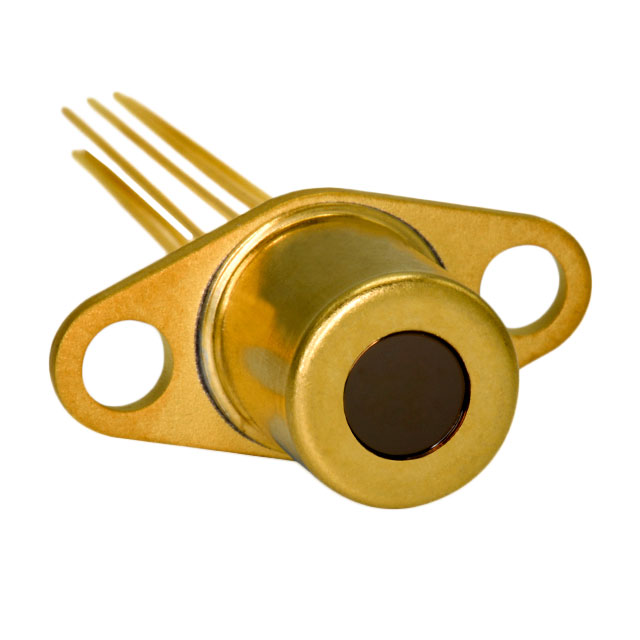

 Opto Diode Corp SENSOR PHOTODIOD 4300-4500NM TO8 | Sign in to see pricing | — | 4 mm² | Through Hole | — | — | 50 KV/W, 75 KV/W | -40 °C | 85 °C | — | — | Infrared (NIR) | 6 Leads | TO-8 Style | — | 4300 nm | 4500 nm | — | — | — | — | — | — | — |
 Opto Diode Corp EMITTER IR 850NM 500MA TO-39 | Sign in to see pricing | — | — | Through Hole | — | — | — | -40 °C | 100 °C | 850 nm | — | — | — | — | TO-205AD, TO-39-3 Metal Can | — | — | Infrared (IR) | Top View | 110 ° | 500 mA | 1.7 V | — | — |

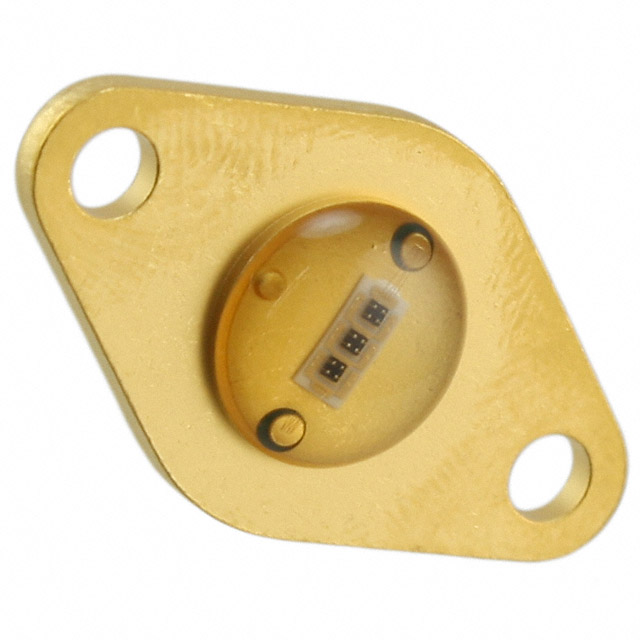

 Opto Diode Corp EMITTER IR 880NM 400MA TO-66 | Sign in to see pricing | — | — | Through Hole | — | — | — | -55 °C | 100 °C | 880 nm | — | — | — | — | TO-213AA, TO-66-2 | — | — | Infrared (IR) | Top View | 120 ° | 400 mA | 9 V | — | — |

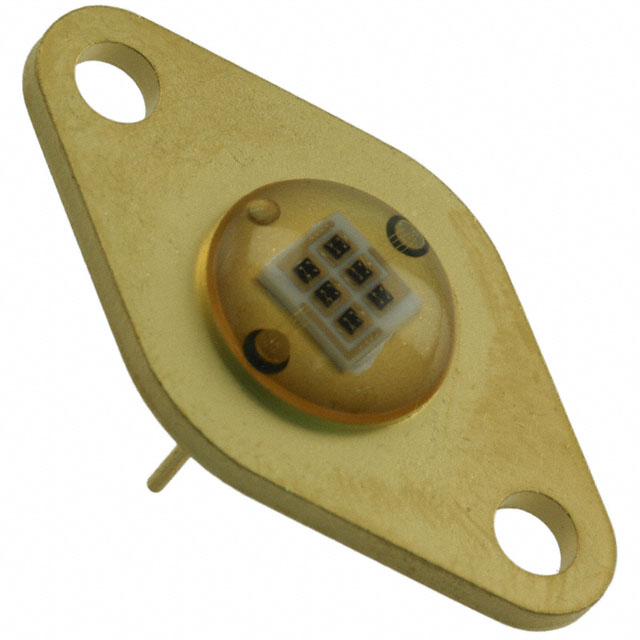

 Opto Diode Corp EMITTER IR 880NM 400MA TO-66 | Sign in to see pricing | — | — | Through Hole | — | — | — | -55 °C | 100 °C | 880 nm | — | — | — | — | TO-213AA, TO-66-2 | — | — | Infrared (IR) | Top View | 120 ° | 400 mA | 13.5 V | — | — |

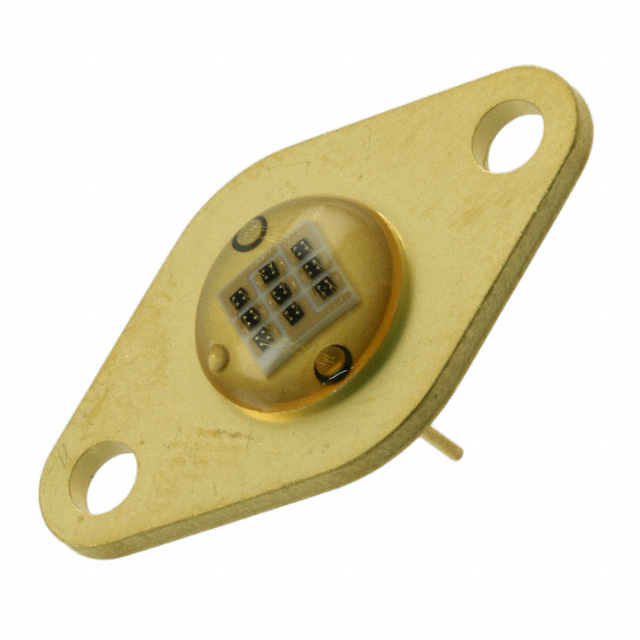

 Opto Diode Corp EMITTER IR 880NM 400MA TO-66 | Sign in to see pricing | — | — | Through Hole | — | — | — | -55 °C | 100 °C | 880 nm | — | — | — | — | TO-213AA, TO-66-2 | — | — | Infrared (IR) | Top View | 120 ° | 400 mA | 4.5 V | — | — |

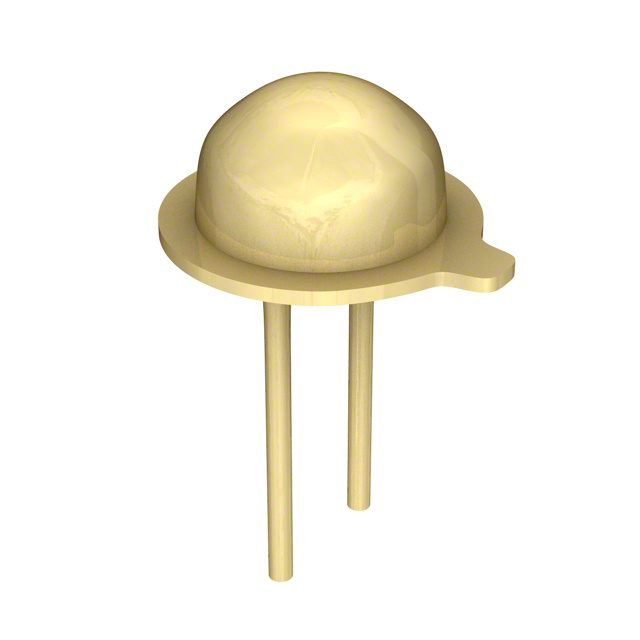

 Opto Diode Corp SENSOR PHOTODIODE 940NM TO18 | Sign in to see pricing | — | 1 mm² | Through Hole | 400 nm | 1100 nm | 0.4 A/W | -55 °C | 100 °C | 940 nm | — | Red | — | — | — | — | — | — | — | — | — | — | 60 V | 200 pA |
 Opto Diode Corp SENSOR PHOTODIODE 450NM TO5 | Sign in to see pricing | 20 ns | 15.8 mm² | Through Hole | — | — | 0.28 A/W | -55 °C | 100 °C | 450 nm | — | Blue | — | — | TO-205AA, TO-5-3 Metal Can | — | — | — | — | — | — | — | 60 V | 4 nA |
