OD-850 Series

Catalog

EMITTER IR 850NM 100MA TO-46

Part	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Wavelength	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Viewing Angle	Orientation	Mounting Type	Temperature - Test	Current - Max [Max]	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Configuration	Height [z]	Current - Test

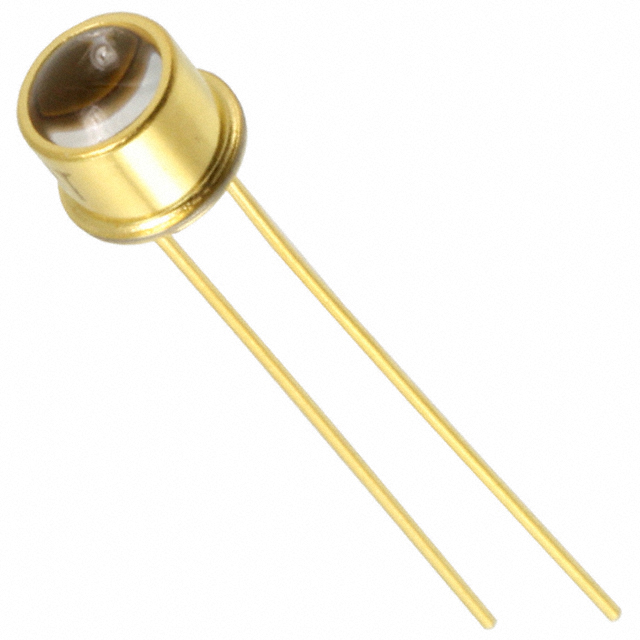

Opto Diode Corp OD-850LHT	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	150 °C	-65 °C	Infrared (IR)	70 °	Top View	Through Hole
Opto Diode Corp OD-850-30-030		13 V					LED Module	30 °			25 °C	6 A	Flat	50 mm	50 mm	Square	8.13 mm	3 A

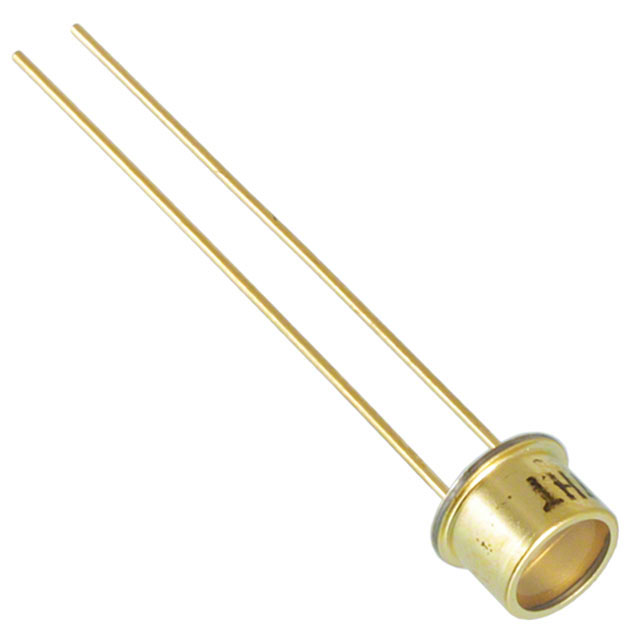

Opto Diode Corp OD-850WHT	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	150 °C	-65 °C	Infrared (IR)	160 °	Top View	Through Hole

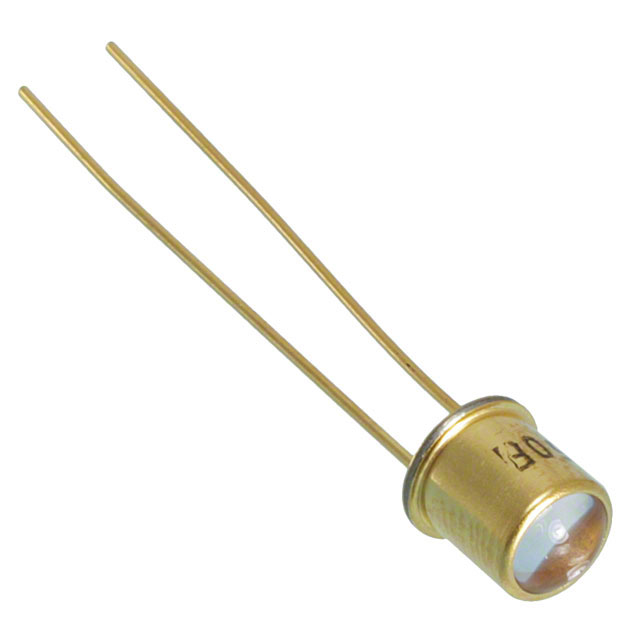

Opto Diode Corp OD-850F	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	100 °C	-40 °C	Infrared (IR)	8 °	Top View	Through Hole
Opto Diode Corp OD-850W	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	100 °C	-40 °C	Infrared (IR)	80 °	Top View	Through Hole

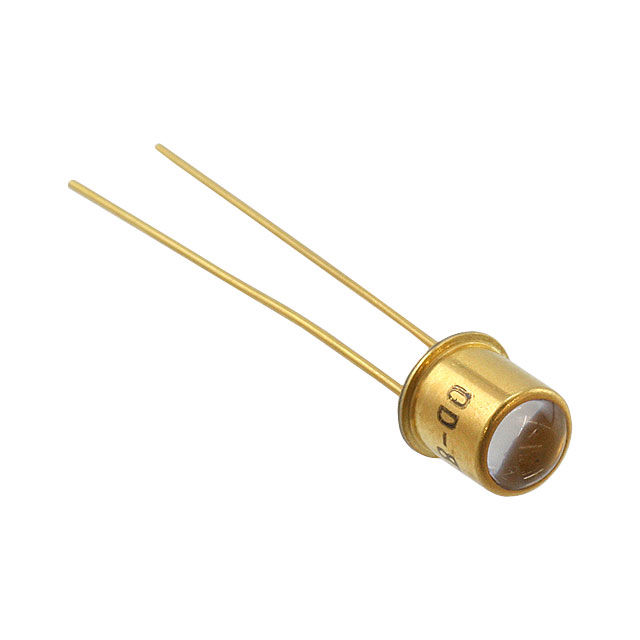

Opto Diode Corp OD-850FHT	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	150 °C	-65 °C	Infrared (IR)	16 °	Top View	Through Hole

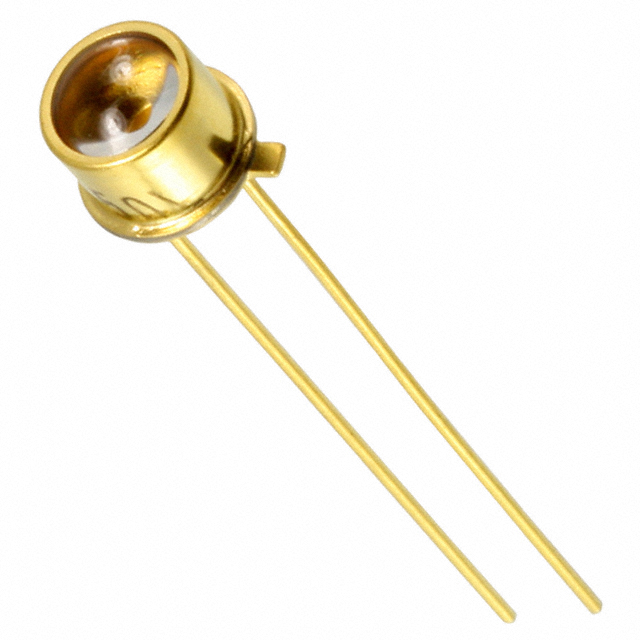

Opto Diode Corp OD-850L	100 mA	1.6 V	850 nm	TO-46-2 Lens Top Metal Can	100 °C	-40 °C	Infrared (IR)	35 °	Top View	Through Hole
