Nexperia USA Inc.

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(5568)

...

Part	Category	Description
Nexperia USA Inc. PBSS4350X-QZ	Discrete Semiconductor Products	TRANSISTOR GP BJT NPN 50V 3A 3-PIN SOT-89 T/R
Nexperia USA Inc. PDTD143XT-QR	Discrete Semiconductor Products	PDTD143XT-Q/SOT23/TO-236AB
Nexperia USA Inc. BAV99/DG/B3,235Obsolete	Discrete Semiconductor Products	DIODE ARRAY GEN PURP 100V 215MA
Nexperia USA Inc. 74HCS21PW-Q100J	Integrated Circuits (ICs)	74HCS21PW-Q100/SOT402/TSSOP14
Nexperia USA Inc. PMCB60XNEAYL	Discrete Semiconductor Products	SMALL SIGNAL MOSFET FOR MOBILE
Nexperia USA Inc. LD6836TD/13P,125Obsolete	Integrated Circuits (ICs)	IC REG LINEAR 1.3V 300MA 5-TSOP
Nexperia USA Inc. 74HC688PW,112Obsolete	Integrated Circuits (ICs)	IC ID COMPARATOR 8BIT 20-TSSOP
Nexperia USA Inc. PDZ6.2B-QZ	Discrete Semiconductor Products	DIODE ZENER 6.2V 400MW SOD323
Nexperia USA Inc. BUK4D38-20PH	Discrete Semiconductor Products	SMALL SIGNAL MOSFETS FOR AUTOMOT
Nexperia USA Inc. 74ALVT16373DGG,512Obsolete	Integrated Circuits (ICs)	IC D-TYPE TRANSP 8:8 48-TSSOP

Series	Category	# Parts	Status	Description

NXS0101GSDual supply translating transceiver; open drain; auto direction sensing	Integrated Circuits (ICs)	1	Active	The NXS0101 is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features one 1-bit input-output port (A and B), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins A and OE are referenced to VCC(A)and pin B is referenced to VCC(B). A LOW level at pin OE causes the output to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0101GWDual supply translating transceiver; open drain; auto direction sensing	Logic	1	Active	The NXS0101 is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features one 1-bit input-output port (A and B), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins A and OE are referenced to VCC(A)and pin B is referenced to VCC(B). A LOW level at pin OE causes the output to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0101GW-Q100Dual supply translating transceiver; open drain; auto direction sensing	Translators, Level Shifters	1	Active	The NXS0101-Q100 is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features one 1-bit input-output port (A and B), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins A and OE are referenced to VCC(A)and pin B is referenced to VCC(B). A LOW level at pin OE causes the output to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0102DCDual supply translating transceiver; open drain; auto direction sensing	Translators, Level Shifters	1	Active	The NXS0102 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0102DC-Q100Dual supply translating transceiver; open drain; auto direction sensing	Translators, Level Shifters	1	Active	The NXS0102-Q100 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0102GTDual supply translating transceiver; open drain; auto direction sensing	Integrated Circuits (ICs)	1	Active	The NXS0102 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

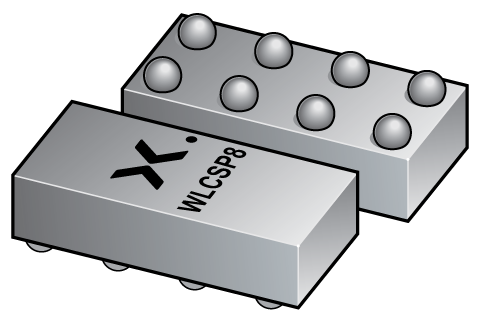

NXS0102UNDual supply translating transceiver; open drain; auto direction sensing	Integrated Circuits (ICs)	1	Active	The NXS0102 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0104Dual supply translating transceiver; open drain; auto direction sensing	Specialty Logic	5	Active	The NXS0104-Q100 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
NXS0104BQ-Q100Dual supply translating transceiver; open drain; auto direction sensing	Logic	1	Active	The NXS0104-Q100 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

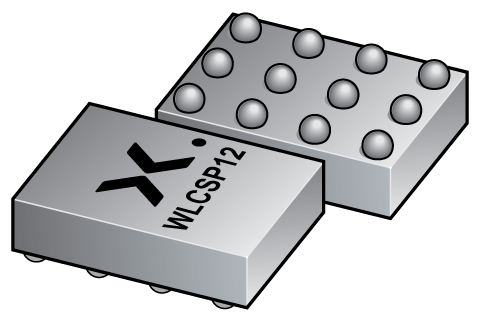

NXS0104UMDual supply translating transceiver; open drain; auto direction sensing	Integrated Circuits (ICs)	1	Active	The NXS0104 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A)and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
