NXB0108BQDual supply translating transceiver; auto direction sensing; 3-state | Integrated Circuits (ICs) | 1 | Active | The NXB0108 is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 8-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.2 V and 3.6 V and VCC(B)can be supplied at any voltage between 1.65 V and 5.5 V, making the device suitable for translating between any of the low voltage nodes (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). |
NXB0108BQ-Q100Dual supply translating transceiver; auto direction sensing; 3-state | Translators, Level Shifters | 1 | Active | The NXB0108-Q100 is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 8-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.2 V and 3.6 V and VCC(B)can be supplied at any voltage between 1.65 V and 5.5 V, making the device suitable for translating between any of the low voltage nodes (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). |
NXB0108PWDual supply translating transceiver; auto direction sensing; 3-state | Logic | 1 | Active | The NXB0108 is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 8-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.2 V and 3.6 V and VCC(B)can be supplied at any voltage between 1.65 V and 5.5 V, making the device suitable for translating between any of the low voltage nodes (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). |
NXB0108PW-Q100Dual supply translating transceiver; auto direction sensing; 3-state | Logic | 1 | Active | The NXB0108-Q100 is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 8-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.2 V and 3.6 V and VCC(B)can be supplied at any voltage between 1.65 V and 5.5 V, making the device suitable for translating between any of the low voltage nodes (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). |

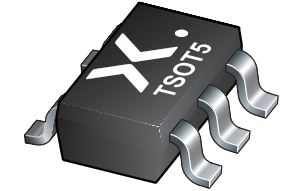

NXF6501DC-Q100Low-noise, 1.2 A transformer driver for isolated power supplies | Power Management - Specialized | 1 | Active | The NXF6501-Q100is a specialized push-pull transformer driver that is designed for isolated power supplies in small form factors. This driver is capable of driving low-profile, center-tapped transformers from a 2.25 V to 5.5 V DC power supply, while achieving ultra-low noise and EMI using slew rate control and Spread Spectrum Clocking (SSC). |

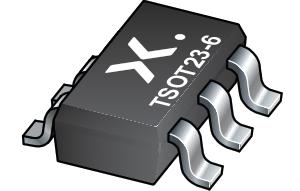

NXF6505ADA-Q100Low-noise, 1.2 A transformer driver for isolated power supplies | Power Management - Specialized | 1 | Active | The NXF6505A/B-Q100is a specialized push-pull transformer driver that is designed for isolated power supplies in small form factors. This driver is capable of driving low-profile, center-tapped transformers from a 2.25 V to 5.5 V DC power supply, while achieving ultra-low noise and EMI using slew rate control and Spread Spectrum Clocking (SSC). |
NXF6505BDA-Q100Low-noise, 1.2 A transformer driver for isolated power supplies | Power Management - Specialized | 1 | Active | The NXF6505A/B-Q100is a specialized push-pull transformer driver that is designed for isolated power supplies in small form factors. This driver is capable of driving low-profile, center-tapped transformers from a 2.25 V to 5.5 V DC power supply, while achieving ultra-low noise and EMI using slew rate control and Spread Spectrum Clocking (SSC). |
| Single Bipolar Transistors | 2 | Active | |
NXP3875G50 V, 150 mA NPN general-purpose transistors | Single Bipolar Transistors | 1 | Active | NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. |
NXS0101GMDual supply translating transceiver; open drain; auto direction sensing | Integrated Circuits (ICs) | 1 | Active | The NXS0101 is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features one 1-bit input-output port (A and B), one output enable input (OE) and two supply pins (VCC(A)and VCC(B)). VCC(A)can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B)can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins A and OE are referenced to VCC(A)and pin B is referenced to VCC(B). A LOW level at pin OE causes the output to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing the damaging backflow current through the device when it is powered down. |
