The MCP37221-200 is a 14-bit pipelined A/D converter with a maximum sampling rate of 200 Msps. The high accuracy of over 74 dB Signal-to-Noise Ratio (SNR) and over 90 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 490 mW at 200 Msps including LVDS digital I/O. Lower power saving modes are available at 144 mW for Standby and 28 mW for Shutdown. The MCP37221-200 includes many digital processing features that simplify system design, cost and power usage. These include decimation filters for improved SNR, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 and VTLA-124 packages. TFBGA-121 package is qualified for automotive applications (AEC-Q100).

The MCP37231-200 is a 16-bit pipelined A/D converter with a maximum sampling rate of 200 Msps. The high accuracy of over 74 dB Signal-to-Noise Ratio (SNR) and over 90 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 490 mW at 200 Msps including LVDS digital I/O. Lower power saving modes are available at 144 mW for Standby and 28 mW for Shutdown. The MCP37231-200 includes many digital processing features that simplify system design, cost and power usage. These include decimation filters for improved SNR, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 and VTLA-124 packages. TFBGA-121 package is qualified for automotive applications (AEC-Q100).

The MCP37D11-200 is a 12-bit pipelined A/D converter with a maximum sampling rate of 200 Msps. The high accuracy of 71.3 dB Signal-to-Noise Ratio (SNR) and over 90 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 468 mW at 200 Msps including LVDS digital I/O. Lower power saving modes are available at 144 mW for Standby and 28 mW for Shutdown. The MCP37D11-200 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, a noise-shaping requantizer for SNR improvement around a bandwidth of interest, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 and VTLA-124 packages. TFBGA-121 package is qualified for automotive applications (AEC-Q100).

The MCP37D21-80 is a 14-bit pipelined A/D converter with a maximum sampling rate of 80 Msps. The high accuracy of over 73.9 dB Signal-to-Noise Ratio (SNR) and over 93 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 320 mW at 80 Msps including LVDS digital I/O. Lower power saving modes are available at 79 mW for Standby and 22 mW for Shutdown. The MCP37D21-80 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 package. TFBGA-121 package is qualified for automotive applications (AEC-Q100).

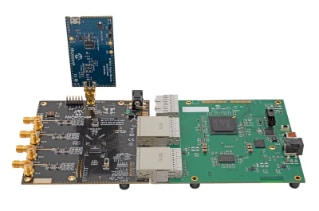

The MCP37D31-80 is a 16-bit pipelined A/D converter with a maximum sampling rate of 80 Msps. The high accuracy of over 73.9 dB Signal-to-Noise Ratio (SNR) and over 93 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 329 mW at 80 Msps including LVDS digital I/O. Lower power saving modes are available at 79 mW for Standby and 22 mW for Shutdown. The MCP37D31-80 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 package. TFBGA-121 package is qualified for automotive applications (AEC-Q100).

The MCP3901 dual channel analog front end features high accuracy 16/24-bit delta-sigma A/D converters, internal programmable gain amplifiers, an internal voltage reference, and phase-delay compensation with up to 91 dB SINAD. Communication with the MCP3901 is done via the SPI interface enabling control of the PGAs, oversampling ratio for control of the output data rate (up to 64 ksps), resolution, dithering, shutdown and other communication features.
