| Clock Buffers, Drivers | 2 | Active | The SY75576L is a high-speed, fully differential 1:4 clock fanout buffer optimized to provide four identical output copies with 137fs phase jitter and maximum 50ps output-to-output skew. Designed to be used with PCI-Express applications, the SY75576L accepts and outputs HCSL or LVDS logic levels.
The SY75576L operates from a 3.3V ±5% power supply and is guaranteed over the full industrial temperature range (-40ºC to +85ºC). It is available in a 20-pin TSSOP lead-free package. |
| Integrated Circuits (ICs) | 2 | Active | The
SY75578L is a high-speed, fully differential 1:8 clock fanout buffer optimized
to provide eight identical output copies with 130fs phase jitter and maximum
100ps output-to-output skew. Designed to be used with PCI-Express applications,
the SY75578L accepts HCSL/LVDS and outputs HCSL logic levels.
The
SY75578L operates from a 3.3V ±5% power supply and is guaranteed over the full
industrial temperature range (-40ºC to +85ºC). It is available in a 32-pin QFN
lead-free package. |

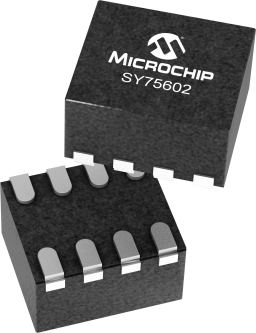

SY75602Ultra-Low Jitter, 2 Outputs LP-HCSL Buffer | Clock/Timing | 2 | Active | Ultra-Low Additive Jitter 2 Outputs LP-HCSL Fanout Buffer available in industry's smallest 1.4mm x 1.6mm VDFN package.
SY75602 is an 1:2 LP-HCSL fanout buffer with ultra-low additive jitter of 6fs (PCIe Gen6), capable of operating at frequencies up to 250 MHz.
Applications include PCI Express generation 1/2/3/4/5/6 clock distribution, Servers, storage and data centers, graphic cards, switches and routers.
2-output [SY7560](https://www.microchip.com/en-us/product/SY75603)[3](https://www.microchip.com/en-us/product/SY75603), 4-output [SY75604](https://www.microchip.com/en-us/product/SY75604), 8-output [SY75608](https://www.microchip.com/en-us/product/SY75608), and 12-output [SY75612](https://www.microchip.com/en-us/product/SY75612) are also available. |
SY75603Ultra-Low Jitter, 2 Outputs LP-HCSL Buffer | Integrated Circuits (ICs) | 3 | Active | Ultra-Low Additive Jitter 2 Outputs LP-HCSL Fanout Buffer with output enable control is available in 3mm x 3mm VQFN package.
SY75603 is a 1:2 LP-HCSL fanout buffer with ultra-low additive jitter of 6fs (PCIe Gen6), capable of operating at frequencies up to 250 MHz.
Applications include PCI Express generation 1/2/3/4/5/6 clock distribution, Servers, storage and data centers and graphics cards.
2-output without OE [SY75602](https://www.microchip.com/en-us/product/SY75602), 4-output [SY75604](https://www.microchip.com/en-us/product/SY75604), 8-output [SY75608](https://www.microchip.com/en-us/product/SY75608), and 12-output [SY75612](https://www.microchip.com/en-us/product/SY75612) are also available. |
SY75604Ultra-Low Jitter, 4 Outputs LP-HCSL Buffer | Integrated Circuits (ICs) | 1 | Active | Ultra-Low Additive Jitter 4 Outputs LP-HCSL Fanout Buffer with output enable control is available in 3mm x 3mm VQFN package.
SY75604 is a 1:4 LP-HCSL fanout buffer with ultra-low additive jitter of 6fs (PCIe Gen6), capable of operating at frequencies up to 250 MHz.
Applications include PCI Express generation 1/2/3/4/5/6 clock distribution, Servers, storage and data centers and graphics cards.
2-output without OE [SY75602](https://www.microchip.com/en-us/product/SY75602), 2-output [SY75603](https://www.microchip.com/en-us/product/SY75603), 8-output [SY75608](https://www.microchip.com/en-us/product/SY75608), and 12-output [SY75612](https://www.microchip.com/en-us/product/SY75612) are also available. |
SY75608Ultra-Low Jitter, PCIe Gen6 8-Outputs LP-HCSL Buffer | Clock/Timing | 1 | Active | Ultra-Low Additive Jitter 8 Outputs LP-HCSL Fanout Buffer with output enable control is available in 6mm x 6mm VQFN package.
SY75608 is a 1:8 LP-HCSL fanout buffer with ultra-low additive jitter of 6fs (PCIe Gen6), capable of operating at frequencies up to 250 MHz.
Applications include PCI Express generation 1/2/3/4/5/6 clock distribution, Servers, storage and data centers and graphics cards.
2-output [SY75603](https://www.microchip.com/en-us/product/SY75603), 4-output [SY75604](https://www.microchip.com/en-us/product/SY75604), 12-output [SY75612](https://www.microchip.com/en-us/product/SY75612), and 20-output [ZL40294](https://www.microchip.com/en-us/product/ZL40294) are also available. |
SY75612Ultra-Low Jitter, PCIe Gen6 12-Outputs LP-HCSL Buffer | Clock Buffers, Drivers | 1 | Active | Ultra-Low Additive Jitter 12 Outputs LP-HCSL Fanout Buffer with output enable control is available in 8mm x 8mm VQFN package.
SY75612 is a 1:12 LP-HCSL fanout buffer with ultra-low additive jitter of 6fs (PCIe Gen6), capable of operating at frequencies up to 250 MHz.
Applications include PCI Express generation 1/2/3/4/5/6 clock distribution, Servers, storage and data centers and graphics cards.
2-output [SY75603](https://www.microchip.com/en-us/product/SY75603), 4-output [SY75604](https://www.microchip.com/en-us/product/SY75604), 8-output [SY75608](https://www.microchip.com/en-us/product/SY75608), and 20-output [ZL40294](https://www.microchip.com/en-us/product/ZL40294) are also available. |
| Linear | 2 | Active | The SY84113BU low power limiting post amplifier is designed for use in fiber-optic optical modules for multirate applications up to 1.25Gbps. The device connects to a typical transimpedance amplifier (TIA) and can produce output signals to CML-level waveforms. Intended for the GbE and Fibre Channel applications, the SY84113BU offers a wide loss-of-signal (LOS) range. It is able to detect input signals for as low as 5mVpp and as high as 100mVpp. The SY84113BU is intended to be used in AC-coupled input applications.
The SY84113BU generates a LOS open-collector TTL output. A programmable LOS level set pin (LOSLVL) sets the sensitivity of the input amplitude detection. LOS asserts high if the input amplitude falls below the threshold set by LOSLVL and de-asserts low otherwise. The enable input (/EN) de-asserts the true output signal without removing the input signal. The LOS output can be fed back to the /EN input to implement the squelch function that maintains output stability under an LOS condition.
The SY84113BU operates on a single 2.5V power supply and offers ultra-low power consumption. This device is perfectly suited to meet the stringent power requirements of the CSFP/SFP/SFF optical modules. |
| Integrated Circuits (ICs) | 1 | Obsolete | |
| Linear | 1 | Obsolete | |
