| Specialized | 1 | Active | The Microchip PCI12000 is a single-chip 3-port PCIe switch with an integrated programmable I/O. The integrated PCIe physical interfaces provide a 2-lane (2x8GT/s) upstream port and two 1-lane (1x8GT/s) downstream ports. The device is targeted to address the need for higher bandwidth PCIe sub-systems within embedded applications. PCIe upstream can be delivered across a single or multiple lanes to accommodate best system architecture. The PCI12000 includes a compliant PCIe implementation from external facing physical interfaces through to switch fabric and endpoint controllers.
A programmable pin multiplexer is used to map I/O functions to package pins. This enables designers to work with either a default configuration or modify signals to best fit their application. Example signals include those associated with USB operation, through to GPIO or SMBus, which are accessed via a dedicated PCIe Endpoint Controller.
Click [Here](https://www.youtube.com/shorts/Q3WFY31Ch70) for a brief video about Microchip PCIe products. |
| Integrated Circuits (ICs) | 1 | Obsolete | |
| Microprocessors | 1 | Obsolete | |
| Embedded | 1 | Obsolete | |
| Embedded | 1 | Obsolete | |
PD-3501G1port, 15.4W,IEEE 802.3af indoor PoE midspan | Power over Ethernet (PoE) | 8 | Active | The single port PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices.The compact and affordable PD-3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered.With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. |
PD-3504G4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan | Power Supplies - External/Internal (Off-Board) | 4 | Active | The four ports PoE midspan provides up to 15.4 Watts of power over Ethernet and offers a IEEE 802.3af-compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. The PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation,it can be easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network. |
| Power Supplies - External/Internal (Off-Board) | 2 | Obsolete | |
| Power Supplies - External/Internal (Off-Board) | 3 | Obsolete | |

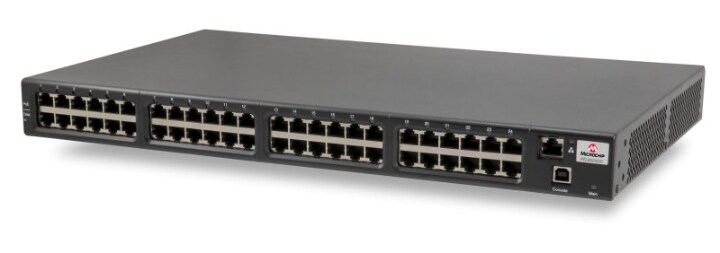

PD-6524GC24 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan | Power over Ethernet (PoE) | 2 | Active | PD-6524GC PoE midspan provides up to 15.4W of PoE to IP telephones, wireless LAN access points, security network cameras and many other types of data terminals over standard Ethernet data cables, leaving network infrastructure completely unaltered.
By taking advantage of its plug-and-play installation, you can easily and cost effectively leverage an existing Ethernet infrastructure to implement these midspans while also providing the assurance of a future-proof network.
For secure remote management, all PD-6524GC midspan includes Power View Pro management software. |
