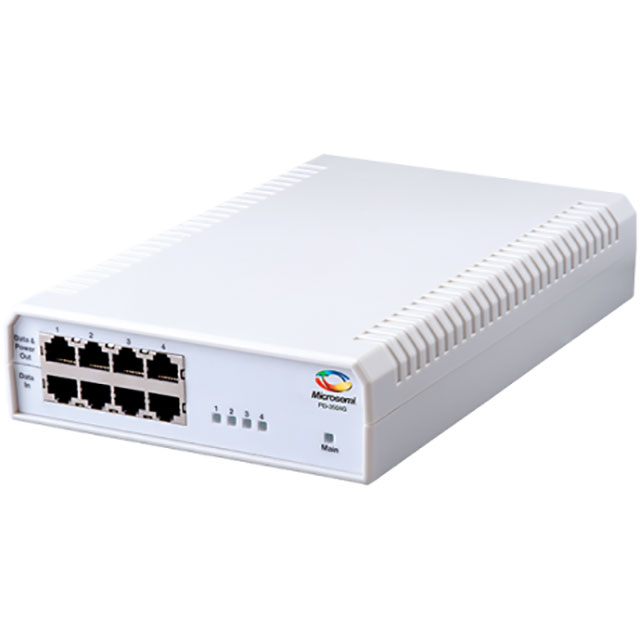

PD-3504G Series

4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan

Catalog

4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan

Part	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Type	Input Connector	Current - Output	Number of Ports	Compliance	Approval Agency	Data Rate	Mounting Type	Operating Temperature [Max]	Power (Watts) - Per Port
Microchip Technology PD-3504G/AC-EU	RJ45 (Data Power)	1.69 in	8.82 "	224 mm	42.9 mm	5.82 in	147.8 mm	55 V	240 VAC	100 VAC	Midspan Injector	RJ45 (Data Power)	280 mA	4	IEEE802.3af	CE	10 Mbps 100 Mbps 1000 Mbps	Desktop	40 °C	15.4 W
Microchip Technology PD-3504G/AC	RJ45 (Data Power)	1.69 in	8.82 "	224 mm	42.9 mm	5.82 in	147.8 mm	55 V	240 VAC	100 VAC	Midspan Injector	RJ45 (Data Power)	280 mA	4	IEEE802.3af	CE	10 Mbps 100 Mbps 1000 Mbps	Desktop	40 °C	15.4 W
Microchip Technology PD-3504G/AC-US	RJ45 (Data Power)	1.69 in	8.82 "	224 mm	42.9 mm	5.82 in	147.8 mm	55 V	240 VAC	100 VAC	Midspan Injector	RJ45 (Data Power)	280 mA	4	IEEE802.3af	CE	10 Mbps 100 Mbps 1000 Mbps	Desktop	40 °C	15.4 W
Microchip Technology PD-3504G/AC-UK	RJ45 (Data Power)	1.69 in	8.82 "	224 mm	42.9 mm	5.82 in	147.8 mm	55 V	240 VAC	100 VAC	Midspan Injector	RJ45 (Data Power)	280 mA	4	IEEE802.3af	CE	10 Mbps 100 Mbps 1000 Mbps	Desktop	40 °C	15.4 W

Catalog

4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan

Key Features

- Number of ports: 4

- PoE output: 15.4W per port

- Data rates: 10/100/1000 Mbps

- Power input: AC

- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)

- Regulatory compliance: IEEE 802.3af (PoE), RoHS compliant, WEEE compliant, CE

- Complies with the latest EMI and safety standards

- Compact design

Description

The four ports PoE midspan provides up to 15.4 Watts of power over Ethernet and offers a IEEE 802.3af-compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. The PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation,it can be easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
