Littelfuse/Commercial Vehicle Products

SiBODTM AXIAL 50A - 100V STD IH

SiBODTM AXIAL 50A - 140V HIGH IH

SiBOD AXIAL 50/100A - AXIAL BOD

SiBODTM AXIAL 100A - 80V LOW IH

SiBODTM AXIAL 100A - 230V STD IH

This triac is designed primarily for ac power switching. The gate sensitivity of these triacs permits the use of economical transistorized or integrated circuit control circuits, and it enhances their use in low-power phase control and load-switching applications.

This triac is designed primarily for full-wave ac control applications, such as motor controls, heating controls and power supplies.

This triac is designed primarily for full-wave ac control applications, such as motor controls, heating controls and power supplies.

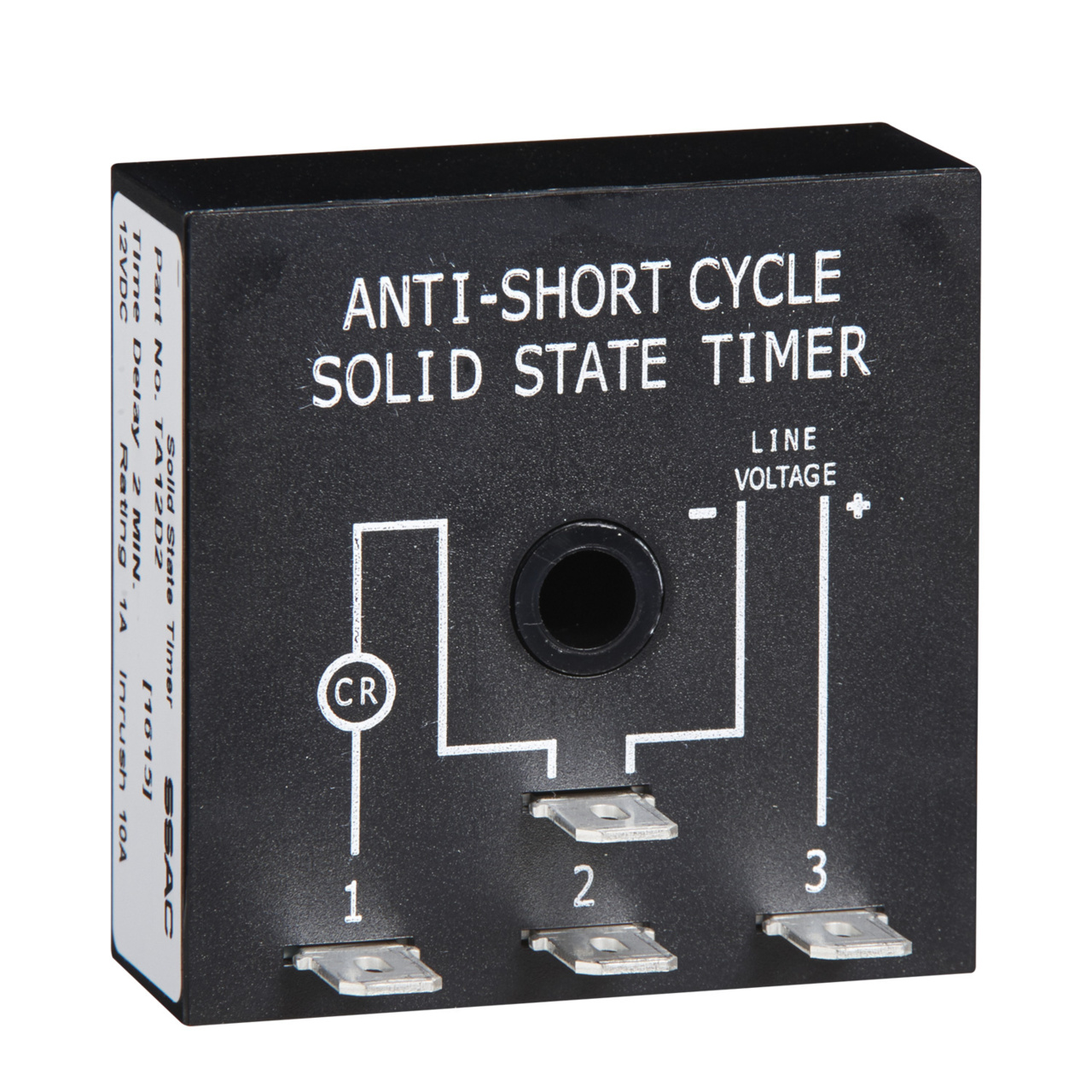

The TA Series prevents rapid recycling of a compressor. A lockout delay is started when the thermostat opens, or input voltage is lost. Eliminates tripped circuit breakers or blown fuses caused by a locked rotor during short cycling. The TA will not allow the compressor to start when the line voltage is low. Chatter of the compressor relay is eliminated. Because of the fast initiate time, bounce of the thermostat will not be transmitted to the compressor relay coil. A 30 second delay provides anti-reversing protection for scroll compressors. Operation (Lockout) On initial closure of the S1, the compressor relay energizes immediately. When S1 opens or input voltage is interrupted, a lockout time delay is initiated. During this lockout time delay, the compressor relay cannot be energized. The low voltage (brownout) protection prevents energization of the compressor when the line voltage is low.Reset: The lockout time delay cannot be reset. After the time delay is completed, the unit automatically resets.

The TAC1 Series was designed to delay the operation of a compressor relay. It eliminates the possibility of relay chatter due to half-wave failure of the output. It connects in series with the load relay coil and provides a delay-on-make time delay each time input voltage is applied. It can be used for random start, anti-short cycling, sequencing, and many other applications. It is an excellent choice for all air conditioning and refrigeration equipment. Operation (Delay-on-Make) Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed.Reset: Removing input voltage resets the time delay and output.
