T2322BG Series

THY C77 SPECIAL TRIAC

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

THY C77 SPECIAL TRIAC

Part	Package / Case	Voltage - Off State	Mounting Type	Current - On State (It (RMS)) (Max)	Configuration	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Triac Type	Voltage - Gate Trigger (Vgt) (Max) [Max]

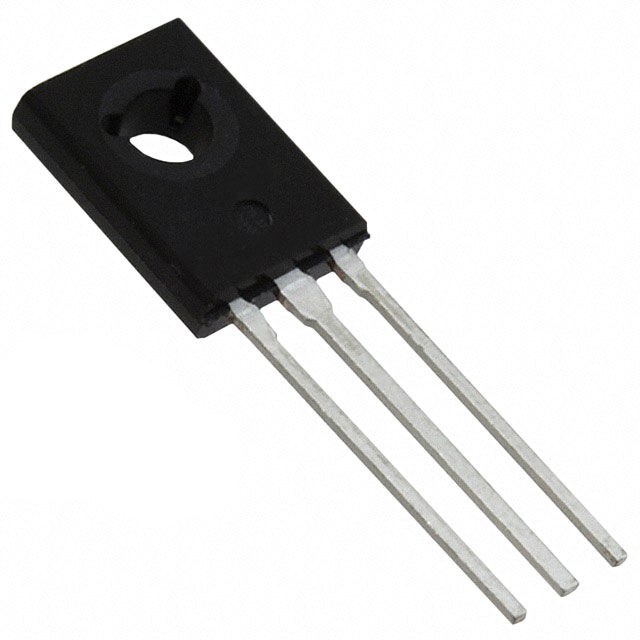

Littelfuse/Commercial Vehicle Products T2322BG	TO-126-3 TO-225AA	200 V	Through Hole	2.5 A	Single	10 mA	TO-225AA	30 mA	110 °C	-40 °C	25 A	Logic - Sensitive Gate	2.2 V

Catalog

THY C77 SPECIAL TRIAC

Key Features

• Very High Gate Sensitivity

• Low On-State Voltage at High Current Levels

• Glass-Passivated Chip for Stability

• Small, Rugged Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability

• Device Marking: Device Type, e.g., T2322B, Date Code

• Lead-Free Package Available

Description

This triac is designed primarily for ac power switching. The gate sensitivity of these triacs permits the use of economical transistorized or integrated circuit control circuits, and it enhances their use in low-power phase control and load-switching applications.
