| Part | Category | Description |
|---|---|---|
 Diodes Inc ZXSC100X8TAObsolete | Integrated Circuits (ICs) | SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8 |
 Diodes Inc MBR1045Obsolete | Discrete Semiconductor Products | DIODE SCHOTTKY 45V 10A TO220AC |
 Diodes Inc | Discrete Semiconductor Products | TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R |
 Diodes Inc | Crystals Oscillators Resonators | CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD |
 Diodes Inc | Crystals Oscillators Resonators | XTAL OSC XO 133.0000MHZ CMOS SMD |
 Diodes Inc | Discrete Semiconductor Products | DIODE GEN PURP 100V 1A DO41 |
Diodes Inc MBRF20150CTLObsolete | Discrete Semiconductor Products | DIODE SCHOTTKY ITO220AB |
 Diodes Inc | Integrated Circuits (ICs) | NRND = NOT RECOMMENDED FOR NEW DESIGN |
 Diodes Inc | Discrete Semiconductor Products | 1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS |
 Diodes Inc | Integrated Circuits (ICs) | ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES |
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|

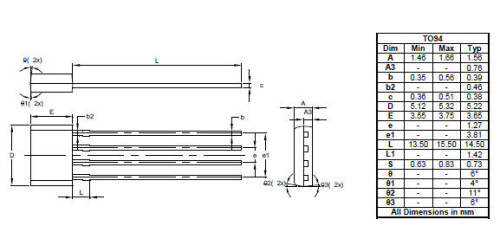

AH266 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design | Sensors, Transducers | 1 | Active | TN1.pdf |
AH276 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design | Sensors, Transducers | 5 | Active | TN1.pdf |
AH277A (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design | Magnetic Sensors | 1 | Active | TN1.pdf |

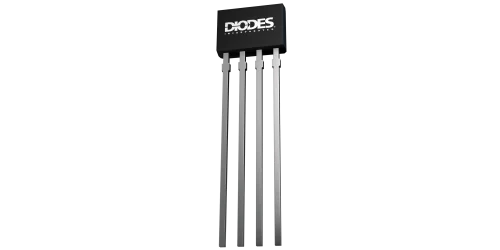

AH284NRND = Not Recommended for New Design | Motor Drivers, Controllers | 1 | Obsolete | The AH284 is a single-chip solution for driving two-coil brushless direct current (BLDC) fans and motors. The device includes a Hall-effect sensor, dynamic offset correction and two complementary open-drain output drivers with internal Zener diode protection. To help protect the motor coils, the AH284 provides Rotor Lock Protection which shuts down output drives if rotor lock is detected. The device automatically re-starts when the rotor lock is removed. The AH284 is available in SIP4 and SOT89-5L packages. |
AH285NRND = Not Recommended for New Design | Power Management (PMIC) | 1 | Obsolete | The AH285 is a single-chip solution for driving two-coil brushless direct current (BLDC) fans and motors. The device includes a Hall-effect sensor, dynamic offset correction and two complementary open-drain output drivers with internal Zener diode protection. To help protect the motor coils, the AH285 provides Rotor Lock Protection which shuts down output drives if rotor lock is detected. The device automatically re-starts when the rotor lock is removed. A Tachometer output is provided by open-drain Frequency Generator (FG) Pin which allows external interface to monitor motor rotation or speed. The FG output is the magnetic change frequency. |
AH287Two Phase 9V/12V/24V BLDC All-In-One Fan and Motor Driver with Output Zener Clamp | PMIC | 2 | Active | TN1.pdf |
| Integrated Circuits (ICs) | 1 | Unknown | ||
AH289NRND = Not Recommended for New Design | Power Management (PMIC) | 1 | Obsolete | TN1.pdf |
AH291Inactive Datasheet Archive | Integrated Circuits (ICs) | 1 | Active | AH291 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-collector drivers for motor’s coil driving, automatic lock shutdown and restart function relatively. Rotor-lock shutdown detection circuit turns off the output driver when the rotor is blocked to avoid coil overheat. Then, the automatic recovery circuit will restart the motor. These protected actions are repeated and periodic during the blocked period. Until the blocking is removed, the motor recovers and runs normally. |
| Power Management (PMIC) | 1 | Active | ||
