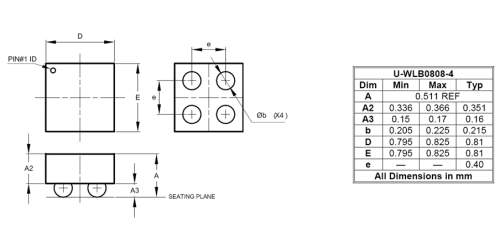

The AH1891 is a miniature micropower Omnipolar Hall effect switch IC with dual outputs specifically designed for portable and battery powered equipment such as cellular phones and portable PCs. To support battery powered equipment the AH1891 has been optimized to operate over the supply range of 1.8V to 3.3V and uses a sleep function to give an average supply current of only 7µA. To minimize PCB space the AH1891 is packaged in the small CSP package (0.8mmx0.8mm) and the design integrates the external pull up resistors to simplify the applications circuit. The outputs of the AH1891 are switched with either a North or South pole of sufficient strength. When the magnetic flux density (B) is larger than operate point (Bop), Output 1 will pull low and Output 2 will be inverted (high). The output states are held until B is lower than release point (Brp). The AH1891 is available in U-WLB0808-4 package.

TN1.pdf

TN1.pdf

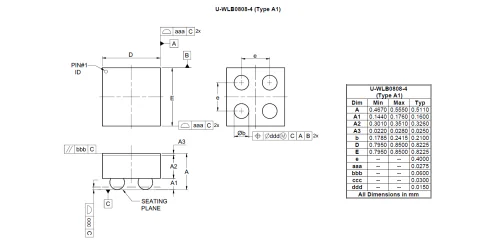

The AH1898 is a micropower magnetic range selectable (Bop/Brp) Omnipolar Hall-effect switch IC with internal pull up and pull down capability, designed for portable and battery powered consumer equipment such as cellular phones and portable PCs. To support battery powered equipment and low-voltage microcontrollers, the AH1898 can operate over the supply range of 1.6V to 3.6V and uses a hibernating clocking system to minimize the power consumption. The average supply current is only 4.3µA typical at 1.80V. The AH1898 has an 8kV ESD rating on the supply and output pins. To minimize PCB space the AH1898 is packaged in the small CSP package (0.81mm x 0.81mm typical).

The AH1899S is a high-sensitivity micropower, Omnipolar Hall effect switch IC with internal pull-up and pull-down capability. Designed for portable and battery-powered equipment, such as cellular phones and portable PCs, the average supply current is only 5.1µA at 1.2V and 5.8µA at 1.8V. To support portable equipment, the AH1899S can operate over the supply range of 1.1V to 2.0V and uses a hibernating clocking system to minimize the power consumption. To minimize PCB space, the AH1899S is available in a small low profile X2- DFN1010-4 (Type B) package.

The AH1911 is an ultra-low power digital Omnipolar Hall Effect switch IC from Diodes broad Hall Effect switches family. Thanks to the hibernating clocking system, the average supply current is only 1.6μA at 3V, which makes the AH1911 perfectly fit battery-powered consumer products, Gas or water meter, smoke detectors and IoT devices. The wider range of supply voltage (1.6V to 5.5V) extends battery operating time and supports low voltage system microcontrollers, which provides great flexibility for system design. The advanced chopper stabilized design provides superior stability on switch operating point over temperature and supply voltage. The high ESD level up to 6KV helps to improve the system robustness.

The AH1913 is an ultra-high sensitivity, digital Omnipolar, Hall effect switch IC from Diodes broad Hall effect switches family. Thanks to the hibernating clocking system, the average supply current is only 12μA at 1.8V, which makes the AH1913 a perfect fit for battery-powered consumer products, smart phones, E meters, smoke detectors, and IoT devices. The wider range of supply voltage (1.6V to 5.5V) extends battery operating time and supports low voltage system microcontrollers, which provides great flexibility for system design. The advanced chopper-stabilized design provides superior stability on switch operating point overtemperature and supply voltage. The high ESD level of up to 6KV helps improve the system robustness.
