Diodes Inc

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(5404)

...

Part	Category	Description
Diodes Inc ZXSC100X8TAObsolete	Integrated Circuits (ICs)	SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Diodes Inc MBR1045Obsolete	Discrete Semiconductor Products	DIODE SCHOTTKY 45V 10A TO220AC
Diodes Inc BC847CQ-7-F	Discrete Semiconductor Products	TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R
Diodes Inc FL2500151	Crystals Oscillators Resonators	CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Diodes Inc FDD300004	Crystals Oscillators Resonators	XTAL OSC XO 133.0000MHZ CMOS SMD
Diodes Inc 1N4002G-T	Discrete Semiconductor Products	DIODE GEN PURP 100V 1A DO41
Diodes Inc MBRF20150CTLObsolete	Discrete Semiconductor Products	DIODE SCHOTTKY ITO220AB
Diodes Inc AP9101CAK-BUTRG1	Integrated Circuits (ICs)	NRND = NOT RECOMMENDED FOR NEW DESIGN
Diodes Inc RS1MWF-7	Discrete Semiconductor Products	1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS
Diodes Inc 74LVC1G3157DW-7	Integrated Circuits (ICs)	ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES

Series	Category	# Parts	Status	Description

PI4MSD5V9545A4-Channel I2C/SMBus Bus Switch with Interrupt	Signal Switches, Multiplexers, Decoders	6	Active	The PI4MSD5V9547 is an octal bidirectional translating multiplexer controlled by the I2C-bus. The SCL/SDA upstream pair fans out to eight downstream pairs, or channels. Only one SCx/SDx channel can be selected at a time, determined by the contents of the programmable control register. The device powers up with Channel 0 connected, allowing immediate communication between the master and downstream devices on that channel.
PI4ULS3V08	Translators, Level Shifters	2	Obsolete
PI4ULS3V16	Logic	4	Obsolete
PI4ULS3V2044-Bit Automatic Direction Sensing Voltage Translator for Push-Pull /Open Drain	Logic	1	Active	4-Bit Automatic Direction Sensing Voltage Translator for Push-Pull /Open Drain

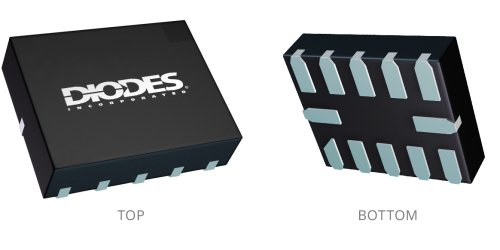

PI4ULS3V304A140Mb/s Bi-directional Level Translator for Push-Pull Applications	Integrated Circuits (ICs)	1	Active	The PI4ULS3V304A is a 4-bit configurable dual-supply autosensing bidirectional level translator that does not require a direction control pin. The B and A ports are designed to track two different power supply rails, VCCB and VCCA respectively.
PI4ULS3V48576-Bit Bi-directional Level Shifter for SD 3.0-SDR104 Compliant Memory Card Application	Translators, Level Shifters	1	Active	The device is an SD 3.0-compliant bidirectional dual voltage level translator without direction pin control. It can translate the memory card voltage to 1.8V or 3.0V signal levels from 1.2V to 1.8V of host side and supports SD 3.0 SDR104(208Mhz), SDR50(100Mhz), DDR50(50Mhz), SDR25(50Mhz), SDR12(25Mhz) and SD 2.0High-Speed (50 MHz) and Default-Speed (25 MHz) modes. To supply the memory card I/Os, the device has an integrated voltage selectable regulator and an auto-enable/disable function that connects to the VSD supply pin. The device also has built-in EMI filters and ESD protections.
PI4ULS3V5011-Bit, 280Mb/s Bi-Directional Level Translator for Push-Pull	Translators, Level Shifters	1	Obsolete	1-Bit, 280Mb/s Bi-Directional Level Translator for Push-Pull
PI4ULS5V104 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design	Translators, Level Shifters	1	Obsolete	NRND = Not Recommended for New Design
PI4ULS5V106 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design	Translators, Level Shifters	1	Active	The PI4ULS5V106 supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF cap load and up to 40MHz up/down translation at 50pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). It has bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, or SMbus).
PI4ULS5V108 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design	Logic	2	Active	The PI4ULS5V108 supports up to 100 MHz up translation and greater than 100 MHz down translation at ≤ 30pF cap load and up to 40 MHz up/down translation at 50pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). It has bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, or SMbus).
