PI49FCT3807A3.3V, 66MHz 1:10 Output Non-Inverting Clock Driver, Industrial Temperature Operation | Clock/Timing | 11 | Obsolete | The PI49FCT3807 is a 3.3V 1-to-10 clock driver. This low skew clock driver features one input and ten outputs fanout. The large fanout from a single input line reduced loading on input clock. TTL level outputs reduce noise levels on the part. Typical applications are clock and signal distribution. |
PI49FCT3807D3.3V, 100MHz 1:10 Output Non-Inverting Clock Driver, Industrial Temperature Operation | Integrated Circuits (ICs) | 12 | Active | The PI49FCT3807 is a 3.3V 1-to-10 clock driver. This low skew clock driver features one input and ten outputs fanout. The large fanout from a single input line reduced loading on input clock. TTL level outputs reduce noise levels on the part. Typical applications are clock and signal distribution. |
PI4GTL20022-Channel GTL level shifter & transceiver | Integrated Circuits (ICs) | 1 | Active | The Gunning Transceiver Logic - Transceiver Voltage Clamps (GTL-TVC) provide high-speed voltage translation with low ON-state resistance and minimal propagation delay. |
PI4GTL20144-Channel GTL level shifter & transceiver | Logic | 2 | Active | The PI4GTL2014 is a 4-bit translating transceiver designed for 3.3 V LVTTL system interface with a GTL-/GTL/GTL+ bus, where GTL-/GTL/GTL+ refers to the reference voltage of the GTL bus and the input/output voltage thresholds associated with it. |
| Integrated Circuits (ICs) | 1 | Active | PI4IOE5V6416AQ is a 16-bit bidirectional voltage-level translation general-purpose I/O (GPIO) expander. It is automotive-compliant AEC-Q100 Grade 2 qualified device with dual voltage rail provide enhanced programmable I/O for next-generation low voltage microprocessors and microcontrollers via the I2C interface that provides remote I/O expansion for most microcontroller families via the I2C-bus interface. |
PI4IOE5V6416RQ16-bit I2C General Purpose IO Expander with Interrupt, Reset. AEC-Q100 Grade 2. | Interface | 1 | Active | The PI4IOE5V6416RQ is a 16-bit general-purpose I/O expander that provides remote I/O expansion for most microcontroller families via the PC-bus interface. |

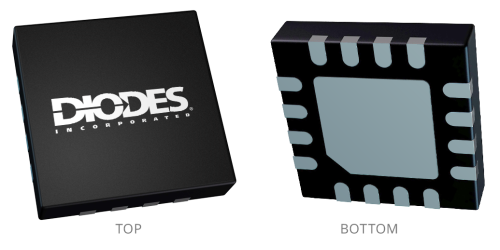

PI4IOE5V6534QAEC-Q100 Grade 2 Low-voltage translating 34-bit I2C-bus I/O Expander | Integrated Circuits (ICs) | 11 | Active | The PI4IOE5V9536 provides 4 bits of General Purpose parallel Input/Output (GPIO) expansion for I2Cbus/ SMBus applications. It includes features like higher driving capability, 5V tolerance, lower power supply, individual I/O configuration, and smaller packaging. It provides a simple solution when additional I/O is required for ACPI power switches, sensors, push buttons, LEDs, fans, etc. The PI4IOE5V9536 consists of 4-bit registers to configure the I/Os as either inputs or outputs, and 4-bit polarity registers to change the polarity of the input port register data The data for each input or output is kept in the corresponding Input port or Output port register. All registers can be read by the system master. |
| Interface | 1 | Obsolete | NRND = Not Recommended for New Design |
| I/O Expanders | 1 | Obsolete | The PI4IOE5V9557 provide 8 bits of General Purpose parallel Input/Output (GPIO) expansion for I2Cbus/SMBus applications. It includes the features such as higher driving capability, 5V tolerance, lower power supply, individual I/O configuration, and smaller packaging. It provides a simple solution when additional I/O is needed for ACPI power switches, sensors, push buttons, LEDs, fans, etc. The PI4IOE5V9557 consists of an 8-bit register to configure the I/Os as either inputs or outputs, and an 8- bit polarity register to change the polarity of the input port register. The data for each input or output is kept in the corresponding Input port or Output port register. All registers can be read by the system master. |
| Integrated Circuits (ICs) | 1 | Obsolete | 4-bits IO expander with 1MHz I2C |
