Diodes Inc

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(5404)

...

Part	Category	Description
Diodes Inc ZXSC100X8TAObsolete	Integrated Circuits (ICs)	SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Diodes Inc MBR1045Obsolete	Discrete Semiconductor Products	DIODE SCHOTTKY 45V 10A TO220AC
Diodes Inc BC847CQ-7-F	Discrete Semiconductor Products	TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R
Diodes Inc FL2500151	Crystals Oscillators Resonators	CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Diodes Inc FDD300004	Crystals Oscillators Resonators	XTAL OSC XO 133.0000MHZ CMOS SMD
Diodes Inc 1N4002G-T	Discrete Semiconductor Products	DIODE GEN PURP 100V 1A DO41
Diodes Inc MBRF20150CTLObsolete	Discrete Semiconductor Products	DIODE SCHOTTKY ITO220AB
Diodes Inc AP9101CAK-BUTRG1	Integrated Circuits (ICs)	NRND = NOT RECOMMENDED FOR NEW DESIGN
Diodes Inc RS1MWF-7	Discrete Semiconductor Products	1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS
Diodes Inc 74LVC1G3157DW-7	Integrated Circuits (ICs)	ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES

Series	Category	# Parts	Status	Description

PI3USB20 (Not Recommended for New Design (NRND))NRND = Not Recommended for New Design	Integrated Circuits (ICs)	1	Obsolete	NRND = Not Recommended for New Design
PI3USB221NRND = Not Recommended for New Design	Analog Switches - Special Purpose	2	Obsolete	NRND = Not Recommended for New Design
PI3USB302-A2:1 MUX/DeMux 3.3V USB 3.2 Gen 1 Switch	Integrated Circuits (ICs)	1	Active	2:1 MUX/DeMux 3.3V USB 3.2 Gen 1 Switch

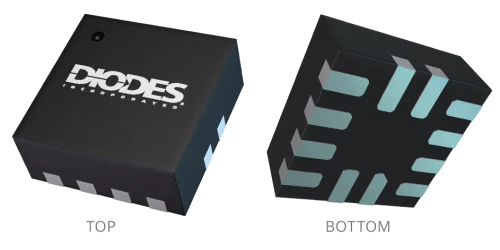

PI3USB30312-Channel, 1:3, USB 2.0 and MHL MUX/DeMUX	Integrated Circuits (ICs)	2	Active	The PI3USB3031 device is a 2-channel, 1:3 multiplexer that includes a high-speed Mobile High Definition Link (MHL), Mobility Display Port (MyDP) switch, and USB 2.0 High-Speed (480 Mbps) switches in the same package. These configurations allow the system designer to save board space and eliminate multiple connectors buy using a common USB or Mico-USB connector for MHL/MyDP signals and two sets of USB data. The MHL/MyDP path supports the latest MHL Rev. 3.0 specification.
PI3USB30532USB 3.2 Gen1/DP1.2 Crossbar Switch for Type-C	Integrated Circuits (ICs)	3	Active	The PI3USB30532 is a 6:4 differential channel bi-directional matrix switch solution for switching USB 3.2 Gen 1 and/or DP1.2 signals through USB 3.2 Gen 1 Type-C connector. It multiplexes either 1 lane of USB 3.2 Gen 1, 1 lane of USB 3.2 Gen 1 and 2 channels of DP1.2 or 4 channels of DP1.2 to the USB Type C connector. In addition, AUXHPD channels are also multiplexed to the Type C connector. The PI3USB30532 offers excellent signal integrity for high-speed signals and low power dissipation.

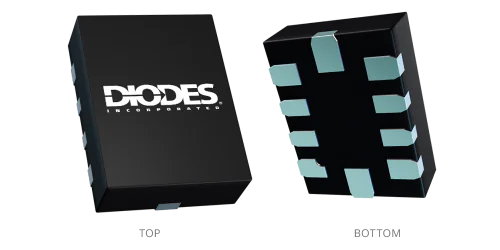

PI3USB30EHigh-Speed USB2.0 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable	Integrated Circuits (ICs)	1	Active	The PI3USB30E is a single differential channel 2:1 multiplexer/demultiplexer USB 2.0 Switch. Industry leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and I/O capacitance. The device multiplexes differential outputs from a USB Host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high speed signals at the outputs. It is designed for low bit-to-bit skew, high channel-to-channel noise isolation and is compatible with various standards, such as High Speed USB 2.0 (480 Mb/s).
PI3USB3102QUSB 3.2 Gen 1 and USB 2 .0 Combo Switch	Interface	3	Active	Diodes' PI3USB3102Q USB3.0 and USB2.0 Combo Switch is a complete 1:2 switching solution for SuperSpeed USB 3.0 signals. PI3USB3102Q provides differential high-speed lanes for the USB3.0 4.8 Gbps TX and RX lanes as well as a differential lane for 480 Mbps USB 2.0 signals and the USB_ID signal.
PI3USB31531USB 3.2 Gen 2/Display Port 1.4 Crossbar Switch for Type-C	Integrated Circuits (ICs)	1	LTB	The PI3USB31531 is a 6:4 differential channel bidirectional Crossbar switch solution for switching USB3.1 Gen1/Gen2 (-3db @ 10Gb/s) and/or DP1.2/DP1.4 (-3.7db @ 8Gb/s) signals through USB3.0 Type-C connector.
PI3USB31532USB 3.2 Gen 2/Display Port 2.1 UHBR10 Crossbar Switch for Type-C	Analog Switches - Special Purpose	1	Active	The DIODES™ PI3USB31532 is a 6:4 differential channel, bidirectional, crossbar switch solution for switching USB 3.2 Gen 1/Gen 2 and/or DP 2.1 signals through USB 3.2 Gen 2 Type-C connector. It multiplexes either one lane of USB 3.2 Gen 1/Gen 2, one lane of USB 3.2 Gen 1/Gen 2, and two channels of DP 2.1 UHBR10 or four channels of DP 2.1 UHBR10 to the USB Type-C connector.
PI3USB31532Q10Gbps USB Type-C DP2.1/USB3 6:4 Crossbar Switch	Integrated Circuits (ICs)	1	Active	The PI3USB31532Q is a 6:4 differential channels, bidirectional, 10Gbps crossbar switch solution for routing USB 3.2 and/or DP 2.1 signals through USB Type-C® connector. It supports either one lane of USB 3.2 Gen 2, one lane of USB 3.2 Gen 2 and two channels of DP 2.1 UHBR10, or four channels of DP 2.1 UHBR10 to the USB Type-C connector.
