Series	Category	Parts	Status	Description
-	Solid State Relays (SSR)	39	Active
AA28F	Solid State Relays (SSR)	1	Active
AA36F	Solid State Relays (SSR)	1	Active
AA37F	Relays	1	Active
AA40F	Solid State Relays (SSR)	1	Active
AA42F	Relays	1	Active
AA47	Solid State Relays (SSR)	1	Active
AB21R	Relays	1	Active
AB23R	Solid State Relays (SSR)	1	Active
AB30S	Relays	5	Active

Standalone parts(42)

Parts from Bright Toward Industrial Co., Ltd. that are not part of a series

Part Information	Pricing (lowest)	Release Time	Contact Rating (Current)	Coil Type	Features	Coil Voltage	Operate Time	Contact Form	Must Release Voltage	Operating Temperature (Max)	Operating Temperature (Min)	Seal Rating	Coil Resistance	Must Operate Voltage	Mounting Type	Switching Voltage DC (Max)	Coil Current	Termination Style	Form A Count

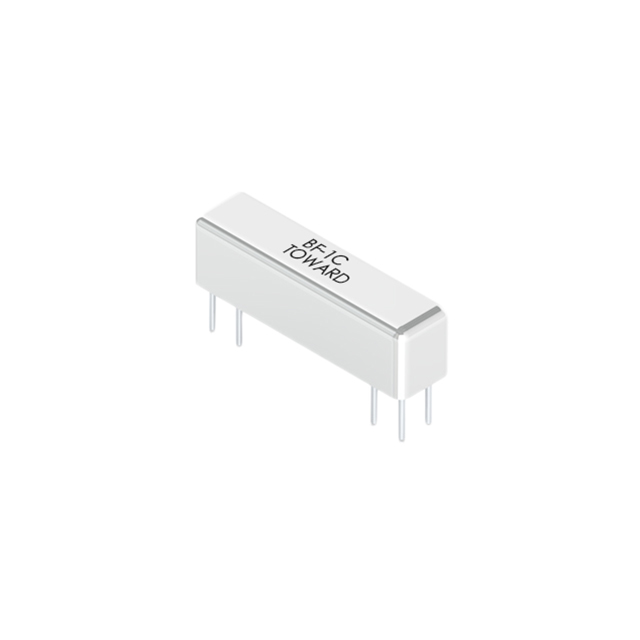

BF-1C-05C Bright Toward Industrial Co., Ltd. 200V/0.5A REED RELAY, 1 FORM C,	Sign in to see pricing Log in Sign up free	2 ms	250 mA	Non Latching	Coaxial Shield	5 V	1 ms	1, C, Form, SPDT	0.4 VDC	85 °C	-25 °C	Hermetically, Sealed	230 Ohms	3.8 VDC	Through Hole	100 VDC	22 mA	PC Pin	—
BFH-1C05C Bright Toward Industrial Co., Ltd. 250V/1.5A REED RELAY, 1 FORM C,	Sign in to see pricing Log in Sign up free	2 ms	250 mA	Non Latching	Coaxial Shield	5 V	1.5 ms	1, C, Form, SPDT	0.4 VDC	85 °C	-25 °C	Hermetically, Sealed	90 Ohms	2.5 VDC	Through Hole	100 VDC	55.6 mA	PC Pin	—

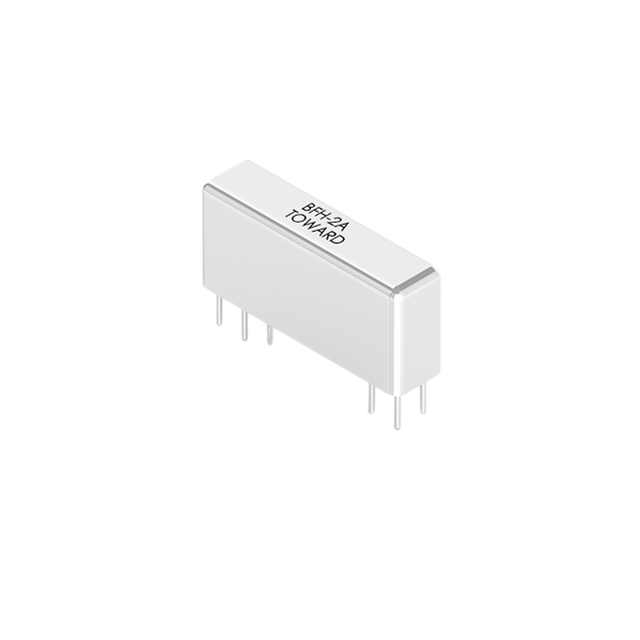

BFH-2A05C Bright Toward Industrial Co., Ltd. 250V/1.5A REED RELAY, 2 FORM A,	Sign in to see pricing Log in Sign up free	0.15 ms	500 mA	Non Latching	Coaxial Shield	5 V	0.5 ms	DPST-NO	0.4 VDC	125 °C	-40 °C	Hermetically, Sealed	90 Ohms	2.5 VDC	Through Hole	200 VDC	55.6 mA	PC Pin	2
BFH-2A05W Bright Toward Industrial Co., Ltd. 250V/1.5A HIGH TEMPERATURE REED	Sign in to see pricing Log in Sign up free	0.15 ms	500 mA	Non Latching	—	5 V	0.5 ms	DPST-NO	0.4 VDC	125 °C	-40 °C	Hermetically, Sealed	90 Ohms	2.5 VDC	Through Hole	200 VDC	55.6 mA	PC Pin	2
BFH-2A12 Bright Toward Industrial Co., Ltd. 250V/1.5A REED RELAY, 2 FORM A,	Sign in to see pricing Log in Sign up free	0.15 ms	500 mA	Non Latching	—	12 VAC	0.5 ms	DPST-NO	1 VDC	125 °C	-40 °C	Hermetically, Sealed	500 Ohms	6.7 VDC	Through Hole	200 VDC	24 mA	PC Pin	2

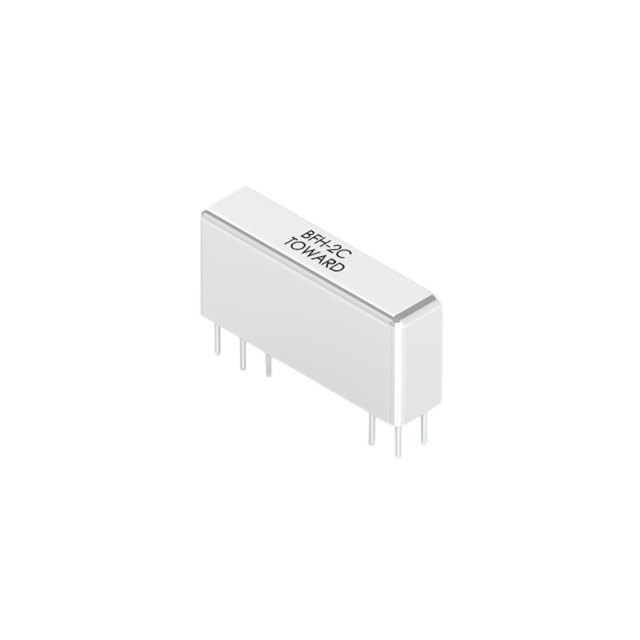

BFH-2C05 Bright Toward Industrial Co., Ltd. 200V/0.5A REED RELAY, 2 FORM C,	Sign in to see pricing Log in Sign up free	2 ms	250 mA	Non Latching	—	5 V	1.5 ms	2, 2 Form C, C, DPDT, Form	0.4 VDC	125 °C	-40 °C	Hermetically, Sealed	90 Ohms	2.5 VDC	Through Hole	100 VDC	55.6 mA	PC Pin	—
BFH-2C12 Bright Toward Industrial Co., Ltd. 200V/0.5A REED RELAY, 2 FORM C,	Sign in to see pricing Log in Sign up free	2 ms	250 mA	Non Latching	—	12 VAC	1.5 ms	2, 2 Form C, C, DPDT, Form	1 VDC	125 °C	-40 °C	Hermetically, Sealed	500 Ohms	6.7 VDC	Through Hole	100 VDC	24 mA	PC Pin	—

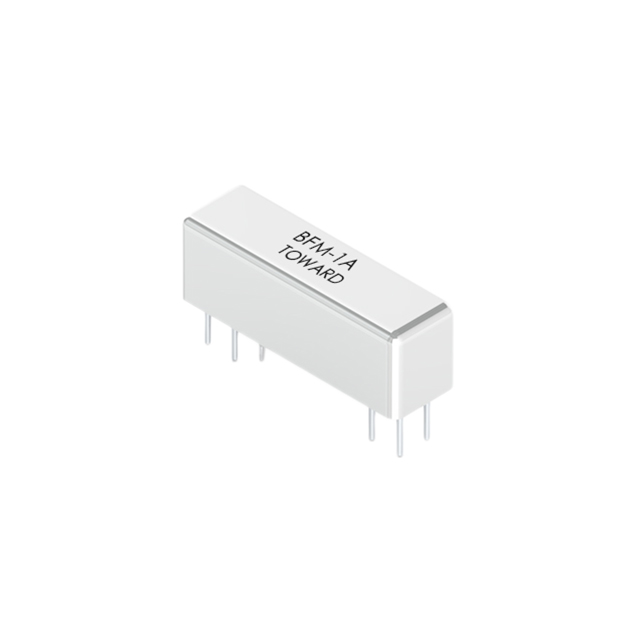

BFM-1A05C Bright Toward Industrial Co., Ltd. 350V/1.5A REED RELAY, 1 FORM A,	Sign in to see pricing Log in Sign up free	0.1 ms	500 mA	Non Latching	Coaxial Shield	5 V	0.5 ms	SPST-NO	0.4 VDC	85 °C	-25 °C	Hermetically, Sealed	370 Ohms	3.8 VDC	Through Hole	200 VDC	13.5 mA	PC Pin	1
BFM-1A12E Bright Toward Industrial Co., Ltd. 350V/1.5A REED RELAY, 1 FORM A,	Sign in to see pricing Log in Sign up free	0.1 ms	500 mA	Non Latching	Electrostatic Shield	12 VAC	0.5 ms	SPST-NO	1 VDC	85 °C	-25 °C	Hermetically, Sealed	1.5 kOhms	9 VDC	Through Hole	200 VDC	8 mA	PC Pin	1

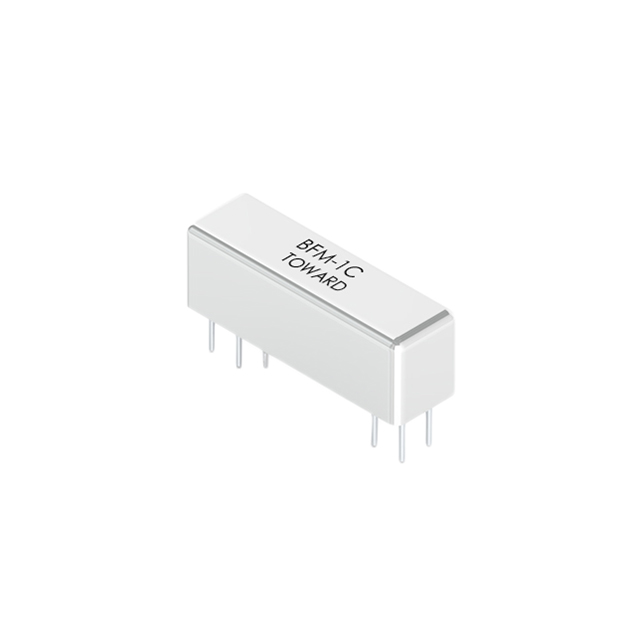

BFM-1C05C Bright Toward Industrial Co., Ltd. 200V/1.0A REED RELAY, 1 FORM C,	Sign in to see pricing Log in Sign up free	2 ms	250 mA	Non Latching	Coaxial Shield	5 V	1 ms	1, C, Form, SPDT	0.4 VDC	85 °C	-25 °C	Hermetically, Sealed	230 Ohms	3.8 VDC	Through Hole	150 VDC	22 mA	PC Pin	—

1–10 of 42

Page 1 of 5
