- Series

Manufacturer: Bright Toward Industrial Co., Ltd.

Catalog

SSR RELAY SPST-NO 80MA 0-600V

Part	Output Type	Circuit	Package Name	Voltage - Input	Termination Style	Mounting Type	On-State Resistance (Max)	Load Current	Voltage - Load (Max)	Package Length	Package Width	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum

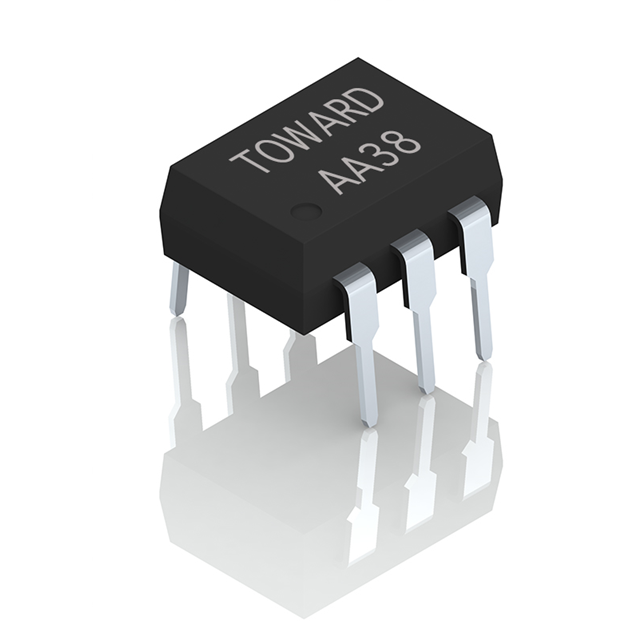

Bright Toward Industrial Co., Ltd. AA38	AC DC	SPST-NO (1 Form A)	6-DIP	1.17 VDC	PC Pin	Through Hole	60 Ohm	80 mA	600 V	0.3 in	7.62 mm
Bright Toward Industrial Co., Ltd. AC30	DC	SPST-NO (1 Form A) x 2	8-DIP		PC Pin	Through Hole	30 Ohm	0.1 A	400 V	0.3 in	7.62 mm	1.5 VDC	1 V

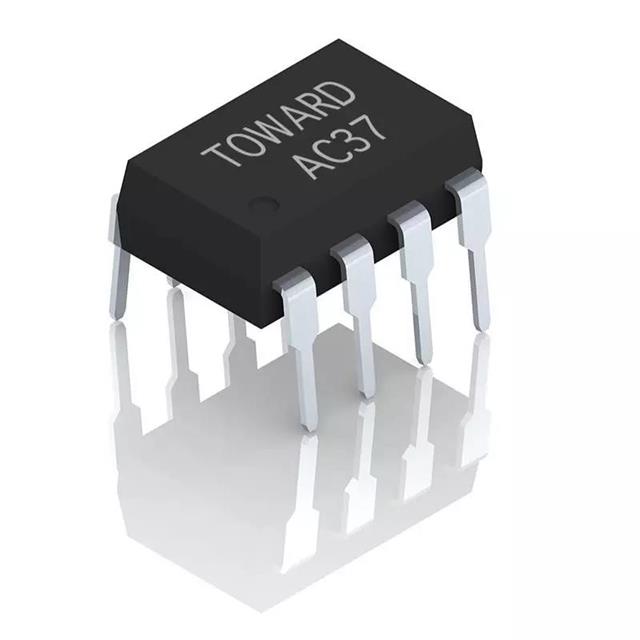

Bright Toward Industrial Co., Ltd. AC37	AC DC	SPST-NO (1 Form A) x 2	8-DIP	1.17 VDC	PC Pin	Through Hole	1.6 Ohms	500 mA	60 V	0.3 in	7.62 mm

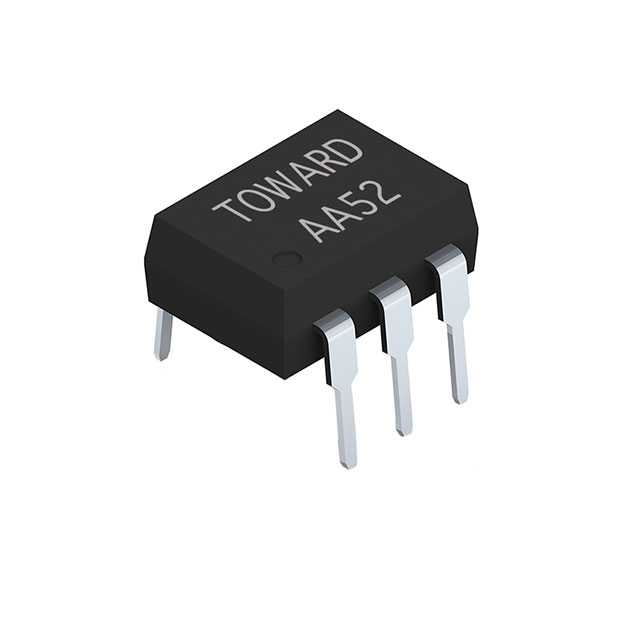

Bright Toward Industrial Co., Ltd. AA52	AC DC	SPST-NO (1 Form A)	6-DIP	1.33 VDC	PC Pin	Through Hole	3.5 Ohm	350 mA	1700 V	0.3 in	7.62 mm

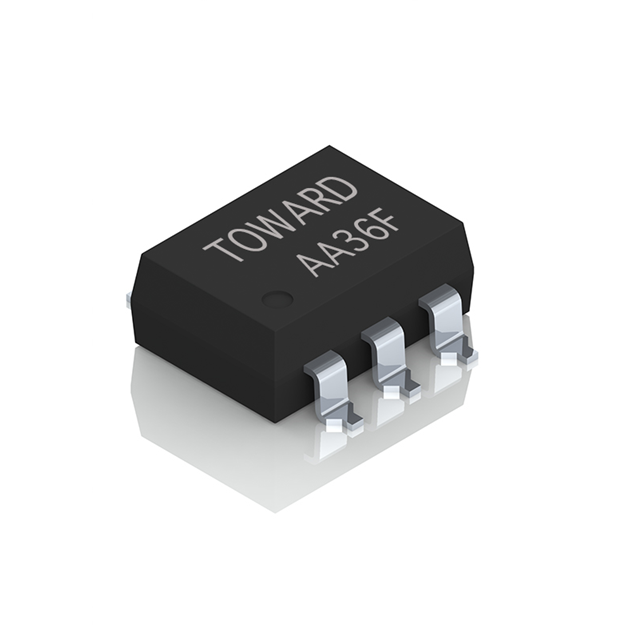

Bright Toward Industrial Co., Ltd. AA36F	AC DC	SPST-NO (1 Form A)	6-SMD	1.37 VDC	Gull Wing	Surface Mount	0.1 Ohms	2.5 A	60 V	0.3 in	7.62 mm

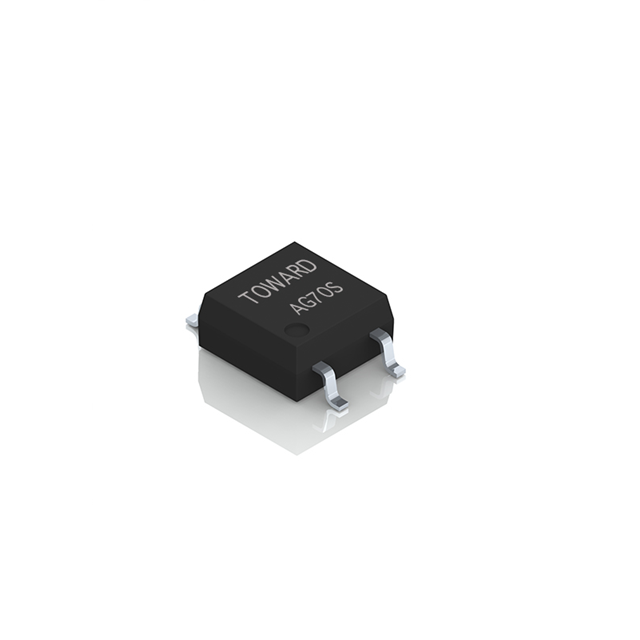

Bright Toward Industrial Co., Ltd. AG70S	AC DC	SPST-NO (1 Form A)	4-SOP	1.17 VDC	Gull Wing	Surface Mount	1 Ohms	400 mA	60 V	0.173 in	4.4 mm

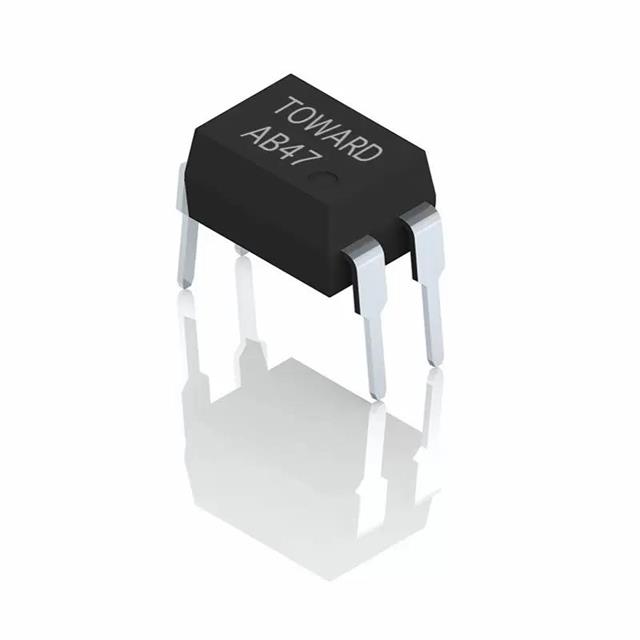

Bright Toward Industrial Co., Ltd. AB47	AC DC	SPST-NO (1 Form A)	4-DIP	1.37 VDC	PC Pin	Through Hole	160 mOhms	1.25 A	80 V	0.3 in	7.62 mm

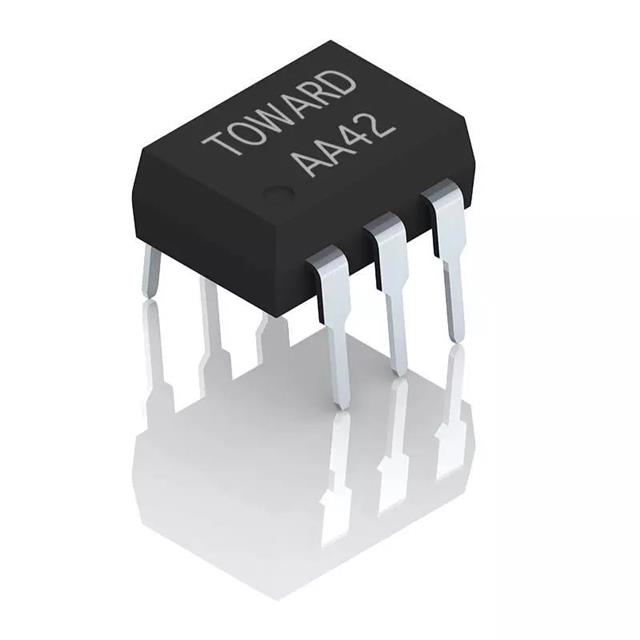

Bright Toward Industrial Co., Ltd. AA42	AC DC	SPST-NO (1 Form A)	6-DIP	1.37 VDC	PC Pin	Through Hole	24 mOhms	5 A	60 V	0.3 in	7.62 mm
Bright Toward Industrial Co., Ltd. AA28	AC DC	SPST-NO (1 Form A)	6-SMD	1.37 VDC	Gull Wing	Surface Mount	30 mOhms	4.5 A	40 V	0.3 in	7.62 mm

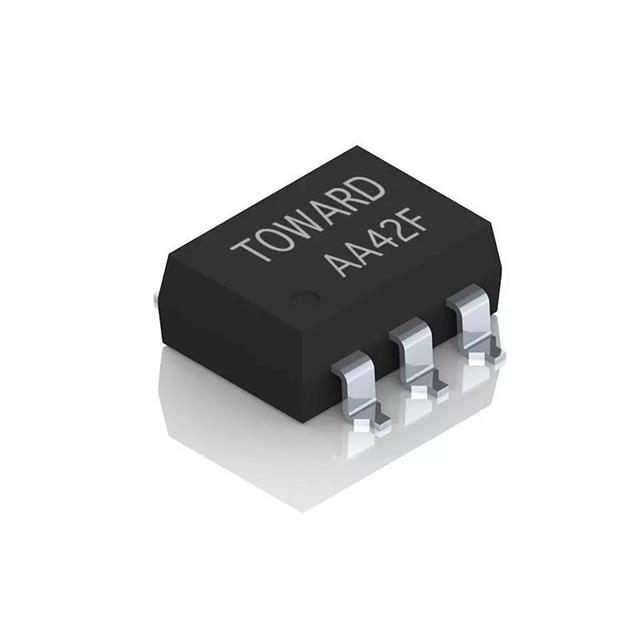

Bright Toward Industrial Co., Ltd. AA42F	AC DC	SPST-NO (1 Form A)	6-SMD	1.37 VDC	Gull Wing	Surface Mount	64 mOhms	5 A	60 V	0.3 in	7.62 mm
