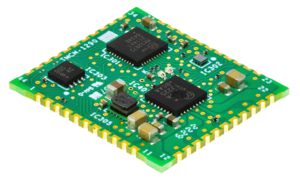

TMCM-1290Single Axis Controller and Driver Module | Evaluation Boards | 1 | Active | The TMCM-1290 is a single axis controller and driver module for 2-phase stepper motors. It comes either with TMCL or with Modbus firmware installed and communicates through RS485 or SPI. Both allow use of the TMC5240 motion controller and motor driver. StealthChop, SpreadCycle, Stall-Guard2, and CoolStep allow for dynamic current control and quiet, smooth, and efficient motor operation.ApplicationsBroad MarketSystem IntegratorsLab AutomationTextilePackagingLife SciencesSemiconductor HandlingPumps and Motor DrivesMulti-Axis Applications |

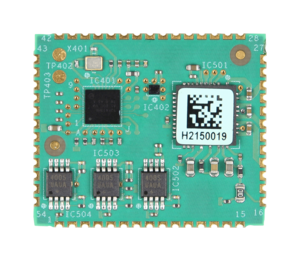

TMCM-1690Single Axis FOC Servo Controller Gate Driver Module | Evaluation and Demonstration Boards and Kits | 1 | Active | The TMCM-1690 is a single axis FOC servo controller gate driver module for 3-phase brushless direct current (BLDC) and DC motors with up to 1.5A gate drive current and +60V (+48 V nominal) supply. It offers universal asynchronous receiver-transmitter (UART) (RS232-/RS485-ready) interface, a controller area network (CAN) interface, and an optional SPI interface. TMCM-1690 supports incremental encoders, digital hall sensors, and absolute encoder as position feedback. The TMCM-1690 comes in three different firmware variants supporting CANopen, CANopen-over-EtherCAT (COE), and TMCL (Trinamic Motion Control Language).ApplicationsApplicationsRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesMotorized Tables and ChairsIndustrial BLDC and DC Motor Drives |

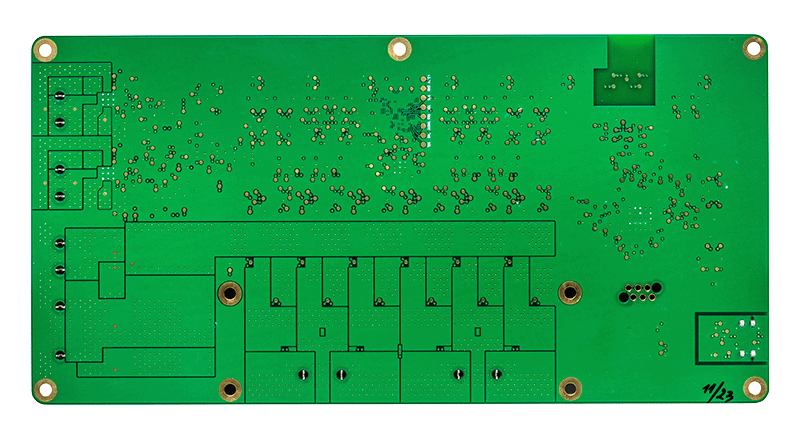

TMCM-2611-AGVThe TMCM-2611-AGV is a dual axis servo drive platform for 3-phase BLDC motors running with up to 14ARMS at +48V. | Motor Driver Boards, Modules | 1 | Active | The TMCM-2611-AGV is a dual axis servo drive platform for 3-phase BLDC motors running with up to 14ARMS at +48V. It offers RS485, CAN, and USB interfaces with TMCL™ protocol for communication. TMCM-2611-AGV supports various positions feedback options: incremental quadrature encoder and digital hall sensor.APPLICATIONSRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesIndustrial Motor Drives |

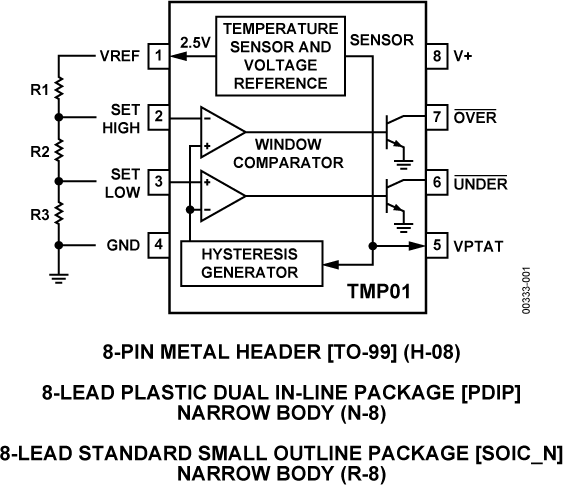

TMP01Low Power, Programmable Temperature Controller (Temperature Sensor) | Sensors, Transducers | 1 | Active | The TMP01 is a temperature sensor that generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range. Both the high/low temperature trip points and hysteresis (overshoot) band are determined by user-selected external resistors. For high volume production, these resistors are available on board.The TMP01 consists of a band gap voltage reference combined with a pair of matched comparators. The reference provides both a constant 2.5 V output and a voltage proportional to absolute temperature (VPTAT) which has a precise temperature coefficient of 5 mV/K and is 1.49 V (nominal) at 25°C. The comparators compare VPTAT with the externally set tempera-ture trip points and generate an open-collector output signal when one of their respective thresholds has been exceeded.Hysteresis is also programmed by the external resistor chain and is determined by the total current drawn out of the 2.5 V reference. This current is mirrored and used to generate a hysteresis offset voltage of the appropriate polarity after a comparator has been tripped. The comparators are connected in parallel, which guarantees that there is no hysteresis overlap and eliminates erratic transitions between adjacent trip zones.The TMP01 utilizes proprietary thin-film resistors in conjunc-tion with production laser trimming to maintain a temperature accuracy of ±1°C (typical) over the rated temperature range, with excellent linearity. The open-collector outputs are capable of sinking 20 mA, enabling the TMP01 to drive control relays directly. Operating from a 5 V supply, quiescent current is only 500 μA (max).The TMP01 is available in 8-pin mini PDIP, SOIC, and TO-99 packages.APPLICATIONSOver/under temperature sensor and alarmBoard-level temperature sensingTemperature controllersElectronic thermostatsThermal protectionHVAC systemsIndustrial process controlRemote sensors |
| Analog and Digital Output | 4 | Active | |
| Analog and Digital Output | 4 | Active | |
| Temperature Sensors | 6 | Active | |
| Analog and Digital Output | 2 | Active | |

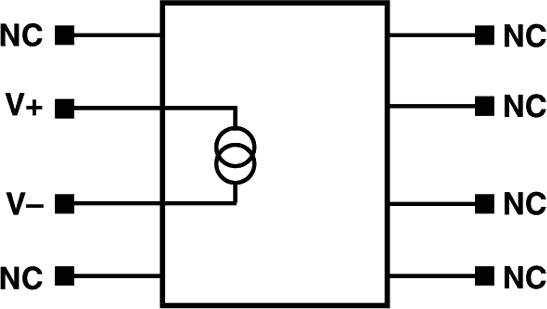

TMP17Low Cost, Current Output Temperature Transducer | Analog and Digital Output | 2 | Active | The TMP17 is a monolithic integrated circuit temperature transducer that provides an output current proportional to absolute temperature. For a wide range of supply voltages the transducer acts as a high impedance temperature dependent current source of 1 µA/K. Improved design and laser wafer trimming of the IC's thin-film resistors allows the TMP17 to achieve absolute accuracy levels and nonlinearity errors previously unattainable at a comparable price.The TMP17 can be employed in applications between -40°C to +105°C where conventional temperature sensors (i.e., thermistor, RTD, thermocouple, diode) are currently being used. Expensive linearization circuitry, precision voltage references, bridge components, resistance measuring circuitry and cold junction compensation are not required with the TMP17.The TMP17 is available in a low cost SO-8 surface-mount package. |

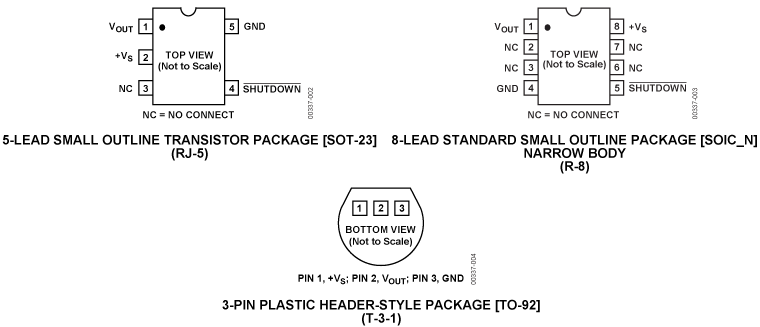

TMP36Voltage Output Temperature Sensors | Analog and Digital Output | 2 | Active | The TMP35/TMP36/TMP37 are low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP35/ TMP36/TMP37 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range.The low output impedance of the TMP35/TMP36/TMP37 and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs. All three devices are intended for single-supply operation from 2.7 V to 5.5 V maximum. The supply current runs well below 50 μA, providing very low self-heating—less than 0.1°C in still air. In addition, a shutdown function is provided to cut the supply current to less than 0.5 μA.The TMP35 is functionally compatible with the LM35/LM45 and provides a 250 mV output at 25°C. The TMP35 reads temperatures from 10°C to 125°C. The TMP36 is specified from −40°C to +125°C, provides a 750 mV output at 25°C, and operates to 125°C from a single 2.7 V supply. The TMP36 is functionally compatible with the LM50. Both the TMP35 and TMP36 have an output scale factor of 10 mV/°C.The TMP37 is intended for applications over the range of 5°C to 100°C and provides an output scale factor of 20 mV/°C. The TMP37 provides a 500 mV output at 25°C. Operation extends to 150°C with reduced accuracy for all devices when operating from a 5 V supply.The TMP35/TMP36/TMP37 are available in low cost 3-lead TO-92, 8-lead SOIC_N, and 5-lead SOT-23 surface-mount packages. |
