| Integrated Circuits (ICs) | 3 | Active | |

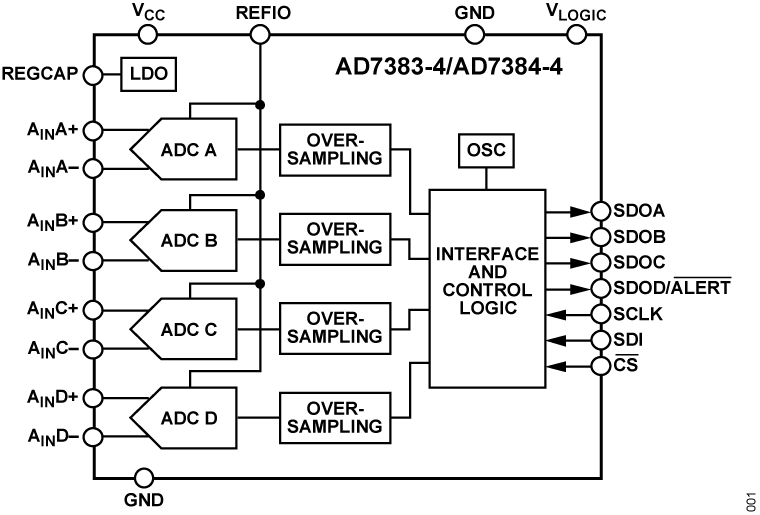

AD7383-4Pseudo Differential Input, Quad, 4 MSPS Simultaneous Sampling, 16-Bit, SAR ADC | Analog to Digital Converters (ADC) | 3 | Active | The 16-bit AD7383-4 and 14-bit AD7384-4 are pin-compatible, quad, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The analog input type is a pseudo differential and is sampled and converted on the falling edge of CS.The AD7383-4/AD7384-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling boosts up to two bits of added resolution. A buffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used.The conversion process and data acquisition use standard control inputs allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The devices are compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.The AD7383-4/AD7384-4 are available in a 24-lead, 4 mm × 4 mm LFCSP and a temperature range of −40°C to +125°C.ApplicationsMotor control position feedbackMotor control current senseData acquisition systemsErbium-doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulationProduct HighlightsQuad simultaneous sampling and conversion.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 4 mm × 4 mm LFCSP.Integrated oversampling block to increase dynamic range, reduce noise, and reduce SCLK speed requirements.Pseudo differential analog inputs.Small sampling capacitor reduces amplifier drive burden. |
AD7384Dual, Simultaneous Sampling, 14-Bit, 4 MSPS, SAR ADCs, Pseudo Differential Input | Integrated Circuits (ICs) | 2 | Active | The 16-bit AD7383 and the 14-bit AD7384 are a pin-compatible family of dual simultaneous sampling, high speed, low power, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates up to 4 MSPS. The analog input type is pseudo differential and is sampled and converted on the falling edge ofCS.Integrated on-chip oversampling blocks improve dynamic range and reduce noise at lower bandwidths. A buffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used.The conversion process and data acquisition use standard control inputs that allow simple interfacing to microprocessors or digital signal processors (DSPs). The devices are compatible with 1.8 V, 2.5 V, and 3.3 V interfaces, using a separate logic supply.The AD7383 and the AD7384 are available in a 16-lead lead frame chip scale package (LFCSP) with operation specified from −40°C to +125°C.Multifunction pin names may be referenced by their relevant function only.PRODUCT HIGHLIGHTSDual simultaneous sampling and conversion with two complete ADC functions.Pin-compatible product family.High 4 MSPS throughput rate.Space saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range, reduce noise, and reduce SCLK speed requirements.Pseudo differential analog inputs.Small sampling capacitor reduces amplifier drive burden.APPLICATIONSMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsI and Q demodulation |
AD7384-4Pseudo Differential Input, Quad, 4 MSPS Simultaneous Sampling, 14-Bit, SAR ADC | Data Acquisition | 2 | Active | The 16-bitAD7383-4and 14-bit AD7384-4 are pin-compatible, quad, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The analog input type is a pseudo differential and is sampled and converted on the falling edge of CS.The AD7383-4/AD7384-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling boosts up to two bits of added resolution. A buffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used.The conversion process and data acquisition use standard control inputs allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The devices are compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.The AD7383-4/AD7384-4 are available in a 24-lead, 4 mm × 4 mm LFCSP and a temperature range of −40°C to +125°C.ApplicationsMotor control position feedbackMotor control current senseData acquisition systemsErbium-doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulationProduct HighlightsQuad simultaneous sampling and conversion.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 4 mm × 4 mm LFCSP.Integrated oversampling block to increase dynamic range, reduce noise, and reduce SCLK speed requirements.Pseudo differential analog inputs.Small sampling capacitor reduces amplifier drive burden. |

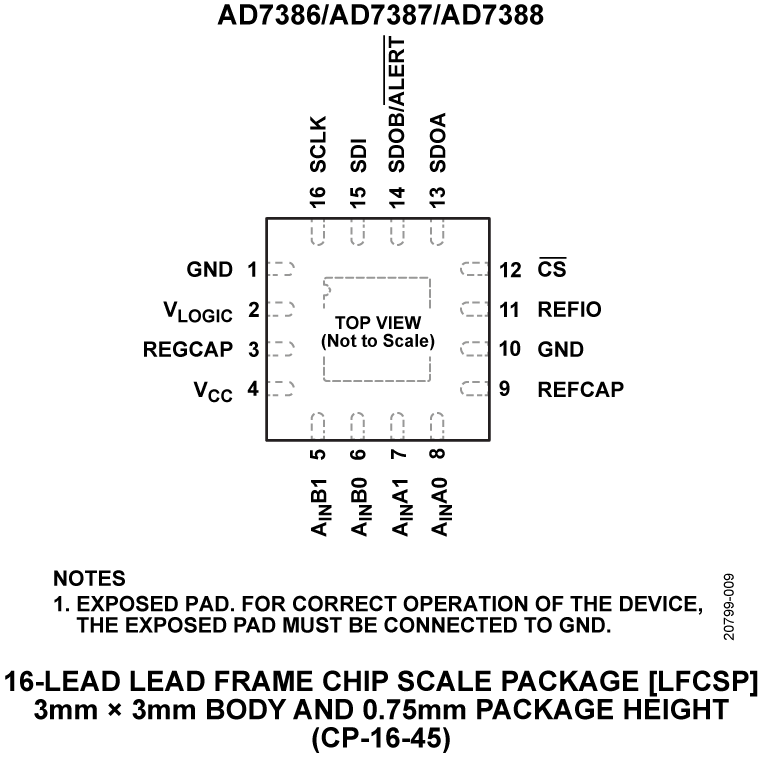

AD73864-Channel, 4 MSPS, 16-Bit Dual Simultaneous Sampling SAR ADC | Data Acquisition | 2 | Active | The AD7386/AD7387/AD7388are 16-bit, 14-bit, and 12-bit dual, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates of up to 4 MSPS. The analog input types are single-ended and are sampled and converted on the falling edge of CS.The AD7386/AD7387/AD7388 have an on-chip sequencer and integrated on-chip oversampling block to improve dynamic range and reduce noise at lower bandwidths. Abuffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used. The conversion process and data acquisition use standard control inputs, allowing interfacing to microprocessors or digital signal processors (DSPs). The AD7386 is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces by using the separate logic supply.The AD7386/AD7387/AD7388 are available in a 16-lead LFCSP with operation specified from −40°C to +125°C.Product Highlights4-channel, dual simultaneous sampling ADC.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range and SNR and to reduce SCLK speed requirements.Single-ended analog inputs.Small sampling capacitor reduces amplifier drive burden.ApplicationsMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulation |
AD73874-Channel, 4 MSPS, 14-Bit, Dual, Simultaneous Sampling SAR ADC | Integrated Circuits (ICs) | 2 | Active | TheAD7386/AD7387/AD7388are 16-bit, 14-bit, and 12-bit dual, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converters (ADCs) that operate from a 3.0 V to 3.6 V power supply and feature throughput rates of up to 4 MSPS. The analog input types are single-ended and are sampled and converted on the falling edge of CS.The AD7386/AD7387/AD7388 have an on-chip sequencer and integrated on-chip oversampling block to improve dynamic range and reduce noise at lower bandwidths. Abuffered internal 2.5 V reference is included. Alternatively, an external reference up to 3.3 V can be used. The conversion process and data acquisition use standard control inputs, allowing interfacing to microprocessors or digital signal processors (DSPs). The AD7386 is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces by using the separate logic supply.The AD7386/AD7387/AD7388 are available in a 16-lead LFCSP with operation specified from −40°C to +125°C.Product Highlights4-channel, dual simultaneous sampling ADC.Pin-compatible product family.High 4 MSPS throughput rate.Space-saving 3 mm × 3 mm LFCSP.Integrated oversampling block to increase dynamic range and SNR and to reduce SCLK speed requirements.Single-ended analog inputs.Small sampling capacitor reduces amplifier drive burden.ApplicationsMotor control position feedbackMotor control current senseSonarPower qualityData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsInphase and quadrature demodulation |
AD7388-4Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC | Integrated Circuits (ICs) | 1 | Active | The AD7386-4/AD7387-4/AD7388-4 are 16-bit, 14-bit, and 12-bit compatible, quad, simultaneous sampling, high-speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The single-ended analog input accepts voltage from 0 V to VREF, and is sampled and converted on the falling edge of CS.The AD7386-4/AD7387-4/AD7388-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. The REFIO pin can have a reference voltage (VREF) of 2.5 V to 3.3 V.The conversion process and data acquisition use standard control inputs, allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.The AD7386-4/AD7387-4/AD7388-4 are available in a 24-lead lead frame chip scale package (LFCSP) and operate over a temperature range of −40°C to +125°CAPPLICATIONSMotor control position feedbackMotor control current senseData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsTraveling wave fault detectionIn-phase and quadrature demodulation |

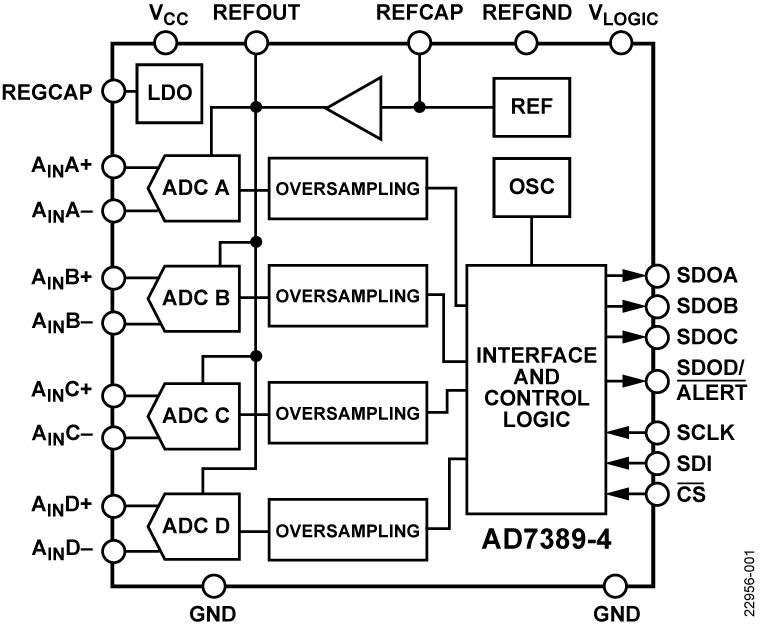

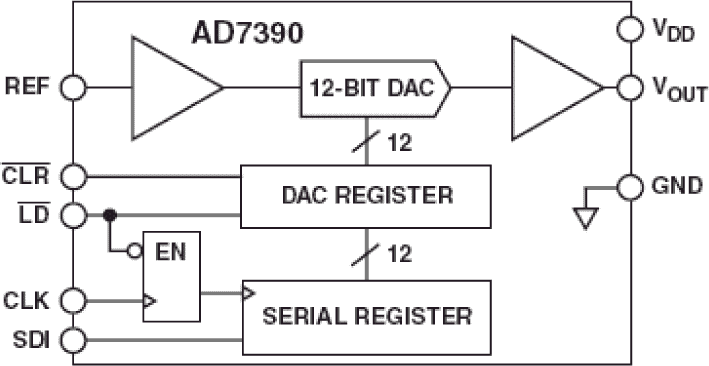

AD7389-4Differential Input, Quad, Internal Reference Simultaneous Sampling, 16-Bit SAR ADC | Analog to Digital Converters (ADC) | 1 | Active | The AD7389-4 a 16-bit, quad, simultaneous sampling, high speed, successive approximation register (SAR), analog-to-digital converter (ADC) that operates from a 3.0 V to 3.6 V power supply and features throughput rates up to 2 MSPS. The analog input type is differential, accepts a wide common-mode input voltage, and the analog inputs are sampled and converted on the falling edge ofCS.The AD7389-4 has on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. A buffered internal 2.5 V reference (10 ppm/°C) is included.The conversion process and data acquisition use standard control inputs allowing for easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces, using the separate logic supply.The AD7389-4 is available in a 24-lead lead frame chip scale package (LFCSP) with operation specified from −40°C to +125°C.APPLICATIONSMotor control position feedbackMotor control current senseData acquisition systemsErbium doped fiber amplifier (EDFA) applicationsIn phase and quadrature demodulationPRODUCT HIGHLIGHTSQuad simultaneous sampling and conversion.Pin-compatible product family.High throughput rate, 2 MSPS at 16-bit.Space-saving, 4 mm × 4 mm LFCSP.Integrated oversampling block to increase dynamic range, reduce noise and reduce SCLK speed requirements.Differential analog inputs with wide common-mode range.Small sampling capacitor reduces amplifier drive burden. |
| Data Acquisition | 3 | Active | |
| Digital to Analog Converters (DAC) | 8 | Active | |
