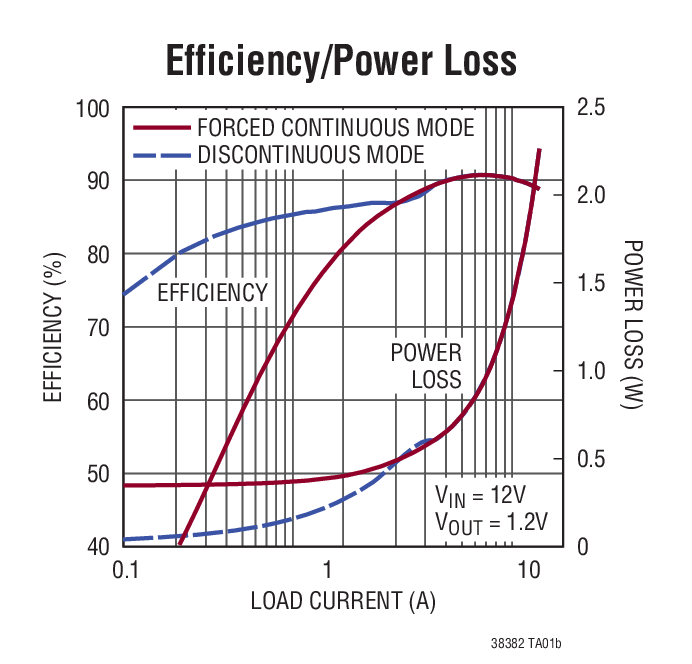

The LTC3838 is a dual, PolyPhase®synchronous step-down DC/DC switching regulator controller. Two independent channels drive all N-channel power MOSFETs. The controlled on-time, valley current mode control architecture allows for fast transient response and constant frequency switching in steady-state operation, independent of VIN, VOUTand load current. Its load-release transient detection feature significantly reduces overshoot at low output voltages.Differential output voltage sensing, along with a precision internal reference, offers an accurate ±0.67% output regulation on Channel 1, even if the remote output ground deviates from local ground by ±500mV. The second channel can either provide an independent ±1% output, or together with the first channel of this controller, serve as one of the PolyPhase channels for a single-output voltage.The switching frequency can be programmed from 200kHz to 2MHz with an external resistor, and can be synchronized to an external clock. Very low tONand tOFFtimes allow for near 0% and near 100% duty cycles, respectively. Voltage tracking soft start-up and multiple safety features are provided.See below for a comparison of LTC3838, LTC3838-1 and LTC3838-2.Part NumberDescriptionLTC3838±0.67% Differential Output Voltage Accuracy Over Temperature on Channel 1, ±1% Output Regulation on Channel 2, Separate Per Channel 30mV to 100mV Current Sense Range ControlsLTC3838-1±0.67% Differential Output Voltage Accuracy Over Temperature on Both Channel 1 and Channel 2, Single Pin 30mV/60mV Current Sense Range ControlsLTC3838-2±0.67% Differential Output Voltage Accuracy With Internal Reference on Channel 1, ±4mV Differential with External Reference Voltage on Channel 2, Fixed 30mV Current Sense RangeApplicationsDistributed Power SystemsPoint-of-Load ConvertersComputing SystemsData Communication Systems

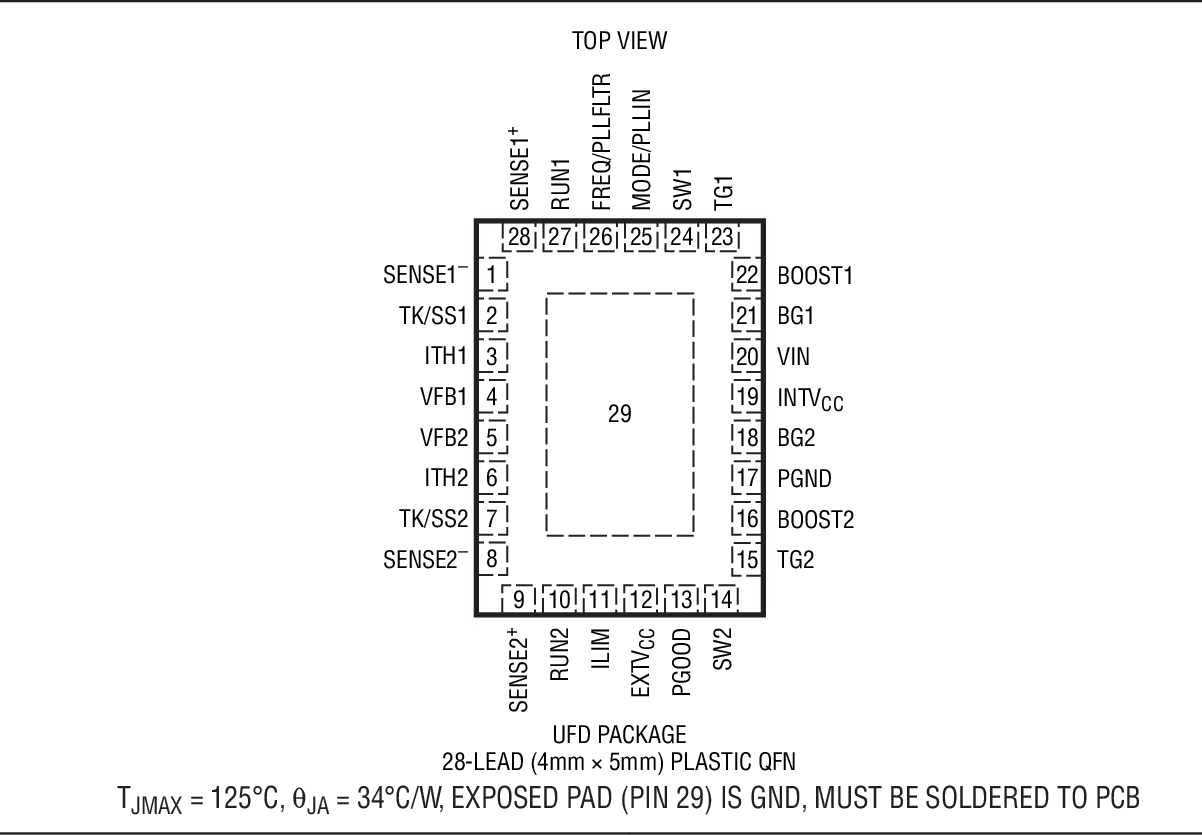

The LTC3850 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages. A constant-frequency current mode architecture allows a phase-lockable frequency of up to 780kHz. Power loss and supply noise are minimized by operating the two controller output stages out of phase.OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3850 features a precision 0.8V reference and a power good output indicator. A wide 4V to 24V (28V maximum/30V for LTC3850I) input supply range encompasses most battery chemistries and intermediate bus voltages.Independent TK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode®operation, pulse-skipping mode, or continuous inductor current mode and allows the IC to be synchronized to an external clock.The LTC3850 is available in low profile 28-pin 4mm × 4mm, 4mm × 5mm QFN and narrow SSOP packages.FeaturesLTC3850SSOP-28 and QFN-28 PackagesLTC3850-1ILIM function replaced with an EXTVCC function, SSOP-28 package onlyLTC3850-2The LTC3850-2 is identical to the LTC3850-1 SSOP-28, except they have different pin-outsApplicationsNotebook and Palmtop ComputersPortable InstrumentsBattery-Operated Digital DevicesDC Power Distribution Systems

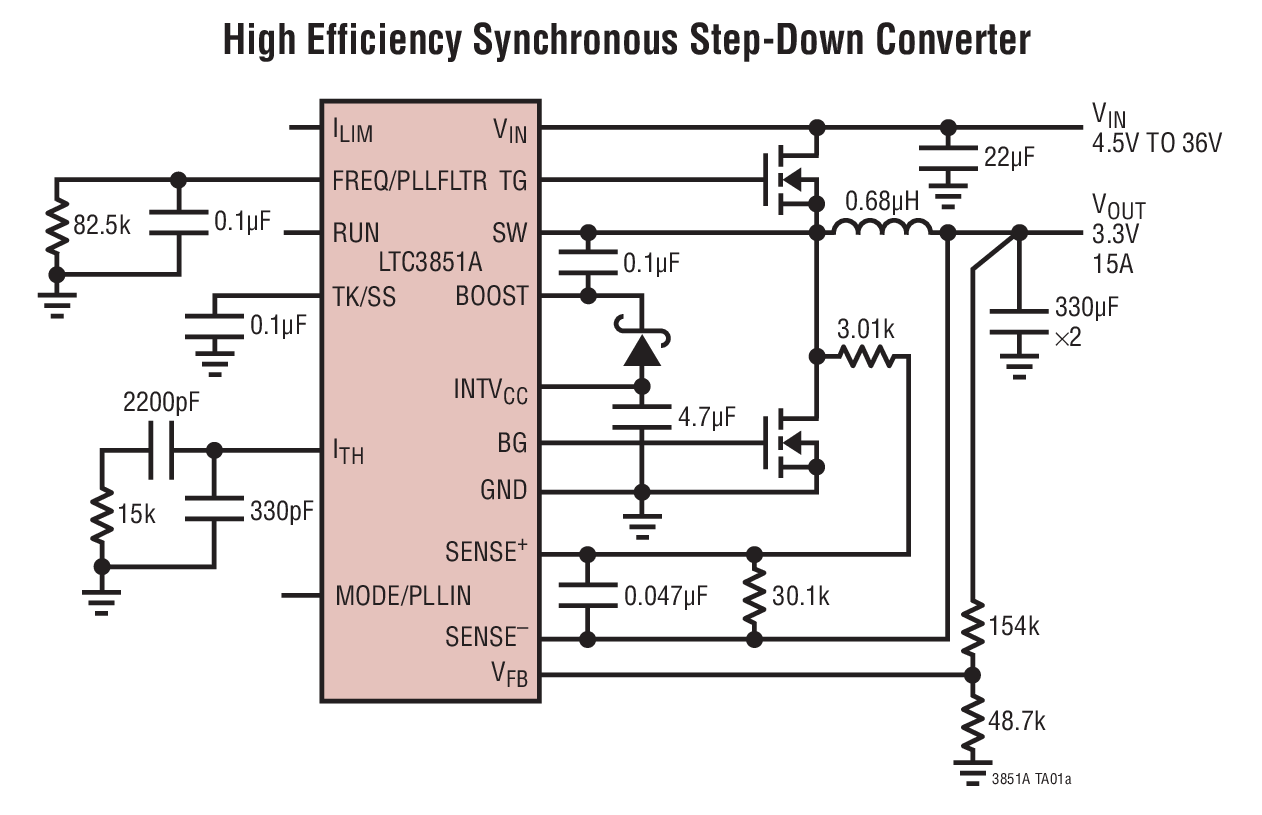

The LTC3851A-1 is a high performance synchronous step-down switching regulator controller that drives an all N-channel synchronous power MOSFET stage. A constant frequency current mode architecture allows a phase-lockable frequency of up to 750kHz.OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3851A-1 features a precision 0.8V reference and a power good indicator. A wide 4V to 38V (40V absolute maximum) input supply range encompasses most battery configurations and intermediate bus voltages.The TK/SS pin ramps the output voltage during start-up and shutdown with coincident or ratiometric tracking. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode operation, pulse-skipping mode or continuous inductor current mode at light loads and allows the IC to be synchronized to an external clock. The LTC3851A-1 contains an improved PLL compared to the LTC3851-1.The LTC3851A-1 is identical to the LTC3851A except that the ILIMpin is replaced by PGOOD.FeaturesLTC3851Not Recommended For New DesignsLTC3851-1Not Recommended For New DesignsLTC3851AAdjustable Current LimitLTC3851A-1PGOOD OutputApplicationsAutomotive SystemsTelecom SystemsIndustrial EquipmentDistributed DC Power Systems

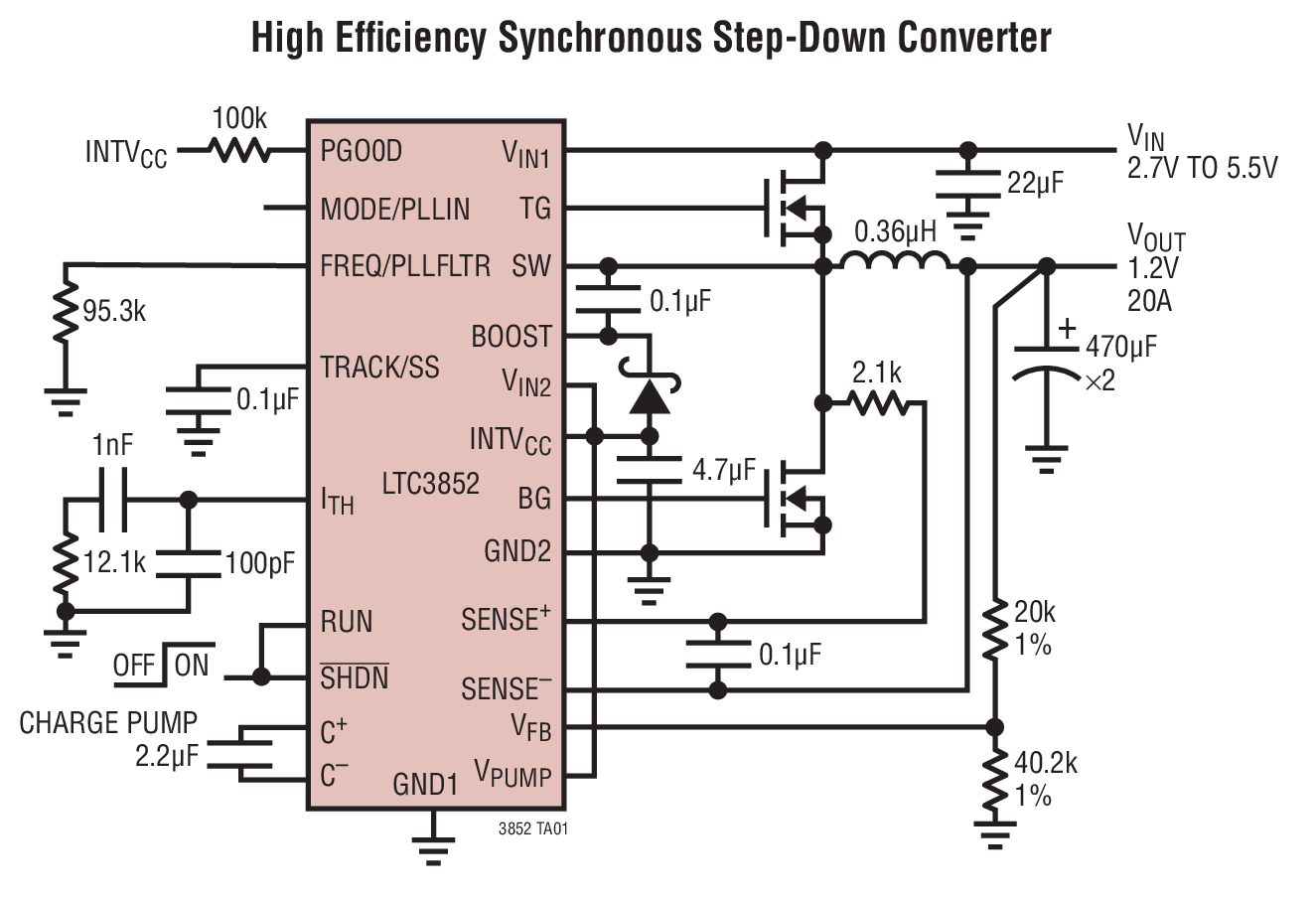

The LTC3852 is a constant frequency, current mode step-down DC/DC controller which can be powered by an on-board charge pump. Input supplies as low as 2.7V, when doubled by the charge pump, provide 5V to the LTC3852’s control logic and gate drives, supporting a wide selection of logic-level N-channel power MOSFETs.The constant-frequency current mode architecture allows for a phase-lockable fixed frequency of up to 750kHz. The RUN pin provides a precision enable threshold while the TRACK/SS pin combines tracking and adjustable soft-start features.The MODE/PLLIN pin selects among Burst Mode®operation, pulse-skipping mode, and continuous current mode. Current foldback limits MOSFET power dissipation during short-circuit conditions. Reverse current and current foldback functions are disabled during soft-start. A power good output pin indicates when the output is within ±10% of its designed set point.ApplicationsGeneral Purpose 3.3V SystemsLithium-Ion Powered DevicesDistributed DC Power Systems

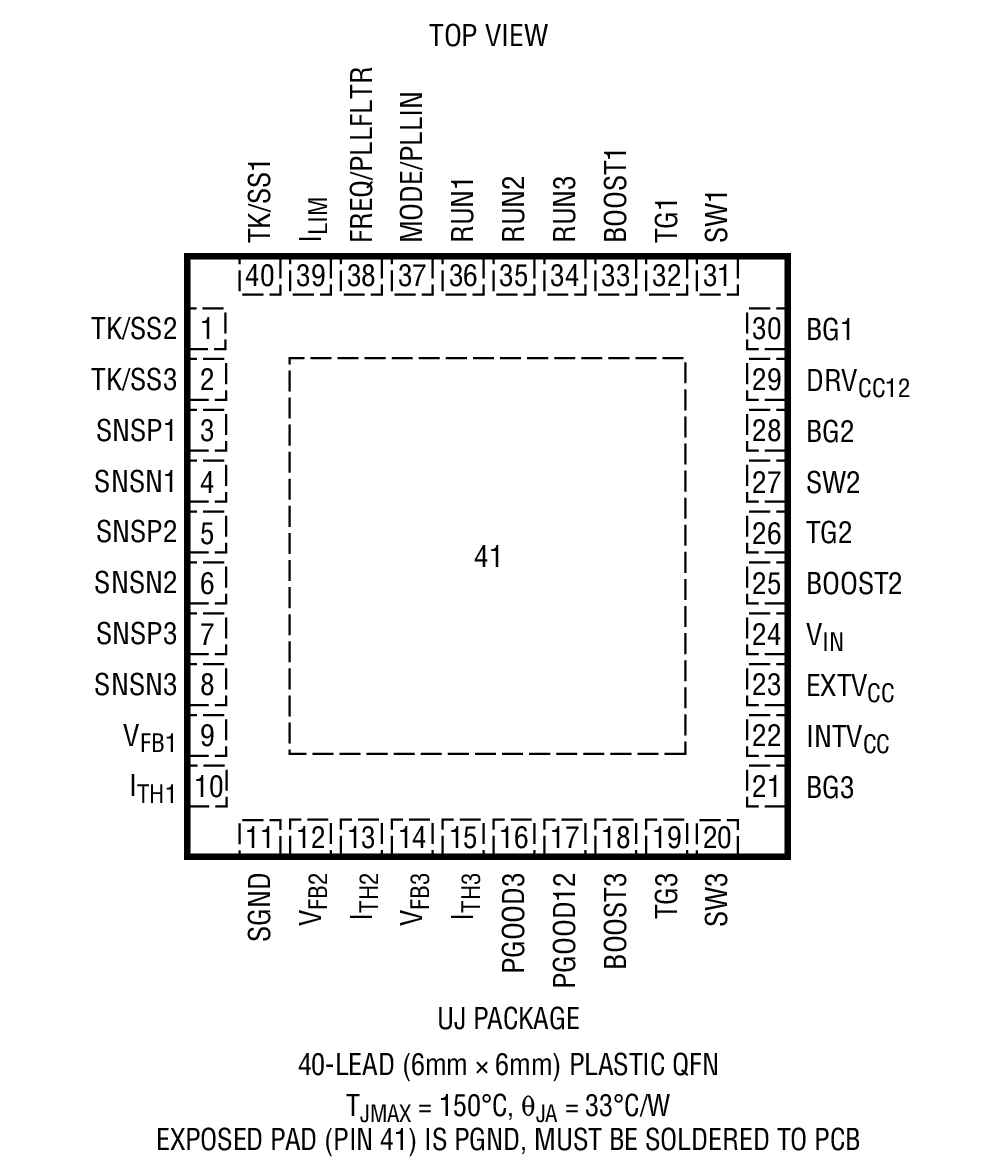

The LTC3853 is a high performance triple output stepdown switching regulator controller that drives all Nchannel synchronous power MOSFET stages. Power loss and supply noise are minimized by operating the output stages out of phase. The part can be configured as a dual phase controller plus a single phase controller if needed. The part can also be configured to provide a single 3-phase output for even higher output currents.A wide 4.5V to 24V (28V maximum) input voltage supply range encompasses most battery chemistries and intermediate bus voltages. Phase 3 can regulate output voltages up to 13.5V. A constant-frequency current mode architecture allows for a phase-lockable frequency up to 750kHz.Independent TK/SS pins for each output ramps the output voltages and can be configured for coincident or ratiometric tracking. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode®operation, pulse-skipping or continuous inductor current modes.

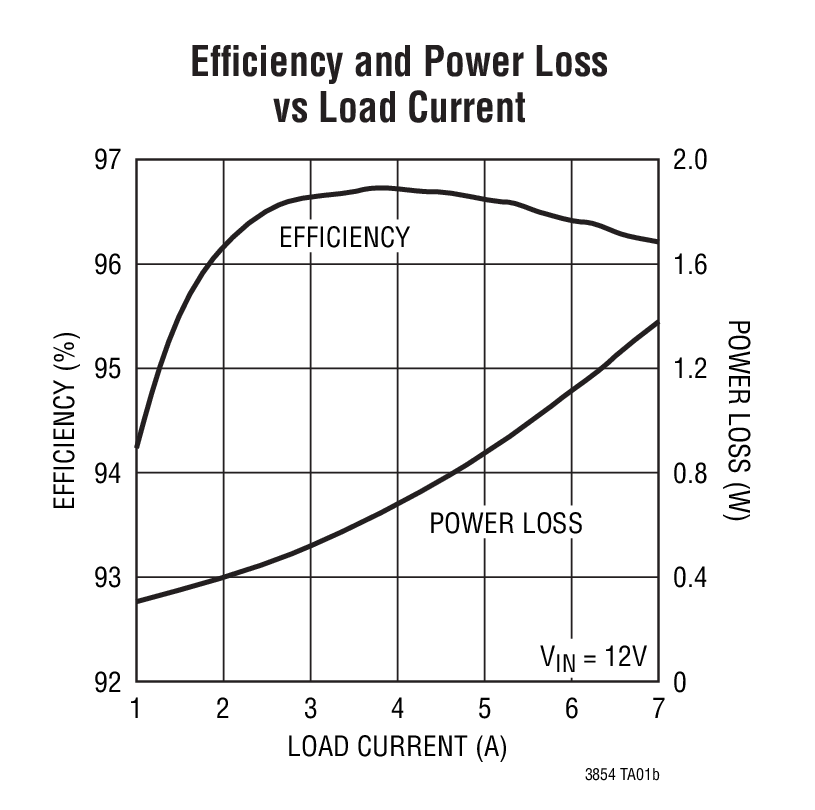

The LTC3854 is a high performance synchronous stepdown switching DC/DC controller that drives an all N-channel synchronous power MOSFET stage.The LTC3854 features a 400kHz constant frequency current mode architecture. The LTC3854 operates from a 4.5V to 38V (40V absolute maximum) input voltage range and regulates the output voltage from 0.8V to 5.5V.The RUN/SS pin provides both soft-start and enable features. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. Current foldback limits MOSFET dissipation during short circuit conditions. Current foldback functions are disabled during soft-start.The LTC3854 has a minimum on-time at 75ns, making it well suited for high step-down ratios. The strong onboard MOSFET drivers allow the use of high power external MOSFETs to produce output currents up to 20A.ApplicationsAutomotive SystemsTelecom SystemsIndustrial EquipmentDistributed DC Power Systems

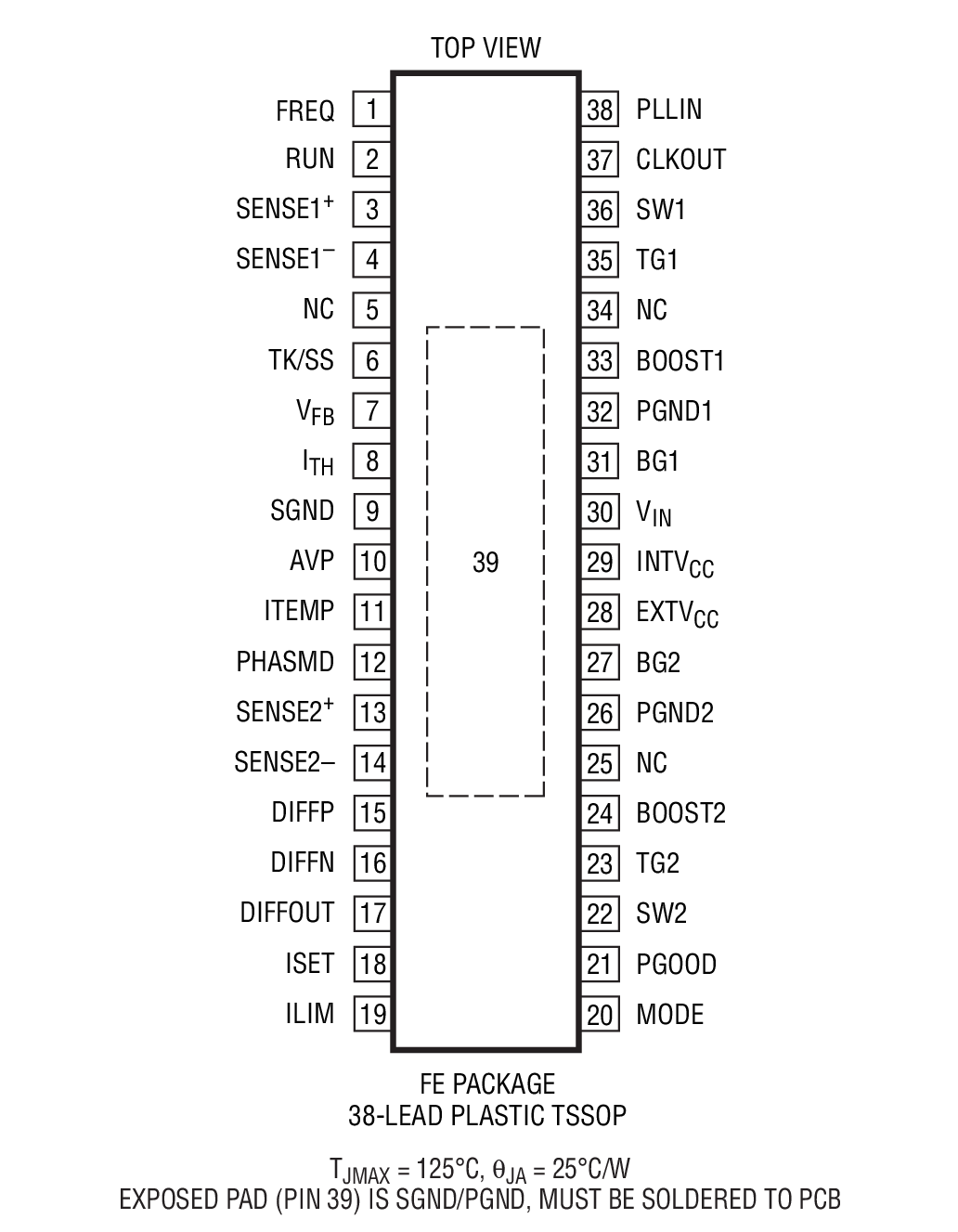

The LTC3856 is a single output, dual channel PolyPhase synchronous step-down DC/DC controller that drives all N-channel power MOSFET stages. This device includes a high speed differential amplifier for remote output voltage sense. Power loss and supply noise are minimized by operating the two controller output stages out-of-phase and up to 12-phase operation can be achieved.The LTC3856 monitors the output current by sensing the voltage drop across the output inductor (DCR) or by using a sense resistor. DCR temperature compensation maintains an accurate current sense threshold over a broad temperature range. A constant-frequency, current mode architecture allows a phase-lockable frequency of up to 770kHz.A wide 4.5V to 38V input supply range encompasses most intermediate bus voltages and battery chemistries. Burst Mode operation, continuous or Stage Shedding modes are supported. A TK/SS pin shared by both channels ramps the output voltage during start-up.ApplicationsTelecom and Datacom SystemsIndustrial and Medical InstrumentsDC Power Distribution SystemsComputer Systems

The LTC3857-1 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the ESR of the input capacitor ESR are minimized by operating the two controller output stages out of phase.The 50μA no-load quiescent current extends operating life in battery-powered systems. The LTC3857-1 features a precision 0.8V reference and a power good output indicator. wide 4V to 38V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous inductor current mode at light loads.For a leadless 32-pin QFN package with the additional features of adjustable current limit, clock out, phase modulation and two PGOOD outputs, see the LTC3857 data sheet.LTC3857LTC3857-1FeaturesAdjustable Current Limit, Clock Output, Phase Modulation, 2 PGOOD OutputsFixed Current Limit, One PGOOD OutputPackageQFN-32SSOP-28ApplicationsAutomotive Always-On SystemsBattery Operated Digital DevicesDistributed DC Power Systems

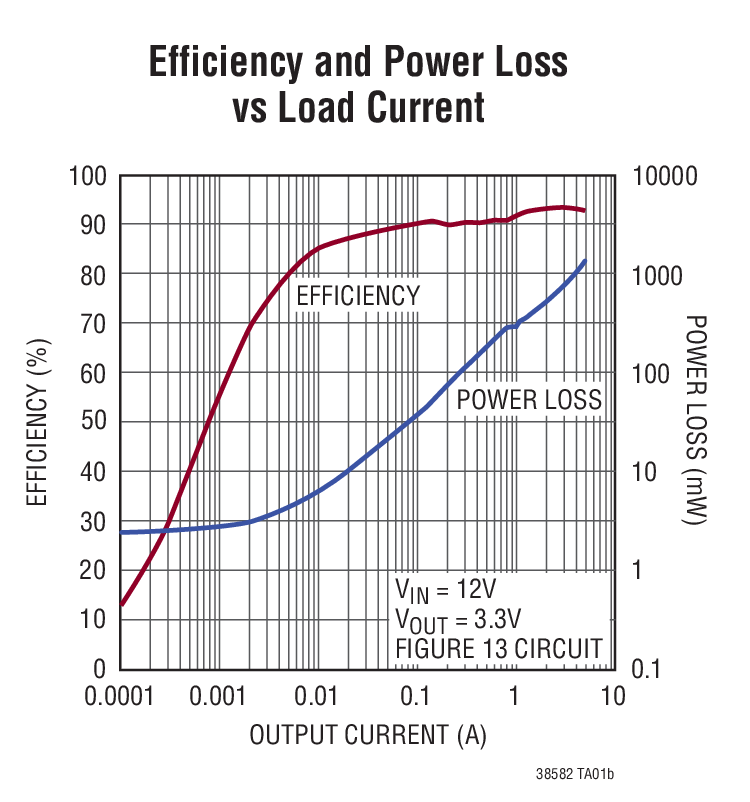

The LTC3858-1 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the input capacitor ESR are minimized by operating the two controller outputs out of phase.The 170μA no-load quiescent current extends operating life in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3858-1 features a precision 0.8V reference and a power good output indicator. A wide 4V to 38V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.Independent soft-start pins for each controller ramp the output voltages during start-up. The output latch-off feature protects the circuit in short-circuit conditions.For a leadless 32-pin QFN package with the additional features of adjustable current limit, clock out, phase modulation and two PGOOD outputs, see the LTC3858 data sheet.LTC3858LTC3858-1LTC3858-2FeaturesAdjustable Current Limit, Clock Output, Phase Modulation, 2 PGOOD OutputsFixed Current Limit, One PGOOD OutputOvervoltage protection crowbar and short-circuit latchoff disabledPackageQFN-32SSOP-28QFN-32ApplicationsAutomotive SystemsBattery Operated Digital DevicesDistributed DC Power Systems
