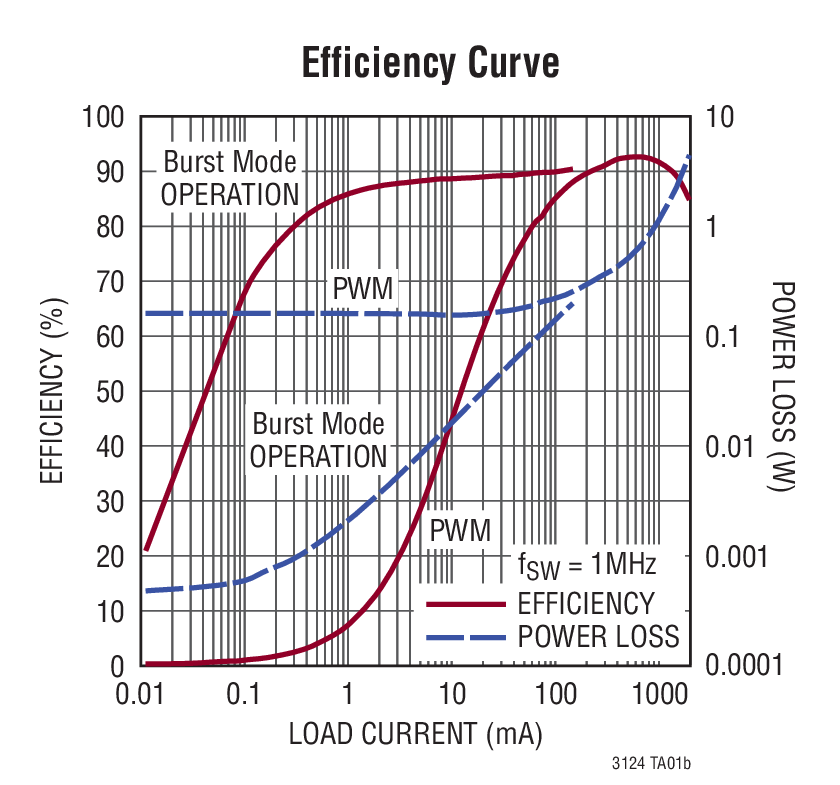

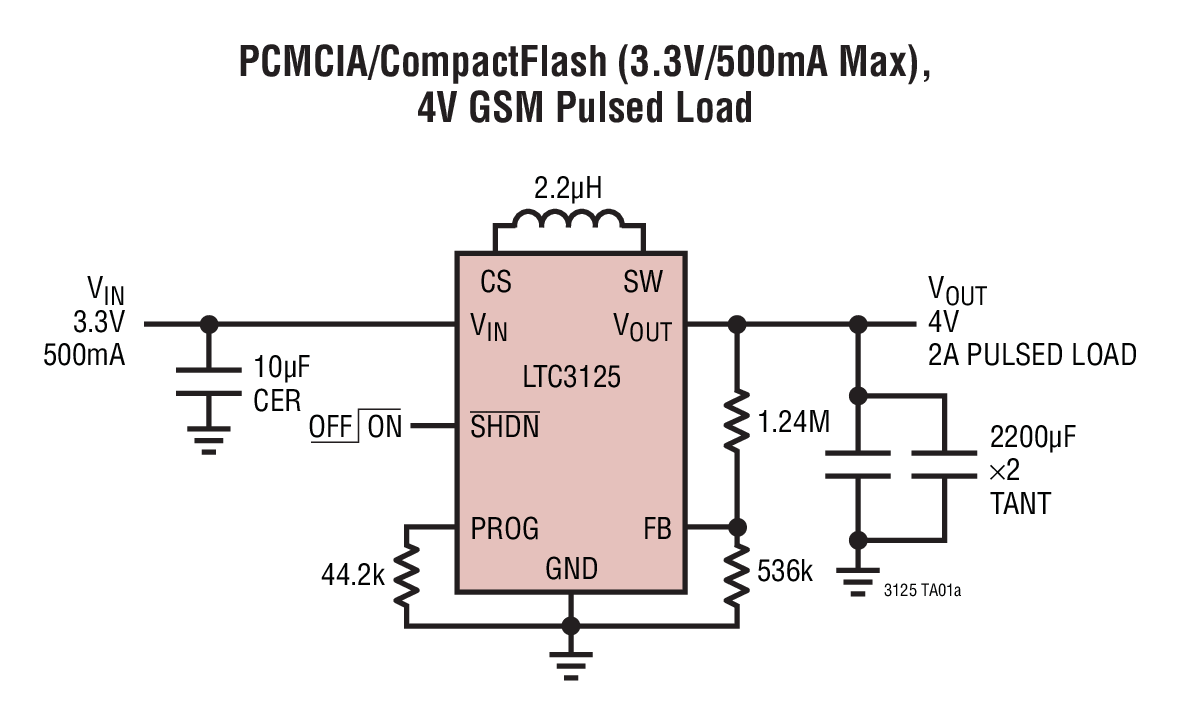

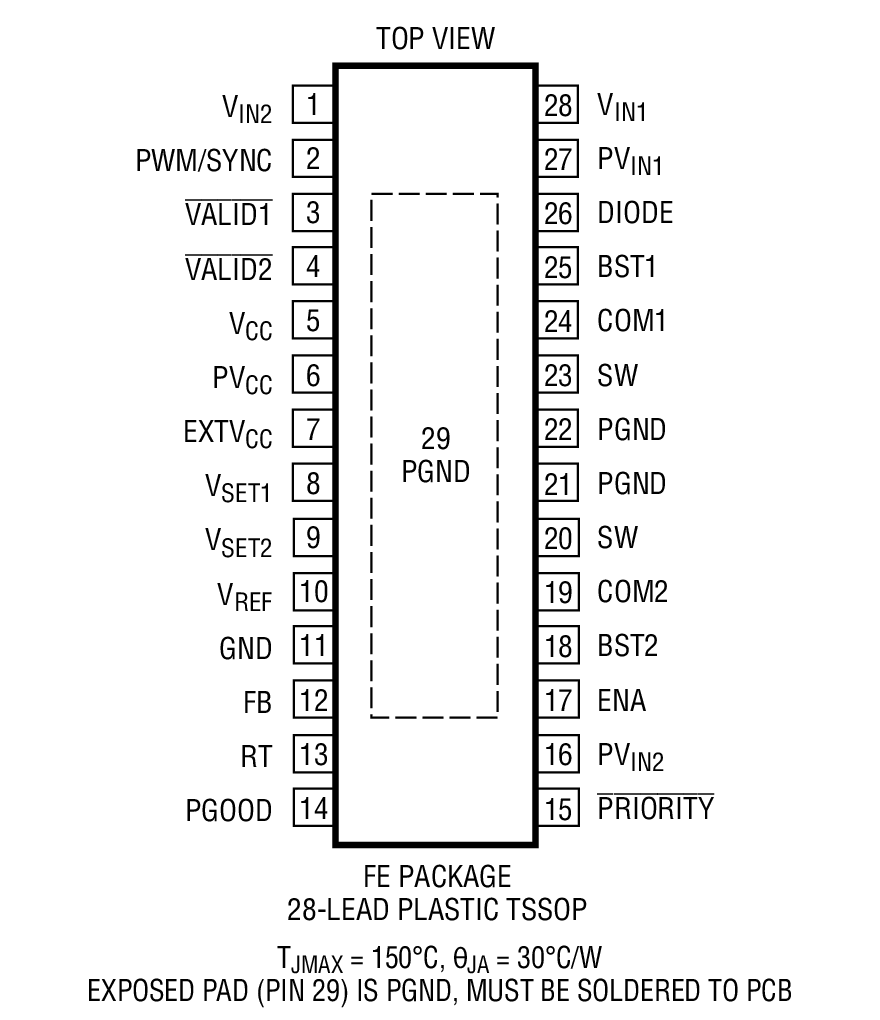

The LTC3126 is a high efficiency synchronous buck converter with an internal no-loss PowerPath™supporting seamless operation from two separate input power sources. Pin selectable ideal diode-OR and priority input modes with user programmable undervoltage lockout thresholds provide full control over the transition between the input power sources. The fast, automatic switchover provided by the internal PowerPath eliminates the need for hold-up capacitors and minimizes disturbances on the output rail. An active input channel indicator and independent input and output power good signals provide complete feedback of the power system status.A wide 2.4V to 42V input voltage range, 2.5A output current capability and 2μA Burst Mode operation quiescent current facilitate use of the LTC3126 with a wide variety of power sources including supercapacitors, automotive batteries, unregulated wall adapters and single to multicell stacks of most battery chemistries. Additional features include 1μA current in shutdown, internal soft-start and thermal protection. The LTC3126 is available in thermally enhanced 28-lead 4mm × 5mm QFN and 28-lead TSSOP packages.ApplicationsPortable Industrial/Communications Test EquipmentBattery and Supercapacitor Backup PowerAutomotive Power with Battery BackupUninterruptible Power Supplies

The LTC3127 is a wide VINrange, highly efficient, 1.35MHz fixed frequency buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The LTC3127 features programmable average input current limit, making it ideal for power-limited input sources. The input current limit is programmed with a single resistor and is accurate from 0.2A to 1A of average input current.The topology incorporated provides a continuous transfer function through all operating modes. Other features include <1μA shutdown current, pin-selectable Burst Mode operation and thermal overload protection. The LTC3127 is housed in thermally enhanced 10-lead (3mm × 3mm × 0.75mm) DFN packages and 12-lead MSOP packages.ApplicationsUSB Powered GSM ModemsSupercap ChargerHandheld Test InstrumentsPC Card ModemsWireless Terminals

The LTC3128 is a highly efficient, buck-boost DC/DC supercapacitor charger. It operates efficiently from input voltages above, below or equal to the output voltage. The LTC3128 incorporates accurate programmable average input current limit, active charge balancing and programmable maximum capacitor voltage. This combination of features makes the LTC3128 ideal for safely charging and protecting large capacitors in backup power systems. The input current limit and maximum capacitor voltage are each programmed using a single resistor. Average input current is accurately controlled over a 0.5A to 3A programmable range while the individual maximum capacitor voltage can be set from 1.8V to 3.0V.Other features of the LTC3128 include <2μA quiescent current from VOUTin Burst Mode®operation, accurate power-good and power failure indicators, and thermal overload protection. The LTC3128 is offered in low profile, thermally enhanced 20-Lead 4mm × 5mm × 0.75mm QFN and 24-Lead TSSOP packages.ApplicationsSupercapacitor Based Backup PowerMemory BackupServers, RAID, RF SystemsIndustrial, Communications, Computing

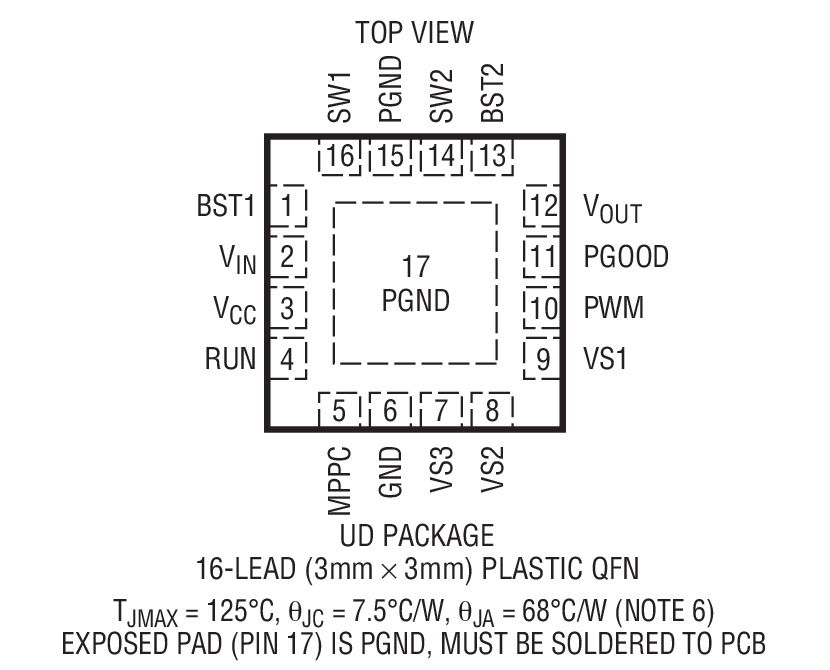

The LTC3129-1 is a high efficiency, 200mA buck-boost DC/DC converter with a wide VINand VOUTrange. It includes an accurate RUN pin threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal power sources such as photovoltaic panels.The LTC3129-1 employs an ultralow noise, 1.2MHz PWM switching architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start simplify the design. For high efficiency operation at light loads, automatic Burst Mode operation can be selected, reducing the quiescent current to just 1.3μA. To further reduce part count and improve light load efficiency, the LTC3129-1 includes an internal voltage divider to provide eight selectable fixed output voltages.Additional features include a power good output, less than 10nA of shutdown current and thermal shutdown.The LTC3129-1 is available in thermally enhanced 3mm × 3mm QFN and 16-lead MSOP packages. For an adjustable output voltage, see the functionally equivalent LTC3129.Output VoltageLTC3129Adjustable 1.4V to 15.75V via resistor dividerLTC3129-18 pin programmable output voltages from 2.5V to 15VApplicationsIndustrial Wireless Sensor NodesPost-Regulator for Harvested EnergySolar Panel Post-Regulator/ChargerIntrinsically Safe Power SuppliesWireless MicrophonesAvionics-Grade Wireless Headsets

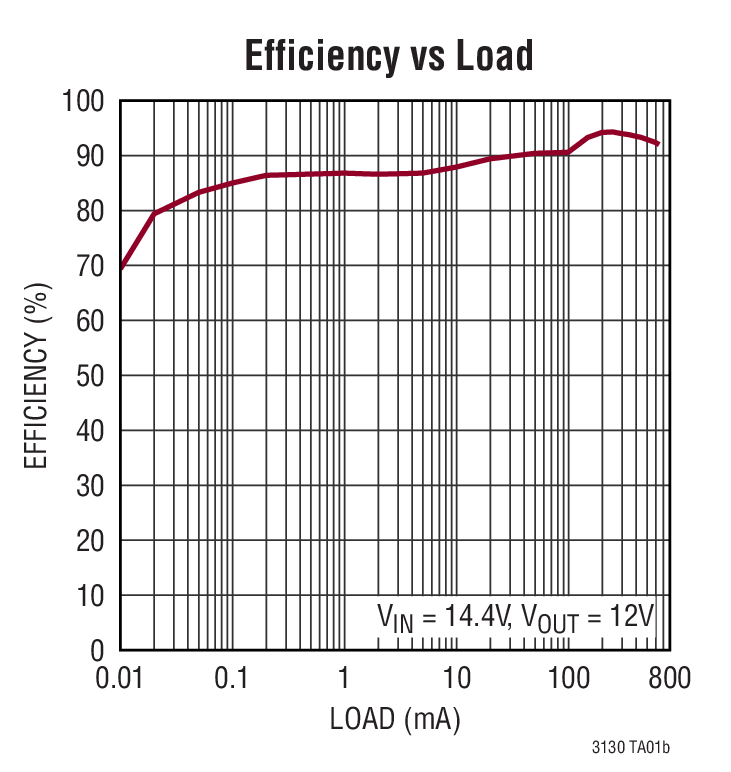

The LTC3130/LTC3130-1 are high efficiency, low noise, 600mA buck-boost converters with wide VINand VOUTranges. For high efficiency operation at light loads, BurstMode operation can be selected, reducing the quiescent current to just 1.6µA. Converter start-up is achieved from sources as low as 7.5µW.TheLTC3130/LTC3130-1 employ an ultralow noise, 1.2MHz PWM architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start reduces external parts count and simplifies the design. Features include an accurate RUN comparator threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal sources such as photovoltaic panels. The LTC3130-1 includes an internal voltage divider to provide four selectable fixed output voltages.Additional features include a power good output, an external VCCinput and thermal shutdown.The LTC3130 and LTC3130-1 are available in thermally-enhanced 20-lead 3mm × 4mm QFN and 16-lead MSOP packages.ApplicationsLong-Life, Battery-Operated InstrumentsPortable Military RadiosLow Power SensorsSolar Panel Post-Regulator/Charger

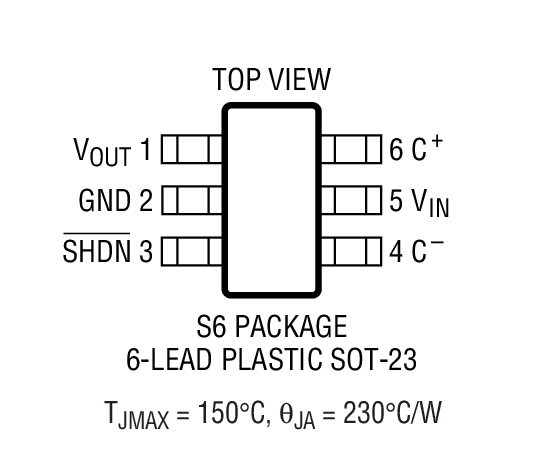

The LTC3200/LTC3200-5 are low noise, constant frequency switched capacitor voltage doublers. They produce a regulated output voltage from a 2.7V to 4.5V input with up to 100mA of output current. Low external parts count (one flying capacitor and two small bypass capacitors at VINand VOUT) make the LTC3200/LTC3200-5 ideally suited for small, battery-powered applications.A new charge-pump architecture maintains constant switching frequency to zero load and reduces bith output and input ripple. The LTC3200/LTC3200-5 have thermal shutdown capability and can survive a continuous short-circuit from VOUTto GND. Built-in soft-start circuitry prevents excessive inrush curreent during start-up.High switching frequency enables the use of small ceramic capacitors. A low current shutdown feature disconnects the load from VINand reduces quiescent current to <1µA.The LTC3200 is available in an 8-pin MSOP package and the LTC3200-5 is available in a 6-pin SOT-23.ApplicationsLi-Ion Battery Backup SuppliesLocal 3V to 5V ConversionSmart Card ReadersPCMCIA Local 5V SuppliesWhite LED Backlighting

The LTC3202 is a low noise, constant frequency charge pump DC/DC converter that uses fractional conversion to increase efficiency in white LED applications. The part can be used to produce a regulated voltage or current of up to 125mA from a 2.7V to 4.5V input. Low external parts count (two flying capacitors and two small bypass capacitors at VINand VOUT) make the LTC3202 ideally suited for small, battery-powered applications.An internal 2-bit DAC allows LED current to be adjusted for LED brightness control. The LTC3202 also has thermal shutdown protection and can survive a continuous short-circuit from VOUTto GND. Built-in soft-start circuitry prevents excessive inrush current during start-up. High switching frequency enables the use of small external capacitors. A low current shutdown feature disconnects the load from VINand reduces quiescent current to less than 1µA.The LTC3202 is available in the 10-pin MSOP and 3mm x 3mm DFN packages.ApplicationsWhite LED BacklightingProgrammable Boost Current Source

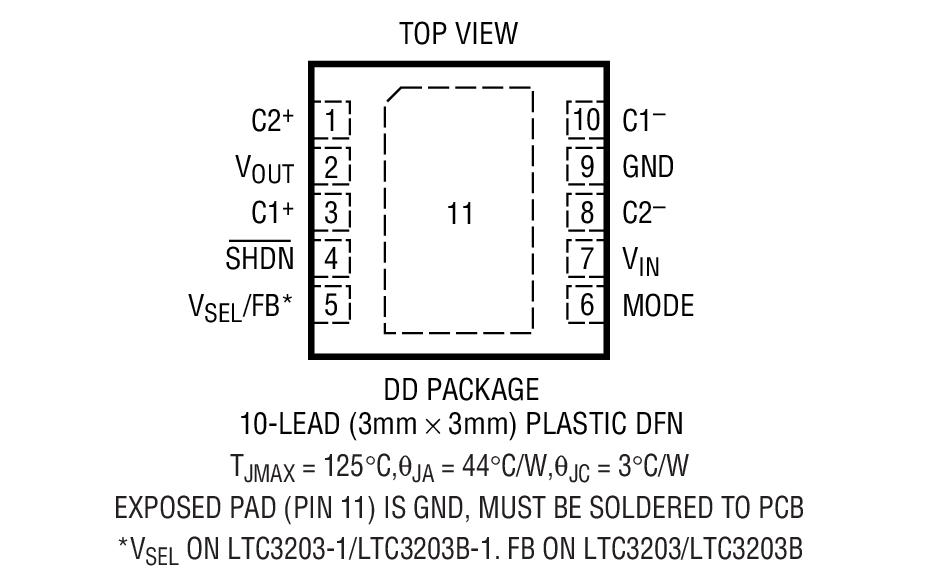

The LTC3203/LTC3203-1/LTC3203B/LTC3203B-1 are low noise, high efficiency charge pump DC/DC converters capable of driving loads up to 500mA from a 2.7V to 5.5V input. Low external parts count (two flying capacitors and bypass capacitors at VINand VOUT) make the LTC3203 family ideally suited for small, battery-powered applications.Built-in soft-start circuitry prevents excessive inrush current during start-up. High switching frequency enables the use of small external capacitors. The LTC3203/LTC3203-1 feature Burst Mode operation at light load to achieve high efficiency whereas the LTC3203B/LTC3203B-1 operate at constant frequency to achieve lowest noise operation.The LTC3203-1/LTC3203B-1 have a user selectable fixed output voltage of 4.5V or 5V to power LEDs or logic circuits. The FB pin of the LTC3203/LTC3203B can be used to program the desired output voltage. The parts are short-circuit and over temperature protected and are available in a low profile (3mm × 3mm) DFN package.ApplicationsHigh Current LED Backlight Supply for Cellphones/PDAsCellphone Camera Light SupplyGeneral Purpose 3.3V or Li-Ion to 5V SupplyUSB ON THE GO(OTG) Devices
