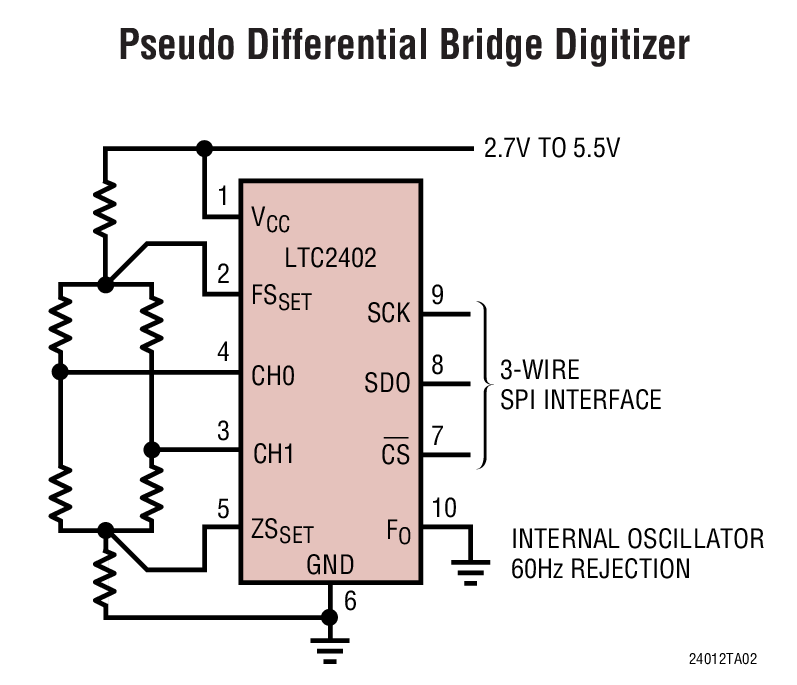

LTC24022-Channel 24-Bit µPower No Latency ∆Σ™ADCs in MSOP-10 | Analog to Digital Converters (ADC) | 3 | Active | The LTC2401/LTC2402 are 1- and 2-channel 2.7V to 5.5V micropower 24-bit analog-to-digital converters with an integrated oscillator, 4ppm INL and 0.6ppm RMS noise. These ultrasmall devices use delta-sigma technology and a new digital filter architecture that settles in a single cycle. This eliminates the latency found in conventional ΔΣ converters and simplifies multiplexed applications.Through a single pin, the LTC2401/LTC2402 can be configured for better than 110dB rejection at 50Hz or 60Hz ±2%, or can be driven by an external oscillator for a user defined rejection frequency in the range 1Hz to 120Hz. The internal oscillator requires no external frequency setting components.These converters accept an external reference voltage from 0.1V to VCC. With an extended input conversion range of –12.5% VREFto 112.5% VREF(VREF= FSSET– ZSSET), the LTC2401/LTC2402 smoothly resolve the offset and overrange problems of preceding sensors or signal conditioning circuits.The LTC2401/LTC2402 communicate through a 2- or 3-wire digital interface that is compatible with SPI and MICROWIRE™protocols.ApplicationsWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gage TransducersInstrumentationData AcquisitionIndustrial Process Control |

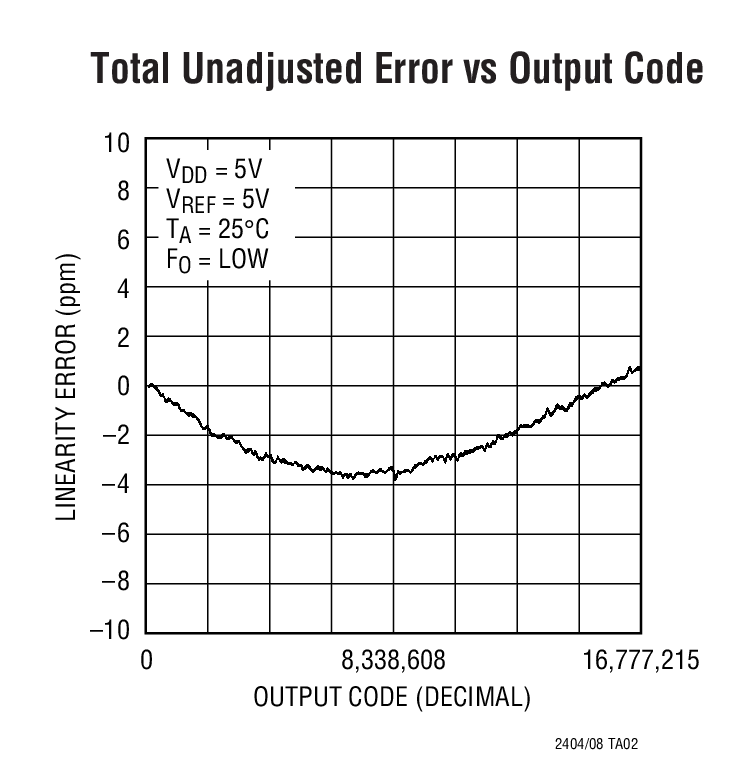

LTC24084-/8-Channel 24-Bit µPower No Latency ∆∑™ADCs | Data Acquisition | 2 | Active | The LTC2404/LTC2408 are 4-/8-channel 2.7V to 5.5V micropower 24-bit A/D converters with an integrated oscillator, 4ppm INL and 0.3ppm RMS noise. They use delta-sigma technology and provide single cycle digital filter settling time (no latency delay) for multiplexed applications. The first conversion after the channel is changed is always valid. Through a single pin the LTC2404/LTC2408 can be configured for better than 110dB rejection at 50Hz or 60Hz ±2%, or can be driven by an external oscillator for a user defined rejection frequency in the range 1Hz to 120Hz. The internal oscillator requires no external frequency setting components.The converters accept any external reference voltage from 0.1V to VCC. With their extended input conversion range of –12.5% VREFto 112.5% VREFthe LTC2404/LTC2408 smoothly resolve the offset and overrange problems of preceding sensors or signal conditioning circuits.The LTC2404/LTC2408 communicate through a flexible 4-wire digital interface which is compatible with SPI and MICROWIRE™protocols.ApplicationsWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gage TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMs |

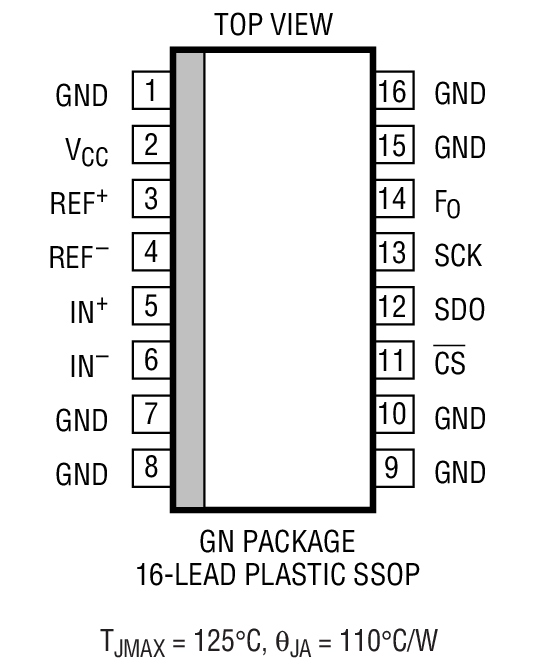

LTC241024-Bit No Latency ∆Σ™ADC with Differential Input and Differential Reference | Data Acquisition | 1 | Active | The LTC2410 is a 2.7V to 5.5V micropower 24-bit differential ∆Σ analog to digital converter with an integrated oscillator, 2ppm INL and 0.16ppm RMS noise. It uses delta-sigma technology and provides single cycle settling time for multiplexed applications. Through a single pin, the LTC2410 can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.The converter accepts any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCCrange of the LTC2410. The DC common mode input rejection is better than 140dB.The LTC2410 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gauge TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMs |

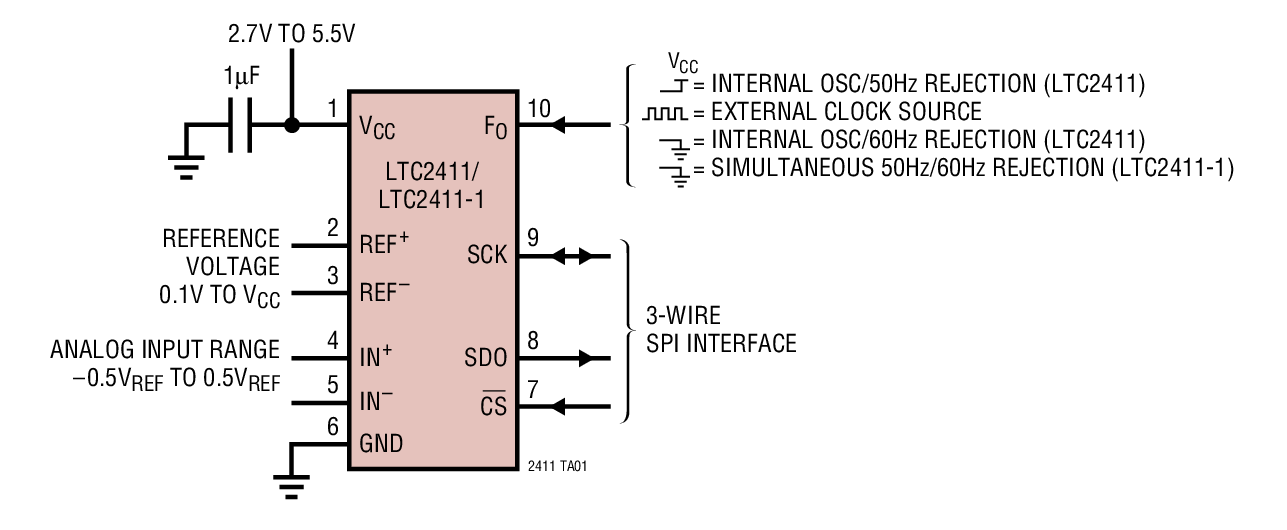

LTC241124-Bit No Latency ∆Σ™ADC with Differential Input and Reference in MSOP | Analog to Digital Converters (ADC) | 2 | Active | The LTC2411/LTC2411-1 are 2.7V to 5.5V micropower 24-bit differential ∆Σ analog-to-digital converters with an integrated oscillator, 2ppm INL and 0.29ppm RMS noise. They use delta-sigma technology and provide single cycle settling time for multiplexed applications. Through a single pin, the LTC2411 can be configured for better than 110dB differential mode rejection at 50Hz or 60Hz ±2%, and the LTC2411-1 can provide better than 87dB input differential mode rejection over the range of 49Hz to 61.2Hz, or they can be driven by an external oscillator for a user-defined rejection frequency. The LTC2411 and LTC2411-1 are identical when driven by an external oscillator. The internal oscillator requires no external frequency setting components.The converters accept any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCCrange of the LTC2411/LTC2411-1. The DC common mode input rejection is better than 140dB.The LTC2411/LTC2411-1 communicate through a flexible 3-wire digital interface that is compatible with SPI and MICROWIRE protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain Gauge TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMs |

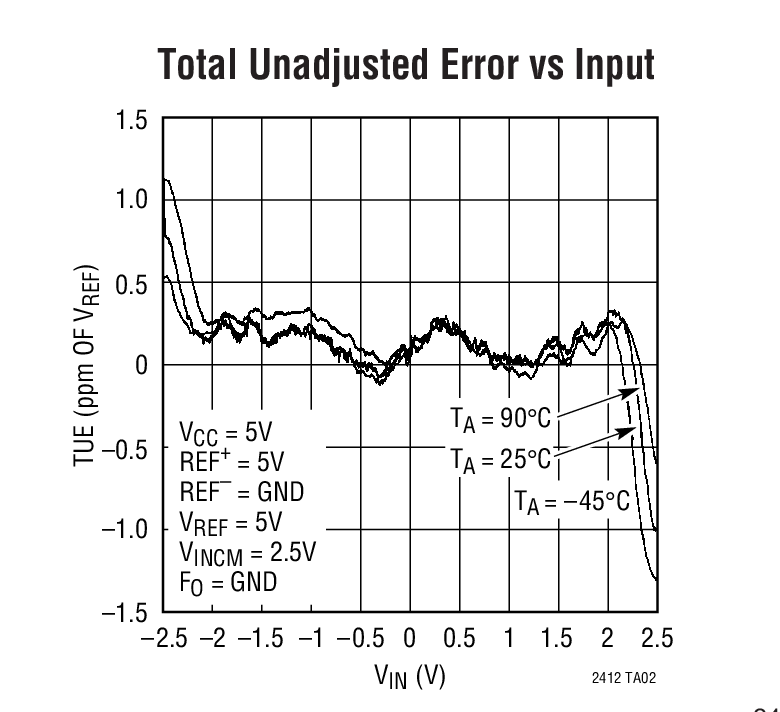

LTC24122-Channel Differential Input 24-Bit No Latency ∆Σ ADC | Data Acquisition | 2 | Active | The LTC2412 is a 2-channel differential input micropower 24-bit No Latency ∆Σ™analog-to-digital converter with an integrated oscillator. It provides 2ppm INL and 0.16ppm RMS noise over the entire supply range. The two differential channels are converted alternately with channel ID included in the conversion results. It uses delta-sigma technology and provides single conversion settling of the digital filter. Through a single pin, the LTC2412 can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.The converter accepts any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCC. The DC common mode input rejection is better than 140dB.The LTC2412 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gage TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMs |

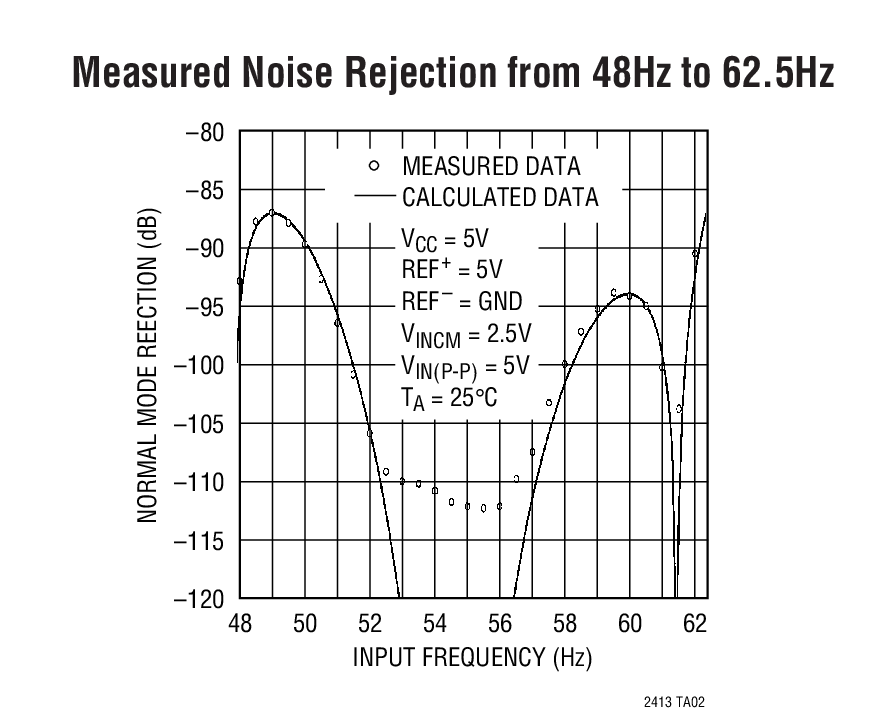

LTC241324-Bit No Latency ∆Σ™ ADC with Simultaneous 50Hz/60Hz Rejection | Integrated Circuits (ICs) | 1 | Active | The LTC2413 is a 2.7V to 5.5V simultaneous 50Hz/60Hz rejection micropower 24-bit differential ∆Σ analog to digital converter with an integrated oscillator, 2ppm INL and 0.16ppm RMS noise. It uses delta-sigma technology and provides single cycle settling time for multiplexed applications. Through a single pin, the LTC2413 can be configured for better than 87dB input differential mode rejection over the range of 49Hz to 61.2Hz (50Hz and 60Hz ±2% simultaneously), or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.The converter accepts any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement configurations. The fullscale differential input range is from –0.5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCCrange of the LTC2413. The DC common mode input rejection is better than 140dB.The LTC2413 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gauge TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMsProducts for International Markets |

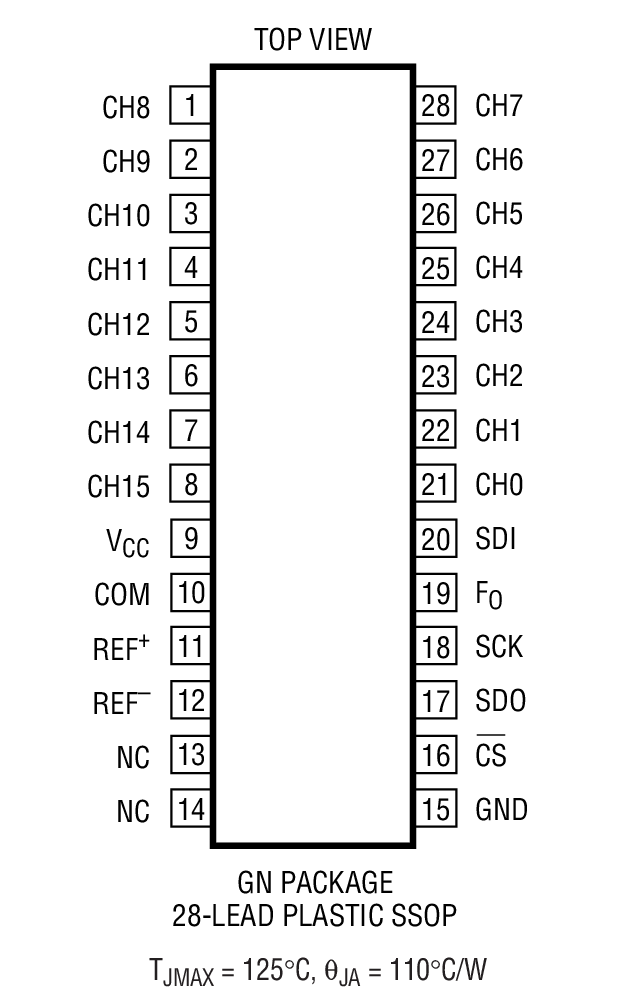

LTC24148-/16-Channel 24-Bit No Latency ∆Σ™ADCs | Data Acquisition | 1 | Active | The LTC2414/LTC2418 are 8-/16-channel (4-/8-differential) micropower 24-bit ∆Σ analog-to-digital converters. They operate from 2.7V to 5.5V and include an integrated oscillator, 2ppm INL and 0.2ppm RMS noise. They use delta-sigma technology and provide single cycle settling time for multiplexed applications. Through a single pin, the LTC2414/LTC2418 can be configured for better than 110dB differential mode rejection at 50Hz or 60Hz ±2%, or they can be driven by an external oscillator for a user-defined rejection frequency. The internal oscillator requires no external frequency setting components.The LTC2414/LTC2418 accept any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement applications. They can be configured to take 4/8 differential channels or 8/16 single-ended channels. The full-scale bipolar input range is from -5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set within GND to VCC. The DC common mode input rejection is better than 140dB.The LTC2414/LTC2418 communicate through a flexible 4-wire digital interface that is compatible with SPI and MICROWIRE™protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain Gauge TransducersInstrumentationData AcquisitionIndustrial Process Control |

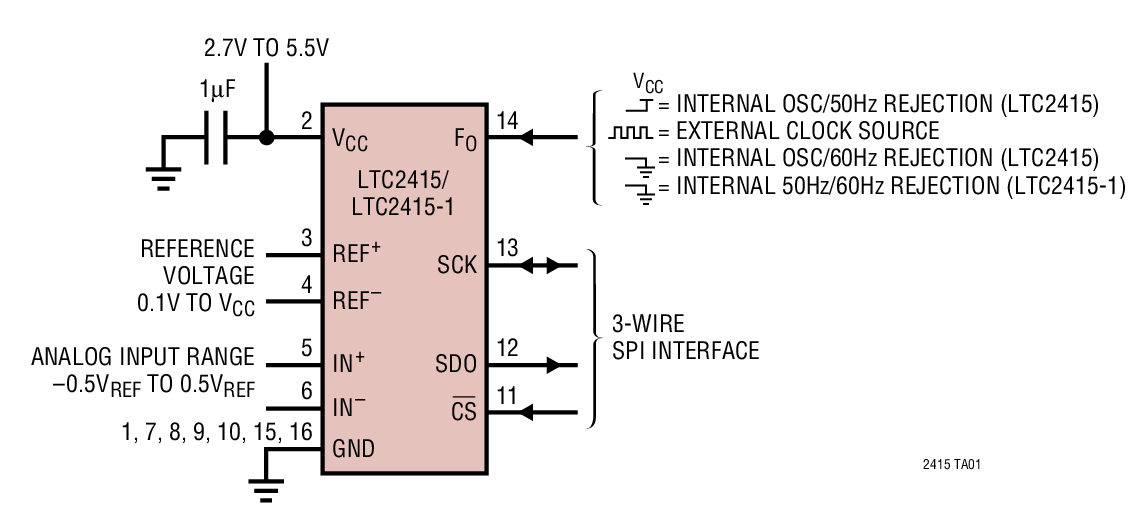

LTC241524-Bit No Latency Delta Sigma ADC with Differential Input and Differential Reference | Analog to Digital Converters (ADC) | 5 | Active | The LTC2415/LTC2415-1 are micropower 24-bit differential ∆Σ analog to digital converters with integrated oscillator, 2ppm INL, 0.23ppm RMS noise and a 2.7V to 5.5V supply range. They use delta-sigma technology and provide single cycle settling time for multiplexed applications. Through a single pin, the LTC2415 can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The LTC2415-1 can be configured for better than 87dB input differential mode rejection over the range of 49Hz to 61.2Hz (50Hz and 60Hz ±2% simultaneously). The internal oscillator requires no external frequency setting components.The converters accept any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCCrange of the LTC2415/LTC2415-1. The DC common mode input rejection is better than 140dB.The LTC2415/LTC2415-1 communicate through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE™protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain Gage TransducersInstrumentationData AcquisitionIndustrial Process Control6-Digit DVMs |
LTC24188-/16-Channel 24-Bit No Latency ∆Σ™ADCs | Data Acquisition | 4 | Active | The LTC2414/LTC2418 are 8-/16-channel (4-/8-differential) micropower 24-bit ∆Σ analog-to-digital converters. They operate from 2.7V to 5.5V and include an integrated oscillator, 2ppm INL and 0.2ppm RMS noise. They use delta-sigma technology and provide single cycle settling time for multiplexed applications. Through a single pin, the LTC2414/LTC2418 can be configured for better than 110dB differential mode rejection at 50Hz or 60Hz ±2%, or they can be driven by an external oscillator for a user-defined rejection frequency. The internal oscillator requires no external frequency setting components.The LTC2414/LTC2418 accept any external differential reference voltage from 0.1V to VCCfor flexible ratiometric and remote sensing measurement applications. They can be configured to take 4/8 differential channels or 8/16 single-ended channels. The full-scale bipolar input range is from -5VREFto 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set within GND to VCC. The DC common mode input rejection is better than 140dB.The LTC2414/LTC2418 communicate through a flexible 4-wire digital interface that is compatible with SPI and MICROWIRE protocols.ApplicationsDirect Sensor DigitizerWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain Gauge TransducersInstrumentationData AcquisitionIndustrial Process Control |

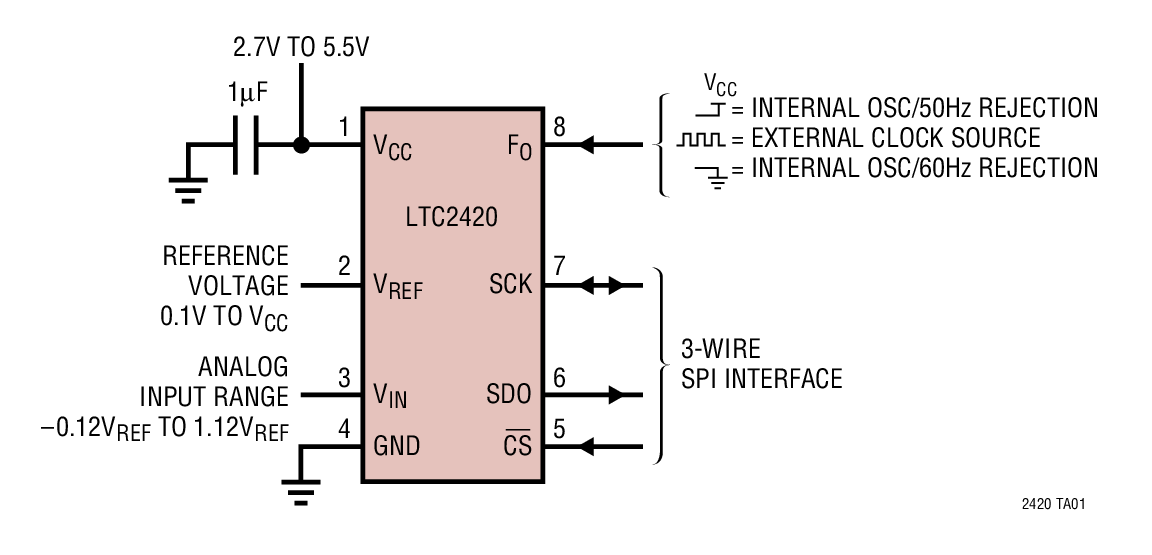

LTC242020-Bit µPower No Latency ∆Σ™ADC in SO-8 | Data Acquisition | 2 | Active | The LTC2420 is a micropower 20-bit A/D converter with an integrated oscillator, 8ppm INL and 1.2ppm RMS noise that operates from 2.7V to 5.5V. It uses delta-sigma technology and provides a digital filter that settles in a single cycle for multiplexed applications. Through a single pin, the LTC2420 can be configured for better than 110dB rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user-defined rejection frequency in the range 1Hz to 800Hz. The internal oscillator requires no external frequency setting components.The converter accepts any external reference voltage from 0.1V to VCC. With its extended input conversion range of –12.5% VREFto 112.5% VREF, the LTC2420 smoothly resolves the offset and overrange problems of preceding sensors or signal conditioning circuits.The LTC2420 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE™protocols.ApplicationsWeight ScalesDirect Temperature MeasurementGas AnalyzersStrain-Gage TransducersInstrumentationData AcquisitionIndustrial Process Control4-Digit DVMs |
