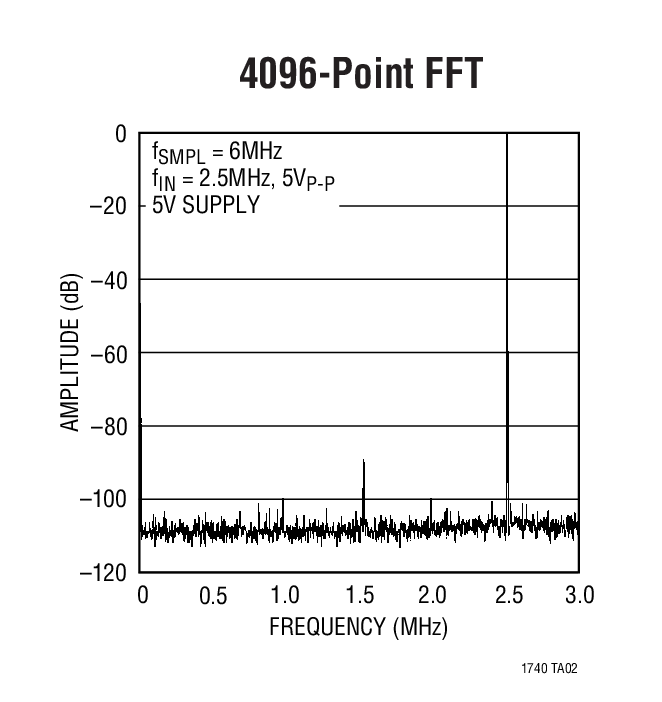

| Data Acquisition | 3 | Active | The LTC1740 is a 6Msps, 14-bit sampling A/D converter that draws only 245mW from either a single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a programmable precision reference.The LTC1740 has a flexible input circuit that allows differential full-scale input ranges of ±2.5V and ±1.25V with the internal reference, or any full-scale input range up to ±2.5V with an external reference. The input common mode voltage is arbitrary, though a 2.5V reference is provided for single supply applications.DC specifications include 1LSB typical INL, 0.5LSB typical DNL and no missing codes over temperature. Outstanding AC performance includes 79dB S/(N + D) and 91dB SFDR at an input frequency of 2.5MHz.The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 80MHz bandwidth. The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.ApplicationsTelecommunicationsMultiplexed Data Acquisition SystemsHigh Speed Data AcquisitionSpectral AnalysisImaging Systems |
LTC174112-Bit, 65Msps Low Noise ADC | Analog to Digital Converters (ADC) | 1 | Active | The LTC1741 is an 65Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1741’s input range to be optimized for a wide variety of applications.The LTC1741 is perfect for demanding communications applications with AC performance that includes 72dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.15psRMSallows undersampling of IF frequencies of up to 70MHz with excellent noise performance. DC specs include ±1 LSB INL and ±0.8LSB DNL over temperature.The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.The TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging Systems |

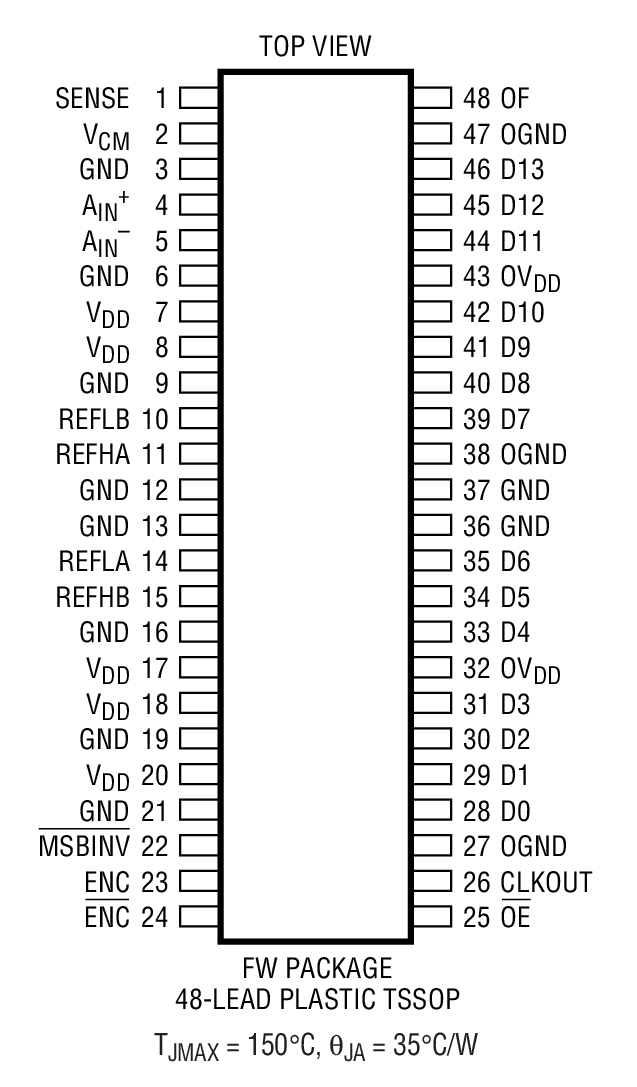

LTC174214-Bit, 65Msps Low Noise ADC | Data Acquisition | 1 | Active | The LTC1742 is an 65Msps, sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1742’s input range to be optimized for a wide variety of applications.The LTC1742 is perfect for demanding communications applications with AC performance that includes 76.5dB SNR and 90dB spurious free dynamic range. Ultralow jitter of 0.15psRMSallows undersampling of IF frequencies with excellent noise performance. DC specs include ±3LSB INL and ±1LSB DNL.The digital interface is compatible with 5V, 3V, 2V and LVDS logic levels. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.The TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging Systems |

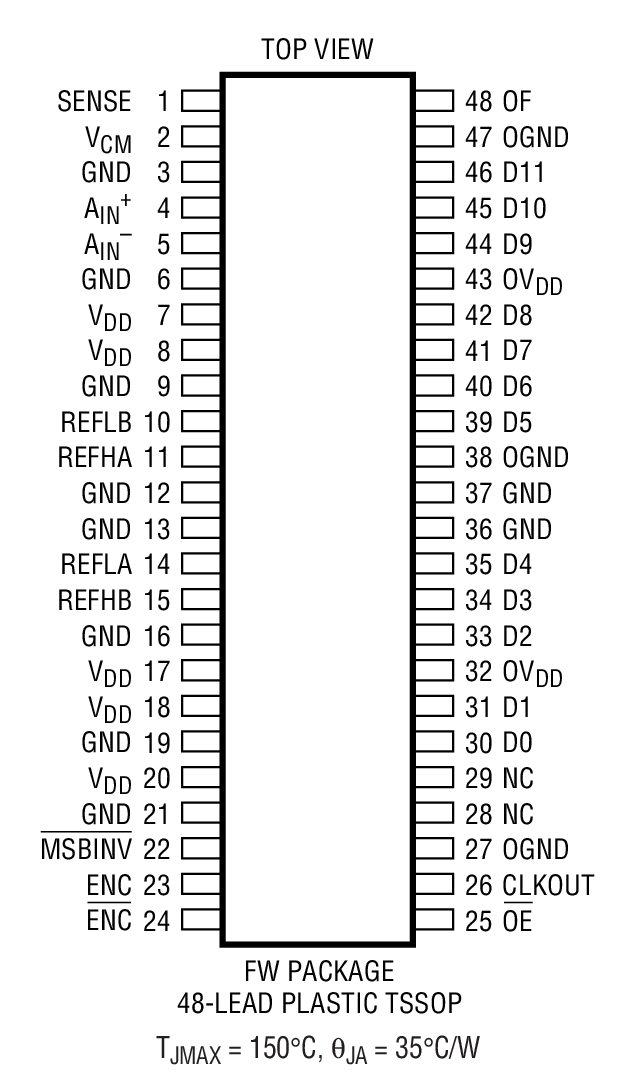

| Integrated Circuits (ICs) | 1 | Active | The LTC1743 is a 50Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1743’s input range to be optimized for a wide variety of applications.The LTC1743 is perfect for demanding communications applications with AC performance that includes 72.5dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.3psRMSallows undersampling of IF frequencies with excellent noise performance. DC specs include ±1LSB maximum INL and ±0.8LSB DNL over temperature.The digital interface is compatible with 5V, 3V and 2V logic systems. The ENC andENCinputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging Systems |

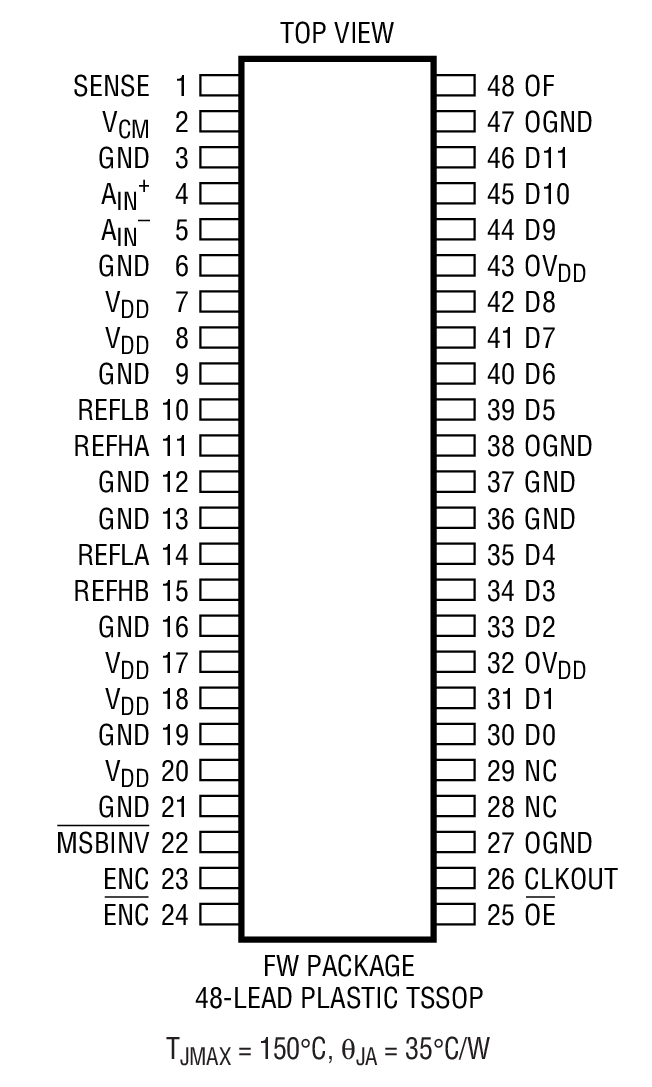

LTC1745Low Noise,12-Bit, 25Msps ADC | Integrated Circuits (ICs) | 3 | Active | The LTC1745 is a 25Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1745’s input range to be optimized for a wide variety of applications.The LTC1745 is perfect for demanding communications applications with AC performance that includes 72.5dB SNR and 91dB spurious free dynamic range. Ultralow jitter of 0.3psRMSallows undersampling with excellent noise performance. DC specs include ±1LSB INL maximum and ±0.75LSB DNL over temperature.The digital interface is compatible with 5V, 3V and 2V logic systems. The ENC andENCinputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate digital output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.The TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsMedical ImagingReceiversCellular Base StationsSpectrum AnalysisImaging Systems |

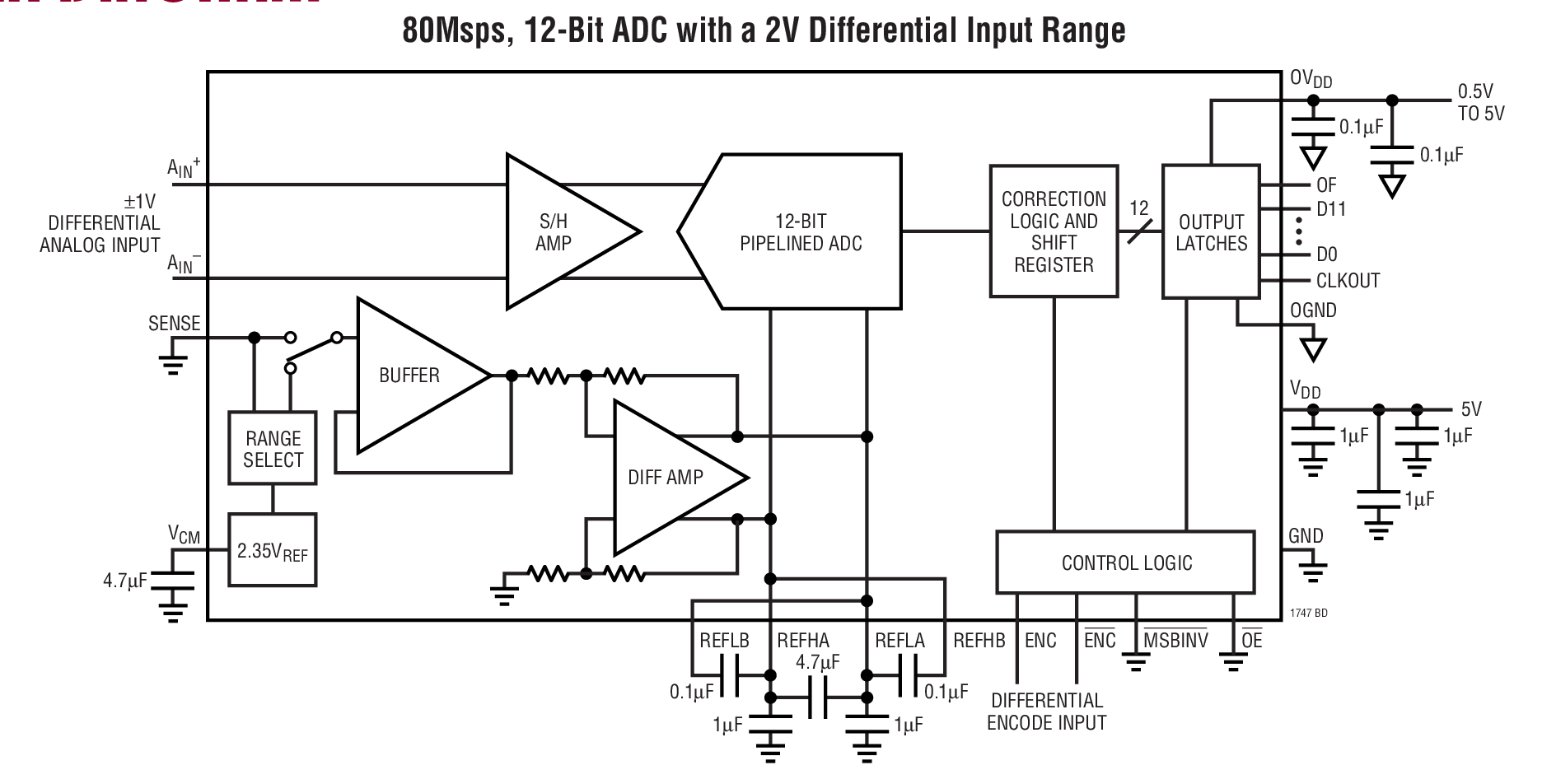

LTC174712-Bit, 80Msps Low Noise ADC | Integrated Circuits (ICs) | 2 | Active | The LTC1747 is an 80Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1747’s input range to be optimized for a wide variety of applications.The LTC1747 is perfect for demanding communications applications with AC performance that includes 72dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.15psRMSallows undersampling of IF frequencies with excellent noise performance. DC specs include ±1.5 LSB INL and ±0.8LSB DNL over temperature.The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.The TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging Systems |

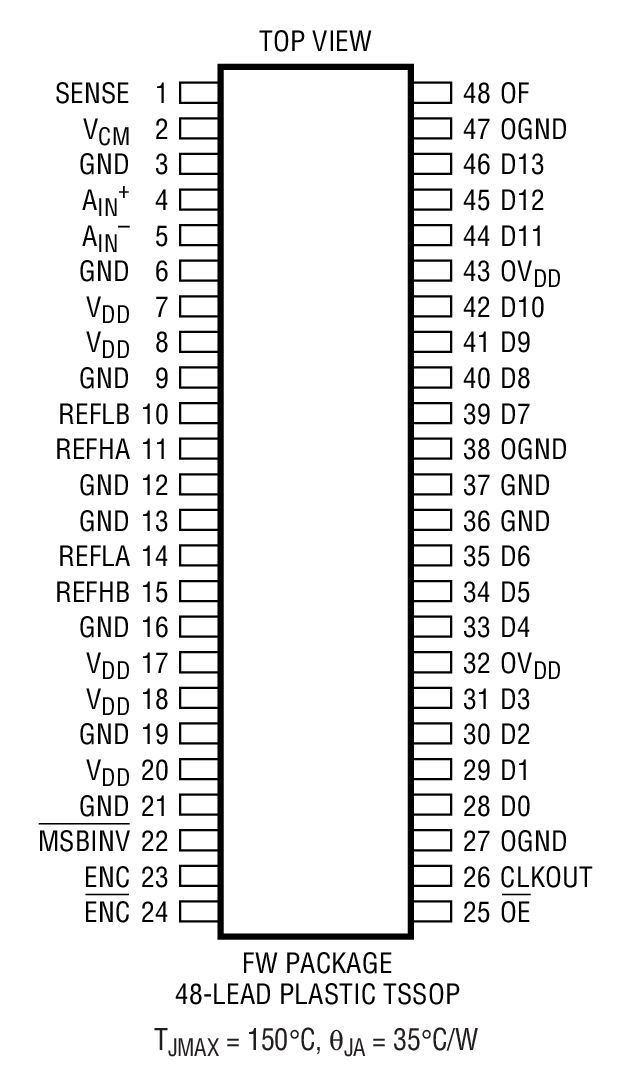

LTC174814-Bit, 80Msps Low Noise ADC | Analog to Digital Converters (ADC) | 2 | Active | The LTC1748 is an 80Msps, sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1748’s input range to be optimized for a wide variety of applications.The LTC1748 is perfect for demanding communications applications with AC performance that includes 76.3dB SNR and 90dB spurious free dynamic range. Ultralow jitter of 0.15psRMSallows undersampling of IF frequencies with excellent noise performance. DC specs include ±3LSB INL and no missing codes.The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.The TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging Systems |
LTC174912-Bit, 80Msps Wide Bandwidth ADC | Data Acquisition | 2 | Active | The LTC1749 is an 80Msps, 12-bit A/D converter designed for digitizing wide dynamic range signals up to frequencies of 500MHz. The input range of the ADC can be optimized with the on-chip PGA sample-and-hold circuit and flexible reference circuitry.The LTC1749 has a highly linear sample-and-hold circuit with a bandwidth of 500MHz. The SFDR is 80dB with an input frequency of 250MHz. Ultralow jitter of 0.15psRMSallows undersampling of IF frequencies with minimal degradation in SNR. DC specs include ±1LSB INL and no missing codes.The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsDirect IF SamplingTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisCommunications Test EquipmentUndersampling |

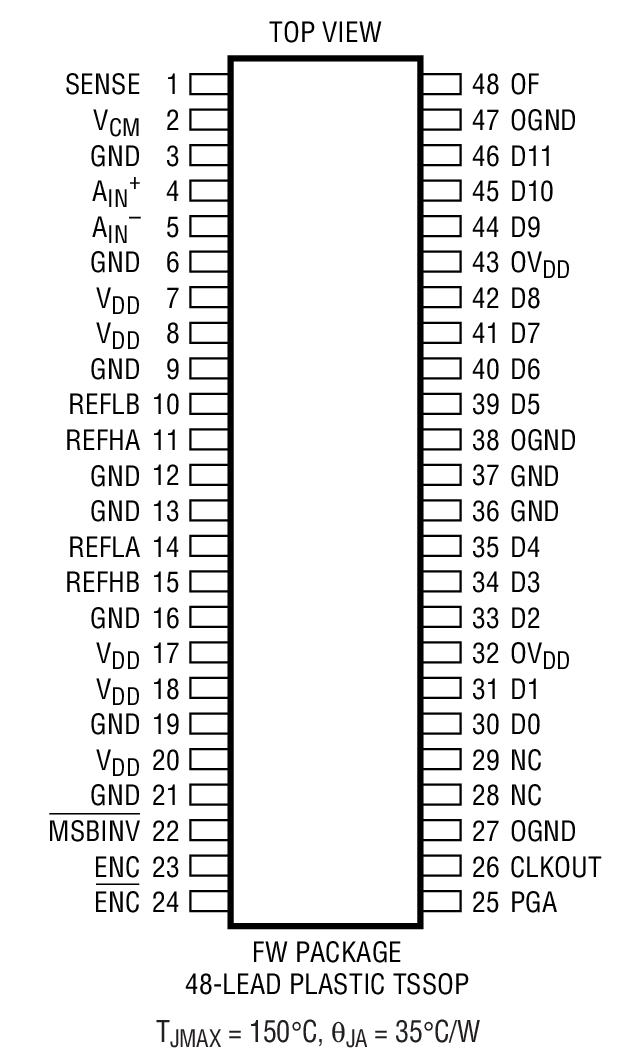

LTC175014-Bit, 80Msps Wide Bandwidth ADC | Analog to Digital Converters (ADC) | 1 | Active | The LTC1750 is an 80Msps, 14-bit A/D converter designed for digitizing wide dynamic range signals up to frequencies of 500MHz. The input range of the ADC can be optimized with the on-chip PGA sample-and-hold circuit and flexible reference circuitry.The LTC1750 has a highly linear sample-and-hold circuit with a bandwidth of 500MHz. The SFDR is 82dB with an input frequency of 250MHz. Ultralow jitter of 0.12psRMSallows undersampling of IF frequencies with minimal degradation in SNR. DC specs include ±3LSB INL and no missing codes.The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. TheENCand ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gainENCand ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.ApplicationsTelecommunicationsReceiversCellular Base StationsSpectrum AnalysisImaging SystemsMRITomography |

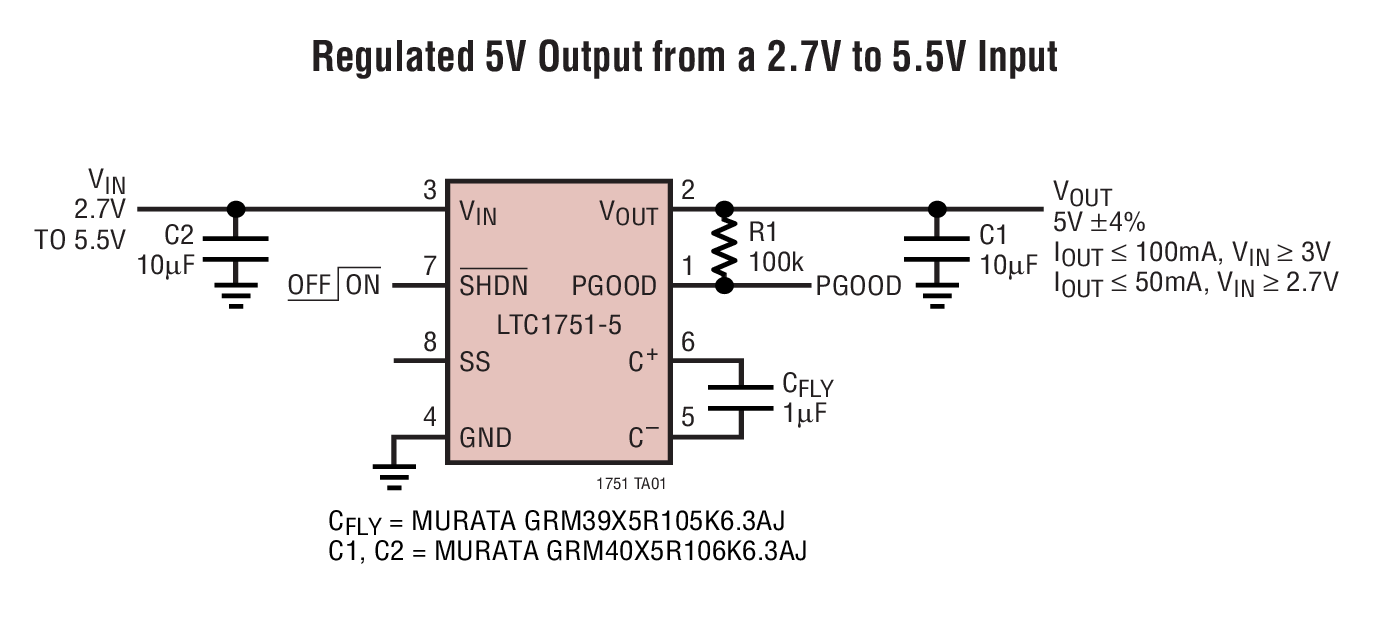

LTC1751Micropower, Regulated Charge Pump DC/DC Converters | PMIC | 2 | Active | The LTC1751 family are micropower charge pump DC/DC converters that produce a regulated output voltage at up to 100mA. The input voltage range is 2V to 5.5V. Extremely low operating current (20µA typical with no load) and low external parts count (one flying capacitor and two small bypass capacitors at VINand VOUT) make them ideally suited for small, battery-powered applications.The LTC1751 family operate as Burst Mode™switched capacitor voltage doublers to achieve ultralow quiescent current. They have thermal shutdown capability and can survive a continuous short circuit from Voutto GND. The PGOOD pin on the LTC1751-3.3 and LTC1751-5 indicates when the output voltage has reached its final value and if the output has an undervoltage fault condition. The FB pin of the adjustable LTC1751 can be used to program the desired output voltage or current. An optional soft-start capacitor may be used at the SS pin to prevent excessive inrush current during start-up.The LTC1751 family is available in an 8-pin MSOP package.ApplicationsLi-Ion Battery Backup SuppliesLocal 3V and 5V ConversionSmart Card ReadersPCMCIA Local 5V SuppliesWhite LED Backlighting |
