The LT6555 is a high speed triple 2:1 video multiplexer with an internally fixed gain of 2. The individual amplifiers are optimized for performance with a double terminated 75Ω video load and feature a –3dB 2VP-Pbandwidth of 450MHz, making them ideal for driving very high resolution video signals. Separate power supply pins for each amplifier boost channel separation to 72dB, allowing the LT6555 to excel in many high speed applications.While the performance of the LT6555 is optimized for dual supply operation, it can also be operated with a single supply as low as 4.5V. Using dual 5V supplies, each amplifier draws only 9mA. When disabled, the amplifiers draw less than 500µA and the outputs become high impedance.The LT6555 is manufactured on our proprietary low voltage complementary bipolar process and is available in 24-lead SSOP and ultra-compact 24-lead QFN packages.ApplicationsRGB AmplifiersUXGA Video MultiplexingLCD Projectors

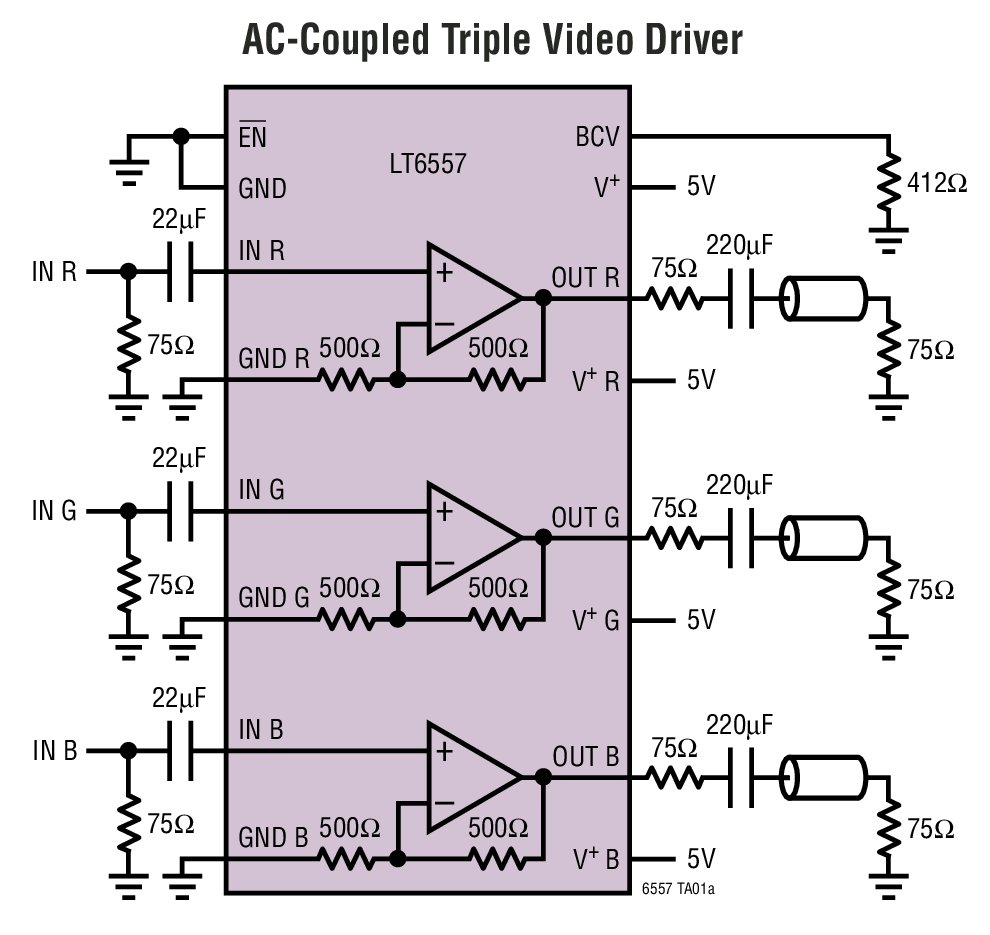

The LT6557 is a high speed triple video amplifier with an internal fixed gain of 2 and a programmable DC input bias voltage. This amplifier features a 400MHz 2VP-Psignal bandwidth, 2200V/µs slew rate and a unique ability to drive heavy output loads to 0.8V of the supply rails, making the LT6557 ideal for a single 5V supply, wideband video application. With just one resistor, the inputs of all three amplifiers can be programmed to a common voltage level, simplifying and reducing the need for external circuitry in the AC-coupled applications. Without the programmable resistor, the input bias circuit becomes inactive, allowing the use of an external clamp circuit or direct coupled input.The LT6557 has separate power supply and ground pins for each amplifier to improve channel separation and to ease power supply bypassing. The LT6557 provides uncompromised performance in many high speed applications where a low voltage, single supply is required.The LT6557 is available in 16-lead SSOP and 5mm × 3mm DFN packages.ApplicationsLCD Video ProjectorsRGB HD Video AmplifiersCoaxial Cable DriversLow Supply ADC Drivers

The LT6558 is a high speed triple video amplifier with an internal fixed gain of 1 and a programmable DC input bias voltage. This amplifier features a 400MHz 2VP-Psignal bandwidth, 2200V/µs slew rate and a unique ability to drive heavy output loads to 0.8V of the supply rails, making the LT6558 ideal for a single 5V supply, wideband video application. With just one resistor, the inputs of all three amplifiers can be programmed to a common voltage level, simplifying and reducing the need for external circuitry in AC-coupled applications. Without the programming resistor, the input bias circuit becomes inactive, allowing the use of an external clamp circuit or direct coupled input.The LT6558 has separate power supply and ground pins for each amplifier to improve channel separation and to ease power supply bypassing. The LT6558 provides uncompromised performance in many high speed applications where a low voltage, single supply is required.The LT6558 is available in 16-lead SSOP and 5mm × 3mm DFN packages.ApplicationsLCD Video ProjectorsRGB HD Video Amplifi ersCoaxial Cable DriversLow Supply ADC Drivers

The LT6559 is a low cost, high speed, triple amplifier that has been optimized for excellent video performance on a single 5V supply, yet fi ts in the small footprint of a 3mm × 3mm QFN package. With a –3dB bandwidth of 300MHz, a 0.1dB bandwidth of 150MHz, and a slew rate of 800V/µs, the LT6559’s dynamic performance is an excellent match for high speed RGB or YPBPRvideo applications.For multiplexing applications such as KVM switches or selectable video inputs, each channel has an independent high speed enable/disable pin. Each amplifier will turn on in 30ns and off in 40ns. When enabled, each amplifier draws 3.9mA from a 5V supply. The LT6559 operates on a single supply voltage ranging from 4V to 12V, and on split supplies ranging from ±2V to ±6V.The LT6559 comes in a compact 16-lead 3mm × 3mm QFN package, and operates over a –40°C to 85°C temperature range. The LT6559 is manufactured on Linear Technology’s proprietary complementary bipolar process.ApplicationsRGB/YPBPRCable DriversLCD ProjectorsKVM SwitchesA/V ReceiversMUX AmplifiersComposite Video Cable DriversADC Drivers

The LT6600-2.5 combines a fully differential amplifier with a 4th order 2.5MHz lowpass filter approximating a Chebyshev frequency response. Most differential amplifiers require many precision external components to tail or gain and bandwidth. In contrast, with the LT6600-2.5, two external resistors program differential gain, and the filter’s 2.5MHz cutoff frequency and passband ripple are internally set. The LT6600-2.5 also provides the necessary level shifting to set its output common mode voltage to accommodate the reference voltage requirements of A/Ds.Using a proprietary internal architecture, the LT6600-2.5 integrates an antialiasing filter and a differential amplifier/driver without compromising distortion or low noise performance. At unity gain the measured in band signal-to- noise ratio is an impressive 86dB. At higher gains the input referred noise decreases so the part can process smaller input differential signals without significantly degrading the output signal-to-noise ratio.The LT6600-2.5 also features low voltage operation. The differential design provides outstanding performance for a 4VP-Psignal level while the part operates with a single 3V supply. The LT6600-2.5 is available in SO-8 and DFN-12 packages.For similar devices with higher cutoff frequency, refer to the LT6600-5, LT6600-10, LT6600-15 and LT6600-20 data sheets.ApplicationsHigh Speed ADC Antialiasing and DAC Smoothing in Networking or Cellular Basestation ApplicationsHigh Speed Test and Measurement EquipmentMedical ImagingDrop-in Replacement for Differential Amplifiers

The LT6604-2.5 consists of two matched, fully differential amplifiers, each with a 4th order, 2.5MHz lowpass filter. The fixed frequency lowpass filter approximates a Chebyshev response. By integrating a filter and a differential amplifier, distortion and noise are made exceptionally low. At unity gain, the measured in-band signal-to-noise ratio is an impressive 86dB. At higher gains, the input referred noise decreases, allowing the part to process smaller input differential signals without significantly degrading the signal-to-noise ratio.Gain and phase are well matched between the two channels. Gain for each channel is independently programmed using two external resistors. The LT6604-2.5 enables level shifting by providing an adjustable output common mode voltage, making it ideal for directly interfacing to ADCs. The LT6604-2.5 is fully specified for 3V operation. The differential design enables outstanding performance up to a 4VP-Psignal level for a single 3V supply.See the back page of this datasheet for a complete list of related single and dual differential amplifiers with integrated 2.5MHz to 20MHz lowpass filters.ApplicationsDual Differential ADC Driver and FilterSingle-Ended to Differential ConverterMatched, Dual, Differential Gain or Filter StageCommon Mode Translation of Differential SignalsHigh Speed ADC Antialiasing and DAC Smoothing in Wireless Infrastructure or Networking ApplicationsHigh Speed Test and Measurement EquipmentMedical Imaging

The LT6650 is a micropower, low voltage 400mV reference. Operating with supplies from 1.4V up to 18V, the device draws only 5.6µA typical, making it ideal for low voltage systems as well as handheld instruments and industrial control systems. With only two resistors the internal buffer amplifier can scale the 400mV reference to any desired value up to the supply voltage.The reference is post package-trimmed to increase the output accuracy. The output can sink and source 200µA over temperature. Quiescent power dissipation is 28µW. Stability is ensured with any output capacitor of 1µF or higher.The LT6650 is the lowest voltage series reference available in the 5-lead SOT-23 package.ApplicationsBattery-Operated SystemsHandheld InstrumentsIndustrial Control SystemsData Acquisition SystemsNegative Voltage References

The LT6654 is a family of small precision voltage references that offers high accuracy, low noise, low drift, low dropout and low power. The LT6654 operates from voltages up to 36V and is fully specified from –55°C to 125°C. A buffered output ensures ±10mA of output drive with low output impedance and precise load regulation. These features, in combination, make the LT6654 ideal for portable equipment, industrial sensing and control, and automotive applications.The LT6654 was designed with advanced manufacturing techniques and curvature compensation to provide 10ppm/°C temperature drift and 0.05% initial accuracy. Low thermal hysteresis ensures high accuracy and 1.6ppmP-Pnoise minimizes measurement uncertainty. Since the LT6654 can also sink current, it can operate as a low power negative voltage reference with the same precision as a positive reference.The LT6654 references are offered in 6-lead SOT-23 package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.ApplicationsAutomotive Control and MonitoringHigh Temperature IndustrialHigh Resolution Data Acquisition SystemsInstrumentation and Process ControlPrecision RegulatorsMedical Equipment

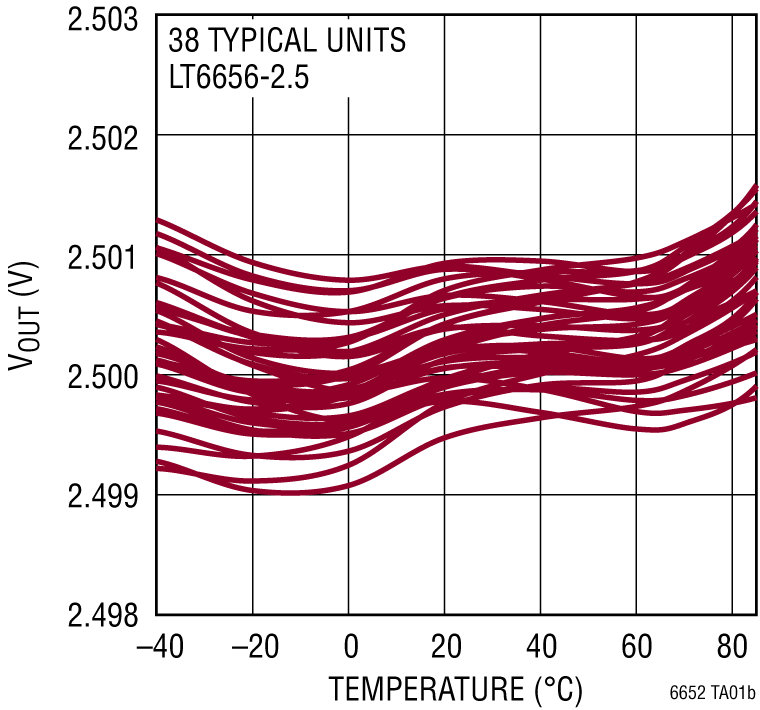

The LT6656 is a tiny precision voltage reference that draws less than 1μA of supply current and can operate with a supply voltage within 10mV of the output voltage. The LT6656 offers an initial accuracy of 0.05% and temperature drift of 10ppm/°C. The combined low power and precision characteristics are ideal for portable and battery powered instrumentation.The LT6656 can supply up to 5mA of output drive with 65ppm/mA of load regulation, allowing it to be used as the supply voltage and the reference input to a low power ADC. The LT6656 can accept a supply voltage up to 18V and withstand the reversal of the input connections.The LT6656 output is stable with 1μF or larger output capacitance and operates with a wide range of output capacitor ESR.This reference is fully specified for operation from –40°C to 85°C, and is functional over the extreme temperature range of –55°C to 125°C. Low hysteresis and a consistent temperature drift are obtained through advanced design, processing and packaging techniques.The LT6656 is offered in the 6-lead SOT-23, (2mm × 2mm) DFN, and 8-lead LS8 Packages. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.APPLICATIONSPrecision A/D and D/A ConvertersPortable Gas MonitorsBattery- or Solar-Powered SystemsPrecision RegulatorsLow Voltage Signal ProcessingMicropower Remote Sensing
