LT637025µV, 0.3µV/°C, Low Noise Instrumentation Amplifier | Amplifiers | 5 | Active | The LT6370 is a gain programmable, high precision instrumentation amplifier that delivers industry leading DC precision. This high precision enables smaller signals to be sensed and eases calibration requirements, particularly over temperature.The LT6370 uses a proprietary high performance bipolar process which enables industry leading accuracy coupled with exceptional long-term stability. The LT6370 is laser trimmed for very low input offset voltage (25µV) and high CMRR (94dB, G = 1). Proprietary on-chip test capability allows the input offset voltage drift (0.3µV/°C) and gain drift (30ppm/°C) to be guaranteed with automated testing on the S8E package.In addition to excellent DC specifications, the LT6370’s wide bandwidth (3.1MHz, G = 1) and fast settling time allow it to operate well in multiplexed applications. EMI filtering is integrated on the LT6370’s inputs to maintain accuracy in the presence of harsh RF interference.The LT6370 is available in a compact 8-pin MSOP or S8E which use the conventional instrumentation amplifier pin-out as well as a 10-pin 3mm × 3mm DFN. The S8E package is also offered as an A grade which has superior DC specifications. The LT6370 is fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.ApplicationsBridge AmplifierData AcquisitionMultiplexed SignalsThermocouple AmplifierStrain Gauge AmplifierMedical InstrumentationTransducer InterfacesDifferential to Single-Ended Conversion |
LT6372-0.2Precision, Funneling Instrumentation Amplifier with Level Shift and Output Clamping | Amplifiers | 14 | Active | The LT6372-0.2 is a gain programmable, high precision funneling instrumentation amplifier that delivers industry leading DC precision. This high precision enables smaller signals to be sensed and eases calibration requirements, particularly over temperature. The LT6372-0.2 incorporates features into the LT6370 which further improve accuracy and simplify interfacing to an ADC.The LT6372-0.2 uses a proprietary high performance bipolar process which enables industry leading accuracy coupled with exceptional long-term stability. The LT6372-0.2 is laser trimmed for very low input offset voltage (60μV) and high CMRR (80dB, G = 0.2). Proprietary on-chip test capability allows the gain drift (35ppm/°C) to be guaranteed with automated testing.The LT6372-0.2’s difference amplifier uses a split reference configuration which simplifies level shifting the amplifier’s output to the center of the ADC’s input range. Output clamp pins are also provided to limit the voltage which can be applied to an ADC’s input. EMI filtering is integrated on the LT6372-0.2’s inputs to maintain accuracy in the presence of harsh RF interference.The LT6372-0.2 is available in a compact MS16E or a 20-pin 3mm × 4mm QFN. The LT6372-0.2 is fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.APPLICATIONSBridge AmplifierData AcquisitionThermocouple AmplifierStrain Gauge AmplifierMedical InstrumentationTransducer InterfacesDifferential to Single-Ended Conversion |

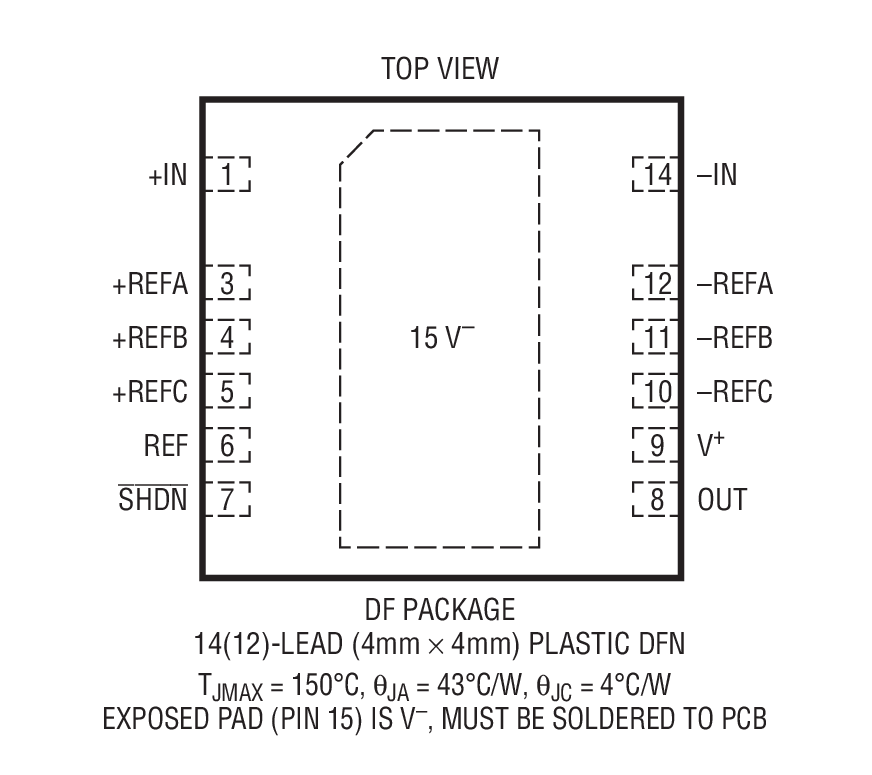

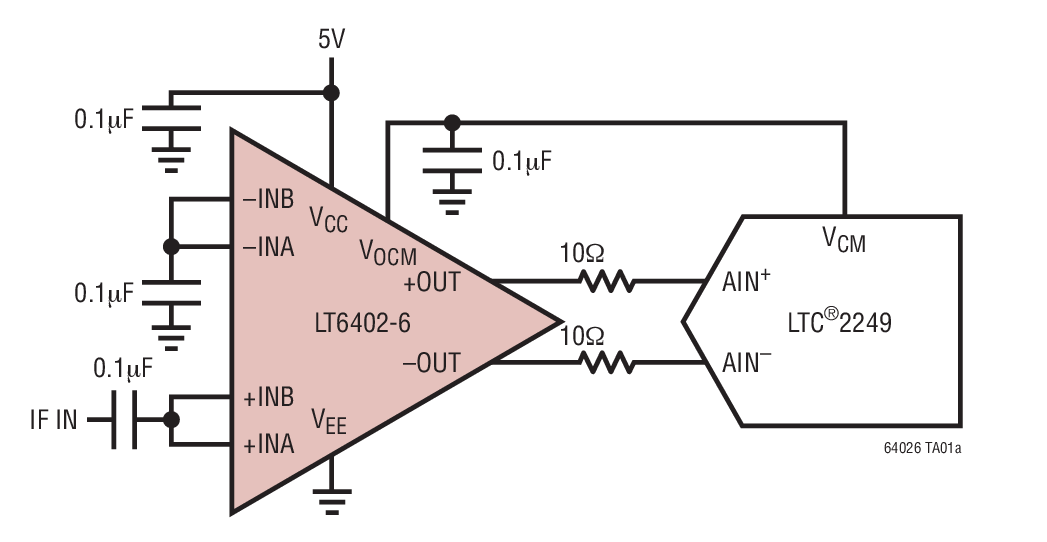

LT6375±270V Common Mode Voltage Difference Amplifier | Linear | 4 | Active | The LT6375 is a unity-gain difference amplifier which combines excellent DC precision, a very high input common mode range and a wide supply voltage range. It includes a precision op amp and a highly-matched thin film resistor network. It features excellent CMRR, extremely low gain error and extremely low gain drift.Comparing the LT6375 to existing difference amplifiers with high common mode voltage range, the selectable resistor divider ratios of the LT6375 offer superior system performance by allowing the user to achieve maximum SNR, precision and speed for a specific input common mode voltage range.The op amp at the core of the LT6375 has Over-The-Top®protected inputs which allow for robust operation in environments with unpredictable voltage conditions. See the Applications Information section for more details.The LT6375 is specified over the –40°C to 125°C temperature range and is available in space-saving MSOP16 and DFN14 packages.ApplicationsHigh Side or Low Side Current SensingBidirectional Wide Common Mode Range Current SensingHigh Voltage to Low Voltage Level TranslationPrecision Difference AmplifierIndustrial Data-Acquisition Front-EndsReplacement for Isolation Circuits |
LT6376±230V Common Mode Voltage G = 10 Difference Amplifier | Amplifiers | 3 | Active | The LT6376 is a gain of 10 difference amplifier which combines excellent DC precision, a very high input common mode range and a wide supply voltage range. It includes a precision op amp and a highly-matched thin film resistor network. It features excellent CMRR, extremely low gain error and extremely low gain drift.Comparing the LT6376 to existing difference amplifiers with high common mode voltage range, the gain of 10 and selectable resistor divider ratios of the LT6376 offer superior system performance by allowing the user to achieve low input referred noise with maximum precision and speed.The op amp at the core of the LT6376 has Over-The-Top®protected inputs which allow for robust operation in environments with unpredictable voltage conditions. See the Applications Information section for more details.The LT6376 is specified over the –40°C to 125°C temperature range and is available in space-saving MSOP16 and DFN14 packages.ApplicationsHigh Side or Low Side Current SensingBidirectional Wide Common Mode Range Current SensingHigh Voltage to Low Voltage Level TranslationPrecision Difference AmplifierReplacement for Isolation Circuits |
LT6402-20300MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV= 20dB) | Special Purpose | 7 | Active | The LT6402-20 is a low distortion, low noise differential amplifier/ADC driver for use in applications from DC to 300MHz. The LT6402-20 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion (with either single-ended or differential inputs) make the LT6402-20 an excellent solution for driving high speed 12-bit and 14-bit ADCs. In addition to the normal unfiltered outputs (+OUT and –OUT), the LT6402-20 has a built-in 75MHz differential low pass filter and an additional pair of filtered outputs (+OUTFILTERED, –OUTFILTERED) to reduce external filtering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCMpin, eliminating an output transformer or AC-coupling capacitors in many applications.The LT6402-20 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in other applications requiring differential drive. The LT6402-20 can be used in data acquisition systems required to function at frequencies down to DC.The LT6402-20 operates on a 5V supply and consumes 30mA. It comes in a compact 16-lead 3mm × 3mm QFN package and operates over a –40ºC to 85ºC temperature range.ApplicationsDifferential ADC Driver for:ImagingCommunicationsDifferential Driver/ReceiverSingle Ended to Differential ConversionDifferential to Single Ended ConversionLevel ShiftingIF Sampling ReceiversSAW Filter Interfacing/Buffering |

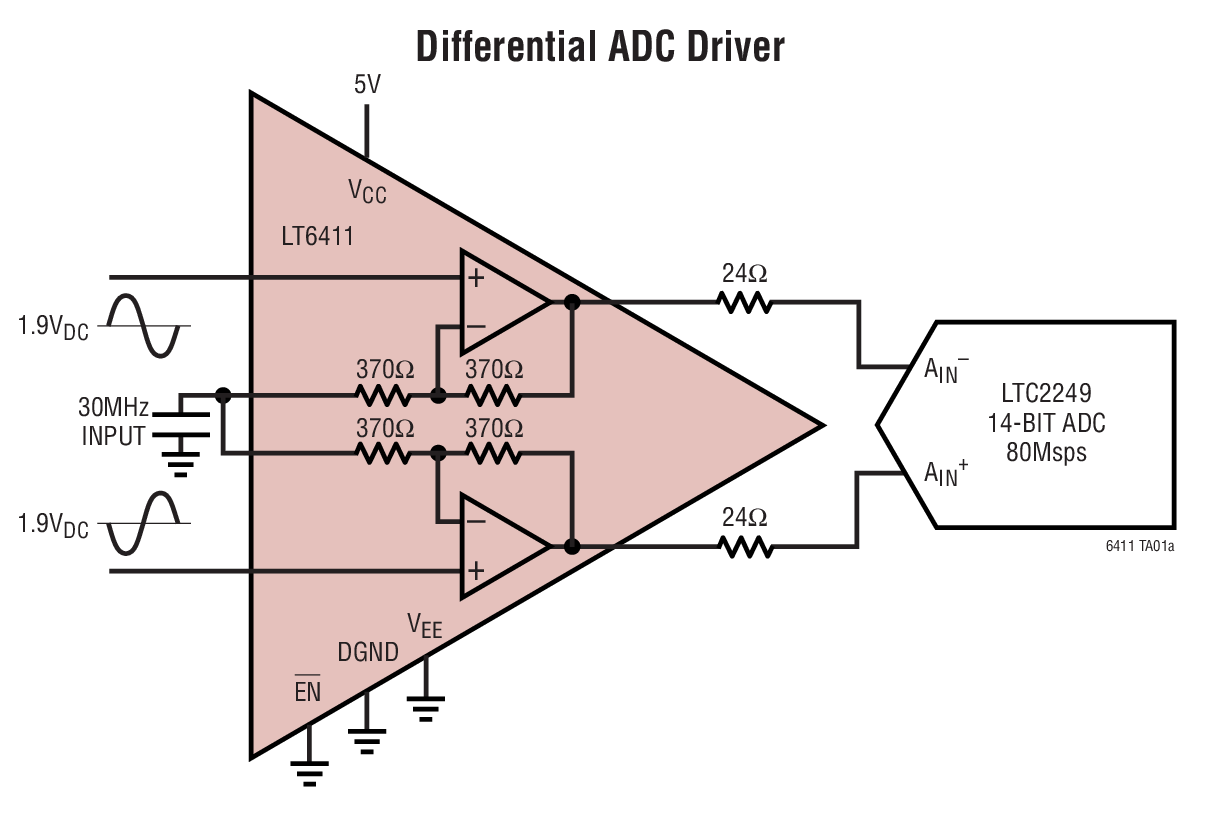

LT6411650MHz Differential ADC Driver/Dual Selectable Gain Amplifier | Integrated Circuits (ICs) | 2 | Active | The LT6411 is a dual amplifier with individually selectable gains of +1, +2 and –1. The amplifiers have excellent distortion performance for driving ADCs as well as excellent bandwidth and slew rate for video, data transmission and other high speed applications. Single-ended to differential conversion with a system gain of 2 is particularly straightforward by configuring one amplifier with a gain of +1 and the other amplifier with a gain of –1. The LT6411 can be used on split supplies as large as ±6V and on a single supply as low as 4.5V.Each amplifier draws only 8mA of quiescent current when enabled. When disabled, the output pins become high impedance and each amplifier draws less than 350µA.The LT6411 is manufactured on our proprietary, low voltage, complimentary, bipolar process and is available in the ultra-compact, 3mm × 3mm, 16pin QFN package.ApplicationsDifferential ADC DriverSingle-Ended to Differential ConversionDifferential Video Line Driver |
LT65503.3V Triple and Quad Video Amplifiers | Amplifiers | 1 | Active | The LT6550/LT6551 are 3.3V triple and quad high speed video amplifiers. These voltage feedback amplifiers drive double terminated 50Ω or 75Ω cables and are configured for a fixed gain of 2, eliminating six or eight external gain setting resistors. The LT6550/LT6551 feature 110MHz –3dB bandwidth, high slew rates and fast settling, making them ideal for RGB video processing.The LT6551 quad is designed for single supply operation and the LT6550 triple can be used on either single or split supplies. On a single 3.3V supply, the input voltage range extends from ground to 1.55V and the output swings to within 400mV of the supply voltage while driving a 150Ω load. These features, combined with the ability to accept RGB video signals without the need for AC coupling or level shifting of the incoming signals, make the LT6550/LT6551 an ideal choice for low voltage video applications.Both the LT6550 and LT6551 are available in the small 10-Pin MSOP package and utilize a flow-thru pin out. The small footprint results in a compact high performance video amplifier solution.ApplicationsAutomotive DisplaysLCD and CRT CompatibleRGB AmplifiersCoaxial Cable DriversLow Voltage High Speed Signal ProcessingSet Top Boxes |
LT65513.3V Triple and Quad Video Amplifiers | Amplifiers | 1 | Active | The LT6550/LT6551 are 3.3V triple and quad high speed video amplifiers. These voltage feedback amplifiers drive double terminated 50Ω or 75Ω cables and are configured for a fixed gain of 2, eliminating six or eight external gain setting resistors. The LT6550/LT6551 feature 110MHz –3dB bandwidth, high slew rates and fast settling, making them ideal for RGB video processing.The LT6551 quad is designed for single supply operation and the LT6550 triple can be used on either single or split supplies. On a single 3.3V supply, the input voltage range extends from ground to 1.55V and the output swings to within 400mV of the supply voltage while driving a 150Ω load. These features, combined with the ability to accept RGB video signals without the need for AC coupling or level shifting of the incoming signals, make the LT6550/LT6551 an ideal choice for low voltage video applications.Both the LT6550 and LT6551 are available in the small 10-Pin MSOP package and utilize a flow-thru pin out. The small footprint results in a compact high performance video amplifier solution.ApplicationsAutomotive DisplaysLCD and CRT CompatibleRGB AmplifiersCoaxial Cable DriversLow Voltage High Speed Signal ProcessingSet Top Boxes |
LT65523.3V Single Supply Video Difference Amplifier | Integrated Circuits (ICs) | 3 | Active | The LT6552 is a video difference amplifier optimized for low voltage single supply operation. This versatile amplifier features uncommitted high input impedance (+) and (–) inputs and can be used in differential or single-ended configurations. A second set of inputs gives gain adjustment and DC control to the differential amplifier.On a single 3.3V supply, the input voltage range extends from ground to 1.3V and the output swings from ground to 2.9V while driving a 150Ω load. The LT6552 features 75MHz – 3dB bandwidth, 600V/µs slew rate, and ±70mA output current making it ideal for driving cables directly. The LT6552 maintains its performance for supplies from 3V to 12.6V and is fully specified at 3.3V, 5V and ±5V supplies. The shutdown feature reduces power dissipation to less than 1mW and allows multiple amplifiers to drive the same cable.The LT6552 is available in the 8-lead SO package as well as a tiny, dual fine pitch leadless package (DFN). The device is specified over the commercial and industrial temperature ranges.ApplicationsDifferential to Single-Ended ConversionVideo Line DriverAutomotive DisplaysRGB AmplifiersCoaxial Cable DriversLow Voltage High Speed Signal Processing |

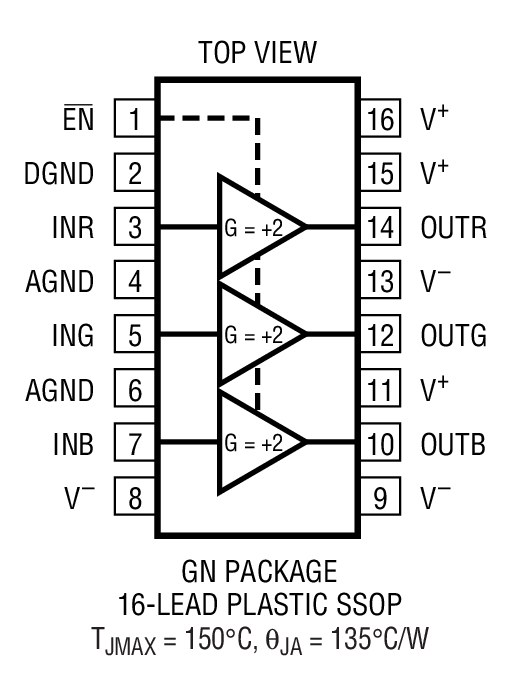

LT6553650MHz Gain of 2 Triple Video Amplifier | Integrated Circuits (ICs) | 1 | Active | The LT6553 is a high-speed triple video amplifier with an internally fixed gain of 2. The individual amplifiers are optimized for performance with a double terminated 75Ω video load and feature a 2VP–Pfull signal bandwidth of 400MHz, making them ideal for driving very high-resolution video signals. Separate power supply pins for each amplifier boost channel separation to 75dB, allowing the LT6553 to excel in many high-speed applications.While the performance of the LT6553 is optimized for dual supply operation, it can also be used on a single supply as small as 4.5V. Using dual 5V supplies, each amplifier draws only 8mA. When disabled, the amplifiers draw less than 100µA and the output pins become high impedance. Furthermore, the amplifiers are capable of turning on in less than 50ns, making them ideal for multiplexing and portable applications.The LT6553 is manufactured on our proprietary low voltage complementary bipolar process and is available in the 16-lead SSOP package that fits in the same PCB area as an SO-8 package.ApplicationsRGB AmplifiersCoaxial Cable DriversLCD Projectors |
