| LED Drivers | 1 | Obsolete | |

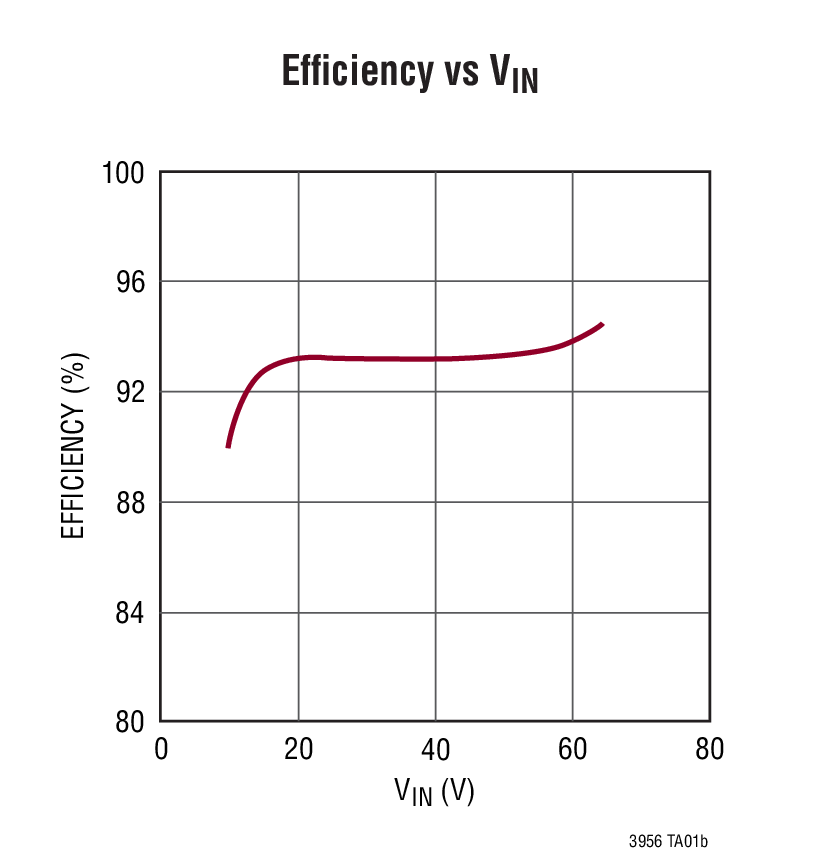

LT395680VIN, 80VOUTConstant-Current, Constant-Voltage Converter | LED Drivers | 2 | Active | The LT3956 is a DC/DC converter designed to operate as a constant-current source and constant-voltage regulator. It is ideally suited for driving high current LEDs. It features an internal low side N-channel power MOSFET rated for 84V at 3.3A and driven from an internal regulated 7.15V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. A ground referenced voltage FB pin serves as the input for several LED protection features, and also makes it possible for the converter to operate as a constant-voltage source. A frequency adjust pin allows the user to program the frequency from 100kHz to 1MHz to optimize efficiency, performance or external component size.The LT3956 senses output current at the high side of the LED string. High side current sensing is the most flexible scheme for driving LEDs, allowing boost, buck mode or buck-boost mode configuration. The PWM input provides LED dimming ratios of up to 3000:1, and the CTRL input provides additional analog dimming capability.ApplicationsHigh Power LEDBattery ChargerAccurate Current Limited Voltage Regulator |
LT3957Boost, Flyback, SEPIC and Inverting Converter with 5A, 40V Switch | Integrated Circuits (ICs) | 2 | Active | The LT3957 is a wide input range, current mode DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 40V at 5A and driven from an internal regulated 5.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.The operating frequency of LT3957 can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 3V, and a low shutdown quiescent current of less than 1μA, make the LT3957 ideally suited for battery-powered systems.The LT3957 features soft-start and frequency foldback functions to limit inductor current during start-up.FeaturesLT3957-LT3957AImproved Load Transient PerformanceApplicationsAutomotiveTelecomIndustrial |

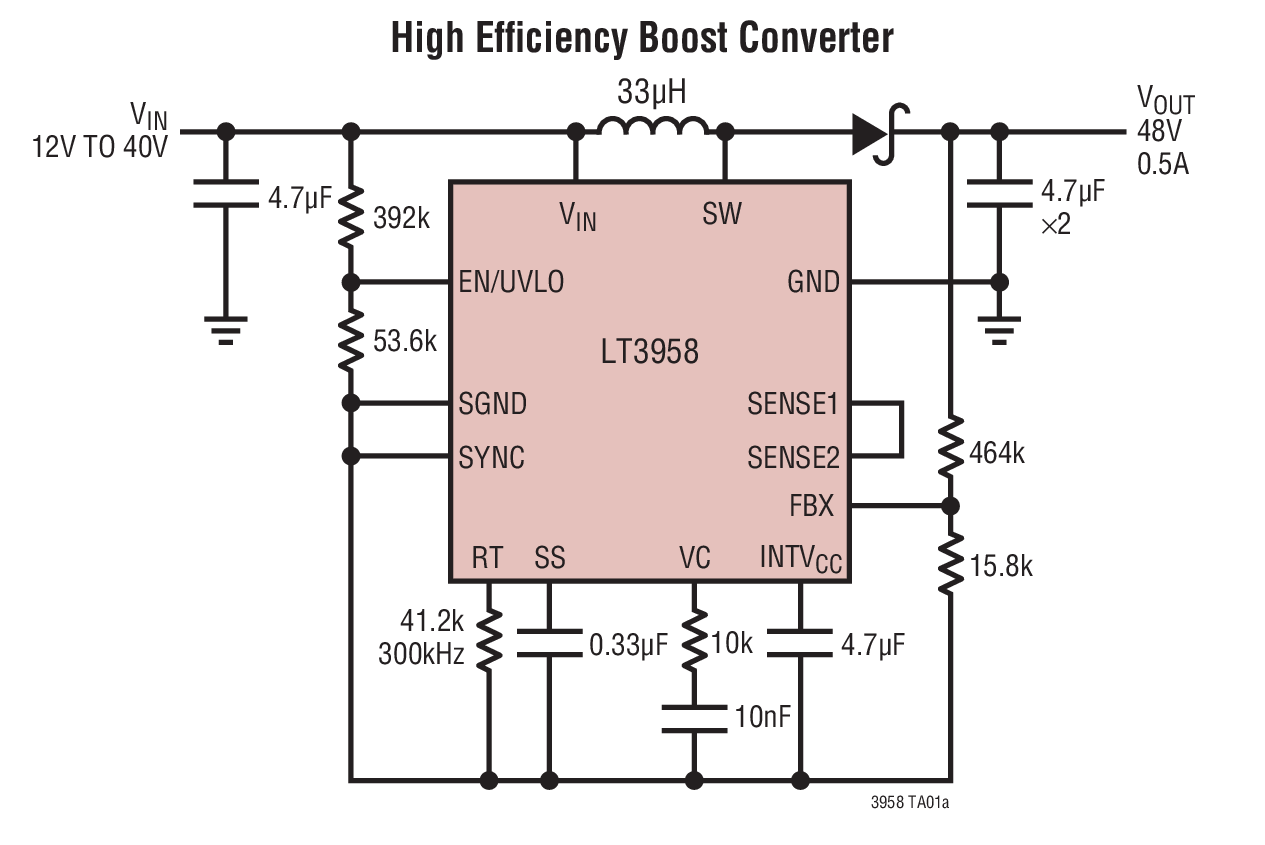

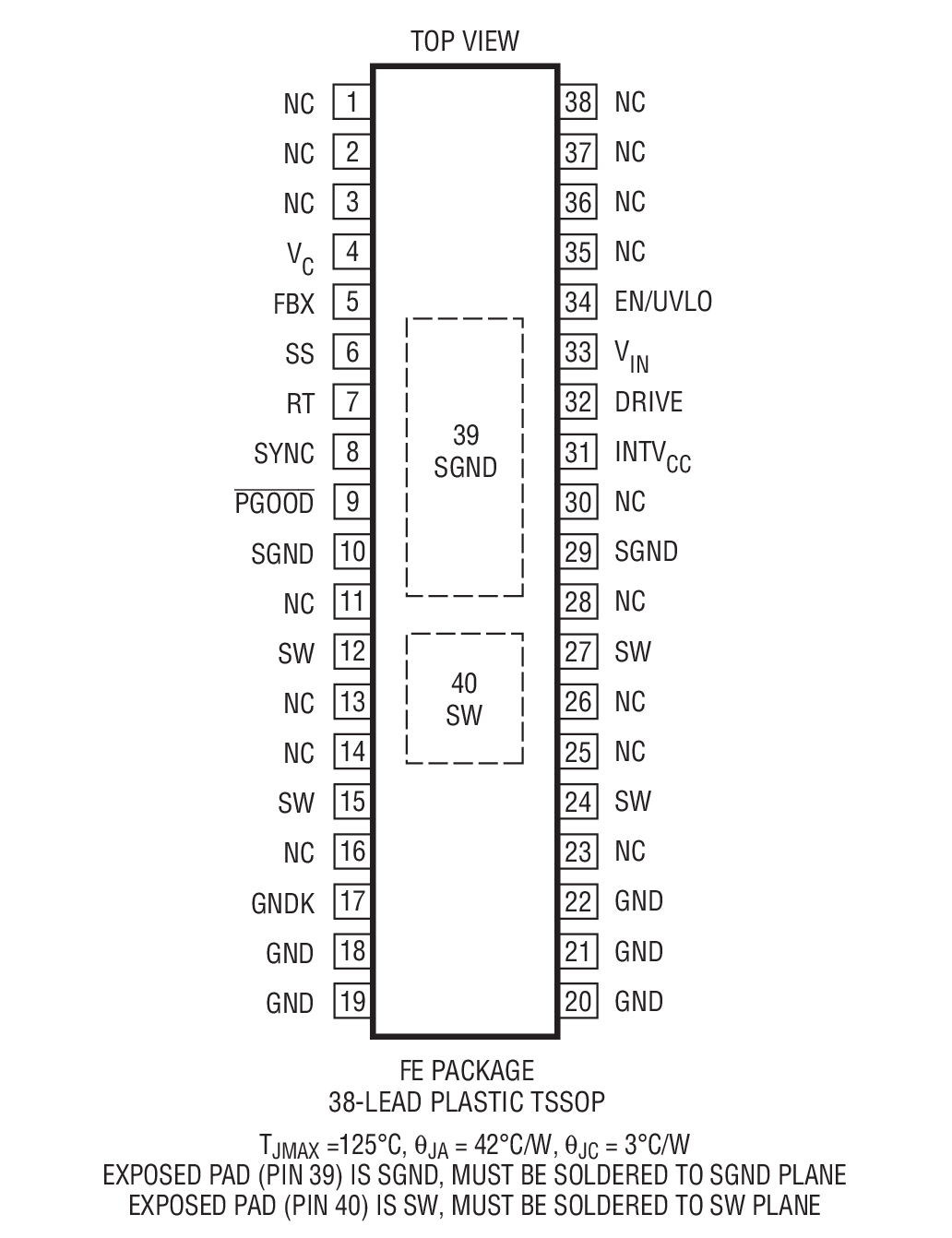

LT3958High Input Voltage, Boost, Flyback, SEPIC and Inverting Converter | Integrated Circuits (ICs) | 3 | Active | The LT3958 is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 84V at 3.3A and driven from an internal regulated 7.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.The operating frequency of LT3958 can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 5V, and a low shutdown quiescent current of less than 1μA, make the LT3958 ideally suited for battery-powered systems.The LT3958 features soft-start and frequency foldback functions to limit inductor current during start-up.ApplicationsAutomotiveTelecomIndustrial |
LT3959Wide Input Voltage Range Boost/SEPIC/Inverting Converter with 6A, 40V Switch | Power Management (PMIC) | 3 | Active | The LT3959 is a wide input range, current mode, DC/DC controller which is capable of regulating either positive or negative output voltages from a single feedback pin. It can be configured as a boost, SEPIC or inverting converter.It features an internal low side N-channel MOSFET rated for 6A at 40V and driven from an internal regulated supply provided from VINor DRIVE. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of LT3959 can be set over a 100kHz to 1MHz range with an external resistor, or can be synchronized to an external clock using the SYNC pin.The LT3959 features soft-start and frequency foldback functions to limit inductor current during start-up and output short-circuit. A window comparator on the FBX pin reports via thePGOODpin, providing output voltage status indication.ApplicationsAutomotiveTelecomIndustrial |

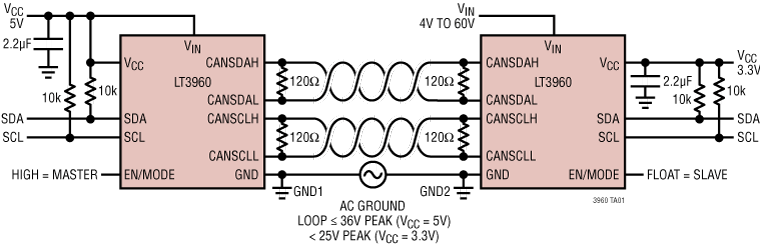

LT3960I2C to CAN-Physical Transceiver | Integrated Circuits (ICs) | 2 | Active | The LT3960 is a robust high speed transceiver that extends a single-master I2C bus through harsh or noisy environments at up to 400kbps using the CAN-physical layer. One LT3960 sits near the I2C master, creating from SCL and SDA equivalent differential buses (I2CAN) on two twisted pairs. At the other end of the twisted pairs, a second LT3960 recreates the I2C bus locally for any slave I2C devices. A built-in 3.3V LDO powers both the I2C and I2CAN buses from a single input supply from 4V to 60V. Alternatively, the LT3960 can be powered directly from a 3.3V or 5V supply.The LT3960 is available in a 10-lead MSOP package.APPLICATIONSIndustrial NetworkingAutomotive NetworkingRemote Sensors |

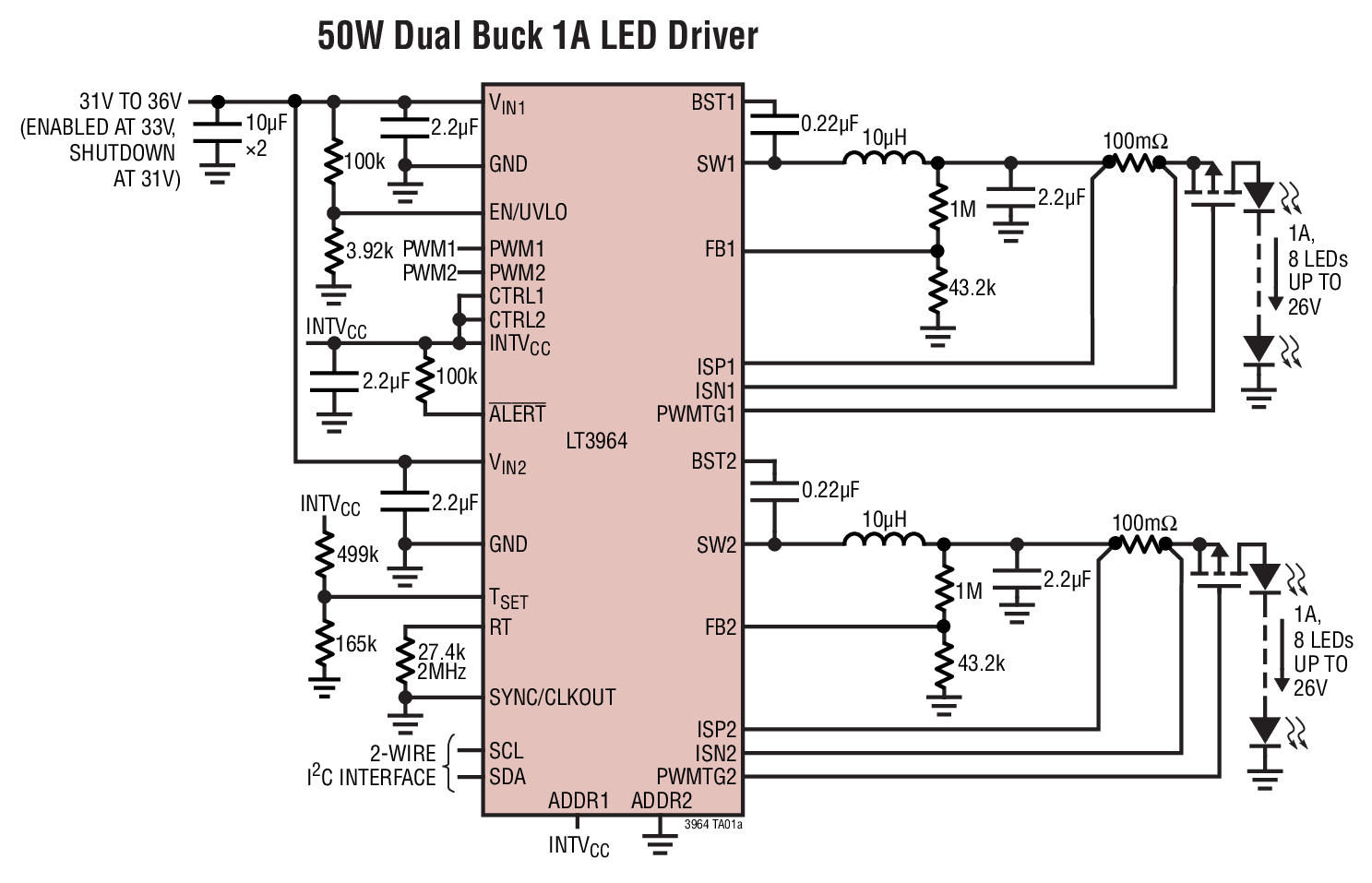

LT3964Dual 36V Synchronous 1.6A Buck LED Driver with I2C | LED Driver Evaluation Boards | 2 | Active | The LT3964 is a dual synchronous step-down DC/DC converter with I2C interface designed to operate as a constant-current and constant-voltage source and is ideal for driving LEDs. The fixed frequency and peak current mode topology result in stable operation over a wide range of supply and output voltages. The ground referred voltage FB pin serves as the input for several LED protection features, and also allows the converter to operate as a constant-voltage source. The maximum output current is set by an external resistor, and the output current amplifier has a rail-to-rail common mode range. LT3964 uses an I2C interface to communicate with a microcontroller to read LED faults, write PWM and analog dimming registers and set fault masking. The I2C PWM input provides LED dimming ratios up to 8192:1. The I2C programmable CTRL register sets the gain of the external CTRL pin, and maximum current sense threshold, providing additional analog dimming capability.ApplicationsGeneral Purpose, Industrial, Medical and Automotive LightingConstant-Current, Constant-Voltage Source |

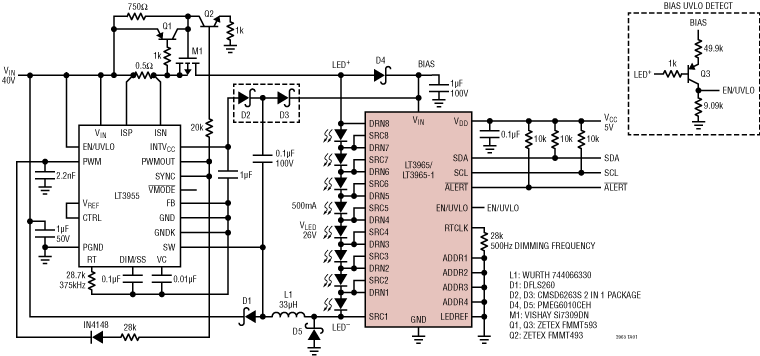

| PMIC | 3 | Active | The LT3965/LT3965-1 is an LED bypass switching device for dimming individual LEDs in a string using a common current source. It features eight individually controlled floating source 17V/330mΩ NMOS switches. The eight switches can be connected in parallel and/or in series to bypass current around one or more LEDs in a string. The LT3965 is initialized with all switches off (LEDs on), and the LT3965-1 is initialized with all switches on (LEDs off)The LT3965/LT3965-1 uses the I2C serial interface to communicate with the microcontroller. Each of the eight channels can be independently programmed to bypass the LED string in constant on or off, or PWM dimming with or without fade transition. Using the fade option provides 11-bit resolution logarithmic transition between PWM dimming states. The LT3965/LT3965-1 provides an internal clock generator and also supports external clock source for PWM dimming. The LT3965/LT3965-1 reports fault conditions for each channel such as open LED and shorted LED. The four address select pins allow 16 LT3965/LT3965-1 devices to share the I2C bus. The device is available in a 28-lead TSSOP package.ApplicationsAutomotive LED Headlight ClustersLarge LED DisplaysAutomated Camera Flash EquipmentRGBW Color Mixing Lighting |

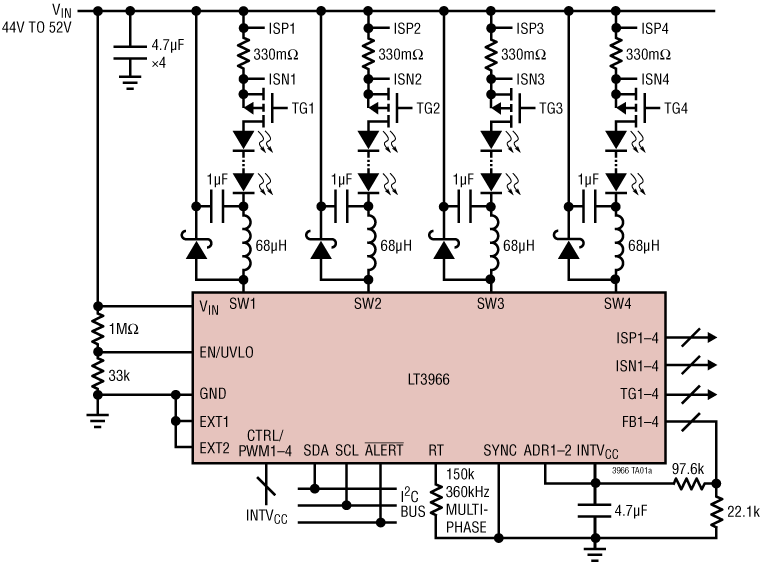

LT3966I2C Programmable Quad Monolithic Boost LED Driver | LED Drivers | 1 | Active | The LT3966 is an I2C programmable monolithic boost LED driver with four independent channels. Each channel provides a 60V current mode boost converter with an internal 1.6A DMOS power switch, as well as internal and external analog and PWM dimming features. I2C programmable features include a 13-bit (8192:1) digital PWM generator, 8-bit analog dimming DAC, and flexible fault reporting and handling.An onboard 8-bit ADC allows measurement of each channel’s output voltage and output current, as well as chip input voltage and two external measurements. In addition, independent shutdown and standby control of each channel provides flexible solutions for multitopology applications.The LT3966 is available in a thermally enhanced 6mm × 6mm 40-Lead QFN package.ApplicationsBacklightingHeads Up Displays |

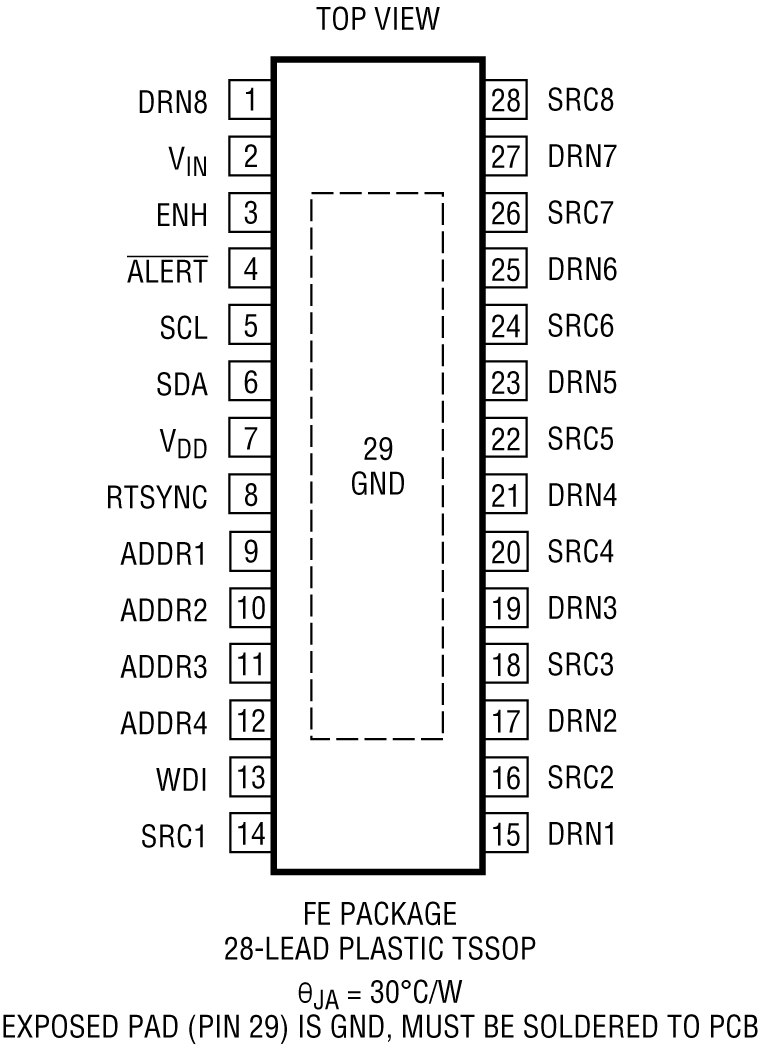

LT39671.3A Eight-Switch Matrix LED Dimmer with CRC-8 | Integrated Circuits (ICs) | 1 | Active | The LT3967 is an LED bypass switching device for dimming individual LEDs in a string using a common current source. It features eight individually controlled floating source 15V/110mΩ NMOS switches. The eight switches can be connected in parallel and/or in series to bypass current around LEDs in a string. The LT3967 uses the I2C serial interface to communicate with a microcontroller. Each of the eight channels can be independently programmed to bypass the LED string in constant on or off, or PWM dimming with or without fade transition. Using the programmable fade option provides 11-bit resolution exponential transition between PWM dimming states. The LT3967 provides an internal clock generator and also supports an external clock source for PWM dimming. The LT3967 reports fault conditions for each channel such as open LED and shorted LED. The four address pins allow 16 LT3967 devices to share the I2C bus and define the power-up state of the switches.APPLICATIONSAutomotive LED Headlight ClustersLarge LED DisplaysRGBW Color Mixing Lighting |
