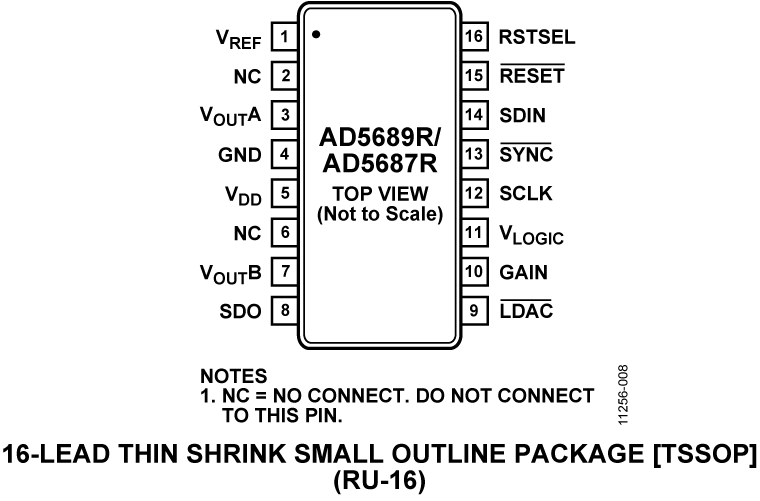

The AD5689R/AD5687Rmembers of thenanoDAC+™ family are low power, dual, 16-/12-bit buffered voltage output digital-to-analog converters (DACs). The devices include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689R/AD5687R also incorporate a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5689R/AD5687R use a versatile serial peripheral interface (SPI) that operates at clock rates up to 50 MHz. Both devices contain a VLOGICpin that is intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5689R (16-bit): ±2 LSB maximumAD5687R (12-bit): ±1 LSB maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsOptical transceiversBase station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems

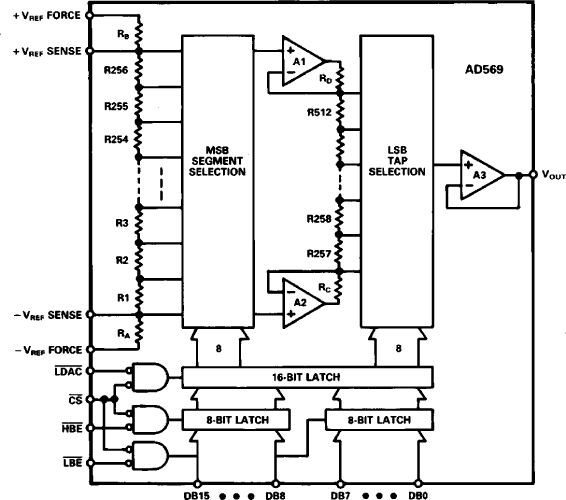

The AD569 is a monolithic 16-bit digital-to-analog converter (DAC) manufactured in Analog Devices' BiMOS II process. BiMOS II allows the fabrication of low power CMOS logic functions on the same chip as high precision bipolar linear circuitry. The AD569 chip includes two resistor strings, selector switches decoding logic, buffer amplifiers, and double-buffered input latches.The AD569's voltage-segmented architecture insures 16-bit monotonicity over time and temperature. Integral nonlinearity is maintained at ±0.01%, while differential nonlinearity is ±0.0004%. The on-chip, high-speed buffer amplifiers provide a voltage output settling time of 3 µs to within ±0.001% for a full-scale step.The reference input voltage which determines the output range can be either unipolar or bipolar. Nominal reference range is ±5 V and separate reference force and sense connections are provided for high accuracy applications. The AD569 can operate with an ac reference in multiplying applications.Data may be loaded into the AD569's input latches from 8- and 16-bit buses. The double-buffered structure simplifies 8-bit bus interfacing and allows multiple DACs to be loaded asynchronously and updated simultaneously. Four TTL/LSTTL/5 V CMOS-compatible signals control the latches:CS,LBE,HBE, andLDAC.The AD569 is available in five grades: J and K versions are specified from 0°C to +70°C and are packaged in a 28-pin plastic DIP and 28-pin PLCC package; AD and BD versions are specified from −25°C to +85°C and are packaged in a 28-pin ceramic DIP. The SD version, also in a 28-pin ceramic DIP, is specified from −55°C to +125°C.

TheAD5693R/AD5692R/ AD5691R /AD5693, members of thenanoDAC+®family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to VREFor 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R / AD5692R / AD5691R / AD5693 contain a power-down mode that reduces the current consumption of the device to 2 μA (maximum) at 5 V and provides software selectable output loads.The AD5693R / AD5692R / AD5691R / AD5693 use an I2C interface. Some device options also include an asynchronousRESETpin and a VLOGICpin, allowing 1.8 V compatibility.Product HighlightsHigh relative accuracy (INL): ±2 LSB maximum (AD5693R/AD5693, 16-bit).Low drift, 2.5 V on-chip reference: 2 ppm/°C typical and 5 ppm/°C maximum temperature coefficient.2 mm × 2 mm, 8-lead LFCSP and 10-lead MSOP.ApplicationsProcess controlsData acquisition systemsDigital gain and offset adjustmentProgrammable voltage sourcesOptical modules

The AD5693R /AD5692R/AD5691R/AD5693, members of the nanoDAC+®family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to VREFor 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R / AD5692R / AD5691R / AD5693 contain a power-down mode that reduces the current consumption of the device to 2 μA (maximum) at 5 V and provides software selectable output loads.The AD5693R / AD5692R / AD5691R / AD5693 use an I2C interface. Some device options also include an asynchronousRESETpin and a VLOGICpin, allowing 1.8 V compatibility.Product HighlightsHigh relative accuracy (INL): ±2 LSB maximum (AD5693R/AD5693, 16-bit).Low drift, 2.5 V on-chip reference: 2 ppm/°C typical and 5 ppm/°C maximum temperature coefficient.2 mm × 2 mm, 8-lead LFCSP and 10-lead MSOP.ApplicationsProcess controlsData acquisition systemsDigital gain and offset adjustmentProgrammable voltage sourcesOptical modules

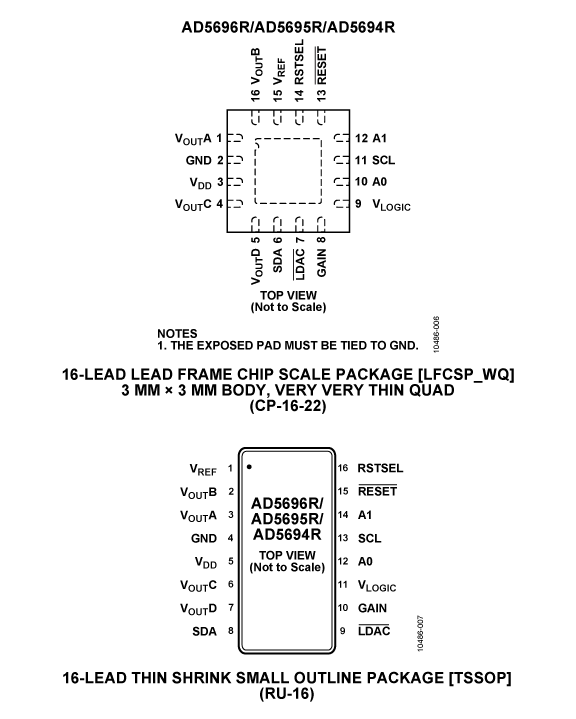

The AD5694R is a low power, quad, 16-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5694R also incorporates a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5694R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz, and includes a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5696R (16-bit): ±2 LSB maximum.AD5695R (14-bit): ±1 LSB maximum.AD5694R (12-bit): ±1 LSB maximum.Low Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient.5 ppm/°C maximum temperature coefficient.Two Package Options.3 mm × 3 mm, 16-lead LFCSP.16-lead TSSOP.ApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems

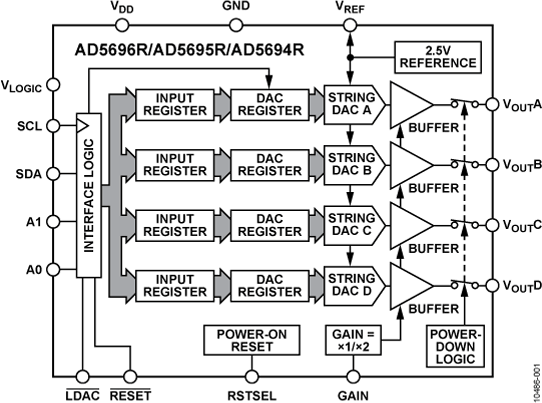

The AD5695R is a low power, quad, 14-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5695R also incorporates a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5695R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz, and includes a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5696R (16-bit): ±2 LSB maximum.AD5695R (14-bit): ±1 LSB maximum.AD5694R (12-bit): ±1 LSB maximum.Low Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient.5 ppm/°C maximum temperature coefficient.Two Package Options.3 mm × 3 mm, 16-lead LFCSP.16-lead TSSOP.ApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems

The AD5696R is a low power, quad, 16-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5696R also incorporates a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5696R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz, and includes a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5696R (16-bit): ±2 LSB maximum.AD5695R (14-bit): ±1 LSB maximum.AD5694R (12-bit): ±1 LSB maximum.Low Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient.5 ppm/°C maximum temperature coefficient.Two Package Options.3 mm × 3 mm, 16-lead LFCSP.16-lead TSSOP.ApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems

The AD570 is an 8-bit successive approximation A/D converter consisting of a DAC, voltage reference, clock, comparator, successive approximation register and output buffers-all fabricated on a single chip. No external components are required to perform a full accuracy 8-bit conversion in 25 µs.The AD570 incorporates the most advanced integrated circuit design and processing technology available today. I2L (integrated injection logic) processing in the fabrication of the SAR function along with laser trimming of the high stability SiCr thin-film resistor ladder network at the wafer stage (LWT) and a temperature compensated, subsurface Zener reference insures full 8-bit accuracy at low cost.Operating on supplies of +5 V and -15 V, the AD570 accepts analog inputs of 0 V to +10 V unipolar of ±5 V bipolar, externally selectable. As the BLANK andCONVERTinput is driven low, the three-state outputs go into the high impedance state and a conversion commences. Upon completion of the conversion, theDATAREADYline goes low and the data appears at the output. Pulling the BLANK andCONVERTinput high three states the outputs and readies the device for the next conversion. The AD570 executes a true 8-bit conversion with no missing codes in approximately 25 µs.The AD570 is available in two versions; the AD570J is specified for the 0°C to +70°C temperature range, the AD570S for -55°C to +125°C. Both guarantee full 8-bit accuracy and no missing codes over their respective temperature ranges.PRODUCT HIGHLIGHTSThe AD570 is a complete 8-bit A/D converter. No external components are required to perform a conversion. Full-scale calibration accuracy of ± 0.8% (2 LSB of 8 bits) is achieved without external trims.The AD570 is a single chip device employing the most advanced IC processing techniques. Thus, the user has at his disposal a truly precision component with the reliability and low cost inherent in monolithic construction.The AD570 accepts either unipolar (0 V to +10 V) or bipolar (–5 V to +5 V) analog inputs by grounding or opening a single pin.The device offers true 8-bit accuracy and exhibits no missing codes over its entire operating temperature range.Operation is guaranteed with –15 V and +5 V supplies. The device will also operate with a –12 V supply.The AD570S is also available processed to MIL-STD-883C, Class B. The military data sheet for the AD570SD/883B is included in the Analog Devices Military Products Databook.

The AD5700/AD5700-1are single-chip solutions, designed and specified to operate as a HART®FSK half-duplex modem, complying with the HART physical layer requirements. The AD5700/AD5700-1 integrate all of the necessary filtering, signal detection, modulating, demodulating and signal generation functions, thus requiring few external components. The 0.5% precision internal oscillator on the AD5700-1 greatly reduces the board space requirements, making it ideal for line-powered applications in both master and slave configurations. The maximum supply current consumption is 115µA, making theAD5700/AD5700-1 an optimal choice for low power loop-powered applications. Transmit waveforms are phase continuous 1200 Hz and 2200 Hz sinusoids. The AD5700/AD5700-1 contain accurate carrier detect circuitry and use a standard UART interface.ApplicationsField transmittersHART multiplexersPLC and DCS analog I/O modulesHART network connectivity
