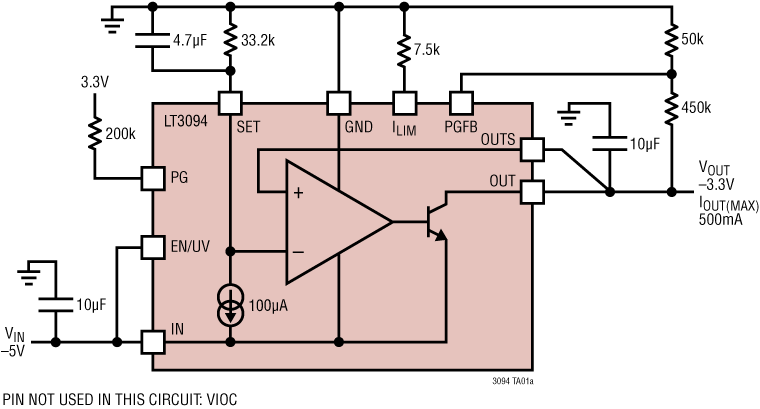

The LT3094 is a high performance low dropout negative linear regulator featuring ADI’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications. The device can be easily paralleled to further reduce noise, increase output current and spread heat on a PCB.The LT3094 supplies 500mA at a typical 235mV dropout voltage. Operating quiescent current is nominally 2.35mA and drops to 3µA in shutdown. The device’s wide output voltage range (0V to –19.5V) error amplifier operates in unity-gain and provides virtually constant output noise, PSRR, bandwidth, and load regulation independent of the programmed output voltage. Additional features are a bipolar enable pin, programmable current limit, fast startup capability and programmable power good to indicate output voltage regulation. The regulator incorporates a tracking function to control an upstream supply to maintain a constant voltage across the LT3094 to minimize power dissipation and optimize PSRR.The LT3094 is stable with a minimum 10µF ceramic output capacitor. Built-in protection includes internal current limit with foldback and thermal limit with hysteresis. The LT3094 is available in thermally enhanced 12-Lead MSOP and 3mm × 3mm DFN Packages.ApplicationsRF and Precision Power SuppliesVery Low Noise InstrumentationHigh Speed/High Precision Data ConvertersMedical Applications: Diagnostics and ImagingPost-Regulator for Switching Supplies

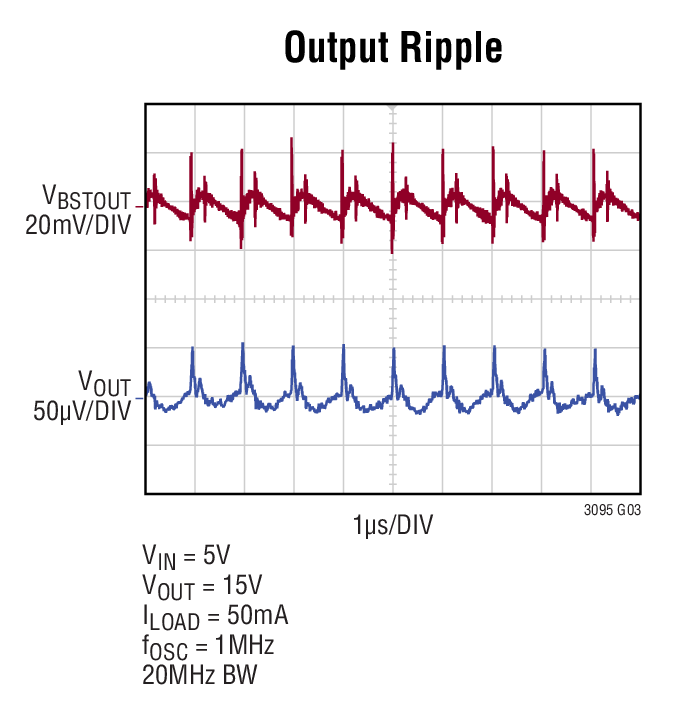

The LT3095 generates two low-noise bias supplies from a common input voltage ranging from 3V to 20V. Each channel includes a fixed frequency, peak current-mode step-up switching regulator and a low-noise, singleresistor- programmable 50mA linear regulator. The linear regulator’s high power supply ripple rejection (PSRR) combined with its low-noise performance results in less than 100μVP-Poutput ripple and noise.Each boost regulator adjusts its output voltage to 2V above the corresponding linear regulator’s output voltage, optimizing power dissipation, PSRR and transient response. This tracking scheme, along with internal boost regulator frequency compensation and integrated Schottky diodes, minimizes external component count and simplifies system design. Each linear regulator includes internal current limit and thermal limit protection circuitry.The LT3095 switching frequency is externally programmable with a single resistor from 450kHz to 2MHz. A SYNC pin allows synchronization to an external clock. The LT3095 is available in a thermally enhanced, low profile (0.75mm) 24-lead 3mm × 5mm QFN package.ApplicationsNoise-Sensitive USB Powered ApplicationsData Conversion, Industrial Supplies, RFInstrumentation Amplifiers

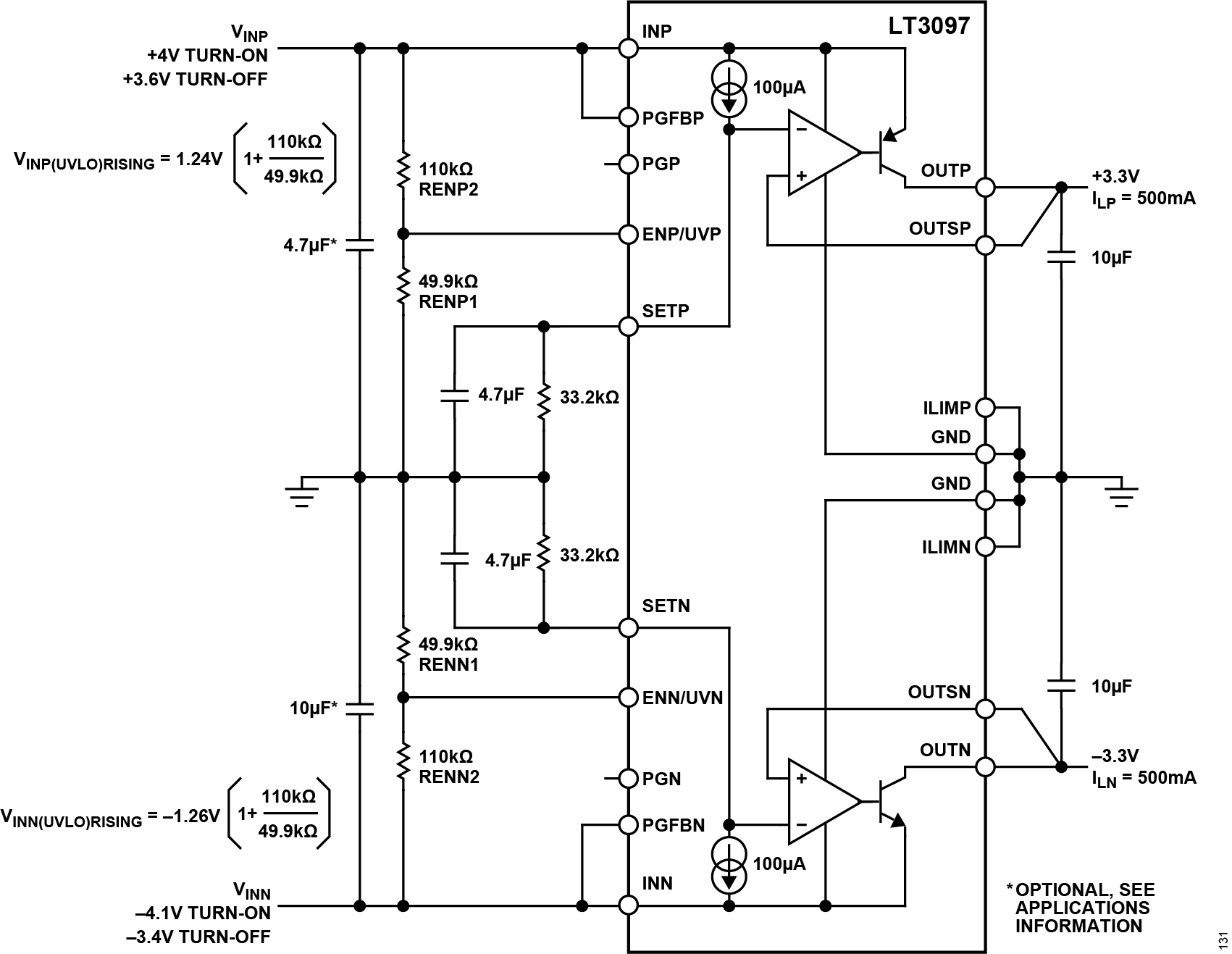

The LT3097 is a dual, positive and negative, high-performance, low-dropout linear regulator featuring Analog Devices, Inc., ultralow noise and ultra-high power supply rejection ratio (PSRR) architecture for powering noise-sensitive applications. Each regulator delivers up to 500 mA with a typical 260 mV/235 mV (positive/negative) dropout voltage.Operating quiescent current is nominally 2.2 mA/2.35 mA (positive/negative) and drops to 0.3 μA/3 μA (positive/negative) in shutdown. The LT3097 has a wide output voltage range (0 V to 15 V, positive and 0 V to -19.5 V, negative) error amplifier that operates in unity-gain and provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage.LT3097 is stable with a minimum 10 μF ceramic output capacitor for each channel. Built-in protection includes internal current limit with foldback and thermal limit with hysteresis. The positive regulator also includes reverse-battery protection and reverse-current protection. The LT3097 is available in a thermally enhanced, 22-lead 6 mm × 3 mm, Plastic dual-flat no-leads (DFN) package.APPLICATIONSBipolar very low-noise power suppliesRF power supplies: phase-locked loops, voltage-controlled oscillators, mixers, low-noise amplifiers, and power amplifiersLow-noise instrumentationHigh-speed and high-precision data convertersMedical applications: imaging and diagnosticsPrecision power suppliesPostregulator for switching supplies

The LT3150 drives a low cost external N-channel MOSFET as a source follower to produce a fast transient response, very low dropout voltage linear regulator. Selection of the N-channel MOSFET RDS(ON)allows dropout voltages below 300mV for low VINto low VOUTapplications.The LT3150 includes a fixed frequency boost regulator that generates gate drive for the N-channel MOSFET. The internally compensated current mode PWM architecture combined with the 1.4MHz switching frequency permits the use of tiny, low cost capacitors and inductors.The LT3150’s transient load performance is optimized with ceramic output capacitors. A precision 1.21V reference accommodates low voltage supplies.Protection includes a high side current limit amplifier that activates a fault timer circuit. A multifunction shutdown pin provides either current limit time-out with latchoff, overvoltage protection or thermal shutdown. Independent shutdown control of the boost converter provides on/off and sequencing control of the LDO output voltage.ApplicationsMicroprocessor, ASIC and I/O SuppliesVery Low Dropout Input-to-Output ConversionLogic Termination Supplies

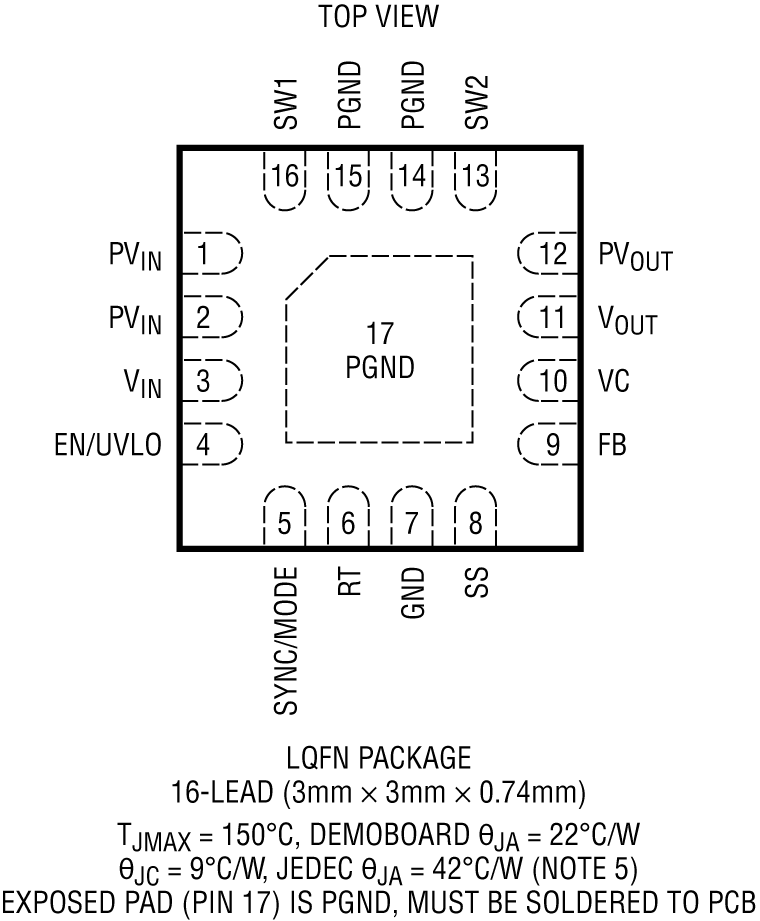

The LT3154 is a highly efficient, high current, buck‑boost DC/DC converter that operates from input voltages above, below or equal to the regulated output voltage. The LT3154’s advanced topology provides a continuous transfer through all operating modes. VINoperation from 1.8V to 5.5V provides flexibility for a wide variety of power sources. The output voltage is adjustable between 1.8V to 5.5V.To minimize external components the LT3154 can be configured to operate from a 2.2MHz internal oscillator. To optimize applications for highest efficiency or smallest footprint the oscillator can be programmed between 500kHz to 4MHz, or synchronized to an external clock for noise sensitive circuits.Selectable Burst Mode operation reduces quiescent current to 17μA, ensuring high efficiency across the entire load range. The VINstart-up threshold (UVLO) can be adjusted for various input sources. An internal or externally programmable soft-start limits inrush current during start-up. Other features include <1μA shutdown current, short circuit, and thermal overload protection. The LT3154 is housed in the thermally enhanced 16-lead (3mm × 3mm × 0.74mm) LQFN package.APPLICATIONSPortable Inventory TerminalsHandheld ComputersMedical and Industrial InstrumentsWireless RF TransmitterBackup Power ApplicationsBattery Powered Systems

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now ObsoleteThe LT137A/LT337A negative adjustable regulators will deliver up to 1.5Amps output current over an output voltage range of - 1.2V to -37V. We have made significant improvements in these regulators compared to previous devices, such as better line and load regulation, and a maximum output voltage error of 1%.Every effort has been made to make these devices easy to use and difficult to damage. Internal current and power limiting coupled with true thermal limiting prevents device damage due to overloads or shorts, even if the regulator is not fastened to a heat sink.Maximum reliability is attained with our advanced processing techniques combined with a 100% burn-in in the thermal limit mode. This assures that all device protection circuits are working and eliminates field failures experienced with other regulators that receive only standard electrical testing.ApplicationsThe H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now ObsoleteAdjustable Power SuppliesSystem Power SuppliesPrecision Voltage/Current RegulatorsOn-Card Regulators

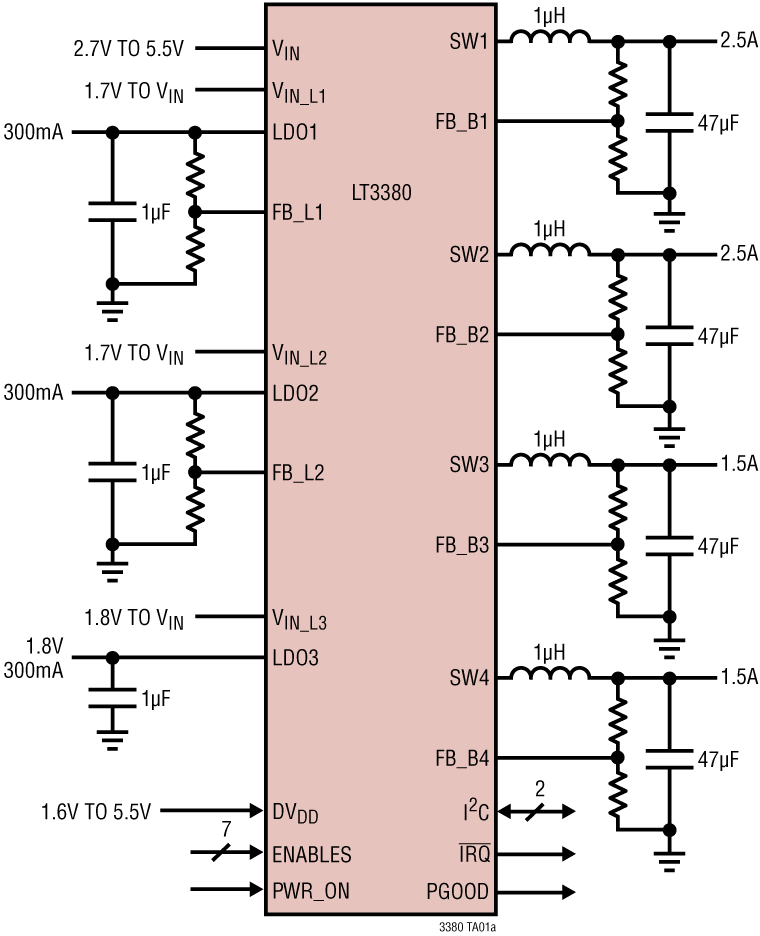

The LT3380 is a complete power management solution for advanced portable application processor-based systems. The device contains four synchronous step-down DC/DC converters for core, memory, I/O, and system onchip (SoC) rails and three 300mA LDO regulators for low noise analog supplies. An I2C serial port may be used to control regulator enables, power-down sequencing, output voltage levels, dynamic voltage scaling, operating modes, and status reporting.Regulator start-up is sequenced by connecting outputs to enable pins in the desired order or via the I2C port. The LT3380 outputs may be sequenced off in one of four time slots selected using I2C command registers.The device is available in a 40-lead 6mm × 6mm QFN with wettable flanks for optical inspection.APPLICATIONSAutomotiveIndustrialCommunicationsGeneral Purpose Multichannel Power Supplies
