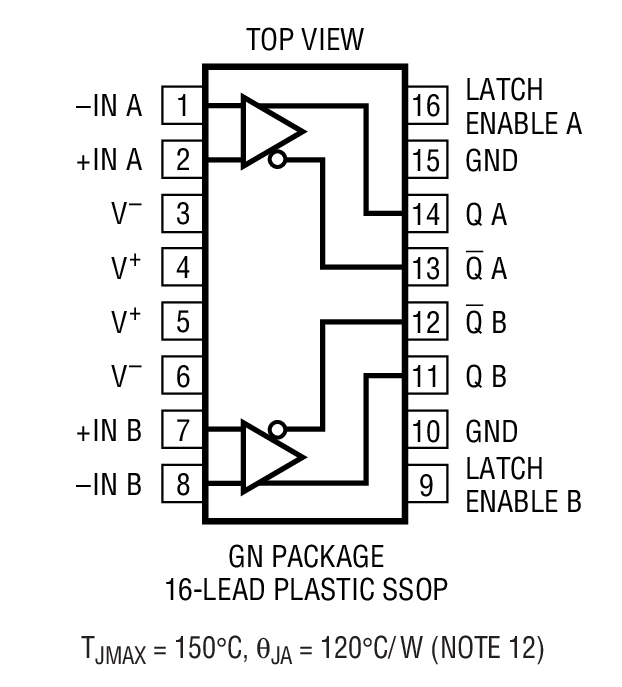

The LT1712 is a 4.5ns dual comparator featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, it operates over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies.The LT1712 is designed for ease of use in a variety of systems. In addition to the wide supply voltage flexibility, the rail-to-rail input common mode range extends 100mV beyond both supply rails, and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+.The LT1712 has an internal TTL/CMOS compatible latch for retaining data at the outputs. The latch holds data as long as the latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1712 is available in the 16-pin narrow SSOP package.ApplicationsHigh Speed Automatic Test EquipmentCurrent Sense for Switching RegulatorsCrystal Oscillator CircuitsHigh Speed Sampling CircuitsHigh Speed A/D ConvertersPulse Width ModulatorsWindow ComparatorsExtended Range V/F ConvertersFast Pulse Height/Width DiscriminatorsLine ReceiversHigh Speed Triggers

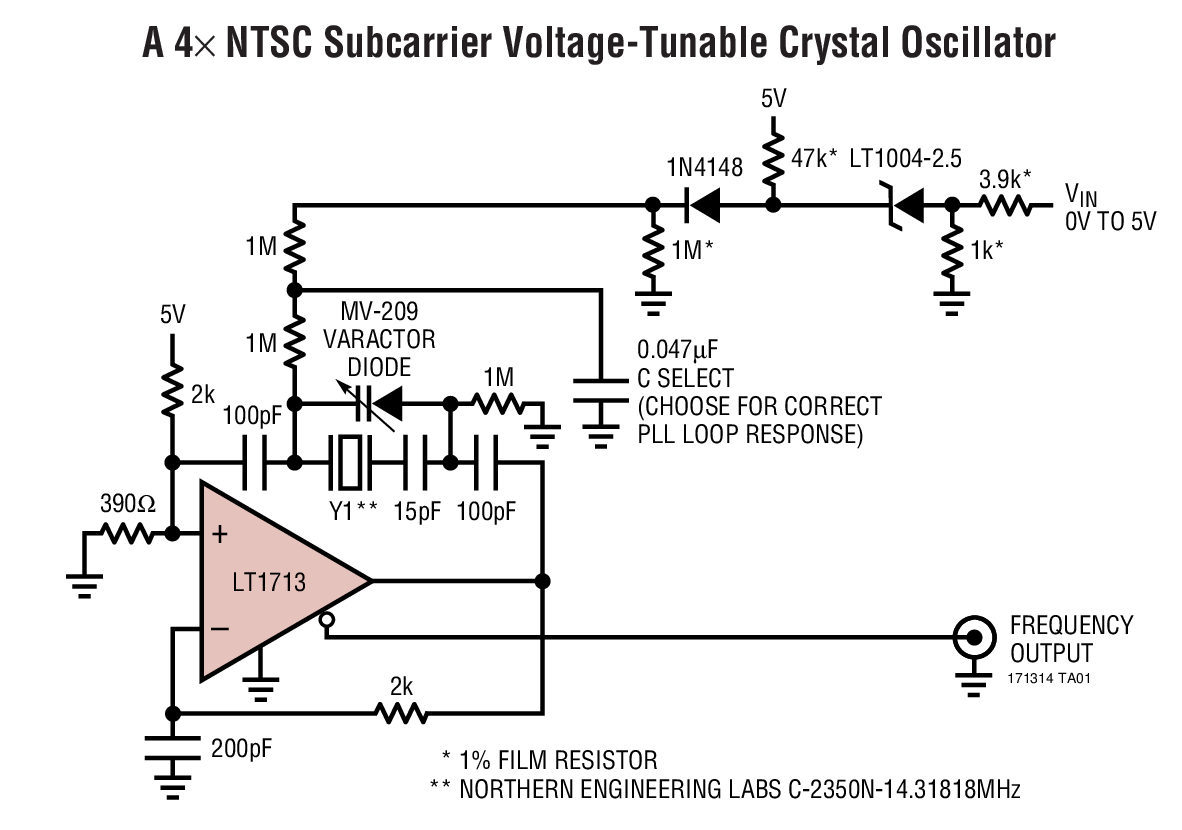

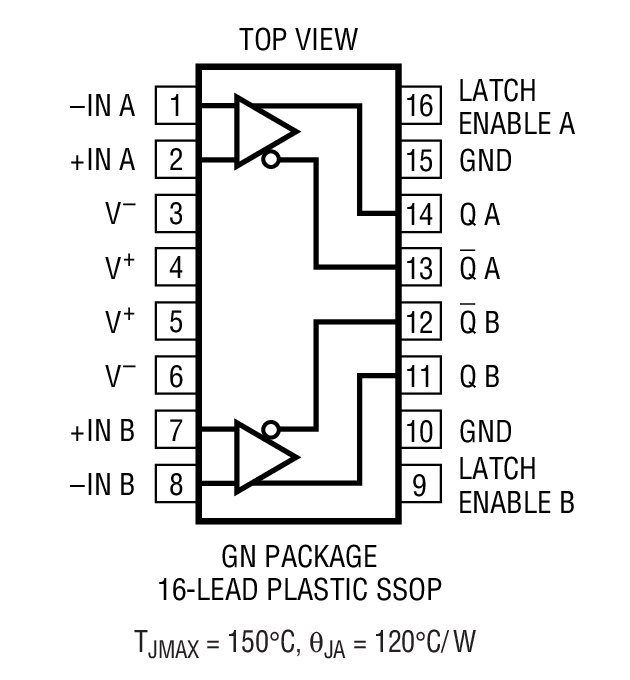

The LT1713/LT1714 are UltraFast™7ns, single/dual comparators featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, they operate over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies.The LT1713/LT1714 are designed for ease of use in a variety of systems. In addition to wide supply voltage flexibility, rail-to-rail input common mode range extends 100mV beyond both supply rails and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+.The LT1713/LT1714 have internal TTL/CMOS compatible latches for retaining data at the outputs. Each latch holds data as long as its latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1713 is available in the 8-lead MSOP package. The LT1714 is available in the 16-lead narrow SSOP package.ApplicationsHigh Speed Automatic Test EquipmentCurrent Sense for Switching RegulatorsCrystal Oscillator CircuitsHigh Speed Sampling CircuitsHigh Speed A/D ConvertersPulse Width ModulatorsWindow ComparatorsExtended Range V/F ConvertersFast Pulse Height/Width DiscriminatorsLine ReceiversHigh Speed Triggers

The LT1713/LT1714 are UltraFast™7ns, single/dual comparators featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, they operate over a single supply voltage range from 2.4V to 12V or from +/-2.4V to +/-6V dual supplies.The LT1713/LT1714 are designed for ease of use in a variety of systems. In addition to wide supply voltage flexibility, rail-to-rail input common mode range extends 100mV beyond both supply rails and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+ .The LT1713/LT1714 have internal TTL/CMOS compatible latches for retaining data at the outputs. Each latch holds data as long as its latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1713 is available in the 8-lead MSOP package. The LT1714 is available in the 16-lead narrow SSOP package.ApplicationsHigh Speed Automatic Test EquipmentCurrent Sense for Switching RegulatorsCrystal Oscillator CircuitsHigh Speed Sampling CircuitsHigh Speed A/D ConvertersPulse Width ModulatorsWindow ComparatorsExtended Range V/F ConvertersFast Pulse Height/Width DiscriminatorsLine ReceiversHigh Speed Triggers

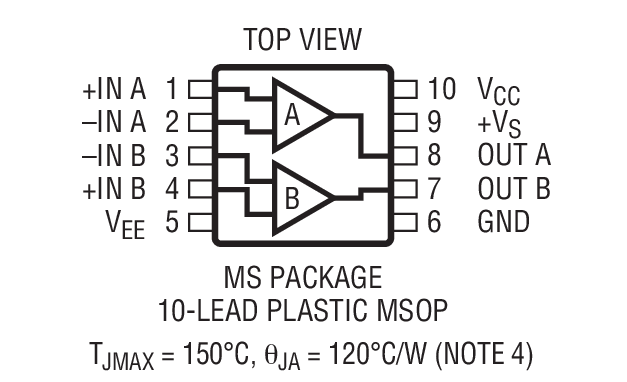

The LT1715 is an UltraFast™dual comparator optimized for low voltage operation. Separate supplies allow independent analog input ranges and output logic levels with no loss of performance. The input voltage range extends from 100mV below VEEto 1.2V below VCC.Internal hysteresis makes the LT1715 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. The symmetric output drive results in similar rise and fall times that can be harnessed for analog applications or for easy translation to other single supply logic levels.The LT1715 is available in the 10-pin MSOP package. The pinout of the LT1715 minimizes parasitic effects by placing the most sensitive inputs away from the outputs, shielded by the power rails.For a dual/quad single supply comparator with similar propagation delay, see the LT1720/LT1721. For a single comparator with similar propagation delay,see the LT1719.ApplicationsHigh Speed Differential Line ReceiversLevel TranslatorsWindow ComparatorsCrystal Oscillator CircuitsThreshold Detectors/DiscriminatorsHigh Speed Sampling CircuitsDelay Lines

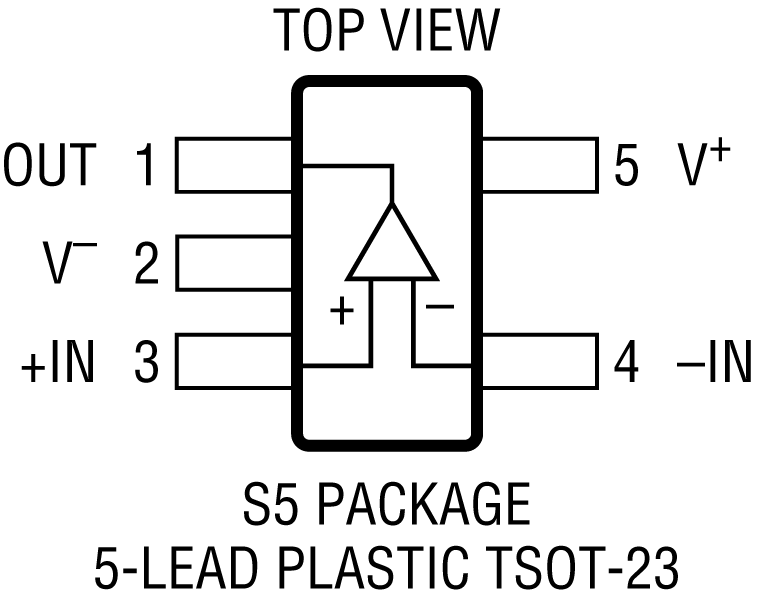

The LT1716 comparator operates on any total power supply voltage between 2.7V and 44V drawing 35µA of quiescent current. The LT1716 has a unique input stage that can be taken 44V above V–, independent of V+supply. (Built-in resistors protect the inputs for faults below the negative supply of up to 5V.) The inputs can withstand 44V both differential and common mode.The output stage includes a class "B" pull-up current source, eliminating the need for an external resistive pull-up and saving power. Output voltage swings to within 35mV of the negative supply and 55mV of the positive supply, which makes the comparator a good choice for low voltage single supply operation. The output stage is also designed to drive loads connected to a higher supply than the LT1716 supply, the same as an open collector output stage.The LT1716 is available in a SOT-23 5-lead package.ApplicationsPower Supply MonitorsRelay/Lamp DriverOscillatorsPeak DetectorLevel Shifting

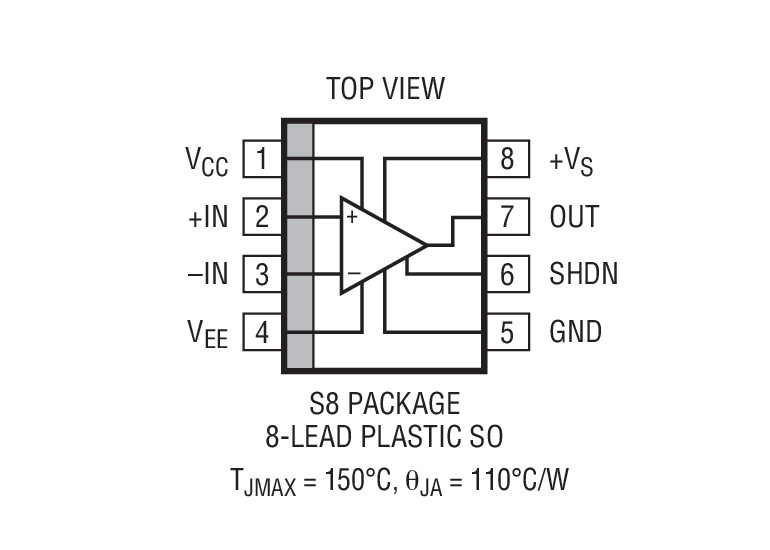

The LT1719 is an UltraFast™comparator optimized for low voltage operation. The input voltage range extends from 100mV below VEEto 1.2V below VCC. Internal hysteresis makes the LT1719 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively the symmetric output drive can be harnessed for analog applications or for easy translation to other single supply logic levels. A shutdown control allows for reduced power consumption and extended battery life in portable applications.The LT1719 is available in the SO-8 and 6-lead SOT-23 package. The SO-8 package has separate supplies which allow flexible operation, accomodating separate analog input ranges and output logic levels.For a dual/quad comparator with similar performance, see the LT1720/LT1721.ApplicationsHigh Speed Differential Line ReceiverCrystal Oscillator CircuitsLevel TranslatorsThreshold Detectors/DiscriminatorsZero-Crossing DetectorsHigh Speed Sampling CircuitsDelay Lines

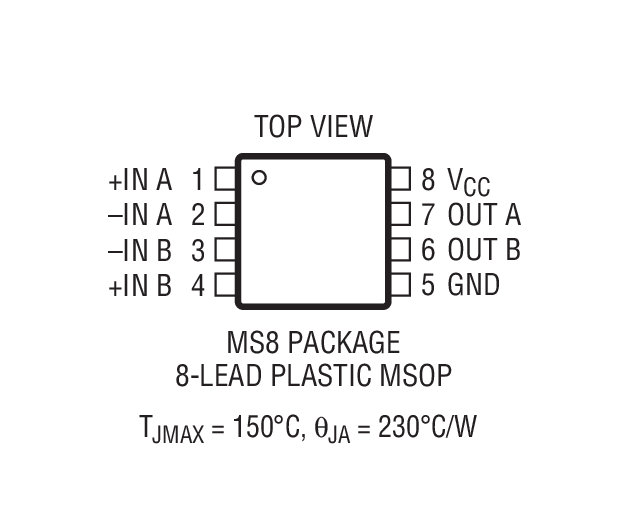

The LT1720/LT1721 are UltraFast™dual/quad comparators optimized for single supply operation, with a supply voltage range of 2.7V to 6V. The input voltage range extends from 100mV below ground to 1.2V below the supply voltage. Internal hysteresis makes the LT1720/LT1721 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively, the symmetric output drive can be harnessed for analog applications or for easy translation to other single supply logic levels.The LT1720 is available in three 8-pin packages; three pins per comparator plus power and ground. In addition to SO and MSOP packages, a 3mm × 3mm low profile (0.8mm) dual fine pitch leadless package (DFN) is available for space limited applications. The LT1721 is available in the 16-pin SSOP and S packages.The pinouts of the LT1720/LT1721 minimize parasitic effects by placing the most sensitive inputs (inverting) away from the outputs, shielded by the power rails. The LT1720/LT1721 are ideal for systems where small size and low power are paramount.ApplicationsHigh Speed Differential Line ReceiverCrystal Oscillator CircuitsWindow ComparatorsThreshold Detectors/DiscriminatorsPulse StretchersZero-Crossing DetectorsHigh Speed Sampling Circuits

The LT1720/LT1721 are UltraFast™dual/quad comparators optimized for single supply operation, with a supply voltage range of 2.7V to 6V. The input voltage range extends from 100mV below ground to 1.2V below the supply voltage. Internal hysteresis makes the LT1720/LT1721 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively, the symmetric output drive can be harnessed for analog applications or for easy translation to other single supply logic levels.The LT1720 is available in three 8-pin packages; three pins per comparator plus power and ground. In addition to SO and MSOP packages, a 3mm × 3mm low profile (0.8mm) dual fine pitch leadless package (DFN) is available for space limited applications. The LT1721 is available in the 16-pin SSOP and S packages.The pinouts of the LT1720/LT1721 minimize parasitic effects by placing the most sensitive inputs (inverting) away from the outputs, shielded by the power rails. The LT1720/LT1721 are ideal for systems where small size and low power are paramount.ApplicationsHigh Speed Differential Line ReceiverCrystal Oscillator CircuitsWindow ComparatorsThreshold Detectors/DiscriminatorsPulse StretchersZero-Crossing DetectorsHigh Speed Sampling Circuits

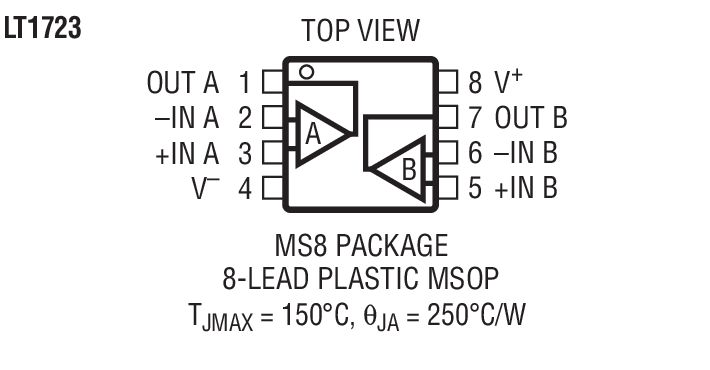

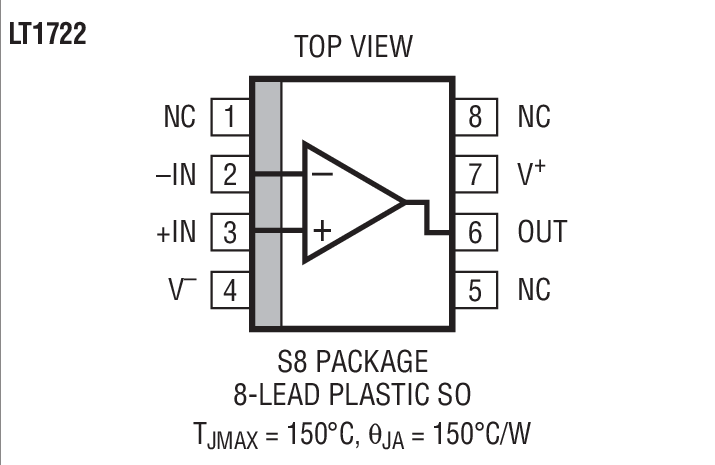

The LT1722/LT1723/LT1724 are single/dual/quad, low noise, low power, high speed operational amplifiers. These products feature lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The 200MHz gain bandwidth ensures high open-loop gain at video frequencies.The low input noise voltage is achieved with reduced supply current. The total noise is optimized for a source resistance between 0.8k and 12k. Due to the input bias current cancellation technique used, the resistance seen by each input does not need to be balanced.The output drives a 150Ω load to ±3V with ±5V supplies. On a single 5V supply the output swings from 1.5V to 3.5V with a 500Ω load connected to 2.5V. The amplifier is unity-gain stable (CLOAD≤ 100pF).The LT1722/LT1723/LT1724 are manufactured on Linear Technology’s advanced low voltage complementary bipolar process. The LT1722 is available in the SO-8 and 5-pin SOT-23 packages. The LT1723 is available in the SO-8 and MS8 packages. The LT1724 is available in the 14-lead SO package.ApplicationsVideo and RF AmplificationADSL, HDSL II, VDSL ReceiversActive FiltersWideband AmplifiersBuffersData Acquisition Systems

The LT1722/LT1723/LT1724 are single/dual/quad, low noise, low power, high speed operational amplifiers. These products feature lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The 200MHz gain bandwidth ensures high open-loop gain at video frequencies.The low input noise voltage is achieved with reduced supply current. The total noise is optimized for a source resistance between 0.8k and 12k. Due to the input bias current cancellation technique used, the resistance seen by each input does not need to be balanced.The output drives a 150Ω load to ±3V with ±5V supplies. On a single 5V supply the output swings from 1.5V to 3.5V with a 500Ω load connected to 2.5V. The amplifier is unity-gain stable (CLOAD≤ 100pF).The LT1722/LT1723/LT1724 are manufactured on Linear Technology’s advanced low voltage complementary bipolar process. The LT1722 is available in the SO-8 and 5-pin SOT-23 packages. The LT1723 is available in the SO-8 and MS8 packages. The LT1724 is available in the 14-lead SO package.ApplicationsVideo and RF AmplificationADSL, HDSL II, VDSL ReceiversActive FiltersWideband AmplifiersBuffersData Acquisition Systems
